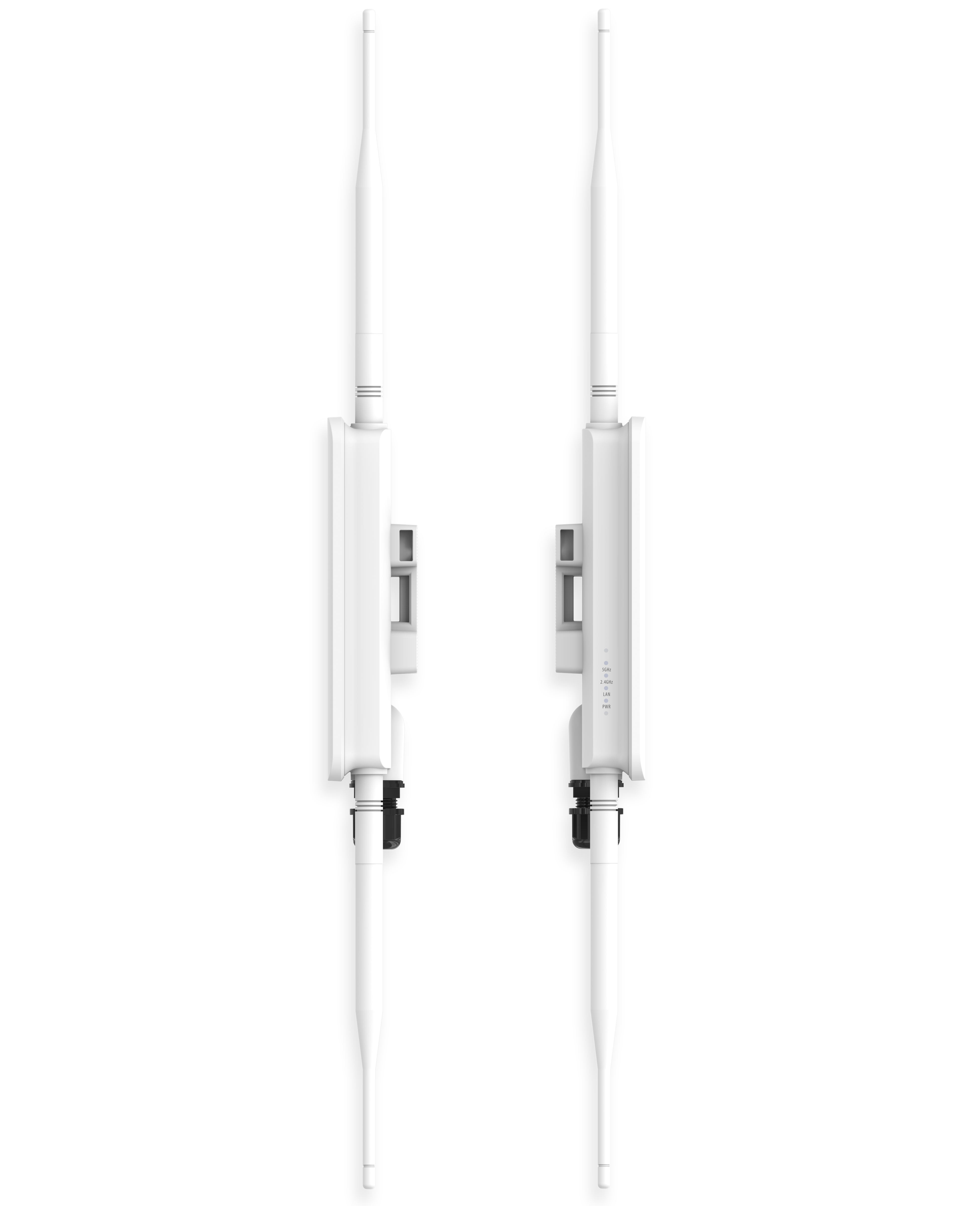

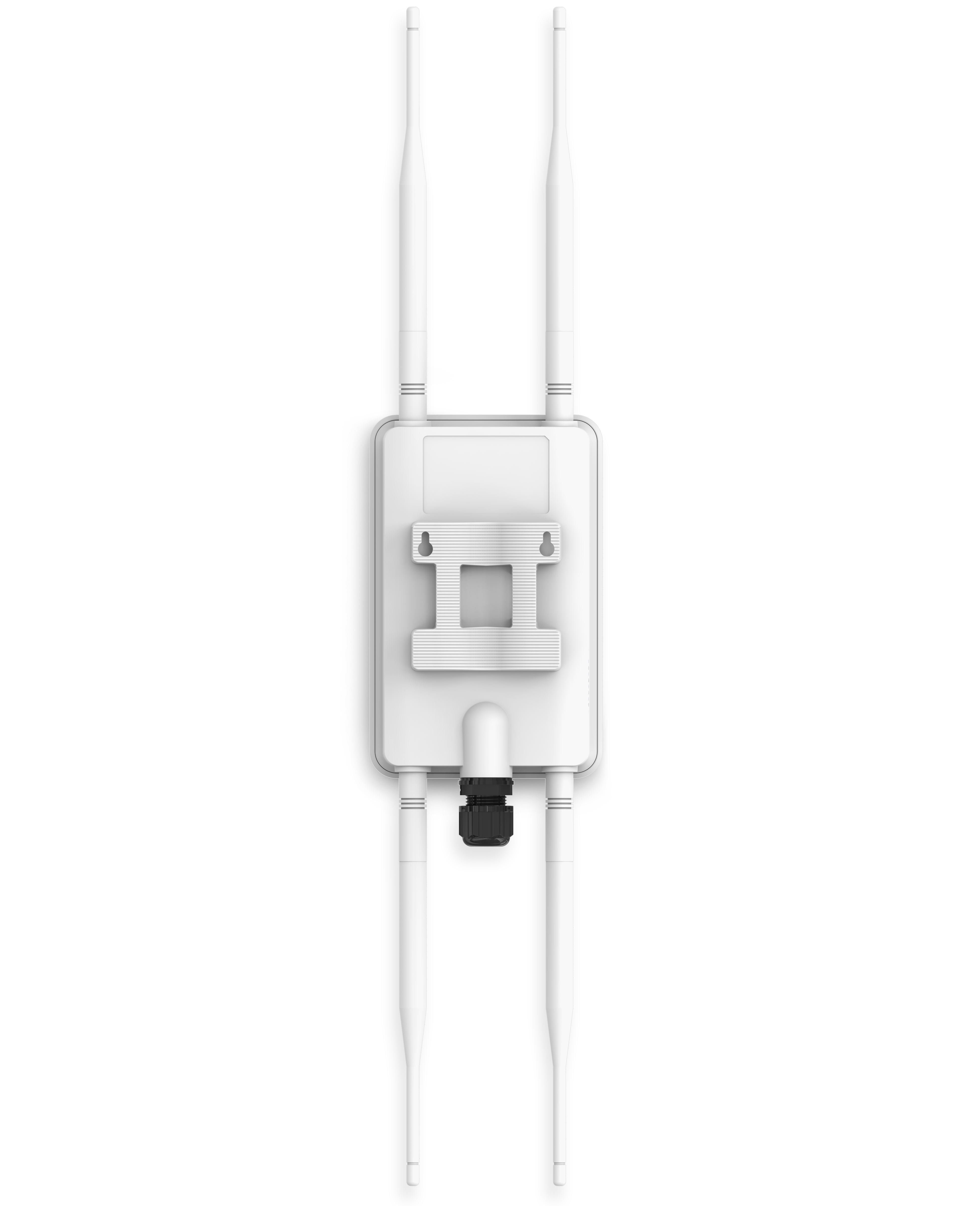

EnGenius - ECW160 - Wi-Fi 5 (802.11ac Wave 2), 2x2:2, Cloud Managed Outdoor AP
Part number:
ECW160
Price:
EnGenius Cloud Managed ECW160 11ac Wave 2, 2x2, IP67, MU-MIMO Dual-Band Outdoor Mesh WiFi Wireless Access Point reaching speeds to 867Mbps on 5GHz and 400Mbps on 2.4GHz band. Designed to perform in harsh environments, this AP leverages advanced Wi-Fi and Beamforming technology, maximizing performance and reliability while greatly increasing network user capacities.
Features:
- Dual-radio 2x2 802.11ac/a/b/g/n with MU-MIMO & Beamforming technology
- Supports up-to 867 Mbps in 5-GHz band & 400 Mbps in 2.4-GHz band
- IP67-Rated Weatherproof & Dustproof Housing Withstands Harsh Environments
- GigE PoE-Compatible Port for Easy Placement Where Power Outlets are Scarce
- Four (4) Detachable 5dbi High-Gain, 360° SMA-Type Antennas
| Technical Specifications |
| Standards |
| IEEE 802.11b/g/n on 2.4GHz |
| IEEE802.11a/n/ac on 5GHz |
| Processor |
| Qualcomm® 717 MHz Quad-Core CPU |
| ARM Cortex A7 |
| Antenna |
| Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna |
| SMA-Type |
| Physical Interface |
| 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port |
| LED Indicators |
| 1 x Power |
| 1 x LAN |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| Power Source |
| Power-over-Ethernet: 802.3af/at or Proprietary 54V |
| IEEE 802.11e Compliant Source |
| Active Ethernet (PoE) |
| Maximum Power Consumption |
| 12.6W |
| Surge Protection |
| 2KV |
| ESD Protection |
| Contact: 4KV |
| Air: 8 KV |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4GHz & 5 GHz |
| Operation Modes |
| AP, Mesh |
| Frequency Radio |
| 2.4GHz: 2400 MHz ~ 2482 MHz |
| 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz |
| Transmit Power |
| 2.4 GHz: 23 dBm |
| 5 GHz: 23 dBm |
| Tx Beamforming (TxBF) |
| Radio Chains/Spatial Stream |
| 2x2:2 |
| SU-MIMO |
| Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio. |
| Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio. |
| MU-MIMO |
| Two (2) Spatial Stream MU-MIMO up to 1267 Mbps to two (2) MU-MIMO capable wireless devices simultaneously |
| Supported Data Rates (Mbps): |
| 2.4 GHz: Max 400 |
| 5 GHz: Max 867 |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies |
| 802.11b: Direct-Sequence Spread Spectrum (DSSS) |
| 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) |
| 802.11n/ac: 2x2 MIMO with 2 Streams |
| Channelization |
| 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT)—HT 20/40 MHz |
| 802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM) |
| 802.11n/ac packet aggregation: AMPDU, ASPDU |
| Supported Modulation |
| 802.11b: BPSK, QPSK, CCK |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| Management |
| Multiple BSSID |
| 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-band VLAN Pass Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Compliant with IEEE 802.11e Standard |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA2 AES-PSK/WPA2 Enterprise |
| Hide SSID in Beacons |
| MAC Address Filtering, Up to 32 MACs per SSID |
| Wireless STA (Client) Connected List |
| Https |
| SSH |
| Client Isolation |
| Environmental & Physical |
| Temperature Range |
| Operating: -4º~140ºF/-20ºC~60ºC |
| Storage: -40Fº~176ºF/-40ºC~80ºC |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Waterproof & Dustproof |
| IP67-Rated Enclosure |
| Device Dimensions & Weights |
| ECW160 Device |
| Weight: 0.65 lbs. (295 g) |
| Width: 4.37” (111.2 mm) |
| Length: 6.83” (173.6 mm) |
| Height” 1.19” (30.29 mm) |
| Packaging |
| Weight: 1.82 lbs. (829 g) |
| Width: 5.98" (152 mm) |
| Length: 9.76" (248 mm) |
| Height: 4.6" (117 mm) |
| Package Contents |
| 1 – ECW160 Cloud Managed Outdoor Access Point |
| 2 - Pole-Mounting Brackets |
| 1 - Wall-Mount Screw Set |
| 2 - 2.4GHz 5dBi SMA Antennas |
| 2 - 5GHz 5dBi SMA Antennas |
| 1 - Quick Installation Guide |
| Warranty |
| 2 Year |
| Certifications |
| CE |
| FCC |
| IC |
