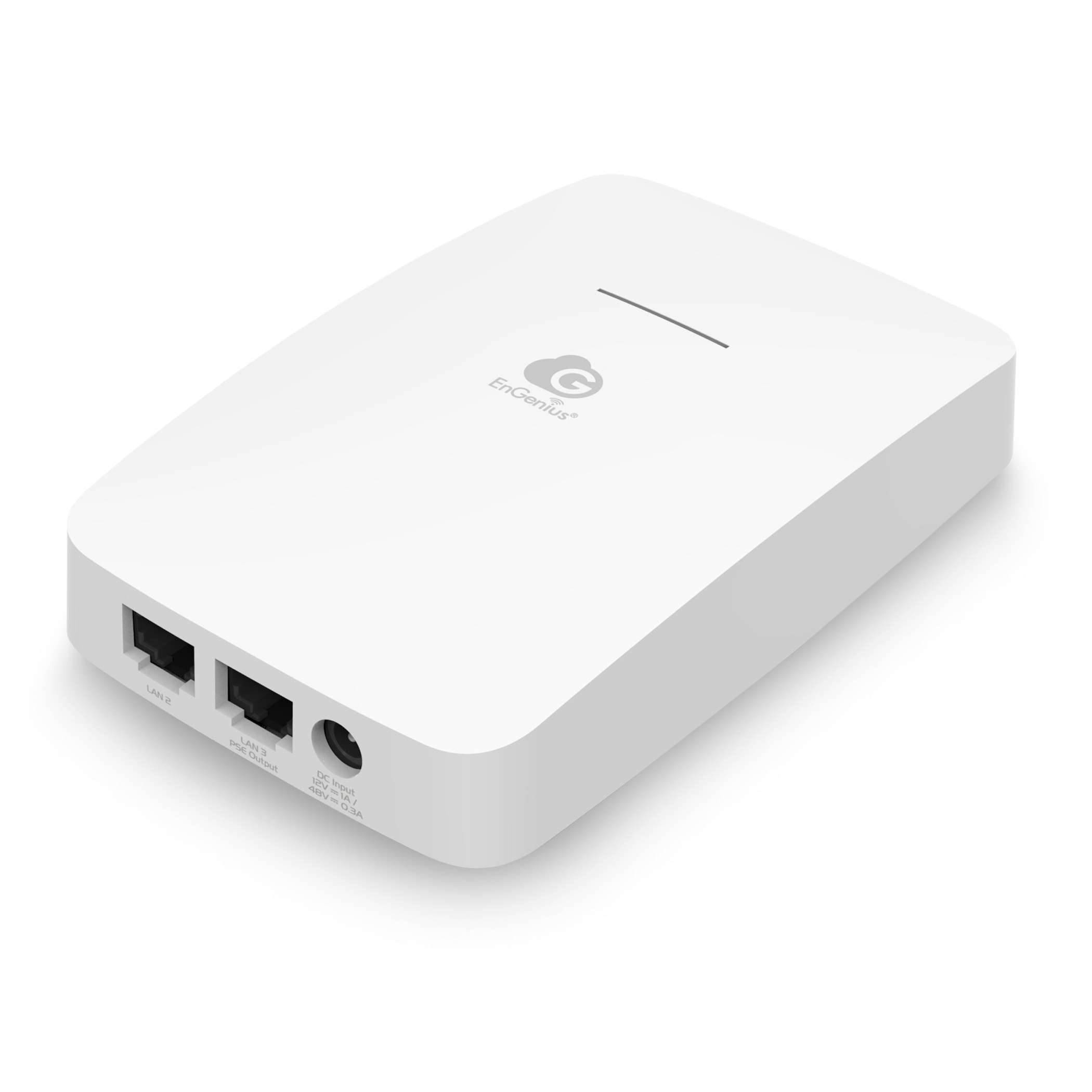

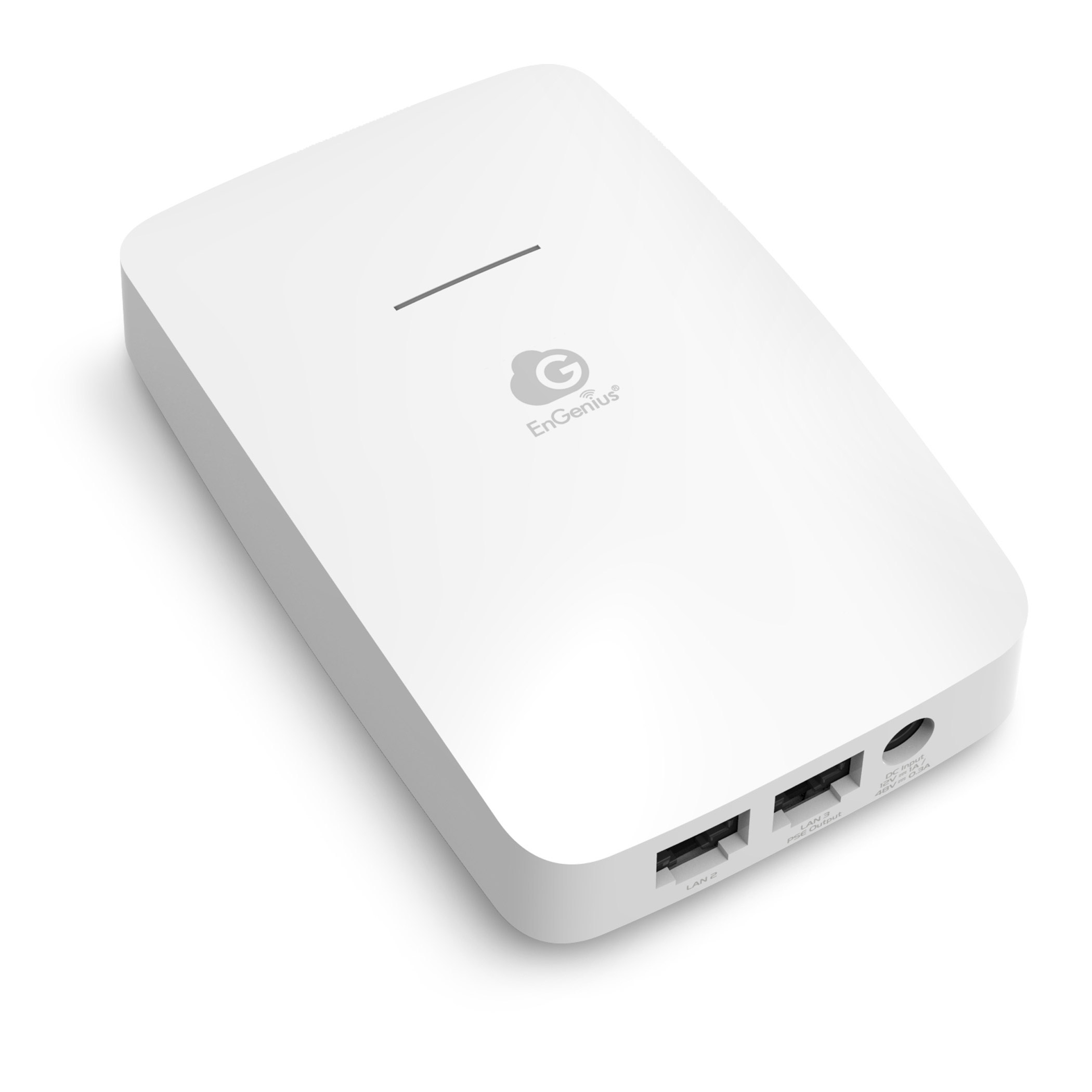

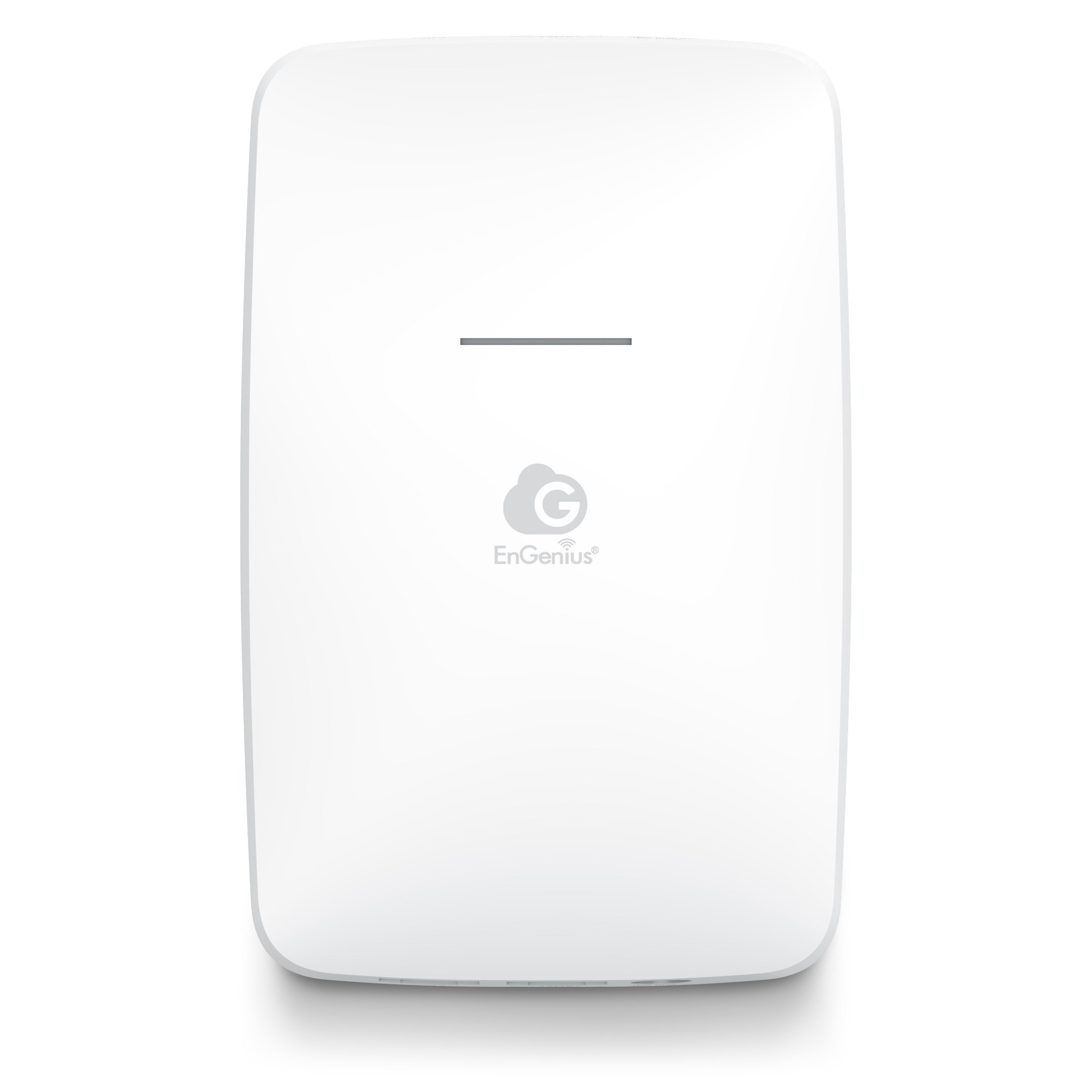

EnGenius - ECW215 - Wi-Fi 6 (802.11ax 2x2:2), Cloud Managed Wall-Plate AP
Part number:
ECW215
Price:
EnGenius Cloud Managed ECW215 Wi-Fi 6 dual-band 2x2:2 wall plate access point with built-in 2-port gigabit switch, with port 2 supporting PoE power transfer to other PoE devices, provides exceptional in-room wired and wireless connectivity for superior entertainment in hotel rooms, student housing, assisted living, senior living, multi-tenant dwellings, and classrooms.
Features:
- Dual-band 802.11ax 2x2 supports up-to 1,200 Mbps (5 GHz) & 574 Mbps in 2.4-GHz
- Sleek, low-profile design for in-room Wi-Fi & wired connectivity
- On-board 2-port switch offers port-based 802.1Q VLAN support
- LAN1 & LAN2 support 802.3af/at PoE input for flexible installation up-to 328 feet
- Connect & power VoIP phones or other PoE devices with PSE Support
- SmartCasting to personalize in-room media with mobile device streaming to TV’s
- Extend SSID settings to LAN ports & provide captive portal, splash page, and advanced security
- Mesh wireless support simplifies setup, optimizes signals & self-heals
| Technical Specifications |
| Standards |
| IEEE 802.11ax on 2.4 GHz |
| IEEE 802.11ax on 5 GHz |
| Backward compatible with 802.11b/g/n/ac |
| Processor |
| Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz |
| Antenna |
| 2 x 2.4 GHz: 4 dBi |
| 2 x 5 GHz: 5 dBi |
| Integrated Omni-Directional Antenna |

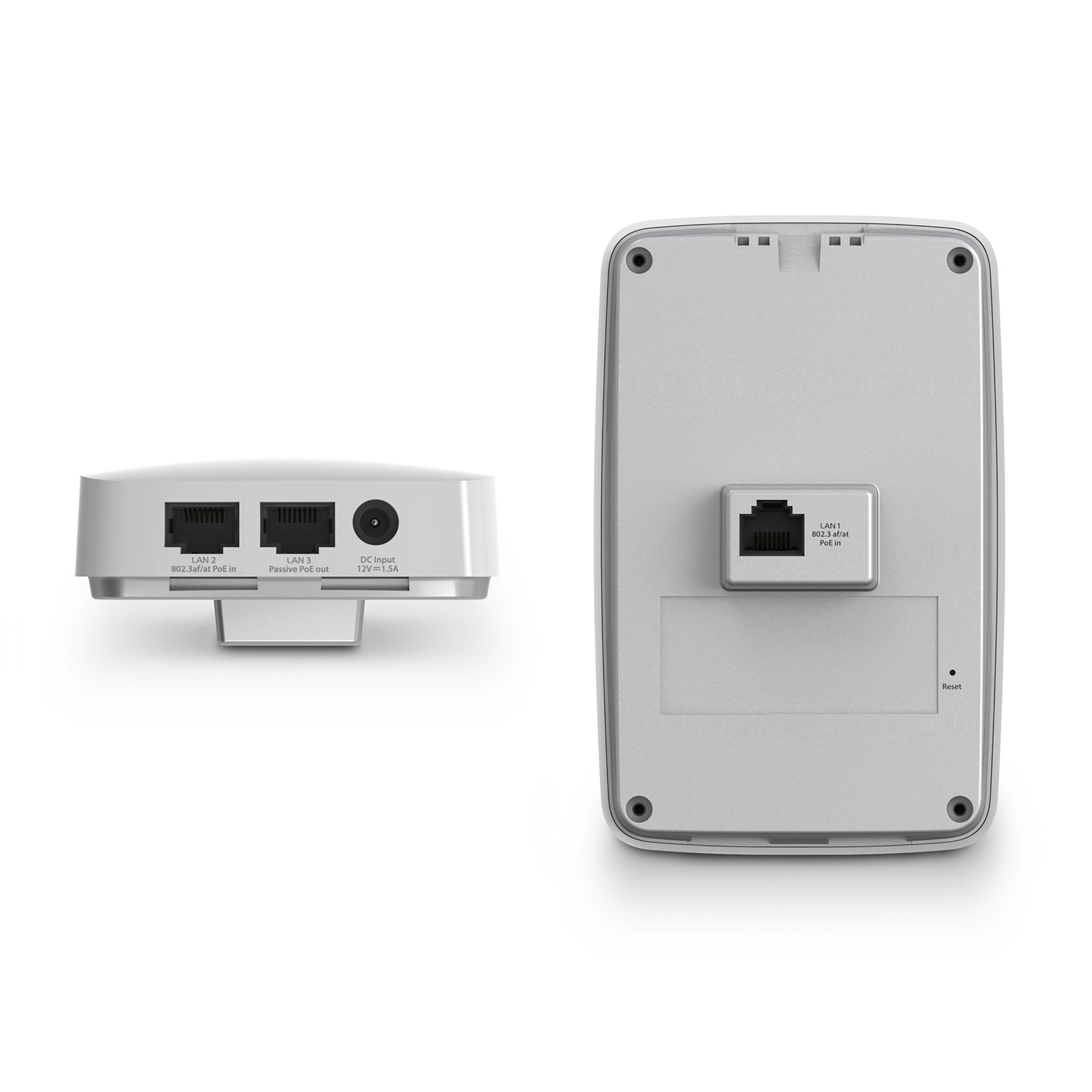

| Physical Interface |
| 1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate) |
| 2 x 10/100/1000 Mbps Ethernet Switched Ports (client ports) |
| - Port 3 PoE PSE (ECW215 requires 802.3at power source) |
| 1 x Reset Button |
| 1 x DC Jack |
| LED Indicators |
| 1 x Multi- color LED for following behavior |
| - Power up |
| - Cloud connecting |
| - Disconnected |
| Power Source |
| Power-over-Ethernet: 802.3af/at Input |
| - PoE Output w/ 802.3at Input |
| IEEE 802.11e Compliant Source |
| DC Jack: 12V/1.5A 48V |
| Maximum Power Consumption |
| 14.2W |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes |
| AP, AP Mesh, Mesh |
| Frequency Radio |
| 2.4 GHz: 2400 MHz ~ 2482 MHz |
| 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| Transmit Power |
| Up to 20 dBm on 2.4 GHz |
| Up to 20 dBm on 5 GHz |
| Tx Beamforming (TxBF) |
| Radio Chains/Spatial Stream |
| 2x2:2 |
| SU-MIMO |
| Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4GHz and 5GHz radio. |
| MU-MIMO |
| Two (2) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. |
| Two (2) spatial streams multi-user (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates (Mbps): |
| 802.11ax: |
| 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) |
| 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies |
| 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
| Channelization |
| 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) |
| 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Management |
| Multiple BSSID |
| 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-Band VLAN Pass-Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Complaint with IEEE 802.11e Standard |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3 Enterprise |
| WPA3-PSK (SAE) |
| WPA3/WPA2-PSK Mixed |
| WPA2 Enterprise |
| WPA2 AES-PSK |
| Hide SSID in Beacons |
| MAC Address Filtering, up to 256 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| L2 Isolation |
| Environmental & Physical |
| Temperature Range |
| Operating: 32ºF~104ºF (0 ºC~40 ºC) |
| Storage: -40 ºF~176 ºF (-30 ºC~80 ºC) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Device Dimensions & Weights |
| ECW215 Device |
| Weight: .80 lbs. (.363 Kg) |
| Length: 5.5” (140 mm) |
| Width: 3.5” (90 mm) |
| Height: 1.6” (40 mm) |
| Packaging |
| Weight: .86 lbs. (.390 Kg) |
| Length: 7.375” (187.3 mm) |
| Width: 5.375” (136.5 mm) |
| Height: 2.75” (69.9 mm) |
| Package Contents |
| 1 - ECW215 Cloud Managed Indoor Access Point |
| 1 - Ceiling and Wall Mount Screw Kits |
| 2 - Junction-plates (tall/short) |
| 1 - Quick Installation Guide |
| Certifications |
| FCC |
| CE |
| IC |
| Warranty: |
| 2 Year |
