EnGenius - ECW220S - Wi-Fi 6 (802.11ax, 2x2:2), Cloud Managed Ceiling-mount Security AP with EnGenius AirGuard
Part number:
ECW220S
Price:
The EnGenius Wi-Fi 6, Cloud-Managed ECW220S Security Access Point is ideal for information-sensitive financial, medical, and distributed networks and comes equipped with EnGenius AirGuard, an intelligent wireless security system that identifies and eliminates intrusions and threats 24/7 while providing client devices with maximum performance.
Features:
- Wi-Fi 6 technology for high-performance Wi-Fi in high-density, multi-device environments
- 2x2 antennas to support up to 1,200 Mbps in 5 GHz & 574 Mbps in 2.4 GHz
- 1 GbE throughput and 802.3at support for flexible installation over 100 meters (328 feet)
- Wireless intrusion detection system (WIDS) for threat detection
- Wireless intrusion protection system (WIPS) for attack remediation
- Zero-wait DFS to avoid client disruption when radar is detected on DFS channels
- Dedicated scanning radios for 24/7 wireless AP security monitoring
- RF spectrum analysis for identifying clean channels and ensuring all SSIDs are legitimate
- Bluetooth 5 low energy for BLE device detection and location-based extended advertising
| Technical Specifications |
| Standards |
| IEEE 802.11ax on 2.4 GHz |
| IEEE 802.11ax on 5 GHz |
| (Backward compatible with 802.11b/g/n/ac) |
| 2.4 GHz Bluetooth Low Energy (BLE) Radio |
| Processor |
| Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU |
| Antenna |
| 2 x 2.4 GHz: 4 dBi |
| 2 x 5 GHz: 5 dBi |
| Scanning Radio |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| Integrated Omni-Directional Antenna |
| BLE: 6 dBi |

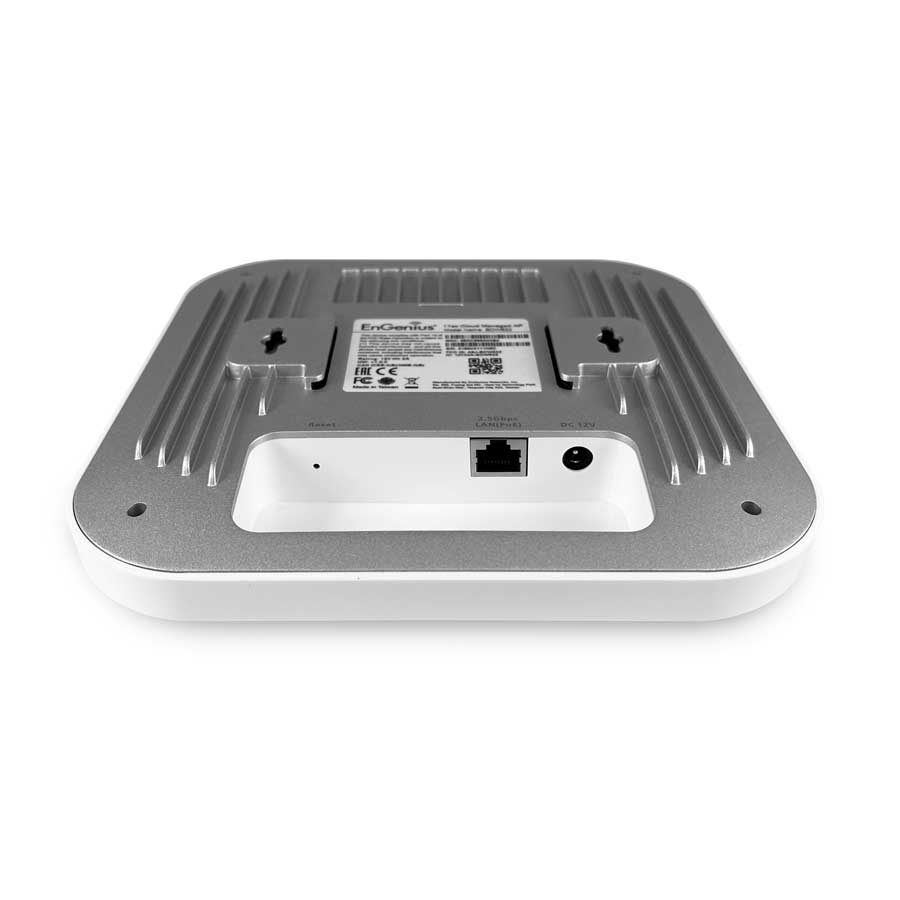

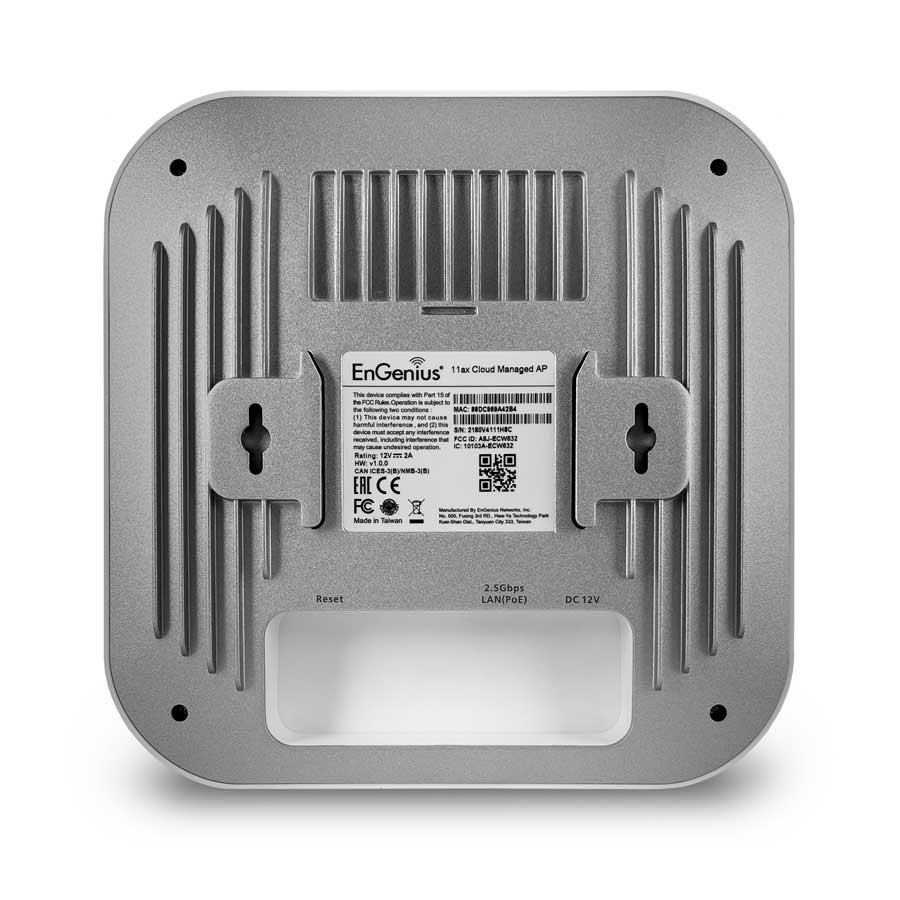

| Physical Interface |
| 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port |
| 1 x DC Jack |
| 1 x Reset Button |

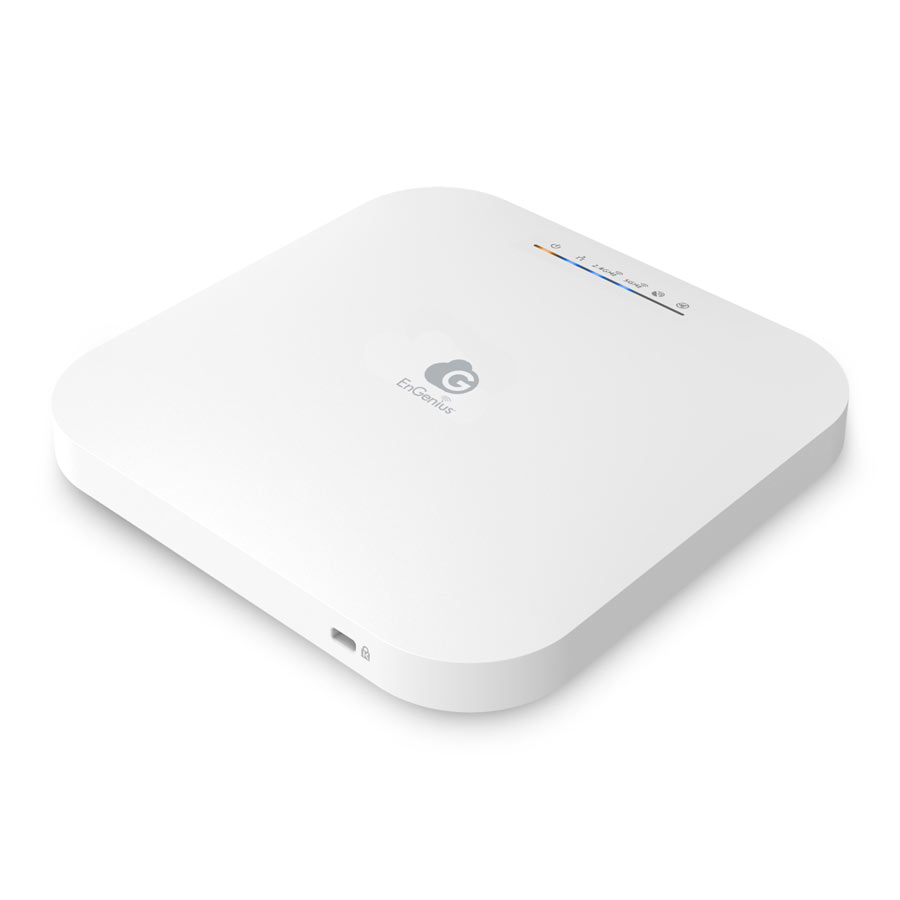

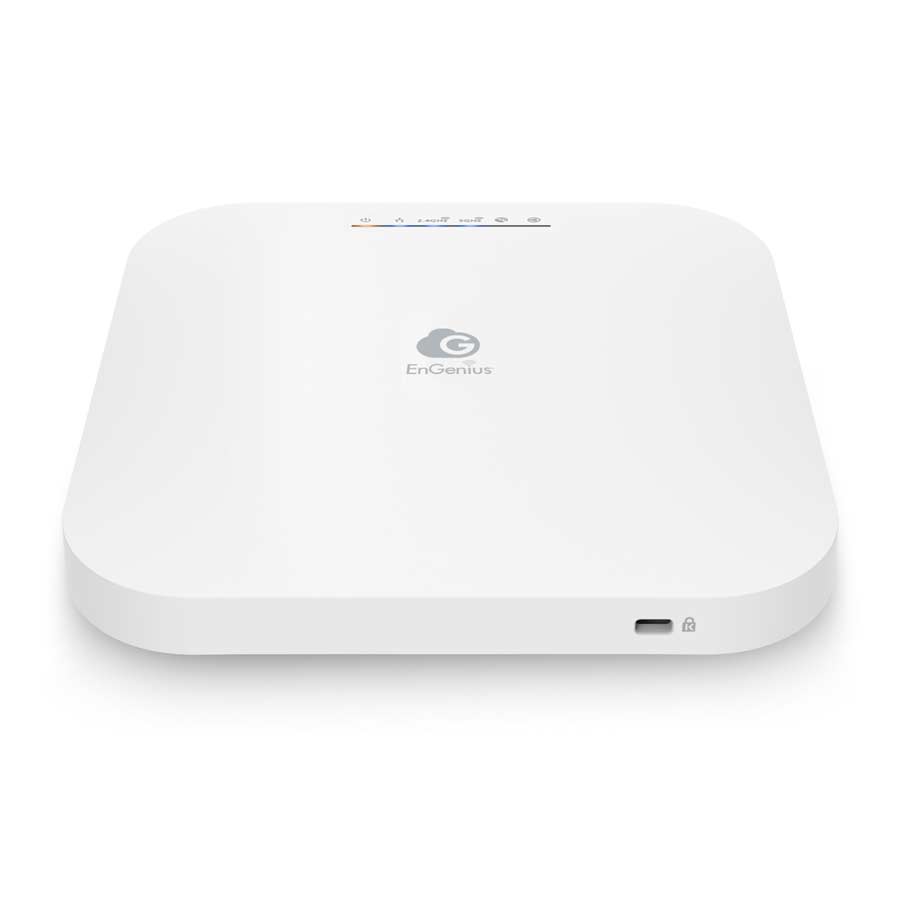

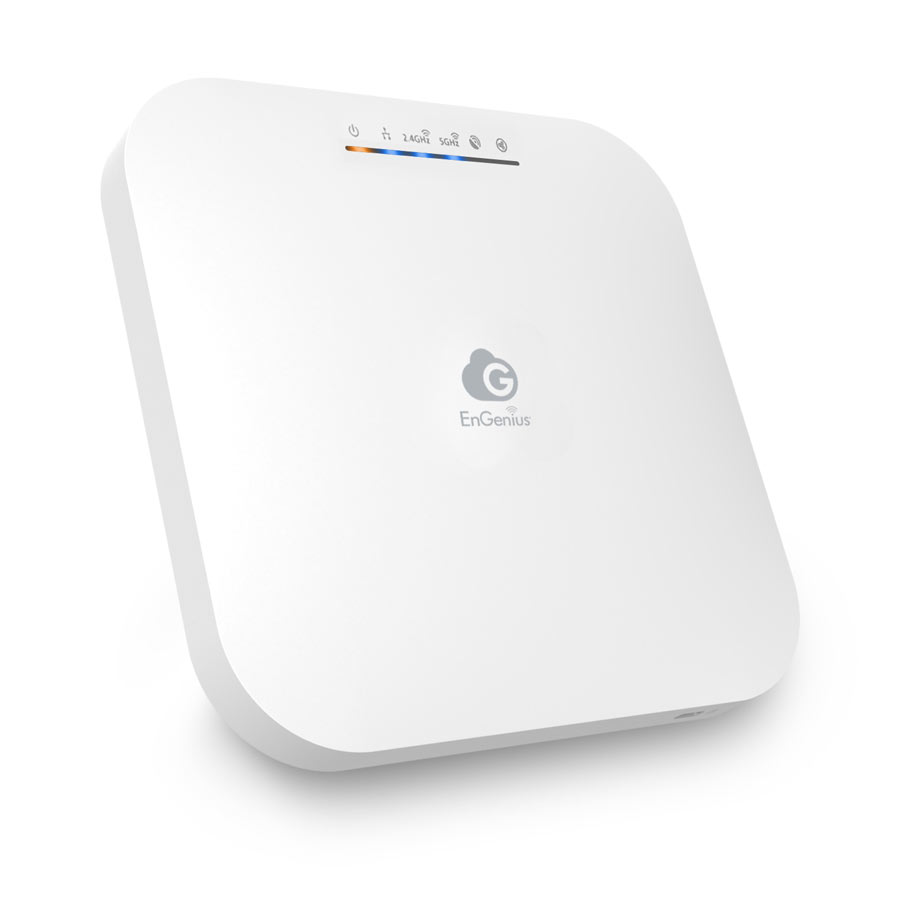

| LED Indicators |
| 1 x Power |
| 1 x LAN |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| 1 x Scanning Radio |
| 1 x BLE |
| Power Source |
| Power-over-Ethernet: 802.3at Input |
| 12VDC /2A Power Adapter (Not Included) |
| Maximum Power Consumption |
| 12.8W |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes |
| AP, Mesh |
| Frequency Radio |
| 2.4 GHz: 2400 MHz ~ 2482 MHz |
| 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| Transmit Power |
| Up to 22 dBm on 2.4 GHz |
| Up to 22 dBm on 5 GHz |
| (Maximum power is limited by regulatory domain) |
| Tx Beamforming (TxBF) |
| Increasing signal reliability and transmitting distance. |
| Radio Chains/Spatial Stream |
| 2x2:2 |
| SU-MIMO |
| Two (2) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 1,774 Mbps wireless data rate to a single wireless client device under both 2.4 GHz and 5GHz radio. |
| MU-MIMO |
| Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. |
| Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to two stream MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates (Mbps): |
| 802.11ax: |
| 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4) |
| 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 4) |
| 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11b: 1, 2, 5.5, 11 |
| Supported Radio Technologies |
| 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
| Channelization |
| 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) |
| 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Dynamic Frequency Selection (DFS) Certified |
| Supported Modulation |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Management |
| Multiple BSSID |
| 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-Band VLAN Pass-Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| IEEE 802.11e compliant |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3 Enterprise |
| WPA3-PSK (SAE) |
| WPA3/WPA2-PSK Mixed |
| WPA2 Enterprise |
| WPA2 AES-PSK |
| Hide SSID in Beacons |
| MAC Address Filtering, up to 256 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| Wireless Monitoring |
| WIPS/WIDS Dedicated Dual-Band Radios |
| Rogue AP & Device Detection |
| RF Spectrum Analysis |
| Zero-Wait DFS |
| Environmental & Physical |
| Temperature Range |
| Operating: 32ºF~104ºF (0ºC~40ºC) |
| Storage: -40ºF~176 ºF (-40ºC~80ºC) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Device Dimensions & Weights |
| ECW220S Device |
| Weight: 0.947 lbs (0.43kg) |
| Length: 6.30" (160 mm) |
| Width: 6.30" (160 mm) |
| Height: 1.31" (33.2 mm) |
| Packaging |
| Weight: 1.28 lbs (0.58Kg) |
| Length: 8.07" (205 mm) |
| Width: 8.07" (205 mm) |
| Height: 3.27" (83 mm) |
| Package Contents |
| 1 - ECW220S Cloud Managed Indoor Access Point |
| 1 - Ceiling Mount Base (9/16” Trail) |
| 1 - Ceiling Mount Base (15/16” Trail) |
| 1 - Ceiling and Wall Mount Screw Kits |
| 1 - Quick Installation Guide |
| Warranty |
| 2 Year |
| Certifications |
| CE |
| FCC |
