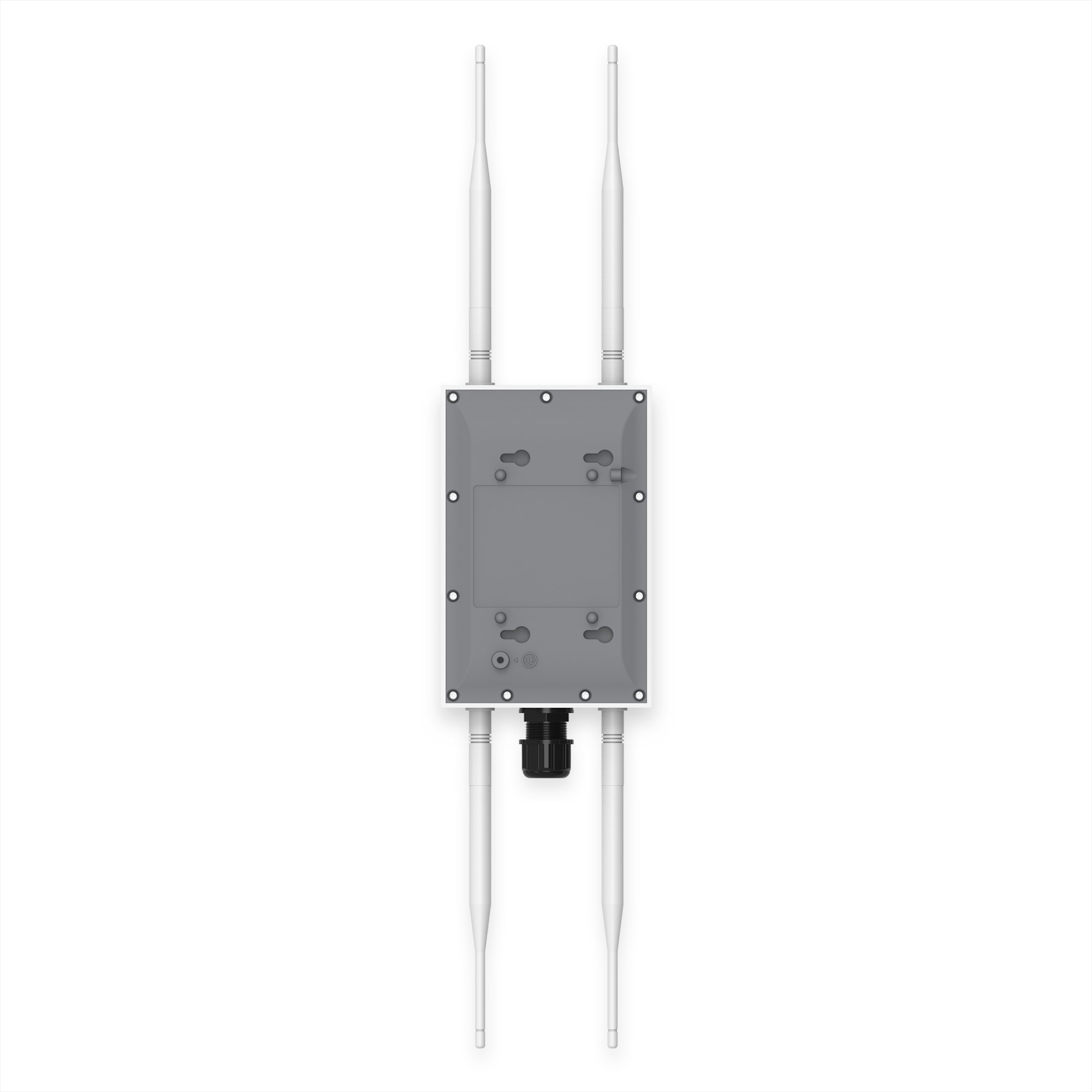

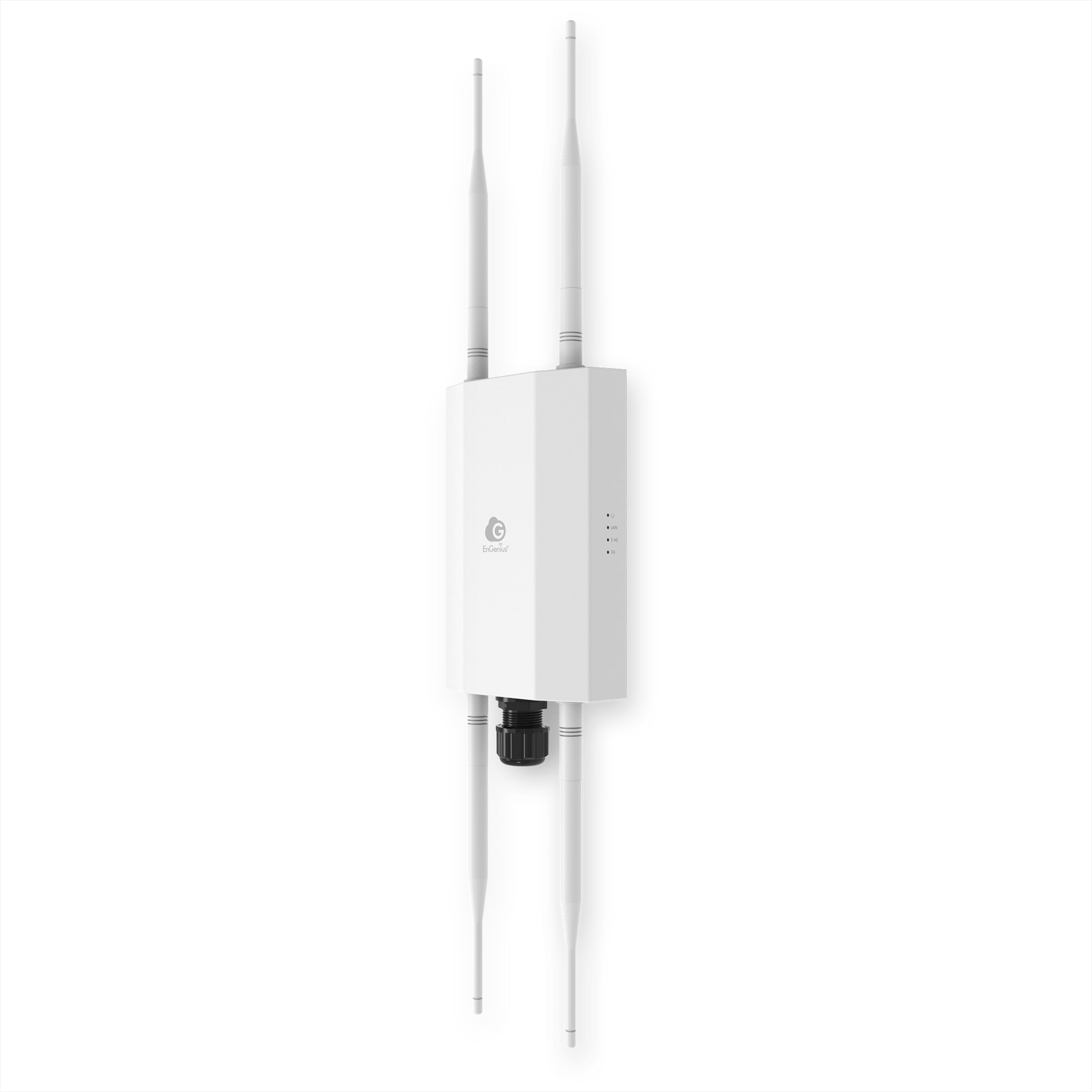

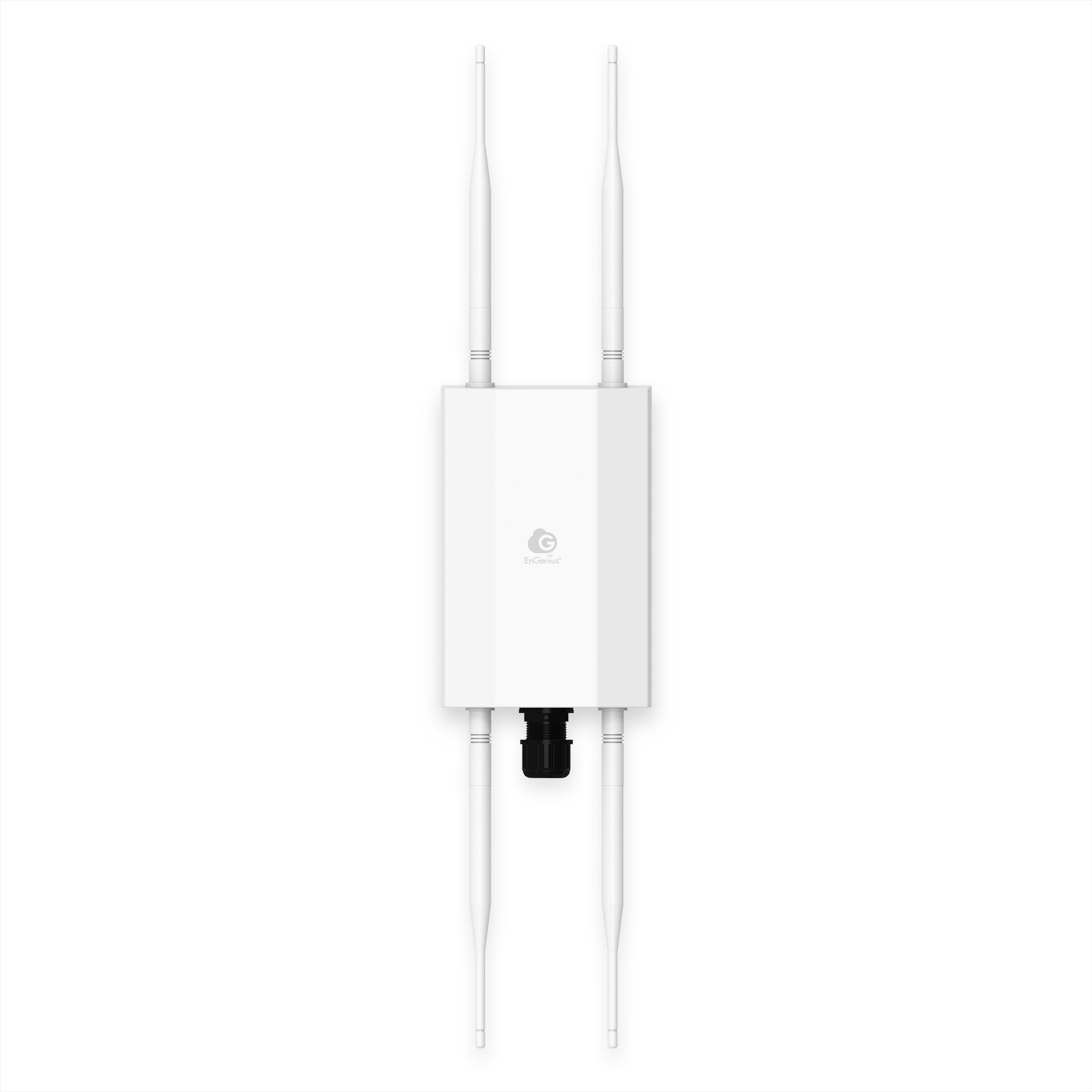

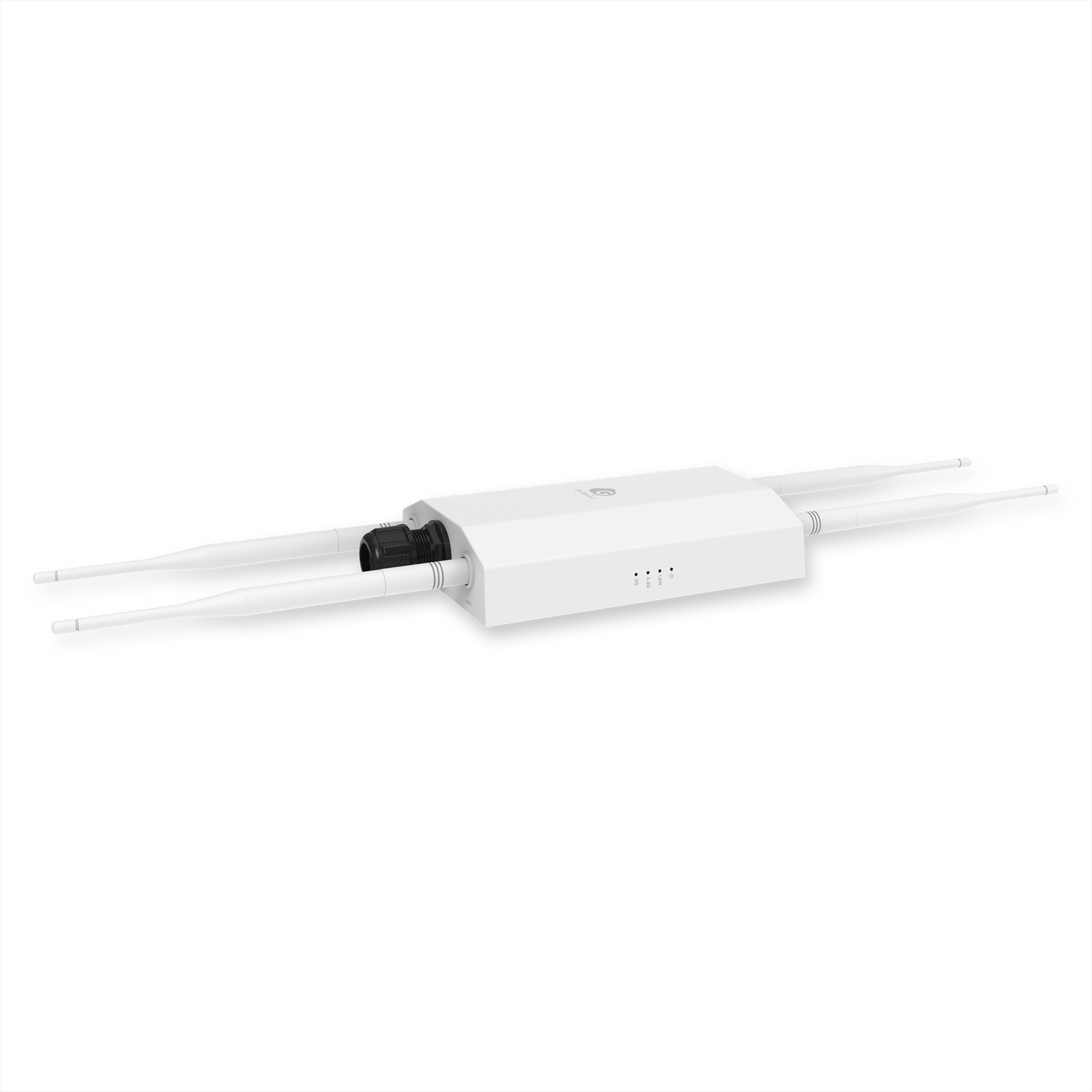

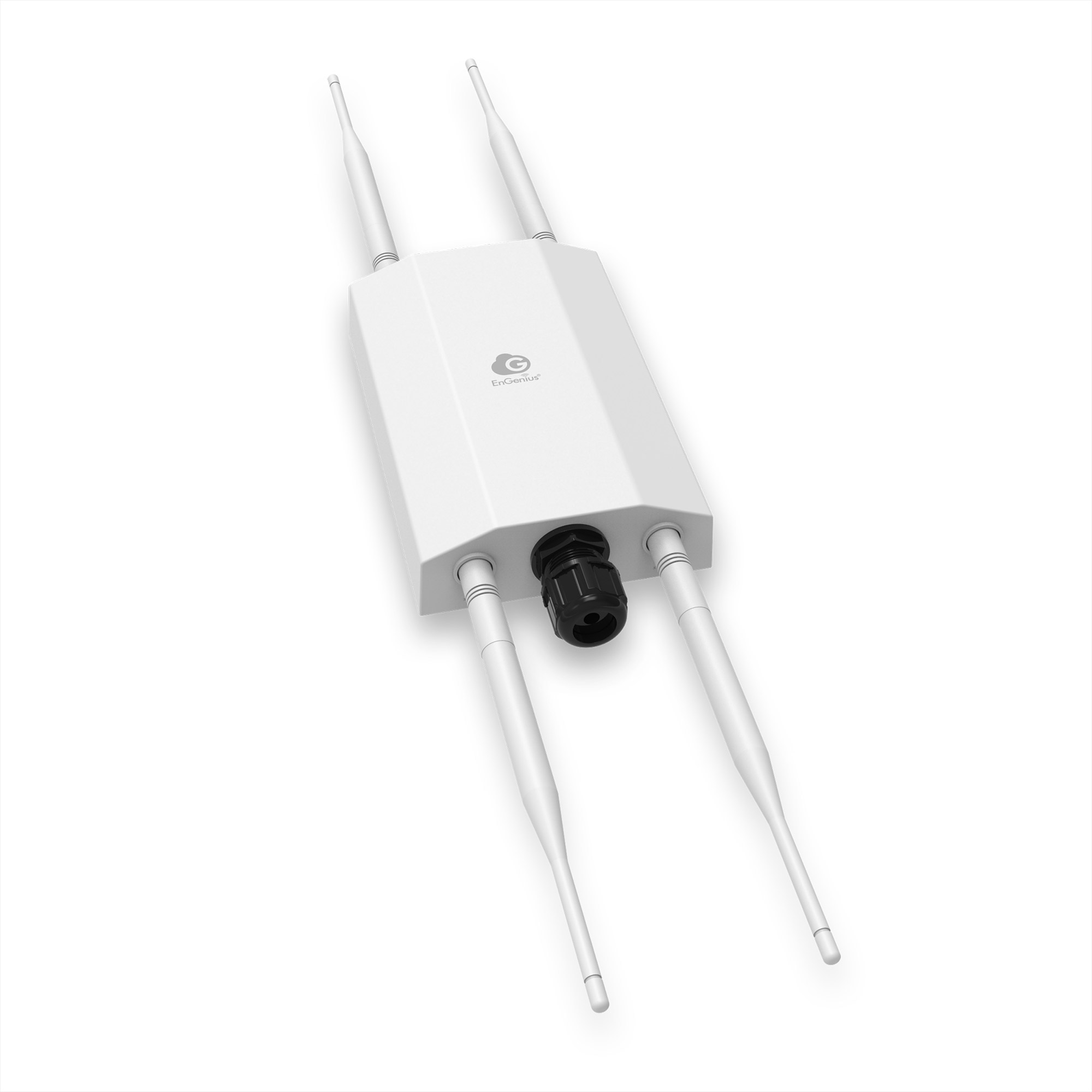

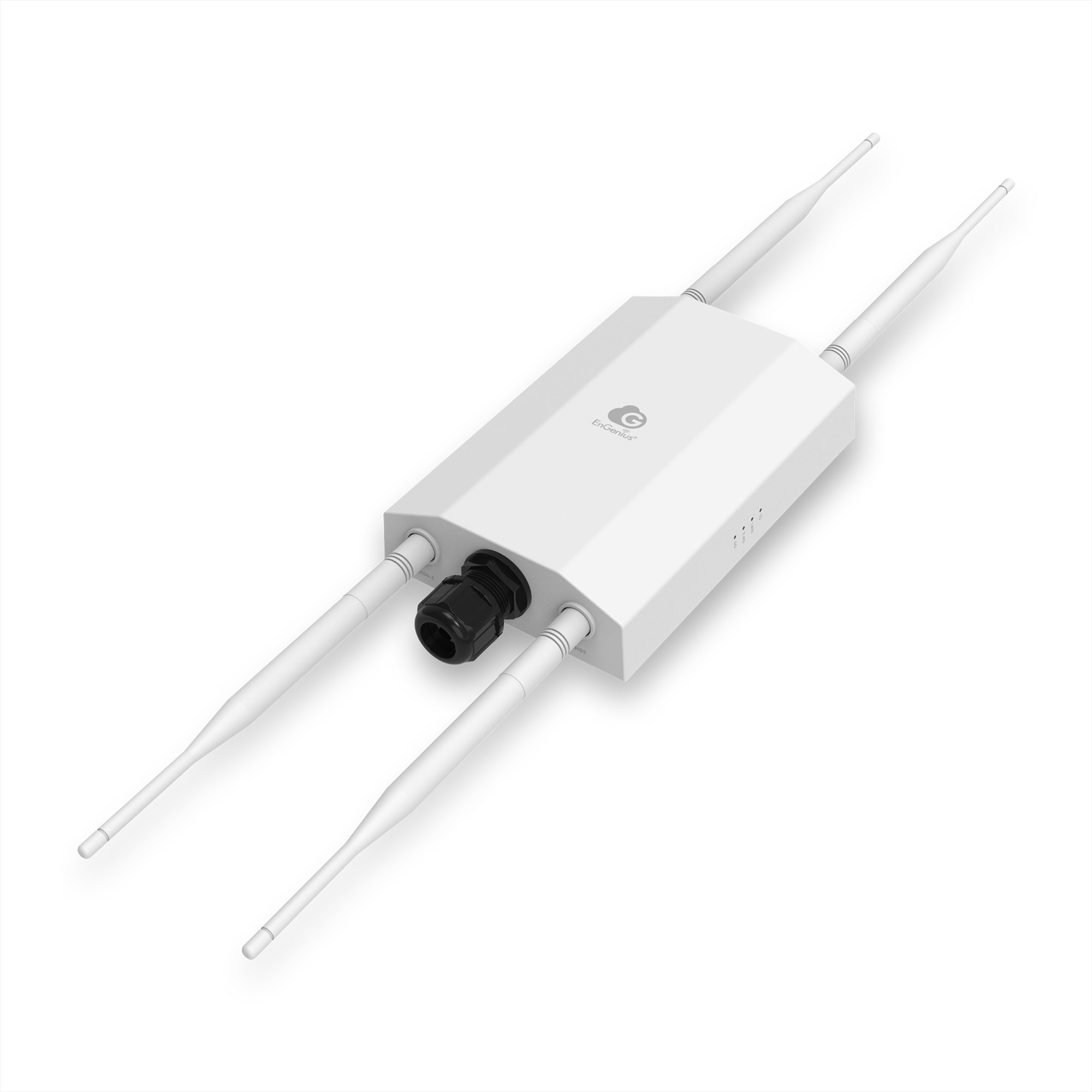

EnGenius - ECW260 - Wi-Fi 6 (802.11ax 2x2:2), Cloud Managed Outdoor AP
Part number:
ECW260
Price:
EnGenius Cloud Managed ECW260 Outdoor Wi-Fi 6, 2x2, IP67, MU-MIMO Dual-Band Access Point reaches speeds of 1,200 Mbps on 5GHz and 574 Mbps on 2.4GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.
Features:
- Dual concurrent 802.11ax & backward-compatible with 11ac/a/b/g/n client devices
- Supports up-to 1,200 Mbps in 5-GHz band & 574 Mbps in 2.4-GHz band
- IP67-Rated weatherproof & dustproof housing withstands harsh environments
- 2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce
- Four (4) (2x2) detachable 5dbi high-gain, 360° SMA-type antennas
- Quick-scan device register & configuration and remote monitoring & troubleshooting
- Cloud manage unlimited number of APs from anywhere with the EnGenius Cloud App
- Mesh Wireless Support simplifies setup, optimizes signals & self-heals
| Technical Specifications |
| Standards |
| IEEE 802.11b/g/n/ax on 2.4GHz |
| IEEE802.11a/n/ac/ax on 5GHz |
| Processor |
| Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz |
| Antenna |
| Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna |
| SMA-Type |
| Physical Interface |
| 1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port |
| LED Indicators |
| 1 x Power |
| 1 x LAN |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| Power Source |
| Power-over-Ethernet: 802.3af/at |
| IEEE 802.11e Compliant Source |
| Active Ethernet (PoE) |
| Maximum Power Consumption |
| 15.9W |
| Surge Protection |
| 1KV |
| ESD Protection |
| Contact: 4KV |
| Air: 8 KV |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4GHz & 5 GHz |
| Operation Modes |
| AP, Mesh |
| Frequency Radio |
| 2.4GHz: 2400 MHz ~ 2482 MHz |
| 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz |
| Transmit Power |
| 2.4GHz: 23dBm |
| 5GHz: 25dBm |
| Maximum power is limited by regulatory domain |
| Tx Beamforming (TxBF) |
| Increasing signal reliability and transmitting distance. |
| Radio Chains/Spatial Stream |
| 2x2:2 |
| SU-MIMO |
| Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SUMIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4G Hz and 5GHz radio. |
| MU-MIMO |
| Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously |
| Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates (Mbps): |
| 802.11ax: |
| - 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) |
| - 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies |
| 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
| Channelization |
| 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) |
| 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Management |
| Multiple BSSID |
| 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-band VLAN Pass Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Complaint With IEEE 802.11e Standard WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3-PSK (SAE) |
| WPA3 Enterprise |
| WPA2 Enterprise (AES) |
| WPA2 AES-PSK |
| OWE |
| Hide SSID in Beacons |
| MAC Address Filtering, Up to 32 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| Environmental & Physical |
| Temperature Range |
| Operating: -4º~140ºF/-20ºC~60ºC |
| Storage: -40Fº~176ºF/-40ºC~80ºC |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Waterproof & Dustproof |
| IP67-Rated Enclosure |
| Device Dimensions & Weights |
| ECW260 Device |
| Weight: 1.54 lbs. (0.7 kg) |
| Width: 4.07” (124 mm) |
| Length: 7.48” (190 mm) |
| Height: 2.07” (52.5 mm) |
| Packaging |
| Weight: 3.96 lbs. (1.8kg) |
| Width: 9.21" (234 mm) |
| Length: 11.18" (284 mm) |
| Height: 5.67" (144 mm) |
| Package Contents |
| 1 – ECW260 Cloud Managed Outdoor Access Point |
| 1 - Pole-Mounting Brackets |
| 1 - Wall-Mount Screw Set |
| 2 - 2.4GHz 5dBi SMA Antennas |
| 2 - 5GHz 5dBi SMA Antennas |
| 1 - Quick Installation Guide |
| Certifications |
| FCC |
| CE |
| IC |
| Warranty |
| 2 Year |
