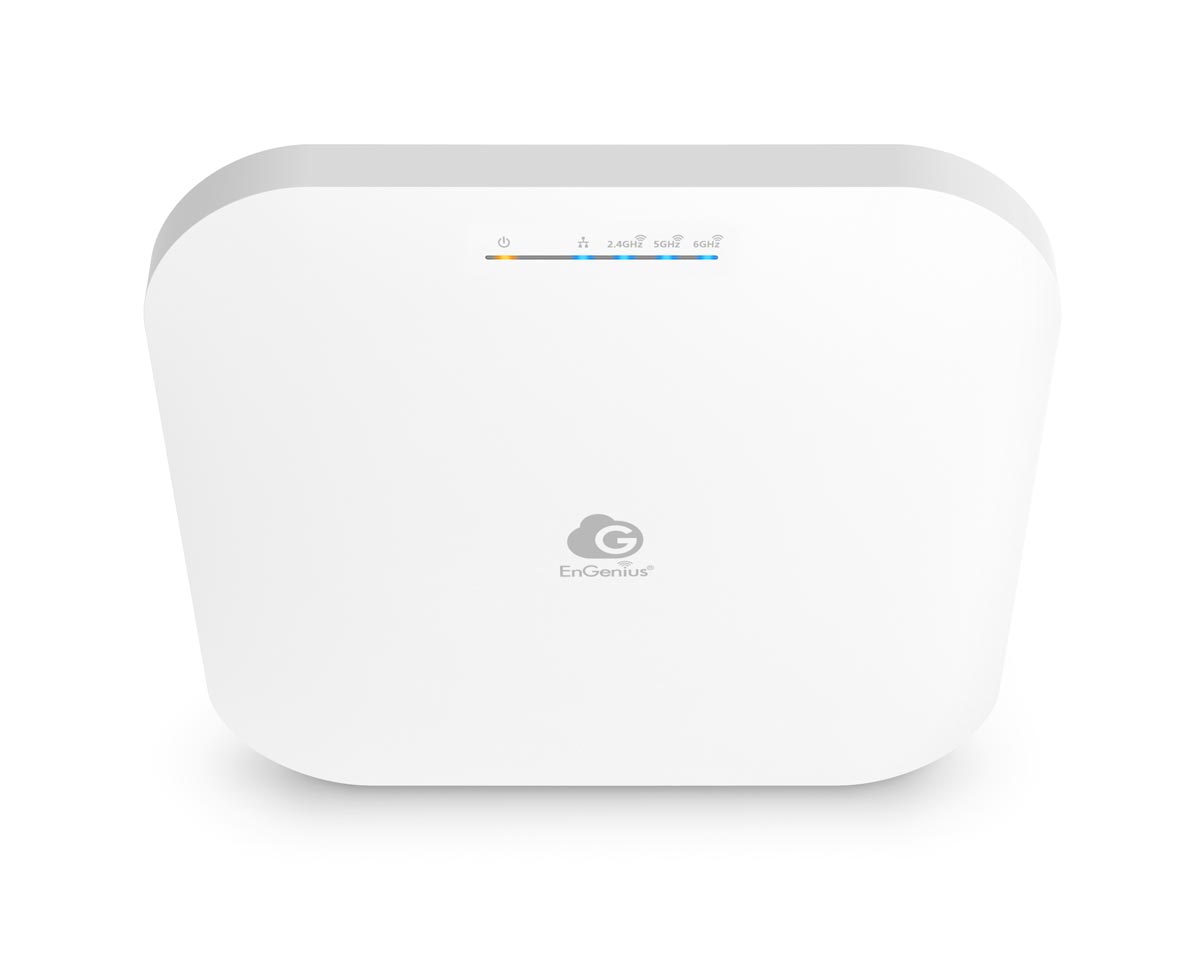

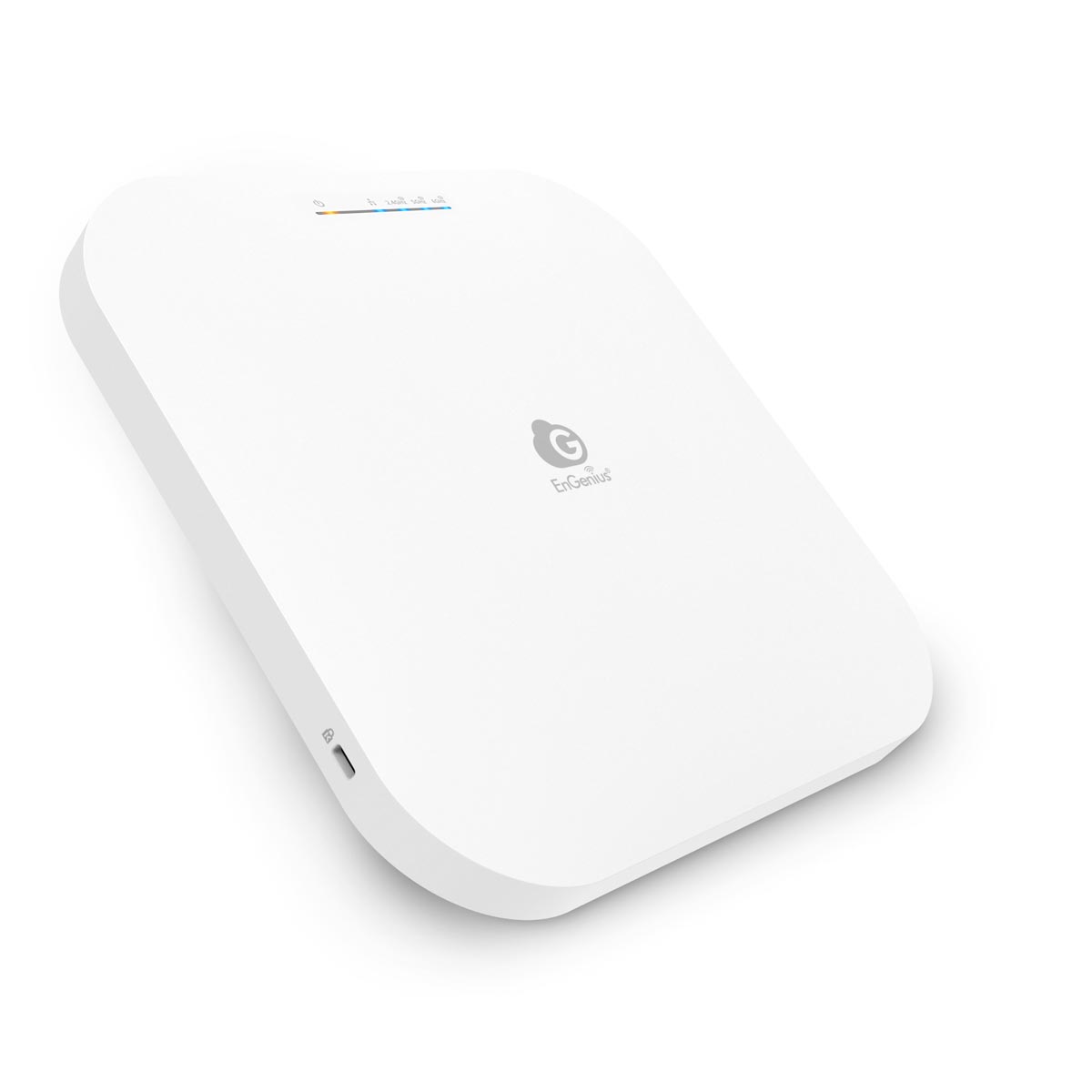

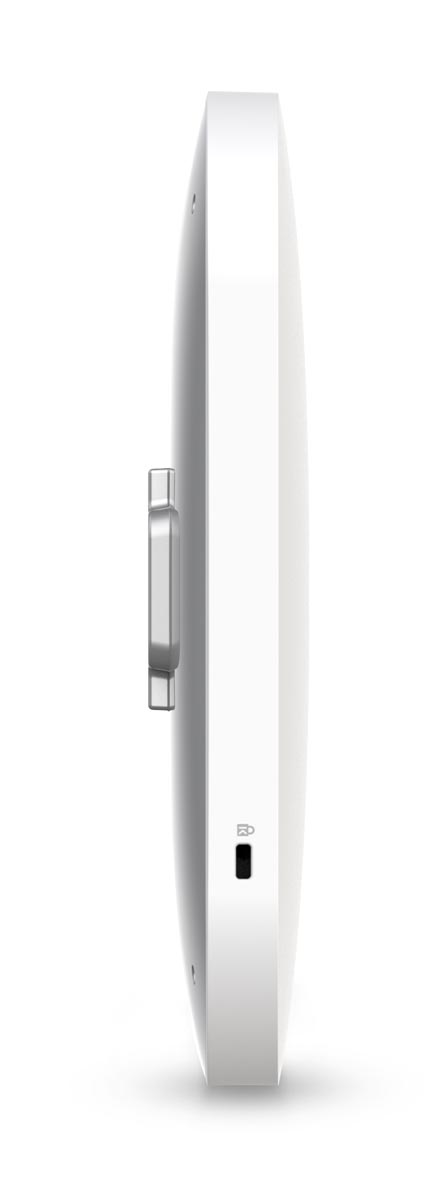

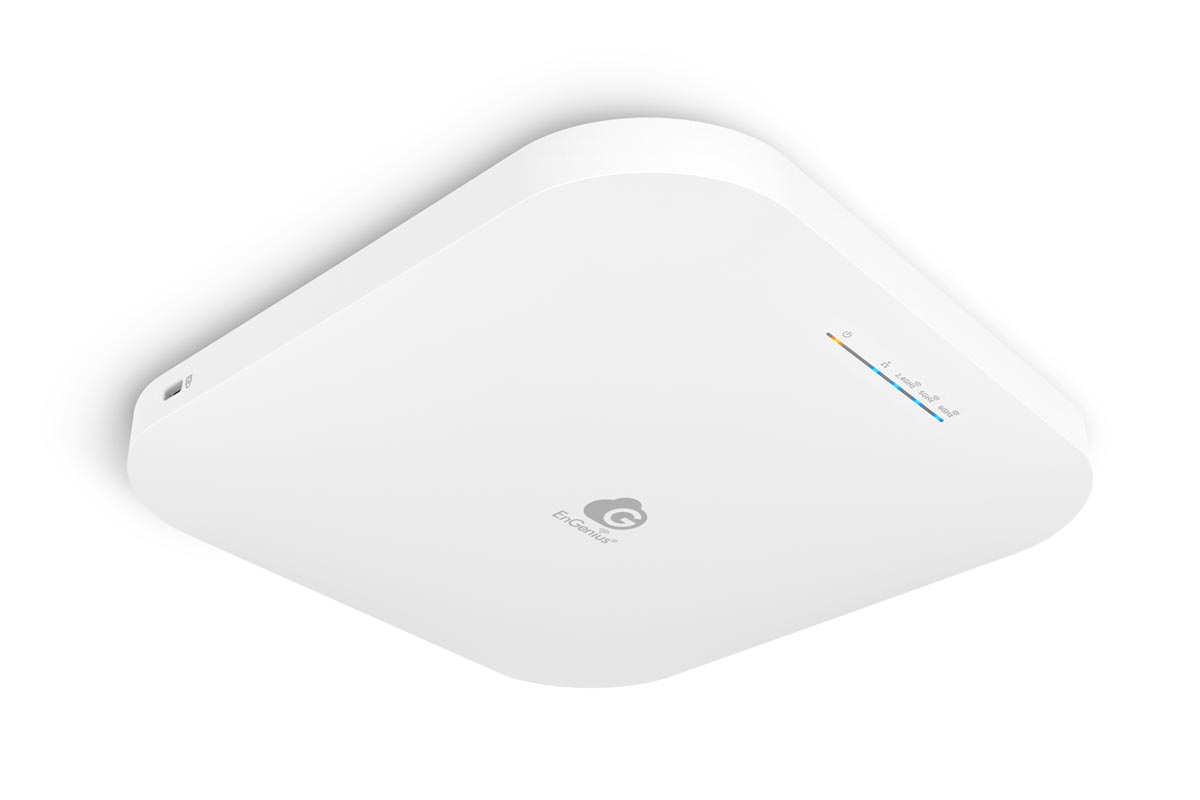

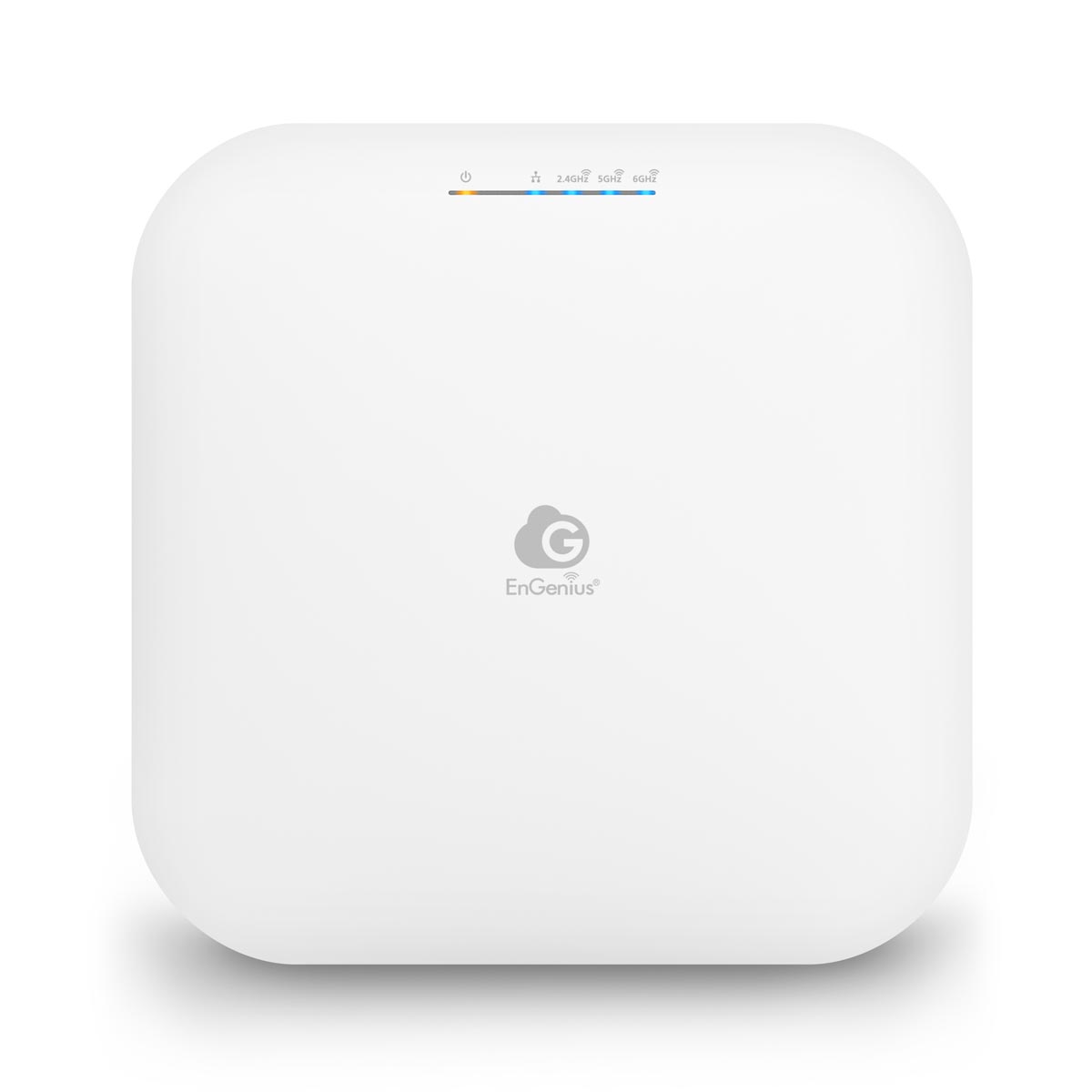

EnGenius - ECW336 - Wi-Fi 6E (802.11ax 4x4:4), Cloud Managed Ceiling-mount AP
Part number:
ECW336
Price:
The EnGenius Cloud Managed ECW336 6 GHz tri-band 4x4 WiFi 6E Access Point supports up to 8.4 Gbps using 2.4 GHz, 5 GHz, and the newly released 6 GHz band. The seven super-wide 160 MHz channels greatly increase network capacity and reduce bandwidth congestion. The wide-open 6GHz spectrum will be occupied by newer more efficient Wi-Fi 6 client devices, such as the iPhone 15 Pro, MacBook Pro, MacStudio, and iPad Pro maximizing device performance and improving overall wireless security. There are twice as many channels on the newly opened 6GHz band that do not overlap with each other, greatly reducing network bottlenecks and enabling Gigabit WiFi. The ECW336 also supports a 5 GbE PoE+ port for easy AP placement, WPA3 Enterprise security and “enhanced open” for stronger encryption and authentication.
Features:
- 4x4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds
- 8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi
- 5 GbE PoE+ port to maximize the connection speed and AP placement
- Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices
- The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications
- The 6 GHz interference-free band allows ultra-fast Gigabit WiFi speeds
- Integrated enterprise security and guest access
- Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission
- OFDMA and MU-MIMO for fast, efficient transmissions between the AP and client devices and BSS coloring for increased spatial reuse
- Access point diagnostic tools for real time channel utilization
- Compatible with iPhone 15 Pro, MacBook Pro, iPad Pro, Galaxy S23, and Galaxy S23+
| Specifications |
| Standards |
| IEEE 802.11ax on 2.4 GHz |
| IEEE 802.11ax on 5 GHz |
| IEEE 802.11ax on 6 GHz |
| (Backward compatible with 802.11b/g/n/ac) |
| Processor |
| Qualcomm® Networking Pro 1210 Platform |
| Antenna |
| 4 x 2.4 GHz: 5 dBi |
| 4 x 5 GHz: 6 dBi |
| 4 x 6 GHz: 5 dBi |

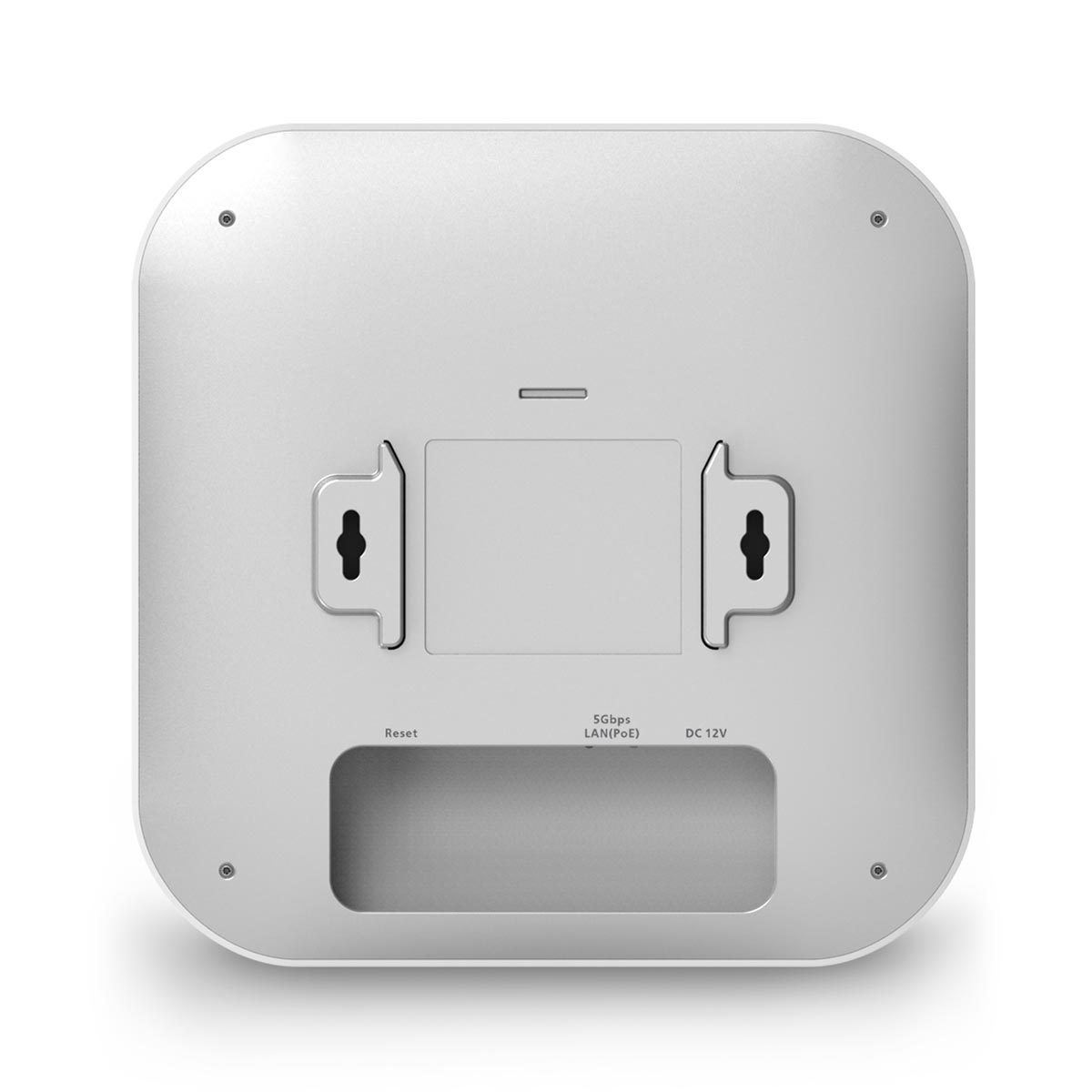

| Physical Interface |
| 1 x 10/100/1000/2500/5000 BASE-T, RJ-45 Ethernet Port |
| 1x DC Jack |
| 1 x Reset Button |
| LED Indicators |
| 1 x Power |
| 1 x LAN |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| 1 x 6 GHz |
| Power Source |
| Power-over-Ethernet: 802.3at Input |
| 12VDC /2A Power Adapter (Not Included) |
| Maximum Power Consumption |
| 22.5W |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz |
| Operation Modes |
| AP, Mesh |
| Frequency Radio |
| 2.4 GHz: 2400 MHz ~ 2835 GHz |
| 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| 6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz |
| Transmit Power |
| Up to 23 dBm on 2.4 GHz |
| Up to 23 dBm on 5 GHz |
| Up to 23 dBm on 6 GHz |
| (Maximum power is limited by regulatory domain) |
| Tx Beamforming (TxBF) |
| Increasing signal reliability and transmitting distance. |
| Radio Chains/Spatial Stream |
| 4x4:4 |
| SU-MIMO |
| Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under 2.4 GHz, 5 GHz, and 6 GHz radios. |
| MU-MIMO |
| Four (4) spatial streams multi-user (MU)-MIMO for up to 4800 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 6GHz simultaneously. |
| Four (4) spatial streams multi-user (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. |
| Four (4) spatial streams multi-user (MU)-MIMO for up to 1148 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates (Mbps): |
| 802.11ax: |
| 6 GHz: |
| 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4) |
| 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4) |
| 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4) |
| 802.11n: 6.5 to 600 Mbps (MCS0 to MCS15) |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11b: 1, 2, 5.5, 11 |
| Supported Radio Technologies |
| 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization |
| 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) |
| 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Dynamic Frequency Selection (DFS) Certified |
| Supported Modulation |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Management |
| Multiple BSSID |
| 8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-Band VLAN Pass-Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| IEEE 802.11e compliant |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3 Enterprise |
| WPA3-PSK (SAE) |
| WPA3/WPA2-PSK Mixed |
| WPA2 Enterprise |
| WPA2 AES-PSK |
| Hide SSID in Beacons |
| MAC Address Filtering, up to 256 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| L2 Isolation |
| Environment & Physical |
| Temperature Range |
| Operating: 32ºF~104ºF (0ºC~40ºC) |
| Storage: -40ºF~176 ºF (-40ºC~80ºC) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Dimensions & Weights |
| ECW336 Device |
| Weight: 1.34 lbs. (607 g) |
| Length: 8.27" (210 mm) |
| Width: 8.27" (210 mm) |
| Height: 1.31" (33.2 mm) |
| Packaging |
| Weight: 2.5 lbs. (1134 g) |
| Length: 9.65" (245 mm) |
| Width: 9.65" (245 mm) |
| Height: 3.35" (85 mm) |
| Package Contents |
| 1 - ECW230S Cloud Managed Indoor Access Point |
| 1 – Ceiling Mount Base (9/16” Trail) |
| 1 – Ceiling Mount Base (15/16” Trail) |
| 1 - Ceiling and Wall Mount Screw Kits |
| 1 - Quick Installation Guide |
| Certifications |
| FCC |
| CE |
| Warranty |
| 2 Year |
