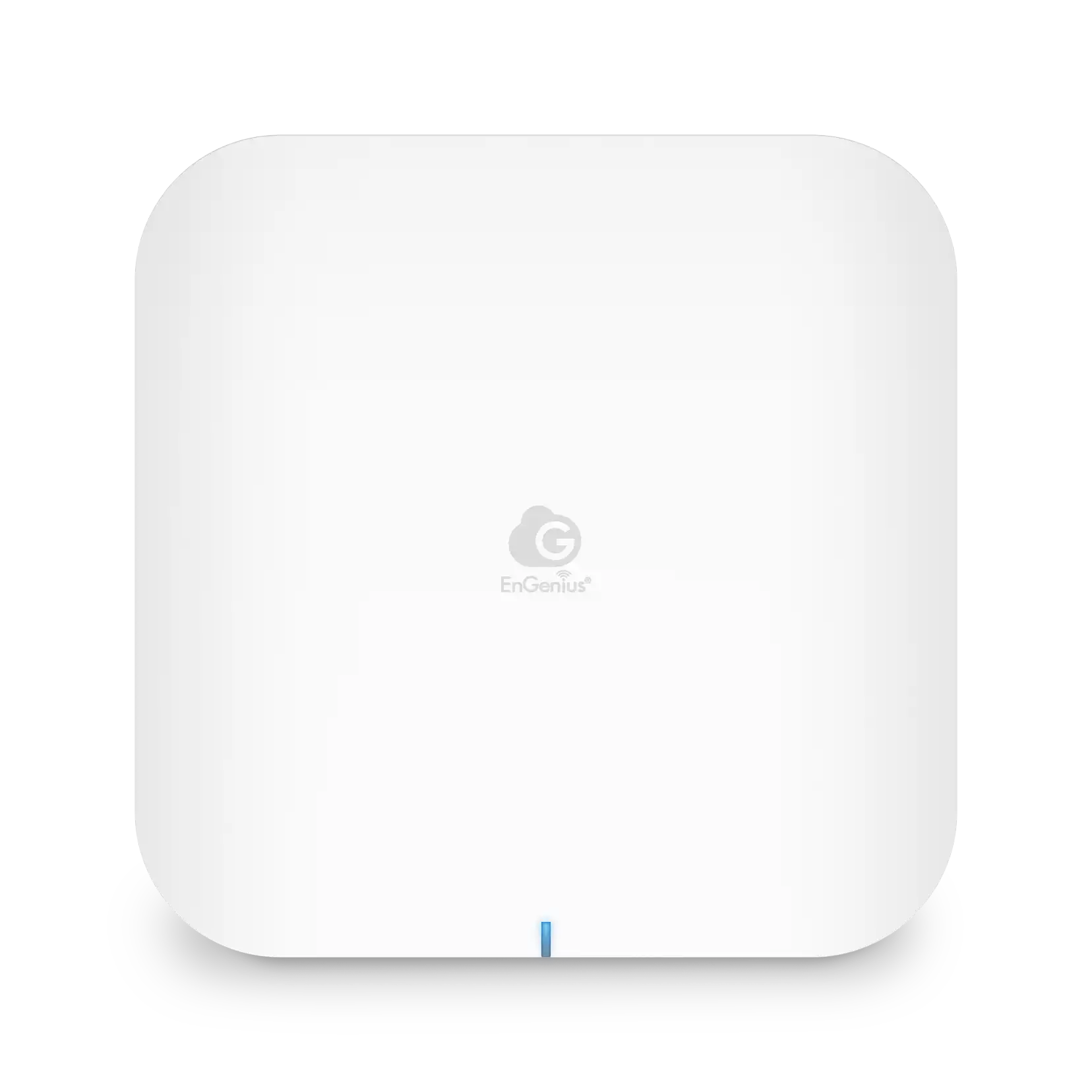

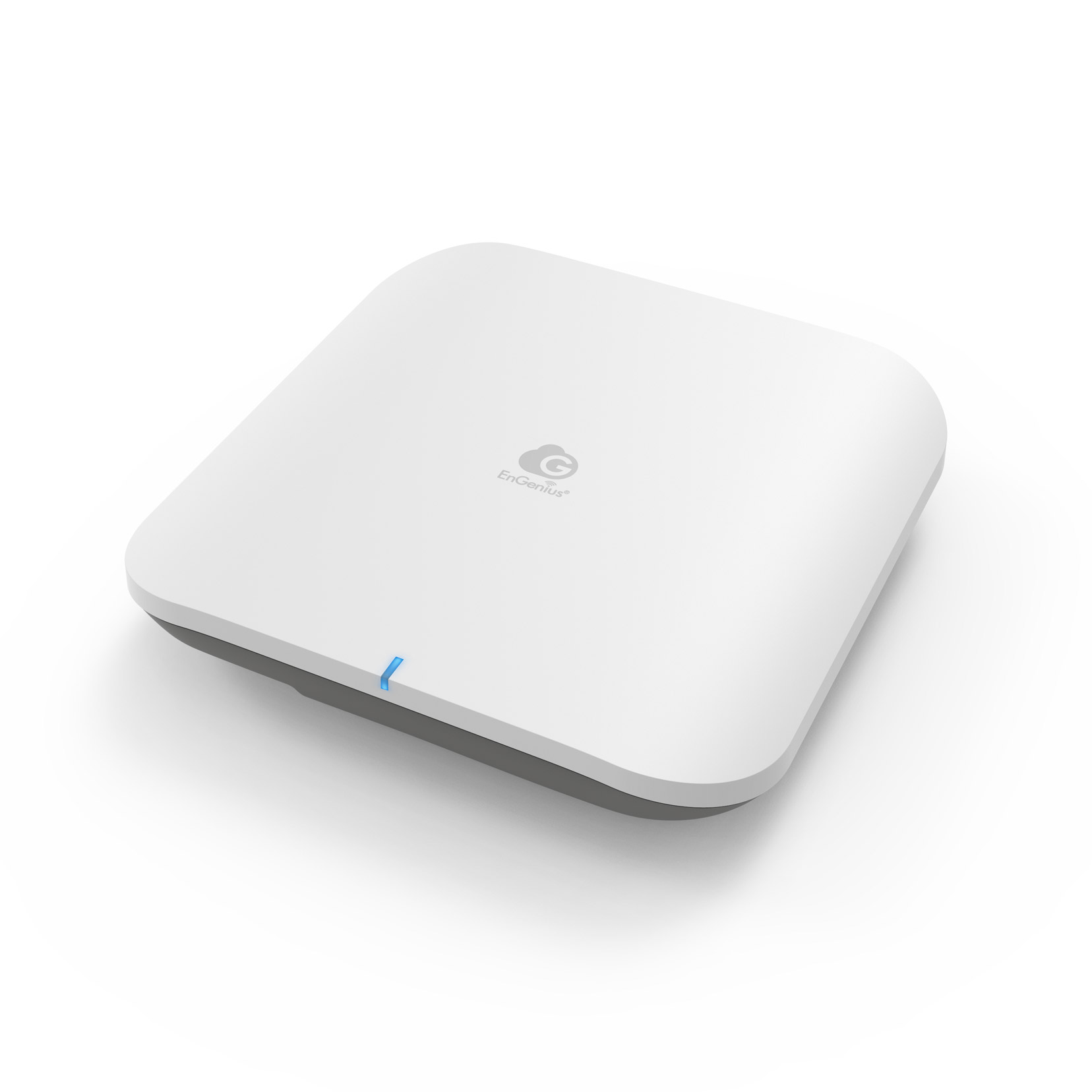

EnGenius - ECW536 - Wi-Fi 7 4x4x4 Indoor Ceiling Mount Tri-Band AP
Part number:
ECW536
Price:
EnGenius Cloud Managed ECW536 is a sleekly designed Wi-Fi 7 tri-band 4x4x4 access point that supports up to 18.7 gigabit speeds using 3 frequency bands, 2.4 GHz, 5 GHz, and the newly released 6 GHz band. The ECW536 using Wi-Fi 7 standards supports ultra-wide 320 MHz channels that can deliver extreme throughput and provides greater network capacity. The ECW536 also takes advantage of 4-MU-MIMO, 4096-QAM, Multi-Link Operation and Multi-RU puncturing to increase overall performance, reliability, and high-density device support by utilizing multiple bands, avoiding interference, and reducing latency. The ECW536 has two 10 GbE ports, primary port supporting PoE++ for easy AP placement and 2nd port providing gigabit speed to another device.
Features:
- Wi-Fi 7 Tri-band, 2.4GHz, 5 GHz, and 6 GHz supports 18.7 Gbps aggregate speeds
- Ultra-wide 320 MHz channels in 6 GHz to deliver extreme throughput gains
- 4x4x4 integrated omni-directional antenna design for greater coverage area
- 4 MU-MIMO spatial streams to ensure premium performance in high density environments
- 4096-QAM advanced modulation packs more data for throughput and capacity
- Multi-Link Operation (MLO) increases throughput and reliability utilizing multiple bands
- Multi-RU puncturing avoids interference, increases throughput, and reduces latency
- Sleek ceiling-mount with a modern multi-color LED for low-profile design
- Simple click-n-twist mounting and Kingston lock for easy and secure installation
- 10 GbE PoE++ port to maximize multi-gigabit connection speeds and AP placement
- Secondary 10 GbE port to conveniently connect to another high-performance device
- Cutting-edge cloud management for centralized management and mass scalability
- Advanced enterprise security with radius and isolated guest access for more secure networks
- Access point diagnostic tools for real-time remote monitoring and troubleshooting
| Technical Specifications |
| Standards |
| IEEE 802.11be on 2.4 GHz |
| IEEE 802.11be on 5 GHz |
| IEEE 802.11be on 6 GHz |
| (Backward compatible with 802.11b/g/n/ac/ax) |
| Processor |
| Qualcomm® Networking Pro 1220 |
| Antenna |
| 4 x 2.4 GHz: 5 dBi |
| 4 x 5 GHz: 6 dBi |
| 4 x 6 GHz: 5 dBi |
| Physical Interface |

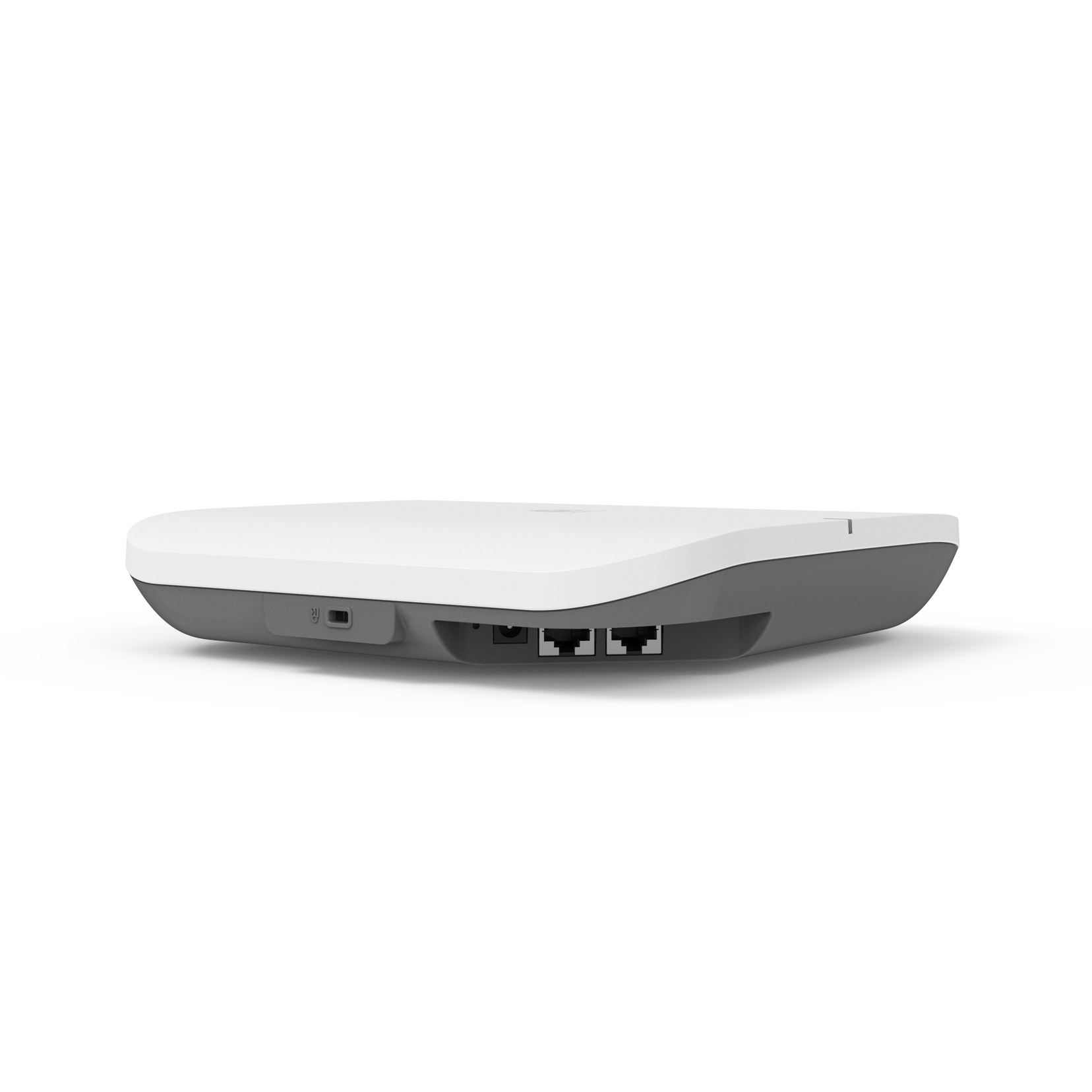

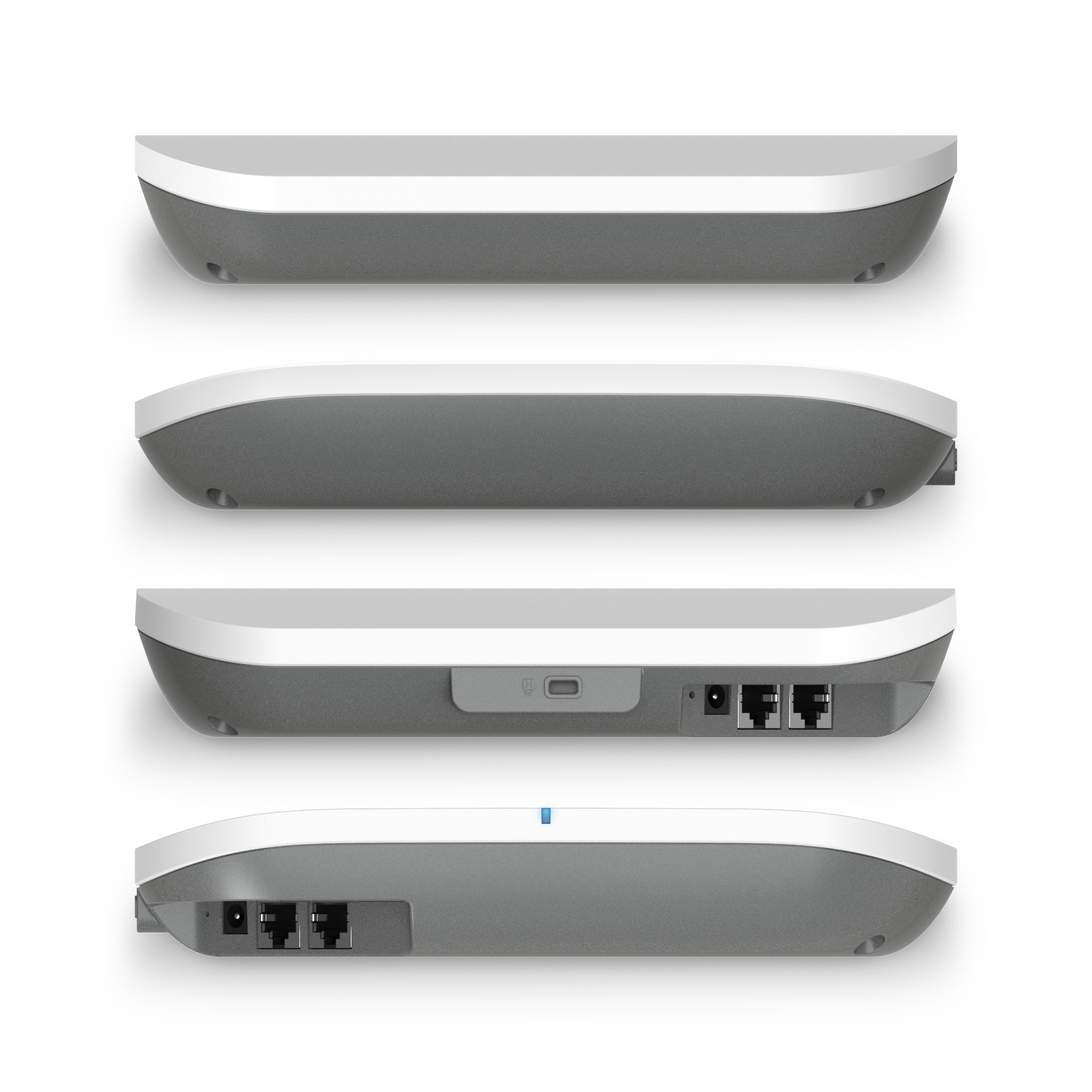

| 2 x 10/100/1000/2500/5000/10000 BASE-T, RJ-45 Ethernet Port |
| 1 x DC Jack |
| 1 x Reset Button |
| LED Indicators |
| 1 x Multi-color LED |
| Power Source |
| Power-over-Ethernet: 802.3bt Input |
| 12VDC/3A Power Adapter (Not Included) |
| Maximum Power Consumption |
| 35W |
| Wireless & Radio Specifications |
| Operating Frequency |
| Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz |
| Operation Modes |
| AP, Mesh |
| Frequency Radio |
| 2.4 GHz: 2400 MHz ~ 2482 GHz |
| 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| 6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz |
| Transmit Power |
| Up to 25 dBm on 2.4 GHz |
| Up to 24 dBm on 5 GHz |
| Up to 24 dBm on 6 GHz |
| (Maximum power is limited by regulatory domain) |
| Tx Beamforming (TxBF) |
| Increasing signal reliability and transmitting distance |
| Radio Chains/Spatial Stream |
| 4x4x4:4 |
| SU-MIMO |
| Four (4) spatial stream Single User (SU) MIMO for up to 1,376 Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio. |
| Four (4) spatial stream Single User (SU) MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio. |
| Four (4) spatial stream Single User (SU) MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio. |
| MU-MIMO |
| Four (4) spatial stream Multi-User (MU)-MIMO for up to 1,376Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio simultaneously. |
| Four (4) spatial stream Multi-User (MU)-MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio simultaneously. |
| Four (4) spatial stream Multi-User (MU)-MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio simultaneously. |
| Supported Data Rates (Mbps): |
| 802.11be: |
| 6 GHZ: Max 11,600 (MCS0 to MCS13, NSS = 1 to 4) |
| 5 GHz: Max 5,800 (MCS0 to MCS11, NSS = 1 to 4) |
| 2.4 GHz: Max 1,440 (MCS0 to MCS11, NSS = 1 to 4) |
| 802.11ax: |
| 6 GHZ: 18 to 4,800 (MCS0 to MCS13, NSS = 1 to 4) |
| 5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4) |
| 2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4) |
| 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4) |
| 802.11n: 6.5 to 600 Mbps (MCS0 to MCS15) |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11b: 1, 2, 5.5, 11 |
| Supported Radio Technologies |
| 802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization |
| 802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 (6 GHz only) MHz |
| 802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) |
| 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation |
| 802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Management |
| Multiple BSSID |
| 8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-Band VLAN Pass-Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| IEEE 802.11e compliant |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3 Enterprise |
| WPA3-PSK (SAE) |
| WPA3/WPA2-PSK Mixed |
| WPA2 Enterprise |
| WPA2 AES-PSK |
| Hide SSID in Beacons |
| MAC Address Filtering, up to 256 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| L2 Isolation |
| Environmental & Physical |
| Temperature Range |
| Operating: 32ºF~104ºF (0ºC~40ºC) |
| Storage: -40ºF~176 ºF (-40ºC~80ºC) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Device Dimensions & Weights |
| ECW536 Device |
| Weight: TBD |
| Length: 9.06" (230 mm) |
| Width: 9.06" (230 mm) |
| Height: 1.46" (37 mm) |
| Package Contents |
| 1 x ECW536 Cloud Managed Indoor Access Point |
| 1 x Mount Base |
| 1 x Ceiling and Wall Mount Screw Kits |
| 1 x Quick Installation Guide |
| Certifications |
| FCC |
| CE |
| IC |
| Warranty |
| 2 Year |
