802.11ac Wave 2 Dual-Band Access Point

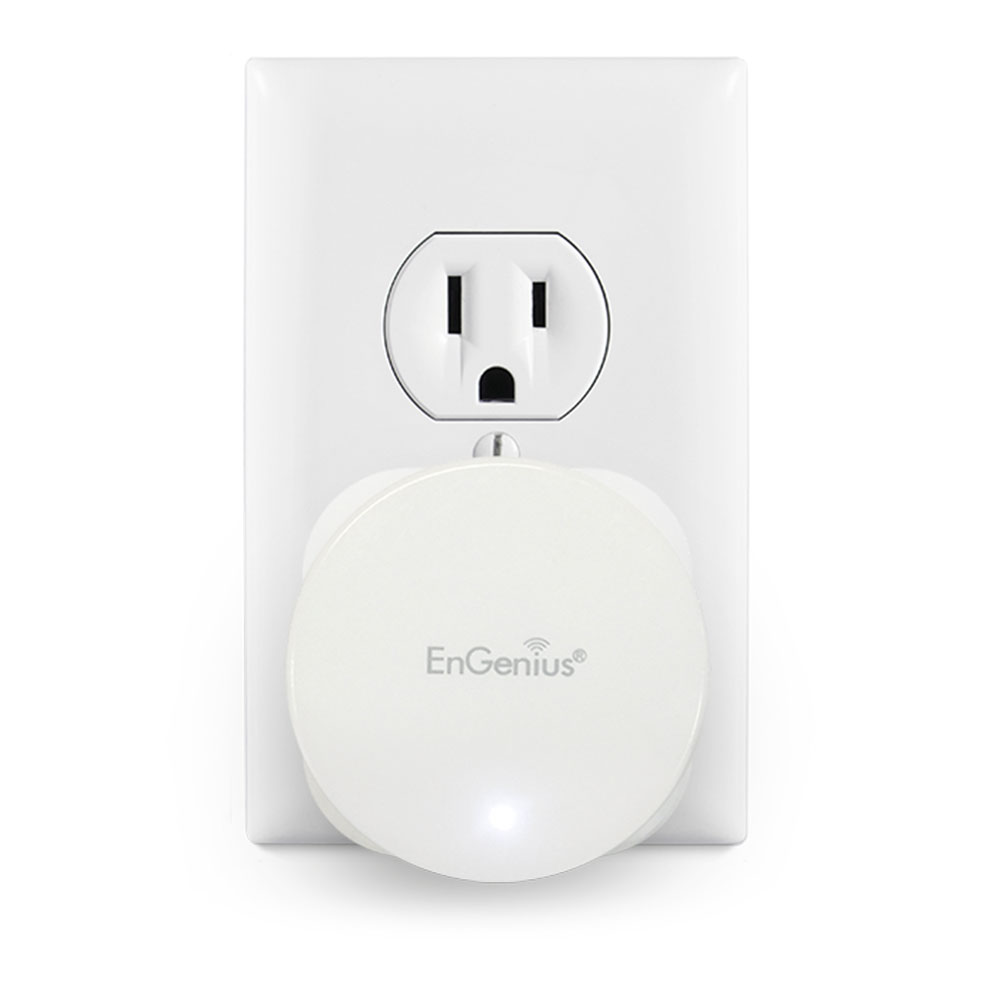

The EnGenius Mesh Dot EMD1 802.11ac Wave 2 Dual-Band Access Point installs in an instant, adding Wi-Fi, strengthening range, and increasing speed in homes or small offices. Portable and easy to use, Mesh Dot adds Wi-Fi where you need it by creating a whole home WiFi system in more remote areas of the home like garages, attics, basement workspaces, and backyards.
- Perfect for creating hotspots in difficult-to-cover spots inside or outside the home
- Portable, compact and easy to use – either wirelessly or wired with 1 Gigabit Port
- Boosts signal speed, strength, and coverage
- Create Wall-to-Wall Wireless Coverage That Eliminates Dead Spots
- Mesh Utilizes Smart Sensors to Automatically Optimize Connections
Technical Specifications
Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
Antenna
Integrated Omni-Directional Antennas
Physical Interface

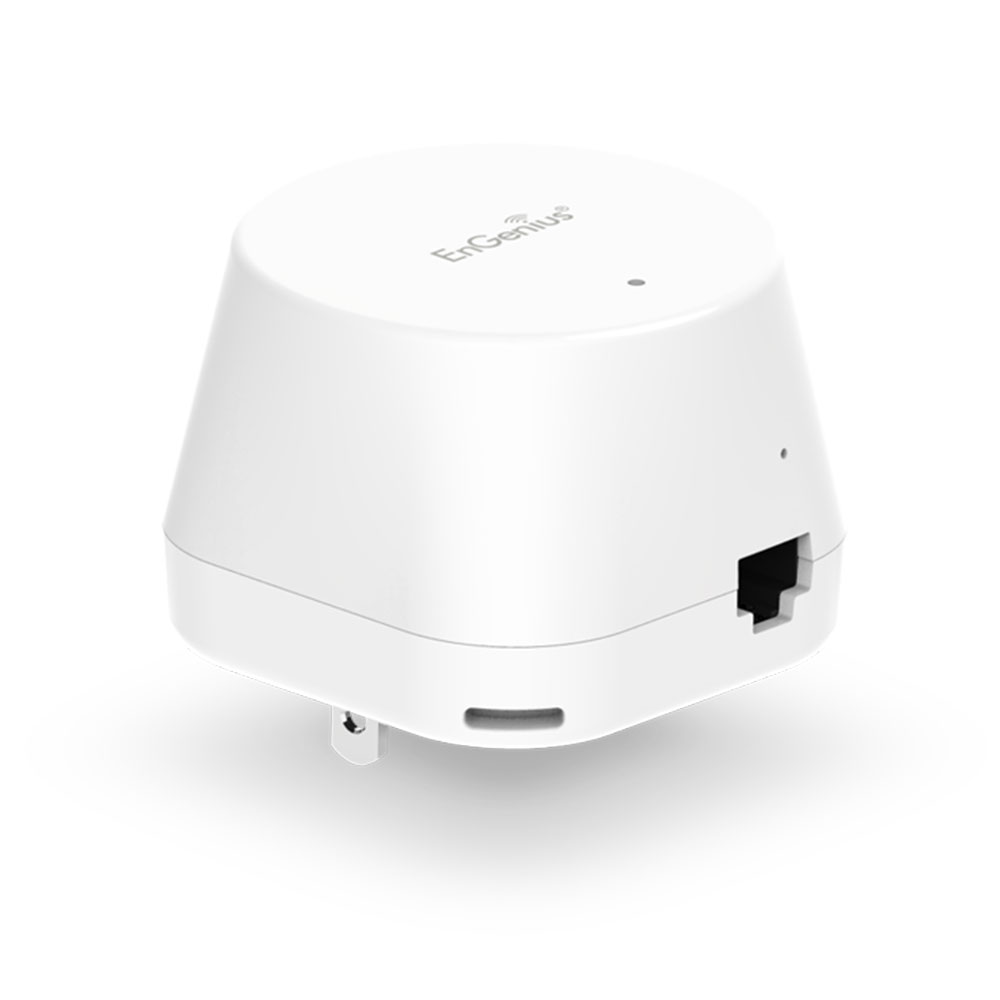

1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Ports
LED Indicators
1 Color-Status LED
- White: Mesh & Internet Connection Status
- Blue: Bluetooth Connection Status
- Red: No Internet Connection or No Mesh Connection
- Orange: Mesh Connection Signal is Weak
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
Mesh Mode, AP Mode
Max. Nodes
8 (including the EnMesh Whole Home Wi-Fi System Router)
Wireless Initial Setup
EnMesh App Required
Frequency Radio
2.4 GHz: 2400 MHz ~ 2835 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 19 dBm on 2.4 GHz
Up to 19 dBm on 5 GHz
Radio Chains/Spatial Stream
2x2:2 MU-MIMO
Max. Speeds
400 Mbps on 2.4 GHz
867 Mbps on 5 GHz
Supported Data Rates (Mbps):
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11a/b/g Supports High Throughput (HT)—20 MHz
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
