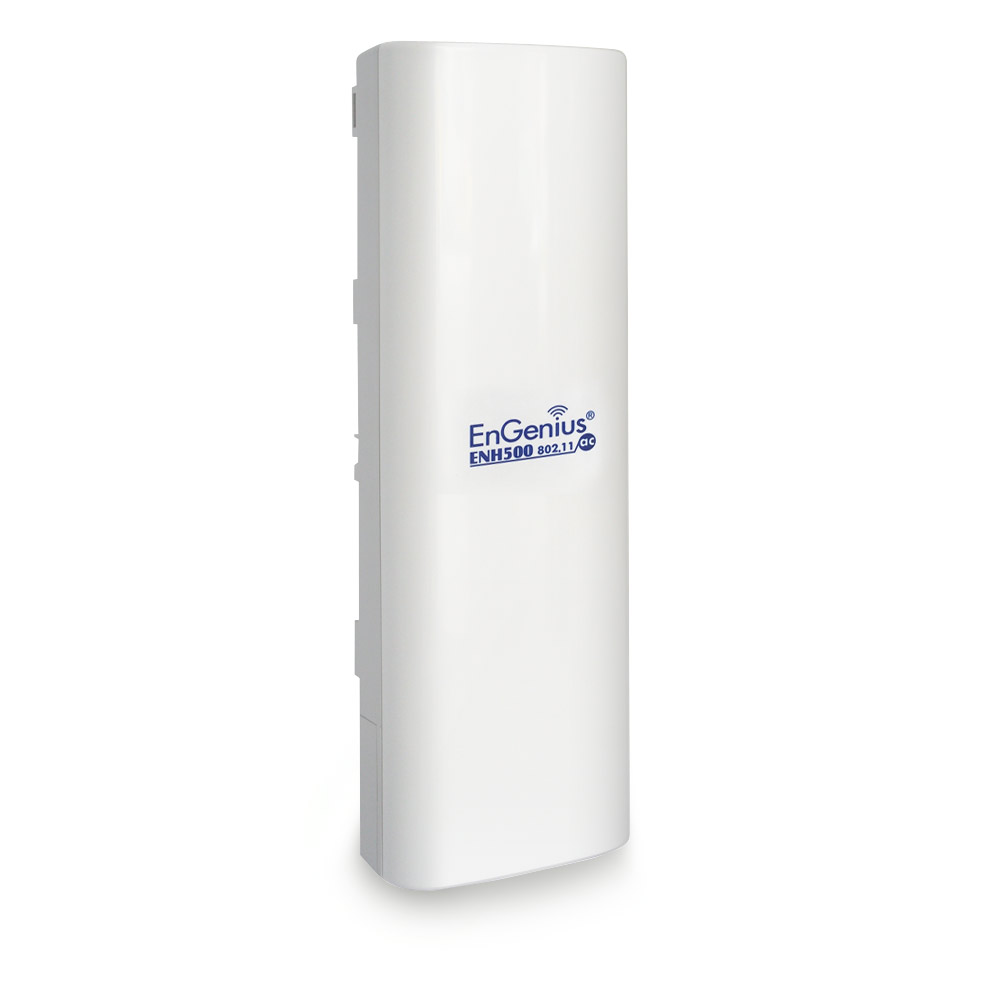

Streamlined, Long-Range CPE Expands Point-to-Point or Point-to-Multipoint Networks
EnGenius ENH500v3 Wireless Bridge leverages the advanced 802.11ac Wave 2 Wi-Fi technology that maximizes wireless speed and is 3x faster than the typical 802.11n speed. EnGenius ENH500v3 features ‘Time Division Multiple Access’ technology that cuts through RF-congested environments within point-to-point/multipoint applications. Offers a high-gain 16 dBi dual-polarized directional antenna that extends the network coverage up to 5 miles point-to-point.
Features :
- EnJet features ‘Time Division Multiple Access’ technology that cuts through RF-congested environments within point-to-point/multipoint applications
- 11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz
- Beamforming optimizes antenna signal, reception & reliability for clients
- 27 dBm high transmit power extends Wi-Fi building-to-building
- High Gain 16 dBi Integrated Directional Antennas extends wireless point-to-point networks up to 5 miles
- IP55-Rated weatherproof & dustproof housing
- MU-MIMO improves performance & increases user device capacities
- GigE PoE port & adapter included for placement where power is limited
- Flexible operation modes: Access Point, Client Bridge & WDS
- Simple, intuitive interface via EnWiFi app for local CPE/AP configuring & monitoring
Technical Specifications
Standards
IEEE 802.11a/n/ac wave2 on 5 GHz
Processor
Powerful Qualcomm® CPU
Antenna
High-Gain 16 dBi Integrated Directional Antennas
5 GHz (Port 1)
Average Antenna Gain: 16 dBi
Polarization: Linear
Azimuth Beam Width: 18°
Elevation Beam-Width: 58°
VSWR: 1:2.0
5 GHz (Port 2)
Average Antenna Gain: 16 dBi
Polarization: Linear
Azimuth Beam Width: 18°
Elevation Beam-Width: 85°
VSWR: 1:2.0

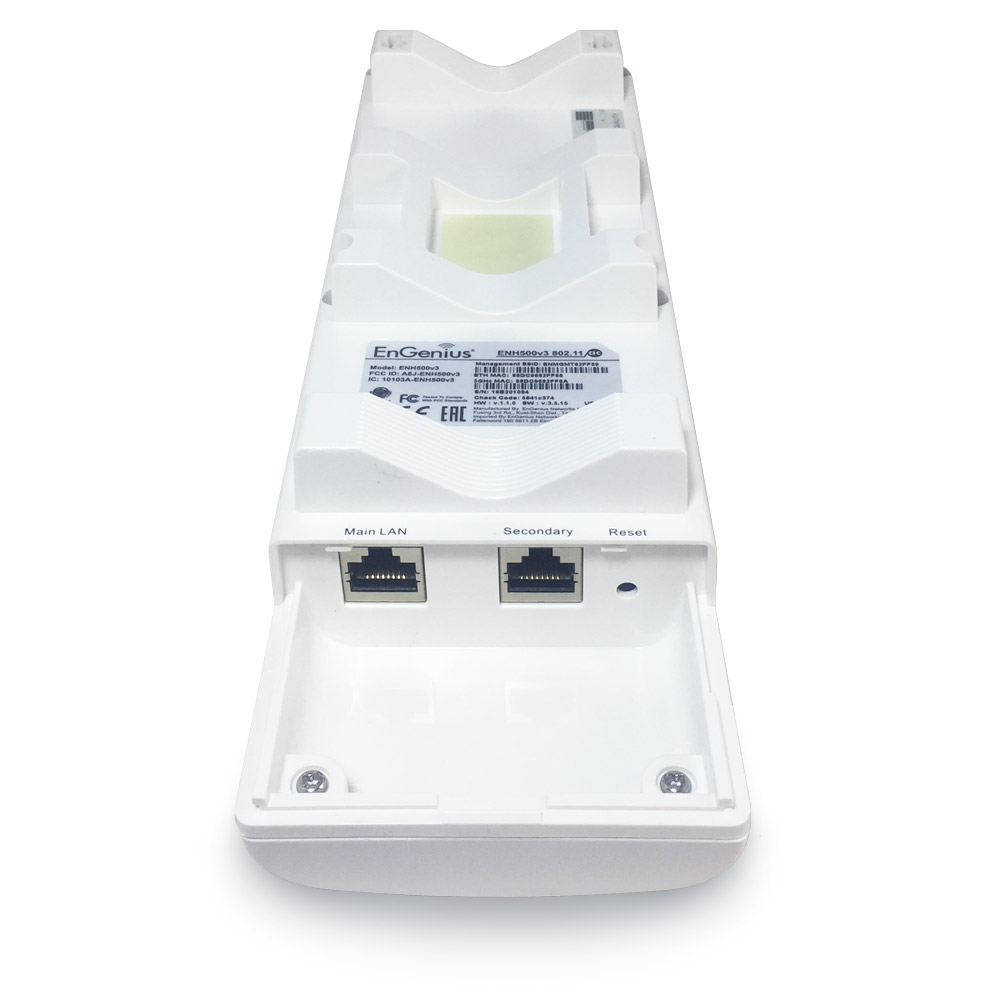

Physical Interface
2 x 10/100/1000 Base-TX, RJ-45 Gigabit Ethernet Ports
1 x Reset Button (on the EPA2406GR PoE Adapter)

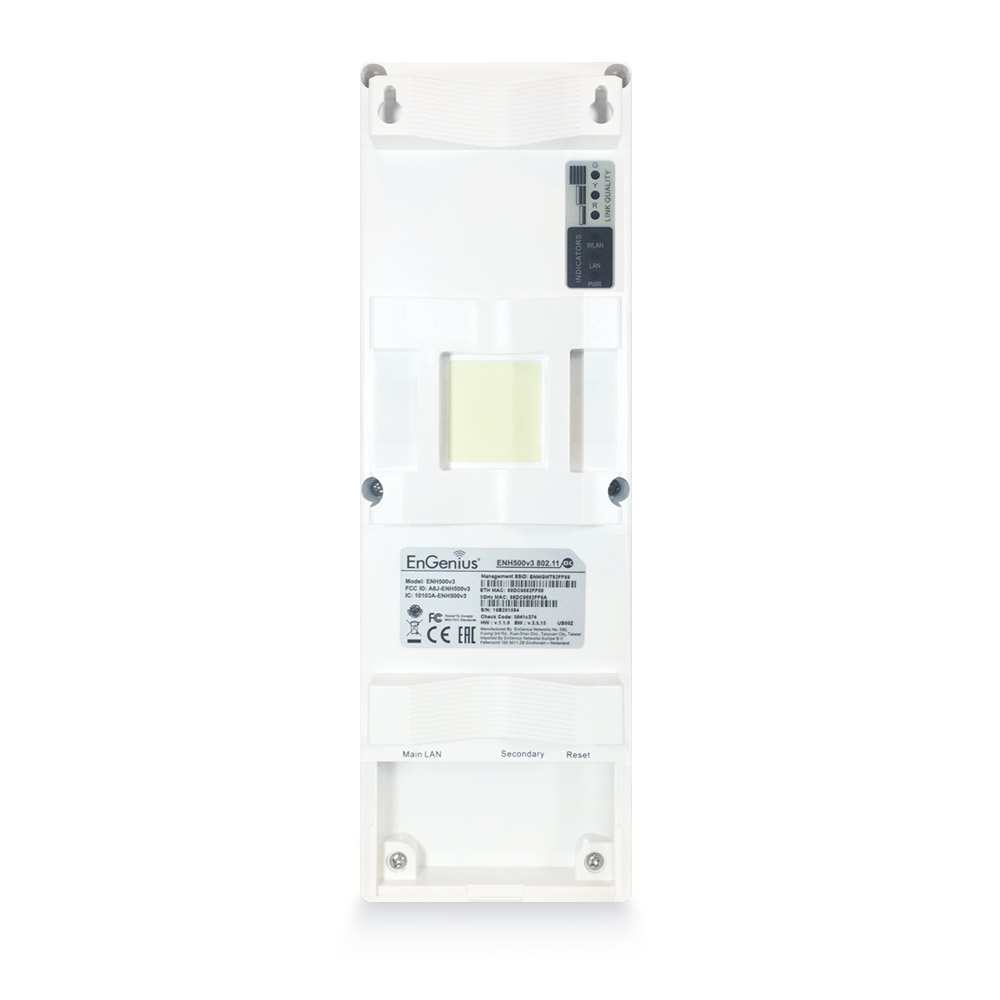

LED Indicators
Power
LAN
WLAN
LINK QUALITY
Power Source
Power-over-Ethernet: Proprietary 24V PoE
PoE Adapter EPA2406GR with RESET button
Maximum Power Consumption
8.9W
Surge Protection
Line to Line: 1 KV
Line to Ground: 2 KV
ESD Protection
Contact: 4 KV
Air: 8 KV
Wireless & Radio Specifications
Operating Frequency
5 GHz
Operation Modes
EnJet Enabled:
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Station
EnJet Disabled:
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station
Frequency Radio
5 GHz: 5150 MHz, 5180 MHz, 5200 MHz, 5220 MHz, 5240 MHz, 5260 MHz, 5280 MHz, 5300 MHz, 5320 MHz, 5500 MHz, 5520 MHz, 5540 MHz, 5560 MHz, 5580 MHz, 5600 MHz, 5620 MHz, 5640 MHz, 5640 MHz, 5680 MHz, 5745 MHz, 5765 MHz, 5785 MHz, 5805 MHz
Supported radios and channels will be varied on the configured regulatory domain
Transmit Power
Up to 27 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio.
MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5GHz simultaneously.
Supported Data Rates (Mbps):
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n/ac Packet Aggregation: AMPDU, ASPDU
Supported Modulation
802.11a/n: OFDM16-QAM, 64-QAM
802.11ac: OFDM 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID
EnJet Enabled: Supports 1 SSIDs
EnJet Disabled: Supports 8 SSIDs
Management Interface
Management SSID – allows your mobile device such as smart phone, connect to SSID and easily configuring and monitoring through EnGenius EnWiFi App.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
