Engenius - ENH500v3 KIT - Two Wi-Fi 5 Wave 2 Outdoor AC867 5 GHz Point to Point Wireless Bridge
Part number:
ENH500v3 KIT
Price:
EnGenius ENH500v3 Wireless Bridge leverages the advanced 802.11ac Wave 2 Wi-Fi technology that maximizes wireless speed and is 3x faster than the typical 802.11n speed. EnGenius ENH500v3 features ‘Time Division Multiple Access’ technology that cuts through RF-congested environments within point-to-point/multipoint applications. Offers a high-gain 16 dBi dual-polarized directional antenna that extends the network coverage up to 5 miles point-to-point.
Features:
- EnJet features ‘Time Division Multiple Access’ technology that cuts through RF-congested environments within point-to-point/multipoint applications
- 11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz
- Beamforming optimizes antenna signal, reception & reliability for clients
- 27 dBm high transmit power extends Wi-Fi building-to-building
- High Gain 16 dBi Integrated Directional Antennas extends wireless point-to-point networks up to 5 miles
- IP55-Rated weatherproof & dustproof housing
- MU-MIMO improves performance & increases user device capacities
- GigE PoE port & adapter included for placement where power is limited
- Flexible operation modes: Access Point, Client Bridge & WDS
- Simple, intuitive interface via EnWiFi app for local CPE/AP configuring & monitoring
| Standards |
| IEEE802.11a/n/ac on 5 GHz |
| Processor |
| Qualcomm® |
| Antenna |
| EnStation5-AC |
| 2 x 19 dBi Directional Integrated |
| EnStation5-AC |
| 2 x 19 dBi Directional Integrated |
| ENS500EXT-AC |
| 2 x 5 dBi Omni-Directional Detachable (SMA-Type) |
| ENS500-AC |
| 2 x 14 dBi Directional Integrated |
| ENH500v3 |
| 2 x 16 dBi Directional Integrated |

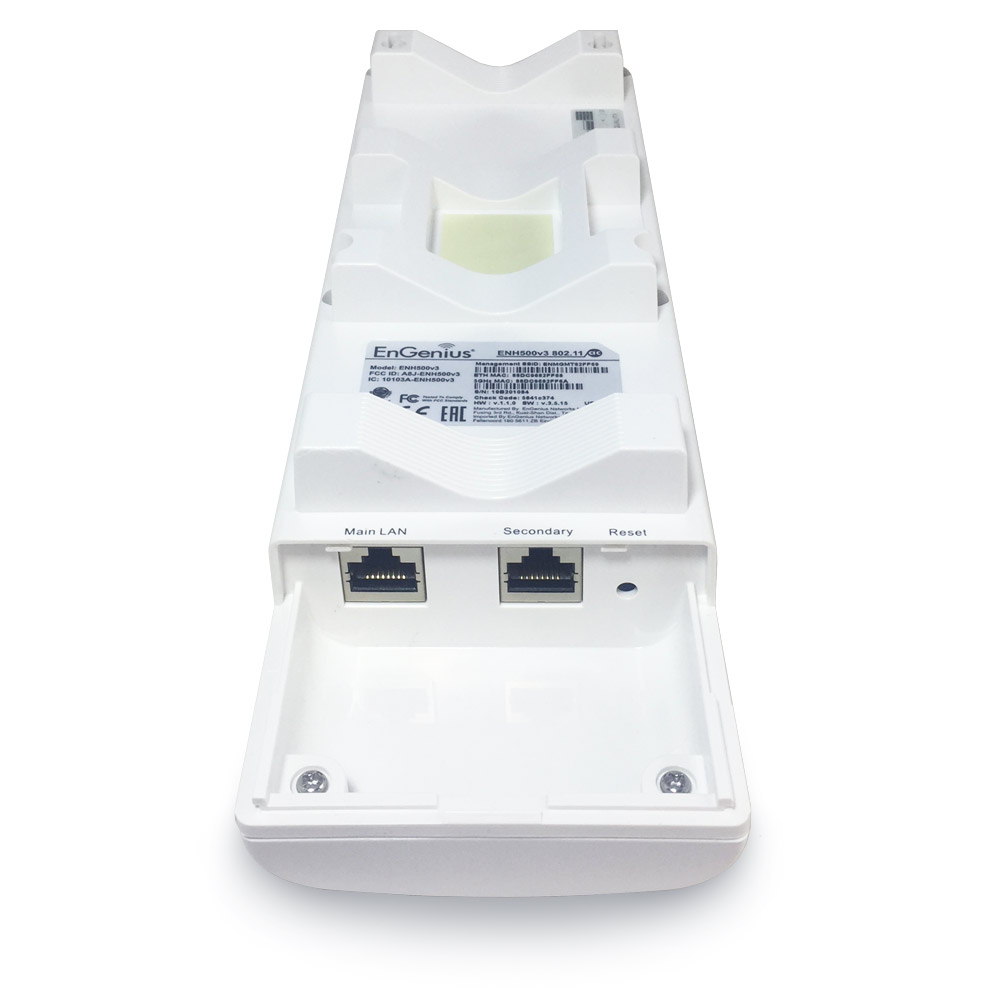

| Physical Interface |
| 2 x 10/100/1000 Gigabit Ethernet Ports |
| Reset Button |
| LED Indicators |
| ENS500EXT-AC/ENS500-AC |
| Power |
| LAN 1 |
| LAN 2 |
| WLAN |
| Signal |
| EnStation5-AC/EnStationAC |
| Power |
| WLAN |
| LAN |
| ENH500v3 |
| Power |
| LAN |
| WLAN |
| Link Quality |
| Power Source |
| Power-over-Ethernet: Proprietary 24V PoE |
| IEEE 802.11e Compliant Source |
| Active Ethernet (PoE) |
| Maximum Power Consumption |
| ENS500EXT-AC/ENS500-AC/EnStation5-AC 6.3 W |
| EnStationAC 8.3 W |
| ENH500v3 = 8.9 W |
| Surge Protection |
| Line to Line: 1 KV |
| Line to Ground: 2 KV |
| ESD Protection |
| Contact: 4 KV |
| Air: 8 KV |
| Wireless & Radio Specifications |
| Operating Frequency |
| 5 GHz |
| Operation Modes [ EnJet Disable ] |
| Access Point Mode (AP mode) |
| Client Bridge Mode (CB Mode) |
| WDS: WDS AP, WDS Bridge, WDS Station |
| Operation Modes [ EnJet Enable ] |
| Access Port Mode (AP Mode) |
| Client Bridge Mode (CB Mode) |
| WDS: WDS AP and WDS Station |
| Frequency Radio |
| 5 GHz: 5180 MHz~5260 MHz, 5280 MHz~5320 MHz, |
| 5500 MHz~5745 MHz, 5765 MHz~5805 MHz |
| Transmit Power |
| ENS500-AC, ENS5-AC, EnStationAC, ENH500EX-AC |
| 5 GHz: 26 dBm |
| ENH500v3 |
| 5 GHz: 27 dBm |
| Tx Beamforming (TxBF) |
| Radio Chains/Spatial Stream |
| 2x2:2 |
| SU-MIMO |
| Two(2) spatial streams SU-MIMO for 5GHz up to |
| totally 867 Mbps wireless data rate to a single 11ac |
| wireless client device under 5GHz radio. |
| MU-MIMO |
| Two(2) spatial streams multi-user (MU)-MIMO for up |
| to 867 Mbps wireless data rate to transmit to one(1) |
| two streams MU-MIMO 11ac capable wireless client |
| devices under 5GHz simultaneously.. |
| Supported Data Rates (Mbps) |
| 5 GHz: Max 867 Mbps |
| 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 |
| 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, |
| NSS = 1 to 2) |
| Supported Radio Technologies |
| 802.11a/n/ac: Orthogonal Frequency-Division |
| Multiplexing (OFDM) [EnJet Disabled] |
| 802.11 n/ac: Time Division Multiple Access |
| [EnJet Enabled] |
| 802.11n/ac: 2x2 MIMO With 2 Streams |
| Channelization |
| 802.11ac Supports Very High Throughput |
| (VHT)—VHT 20/40/80 MHz |
| 802.11n Supports High Throughput |
| (HT)—HT 20/40 MHz |
| 802.11n/ac Packet Aggregation: AMPDU, ASPDU |
| Supported Modulation |
| 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Management |
| Multiple BSSID |
| Supports 8 SSIDs [EnJet Disable] |
| Supports 1 SSID [EnJet Enable] |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Management VLAN |
| VLAN Pass-Through |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Complaint With IEEE 802.11e Standard |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Management Features |
| Deployment Options |
| Stand-Alone (Individually Managed/EnWiFi App) |
| Managed Mode (w/ezMaster/EWS Series Switch/ |
| Skykey |
| Stand-Alone Management Features |
| Auto Channel Selection |
| Auto Transmit Power |
| Wireless STA (Client) Connected List |
| Guest Network (Support When EnJet Disabled) |
| Fast Roaming (802.11k & 802.11r) |
| Pre-Authentication (802.11i, 802.11x) |
| PMK Caching (802.11i) |
| RSSI Threshold |
| Traffic Shaping |
| VLANs for Access Point – Multiple SSIDs |
| Backup/Restore Settings |
| Auto Reboot |
| E-Mail Alert |
| Site Survey |
| Save Configuration as Users Default |
| Control Features |
| Operation Mode |
| Distance Control (ACK Timeout) |
| Multicast Supported |
| Wi-Fi Scheduler |
| Client Traffic Status |
| RADIUS Accounting |
| Power Save Mode (U-APSD Support) |
| CLI Support |
| HTTPS |
| Wireless Security |
| WPA2 PSK & Enterprise (AES) |
| Hide SSID in Beacons |
| MAC Address Filtering, Up to 32 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| Wireless Management Features (w/ezMaster & |
| EWS Switch) (Available in AP Mode) (Monitor When |
| EnJet Enabled) (Support When EnJet Disabed) |
| AP Auto Discovery and Provisioning |
| AP Auto IP Assignment |
| AP Group Management |
| Auto AP Rebooting |
| AP Device Name Editing |
| AP Radio Settings |
| Traffic Shaping |
| Fast Roaming (802.11k & 802.11r) |
| Pre-Authentication (802.11i, 802.11x) |
| PMK Caching (802.11i) |
| RSSI Threshold |
| AP Client Limiting |
| Client Fingerprinting |
| AP VLAN Management |
| VLANs for AP - Multiple SSIDs |
| Secured Guest Network |
| Access Point Status Monitoring |
| Wireless Client Monitoring |
| Email Alert |
| Wireless Traffic & Usage Statistics |
| Real-Time Throughput Monitoring |
| Visual Topology View |
| Floor Plan View |
| Map View |
| Wireless Coverage Display |
| Secure Control Messaging (SSL Certificate) |
| Local MAC Address Database |
| Remote MAC Address Database (RADIUS) |
| Unified Configuration Import/Export |
| Bulk Firmware Upgrade Capability |
| Intelligent Diagnostics |
| Kick/Ban Clients |
| Wi-Fi Scheduler |
| Temperature Range |
| Operating: -4º F~140º F (-20º C~60º C) |
| Storage: -22º F~176º F (-30º C~80º C) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Waterproof |
| IP55-Rated Enclosure |
| Dimensions & Weights |
| ENS500EXT-AC/ENS500-AC |
| Weight: 0.65 lbs. (0.29 kg) |
| Width: 3.93” (100 mm) |
| Length: 7.20” (185 mm) |
| Height” 1.08” (27 mm) |
| EnStation5-AC/EnStationAC |
| Weight: 1.11 lbs. (460 g) |
| Depth: 7.48” (190 mm |
| Height: 1.49” (38 mm) |
| ENH500v3 |
| Weight: 0.91 lbs. (415.5 g) |
| Width: 3.31” (84 mm) |
| Length: 10.24” (260 mm) |
| Height: 2.17” (55 mm) |
| Package Contents |
| ENS500EXT-AC |
| ENS500EXT-AC Outdoor Access Point |
| PoE Adapter (EPA2406GP) |
| PoE Adapter (EPA2406GP) |
| PoE Adapter (EPA2406GP) |
| PoE Adapter (EPA2406GP) |
| PoE Adapter (EPA2406GP) |
| PoE Adapter (EPA2406GP) |
| PoE Adapter (EPA2406GP) |
| ENS500-AC |
| ENS500-AC Outdoor Bridge |
| PoE Adapter (EPA2406GP) |
| Pole-Mounting Brackets |
| Wall-Mount Screw Set |
| Power Cord |
| Quick Installation Guide |
| EnStation5-AC |
| EnStation5-AC Outdoor Wireless Bridge |
| PoE Adapter (EPA2406GP) |
| Pole-Mounting Brackets |
| Wall-Mount Screw Set |
| Power Cord |
| Quick Installation Guide |
| EnStationAC |
| EnStation5-AC Outdoor Wireless Bridge |
| PoE Adapter (EPA5000GR) |
| Pole-Mounting Brackets |
| Wall-Mount Screw Set |
| Power Cord |
| Quick Installation Guide |
| ENH500v3 |
| ENH500v3 Outdoor Wireless Bridge |
| PoE Adapter (EPA2406GP) |
| Pole-Mounting Brackets |
| Pole-Mounting Strap |
| Quick Installation Guide |
| Certifications |
| FCC, CE |
| Warranty |
| 1-Year Standard |
