Compact, Long-Range Outdoor Wireless Access Point/Bridge Maximizes Outdoor Network Coverage & Connections

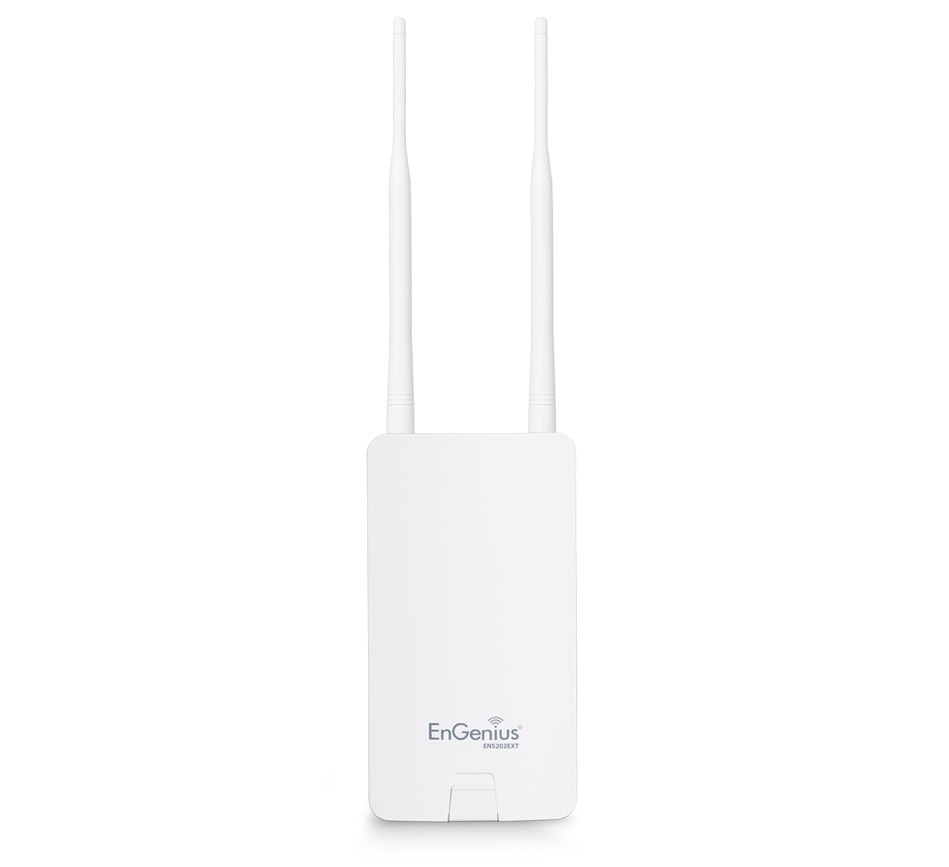

The ENS202EXT Outdoor Wireless Access Point/Bridge provides 11n speeds outdoors to 300 Mbps on the 2.4 GHz band. This dual-functional AP/bridge is optimally used with commercial and residential energy efficient control hardware such as pool equipment, irrigation systems, and digital signage displays. Pair with the SA2216 Sector Antenna for extended range.
- Weatherproof IP55-Rated Housing Resists Harsh Climates
- Robust 26 dBm Transmit Power Supports Wi-Fi to Yards & Patios

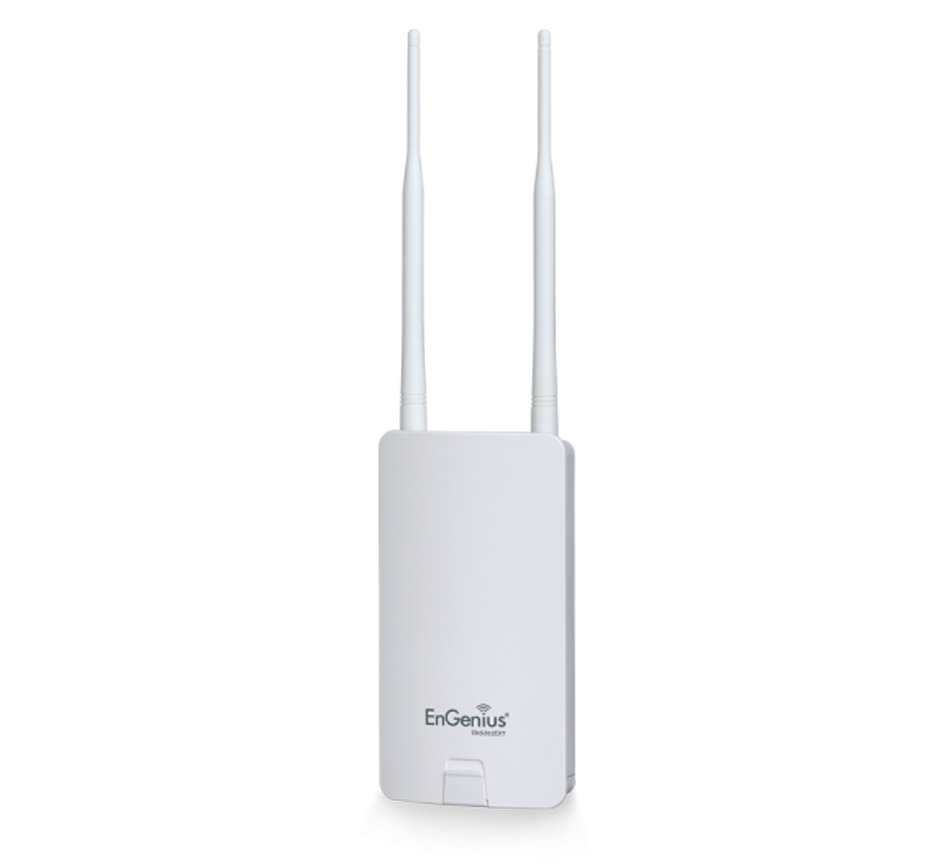

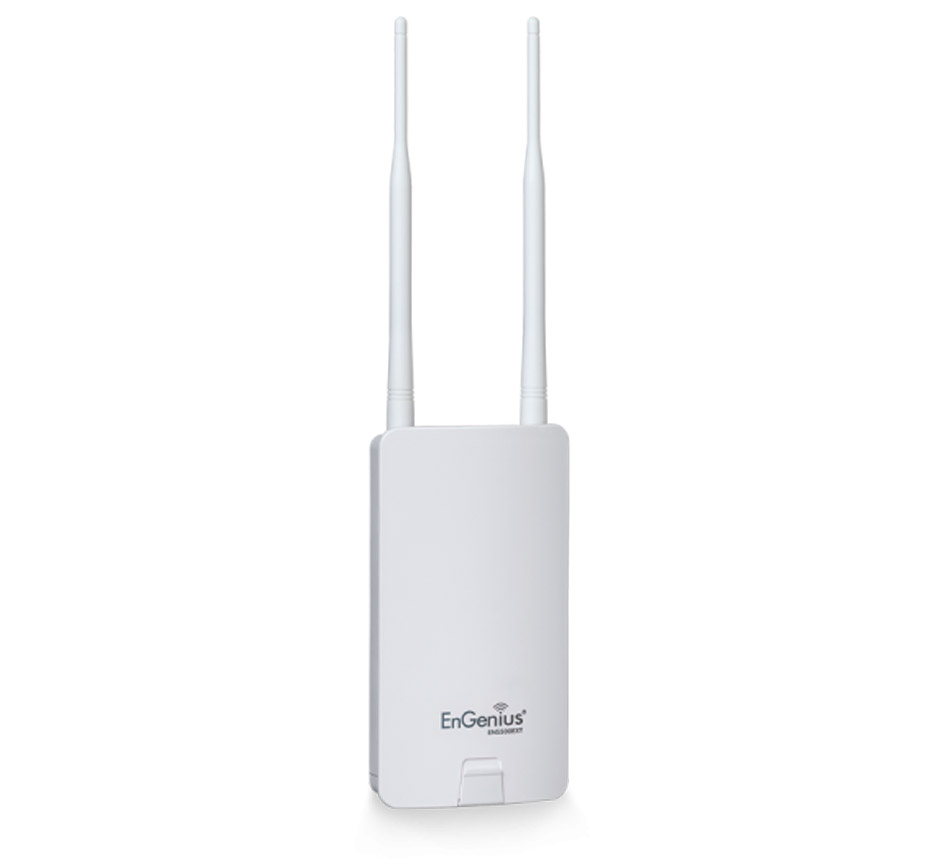

- (2) Detachable 5 dBi MIMO Antennas Maximize 360° Coverage

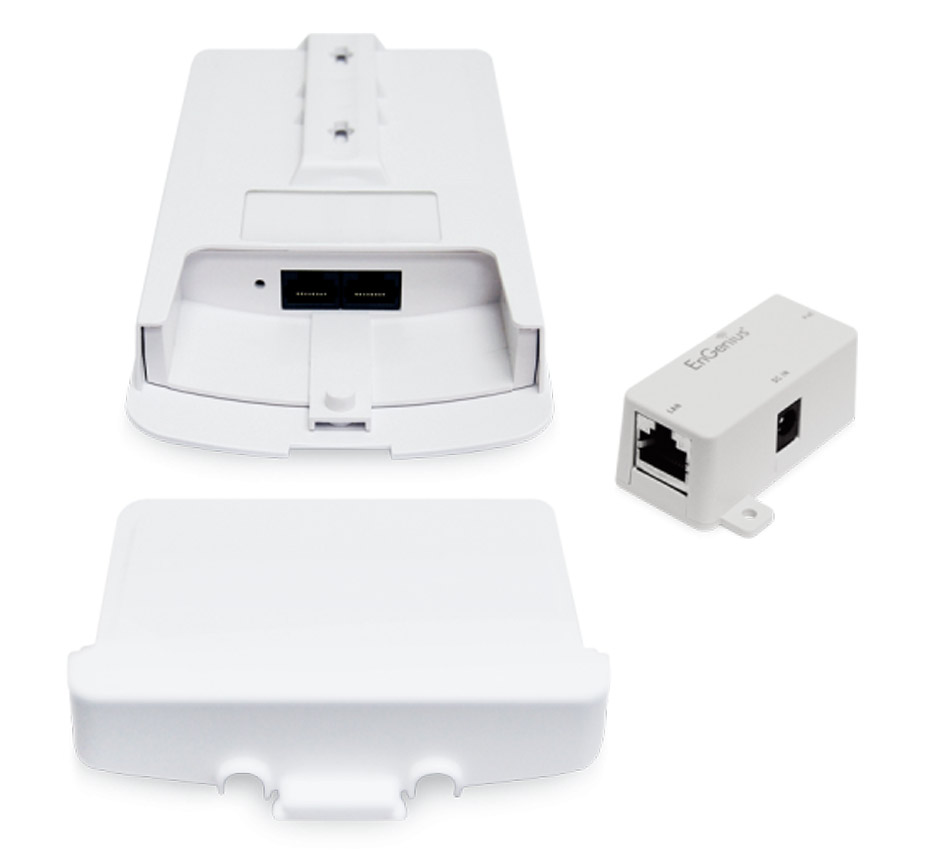

- PoE Extends Power to Unwired Areas; Connect an IP Camera or AP via 2nd Port
Technical Specifications
Standard
IEEE 802.11b/g/n on 2.4 GHz
Memory Capacity
Memory: 64 MB
Flash Memory 16 MB
Antenna
2 External Detachable Omni-Directional Antennas
5 dBi on 2.4 GHz
Physical Interface
2 x 10/100 Fast Ethernet Ports
1 x Reset Button
LED Indicators
1 x Power
WLAN (Wireless Connection)
2.4 GHz
2 x LAN
Power Source
PoE injector (EPA2406GP)
100V~240V AC, 50-60Hz
0.4A @ 120V AC
Surge Protection: 1KV
ESD Protection
Contact: 4KV
Air: 8 KV
Mounting
Wall Mount
Pole Mount
Ingress Protection Marking
IP55-Rated Enclosure
Wireless & Radio Specifications
Operating Frequency
2.4GHz
Operation Modes
Access Point
Repeater
Client Bridge
WDS: AP, Bridge
Frequency Radio
2.4GHz: 2400MHz ~ 2835MHz
Transmit Power
Up to 26 dBm on 2.4 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams
2x2:2
Supported Data Rates (Mbps)
2.4 GHz: Max 300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
Supported Radio Technology
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11n: Orthogonal frequency-division Multiplexing (OFDM)
Channelization
802.11n with 20/40 MHz channel width
802.11b/g with 20 MHz channel width
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Management
Multiple BSSID
Supports up to 4 SSIDs
VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
Spanning Tree
QoS
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Features
AP Radio Settings
AP Client Limiting
VLANs for AP - Multiple SSIDs
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status
Management Features
Deployment Options
Standalone (Individually Managed)
Configuration
Web Interface (HTTP)
CLI (Telnet)
Control Features
Auto Reboot
Firmware Upgrade
Security
WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
Environmental & Physical
Temperature Range
Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C
Humidity (Non-condensing)
Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
ENS202EXT Device
Weight: 0.66 lbs.
Width: 3.93" (100 mm)
Length: 7.08" (186 mm)
Height: 1.14" (29 mm)
Package Contents
- ENS202EXT Outdoor AP
- PoE Injector (EPA2406GP)
- Pole Mount Ring
- Mounting Screw Set
- Quick Installation Guide
- 2 External Detachable Omni-Directional Antennas
Certifications
FCC
IC
Warranty
1 Year
