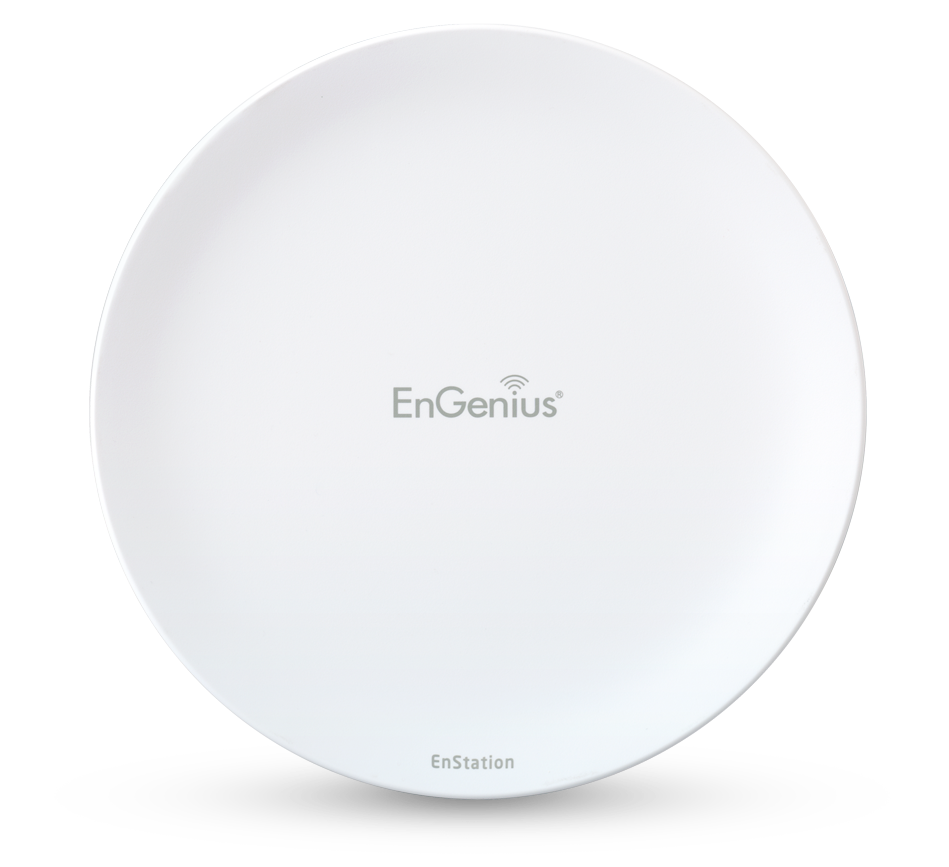

Engenius - EnStationAC - Wi-Fi 5 Outdoor Long Range Access Point/Wireless Bridge
Part number:
EnStationAC
Price:
- • EnJet technology features Time Division Multiple Access, cutting through RF-congested environments
- • 11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz
- • MU-MIMO improves performance & increases user device capacities
- • Beamforming optimizes antenna signal, reception & reliability for device
- • High 26 dBm transmit power extends and high Gain 19 dBi Directional Antennas
- • IP55-Rated weatherproof & dustproof housing
- • GigE PoE port & adapter included
| Standards | |
|---|---|
| Wireless Standards | IEEE 802.11ac wave2/a/n on 5 GHz |
| Processor | |
| Type | Powerful Qualcomm® CPU |
| Antenna | |
| Type | High-Gain 19 dBi Integrated Directional Antennas |
| 5 GHz (Port 1) | Average Antenna Gain: 19 dBi Polarization: Linear Azimuth Beam Width: 30° Elevation Beam-Width: 18° VSWR: 1:2.0 |
| 5 GHz (Port 2) | Average Antenna Gain: 19 dBi Polarization: Linear Azimuth Beam Width: 18° Elevation Beam-Width: 30° VSWR: 1:2.0 |
| Physical Interface | |

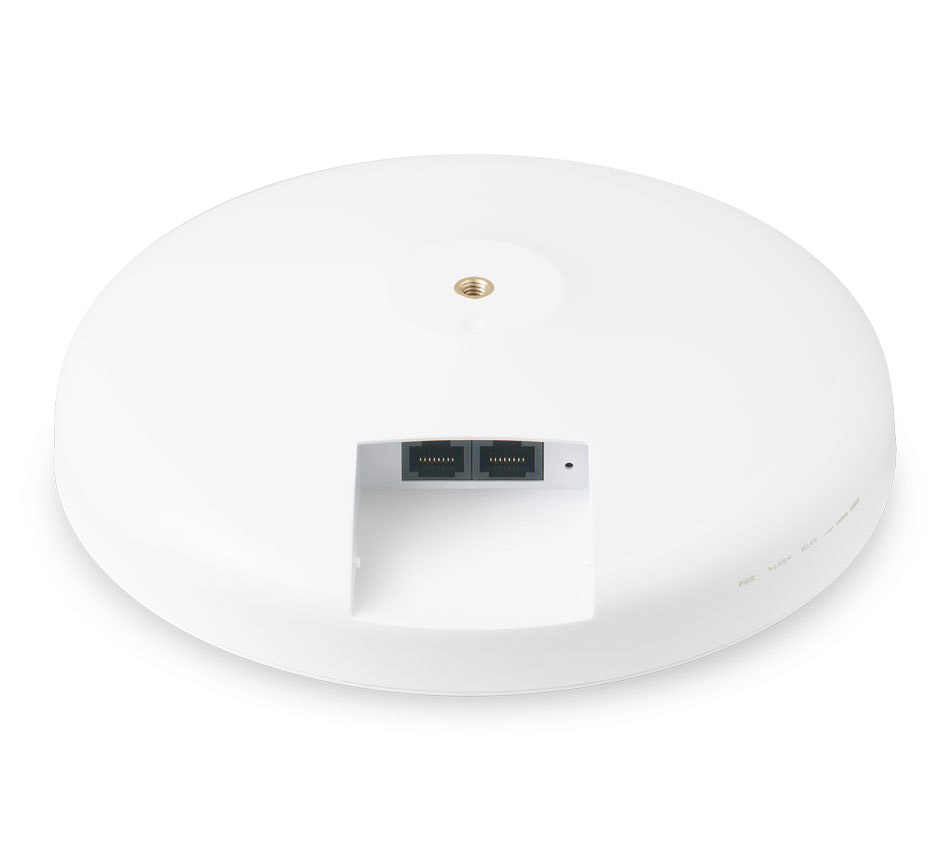

| Ethernet Ports | 2 x 10/100/1000 Base-TX, RJ-45 Gigabit Ethernet Ports |
| Reset Button | 1 x Reset Button |
| LED Indicators | |
| Indicators | Power, LAN1, LAN2, WLAN, Signal |
| Power Source | |
| Type | Power-over-Ethernet: Proprietary 24V PoE |
| Maximum Power Consumption | 9W |
| Surge Protection | |
| Line to Line | 1 KV |
| Line to Ground | 2 KV |
| ESD Protection | |
| Contact | 4 KV |
| Air | 8 KV |
| Wireless & Radio Specifications | |
| Operating Frequency | 5 GHz |
| Operation Modes (EnJet Enabled) | Access Point Mode (AP mode) Client Bridge Mode (CB Mode) WDS: WDS AP, WDS Station |
| Operation Modes (EnJet Disabled) | Access Point Mode (AP mode) Client Bridge Mode (CB Mode) WDS: WDS AP, WDS Bridge, WDS Station |
| Frequency Radio (5 GHz) | 5180 MHz, 5200 MHz, 5220 MHz, 5240 MHz, 5260 MHz, 5280 MHz, 5300 MHz, 5320 MHz, 5500 MHz, 5520 MHz, 5540 MHz, 5560 MHz, 5580 MHz, 5600 MHz, 5620 MHz, 5640 MHz, 5640 MHz, 5680 MHz, 5745 MHz, 5765 MHz, 5785 MHz, 5805 MHz |
| Note | Support radios and channels will be varied on the configured regulatory domain |
| Transmit Power | Up to 26 dBm on 5 GHz |
| Tx Beamforming (TxBF) | Supported |
| Radio Chains/Spatial Stream | 2x2:2 |
| SU-MIMO | Two (2) Spatial Stream SU-MIMO up to 867 Mbps to a single client |
| MU-MIMO | Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously |
| Supported Data Rates (Mbps) | 5 GHz: Max 867 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies | 802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11n/ac: 2x2 MIMO with 2 Streams |
| Channelization | 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz 802.11n Supports High Throughput (HT)—HT 20/40 MHz 802.11n/ac Packet Aggregation: AMPDU, ASPDU |
| Supported Modulation | 802.11a/n: OFDM16-QAM, 64-QAM 802.11ac: OFDM 16-QAM, 64-QAM, 256-QAM |
| Management | |
| Multiple BSSID | EnJet Enabled: Supports 1 SSID EnJet Disabled: Supports 8 SSIDs |
| Management Interface | Management SSID – allows your mobile device such as smart phone, connect to SSID and easily configuring and monitoring through EnGenius EnWiFi App. |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging |
| VLAN Pass-Through | Supported |
| Management VLAN | Supported |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) | Compliant with IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Management Features | |
| Deployment Options | Stand-Alone (Individually Managed/EnWiFi App) Managed Mode (w/ezMaster/EnSky Series Switch) |
| Stand-Alone Management Features | Auto Channel Selection, Auto Transmit Power, Wireless STA (Client) Connected List, Guest Network (Only supported when EnJet Disabled), Fast Roaming (802.11k & 802.11r), Pre-Authentication (802.11i, 802.11x), PMK Caching (802.11i), RSSI Threshold, Traffic Shaping, VLANs for Access Point – Multiple SSIDs, Backup/Restore Settings, Auto Reboot, Email Alert, Site Survey, Save Configuration as Users Default |
| Control Features | Operation Mode, Distance Control (ACK Timeout), Multicast Supported, Wi-Fi Scheduler, Client Traffic Status, RADIUS Accounting, Power Save Mode (U-APSD Support), CLI Support, HTTPS |
| Wireless Security | WPA2 PSK & Enterprise (AES), Hide SSID in Beacons, MAC Address Filtering (Up to 32 MACs per SSID), Wireless STA (Client) Connected List, SSH Tunnel, Client Isolation |
| Wireless Management Features (ezMaster / EnGenius EnSky Switch/ SkyKey) | • Supported when EnJet Disabled • Monitor only when EnJet Enabled AP Auto Discovery and Provisioning, AP Auto IP Assignment, AP Group Management, Auto AP Rebooting, AP Device Name Editing, AP Radio Settings, Traffic Shaping, Fast Roaming (802.11k & 802.11r), Pre-Authentication (802.11i, 802.11x), PMK Caching (802.11i), RSSI Threshold, AP Client Limiting, Client Fingerprinting, AP VLAN Management, VLANs for AP - Multiple SSIDs, Secured Guest Network, Access Point Status Monitoring, Wireless Client Monitoring, Email Alert, Wireless Traffic & Usage Statistics, Real-time Throughput Monitoring, Visual Topology View, Floor Plan View, Map View, Wireless Coverage Display, Secure Control Messaging (SSL Certificate), Local MAC Address Database, Remote MAC Address Database (RADIUS), Unified Configuration Import/Export, Bulk Firmware Upgrade Capability, Intelligent Diagnostics, Kick/Ban Clients, Wi-Fi Scheduler |
| Environmental & Physical | |
| Temperature Range (Operating) | -4 ºF ~ 140 ºF (-20 ºC ~ 60 ºC) |
| Temperature Range (Storage) | -22 ºF ~ 176 ºF (-30 ºC ~ 80 ºC) |
| Humidity (Operating, non-condensing) | 90% or less |
| Humidity (Storage, non-condensing) | 90% or less |
| Waterproof | IP55-Rated Enclosure |
| Device Dimensions & Weights | |
| EnStationAC Device | Weight: 1.11 lbs. (460 g) Depth: 7.48" (190 mm) Height: 1.49" (38 mm) |
| Package Contents | |

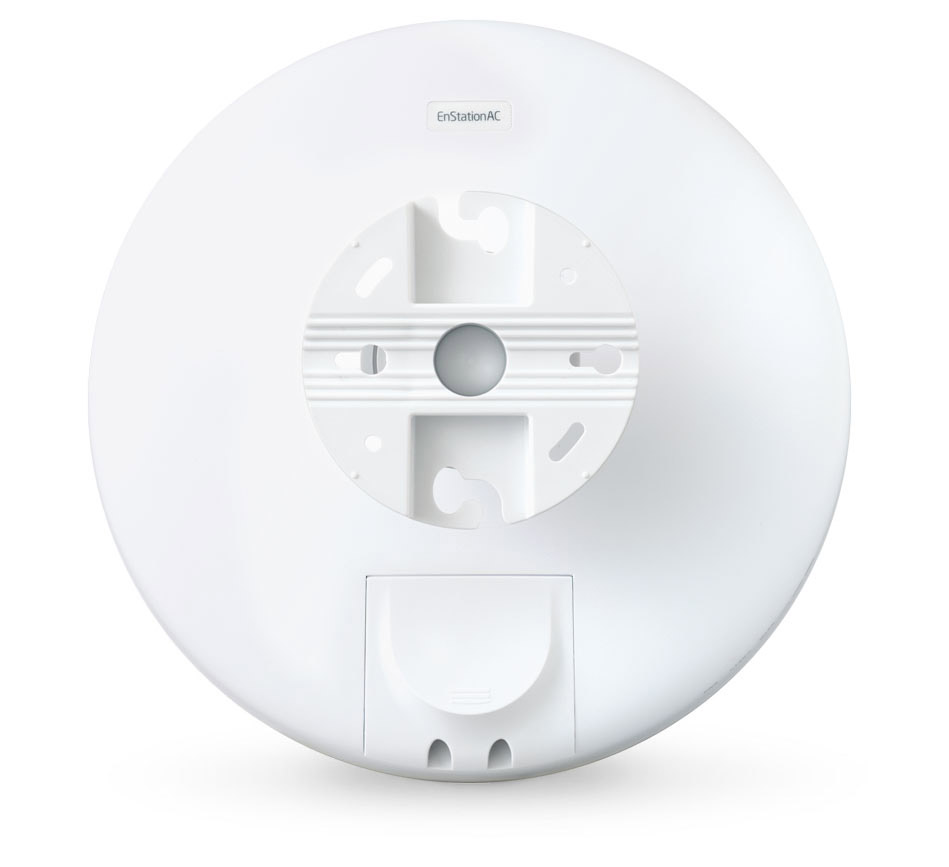

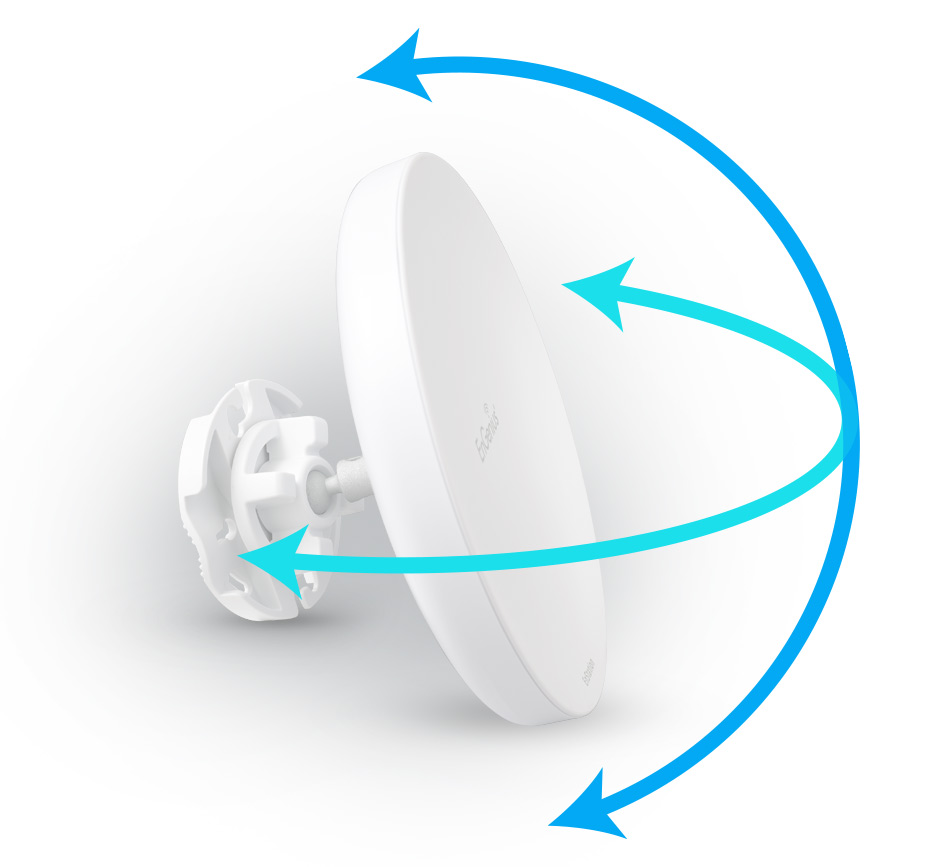

| Included Items | 1 - EnStationAC Outdoor Access Point 1 - PoE Adapter (EPA2406GR) 2 - Pole-Mounting Brackets 1 - Wall-Mount Screw Set 1 - Pole-Mounting Strap 1 - Power Cord 1 - Quick Installation Guide |
| Certifications | |
| Regulatory | FCC, CE, CB, IC |
| Warranty | |
| Duration | 1 Year |
Name
Description
Size
Downloads
File
Data Sheet
1.3mb
File
Release Notes
0.2mb
File
Application Note
1mb
File
Info Guide
0.3mb

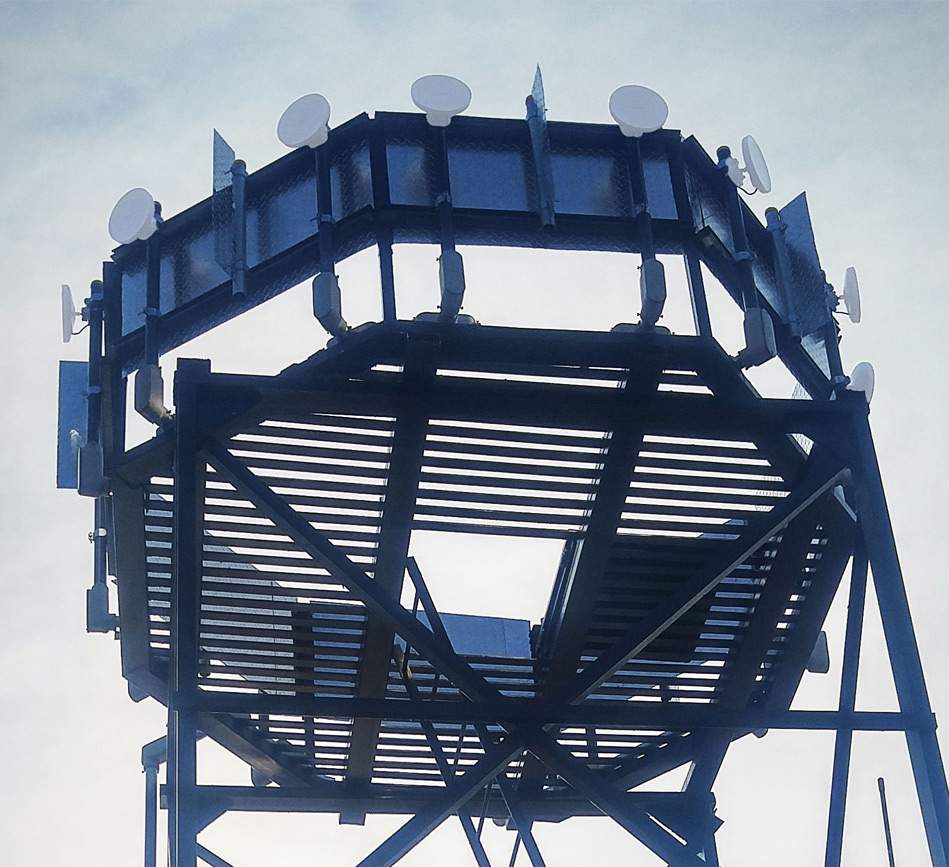

EnGenius EnJet EnStationAC 5 GHz Outdoor 802.11ac Wave 2 Wireless Client Bridge/AP, featuring Time Division Multiple Access, cuts through RF-congested environments within Point-to-Point/MultiPoint applications. EnJet enabled the EnStationAC assigns time slots to each station, providing faster and more stable performance and avoiding the hidden node issue. With a high-gain 19 dBi dual-polarized directional antenna that extends the network up to 5 miles point-to-point. Use the EnStationAC’s secondary PoE pass through Gigabit port to power an additional PoE-compliant device such as an IP surveillance camera.
