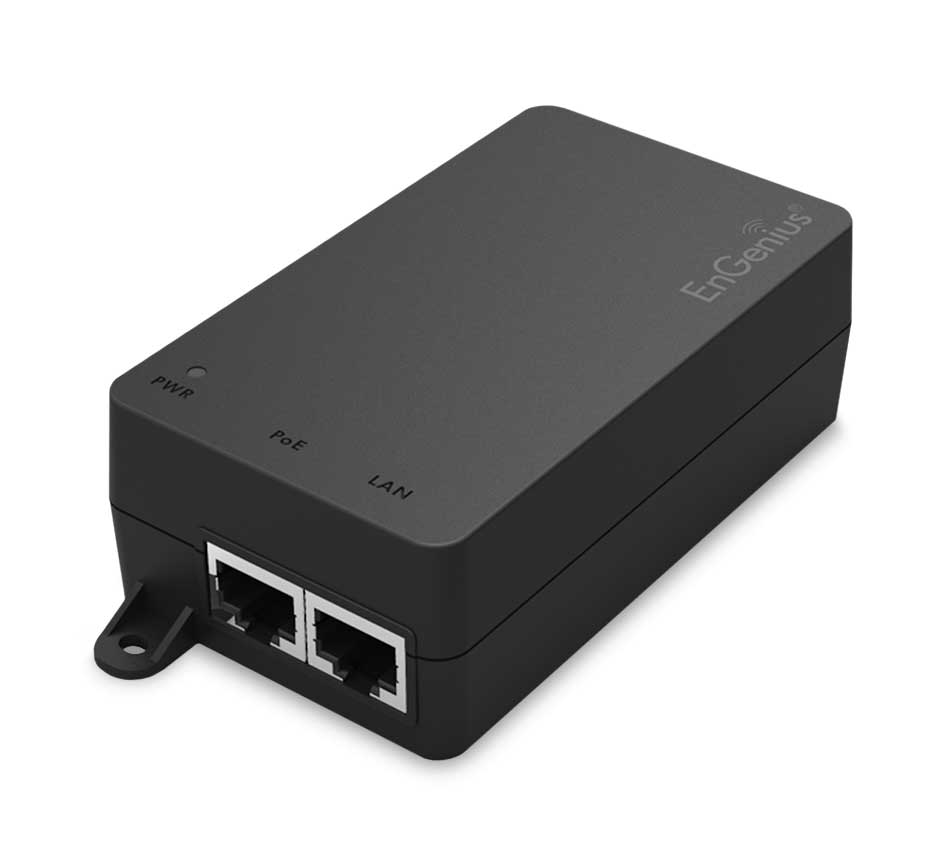

Engenius - EPA5006GAT - 802.3at/af Gigabit Power-over-Ethernet Adapter
Part number:
EPA5006GAT
Price:
The EPA5006GAT PoE Adapter supports high-speed data and up to 30 watts of power to compliant devices such as APs, IP cameras or VoIP phones to 328-feet away over a single cable. A compact optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.
Features:
- Gigabit Ethernet In & Out Ports for High-Speed Devices
- Disconnect, Short-Circuit & Surge Protection Ensure Reliable, Secure Connection
- Mounts to Walls or Ceilings with Included Hardware
| Standards |
| 802.3 10BaseT |
| 802.3u 100BaseT |
| 802.3ab Gigabit Ethernet |
| 802.3at/af Power-over-Ethernet |
| Maximum Output Power |
| 30W |
| Compliance |
| IEC 60950-1:2005+A1 |
| UL60950-1 |
| ENS55022:2010 |
| EN55024:2010 |
| FCC Part 15 Class B |
| FCC, CE |
| Physical Interface |
| (1) Gigabit Data Port |
| (1) Gigabit Data & Power Output Port |
| (1) IEC-320 C6 AC Connector |
| LED Indicator |
| 1 x Power on Green |
| Mounting |
| Wall (anchors & screws included) |
| Power |
| Input Voltage |
| 100 to 240VAC |
| Input Current |
| 0.8A Max for 100VAC |
| AC Input Frequency |
| 47-63Hz |
| Power Lines |
| Pin4, 5:54V, Pin7, 8:Return |
| Added Protection Features |
| Short-Circuit |
| Surge (over current/over voltage) |
| Environmental & Physical |
| Temperature Range |
| Operating: 32°F to 104°F (0°C to 40°C) |
| Storage: -22°F to 176°F (-30°C to 80°C) |
| Humidity (non-condensing) |
| Operating: 5 to 90% or less |
| Storage: 5 to 90% or less |
| Dimensions & Weights: |
| EPA5006GAT Device (Without Mounting Kit) |
| Weight: .33 lbs (149.6 g) |
| Length: 3.9” (99 mm) |
| Width: 2.27” (68.5 mm) |
| Height: 1.3” (33 mm) |
| Packaging |
| Weight: .57 lbs (258.5 g) |
| Length: 5.4” (139 mm) |
| Width: 4.8” (122.5 mm) |
| Height: 2” (52 mm) |
| Package Contents |
| EPA5006GAT Gigabit PoE Adapter |
| Power Supply |
| Warranty |
| 1 Year |
