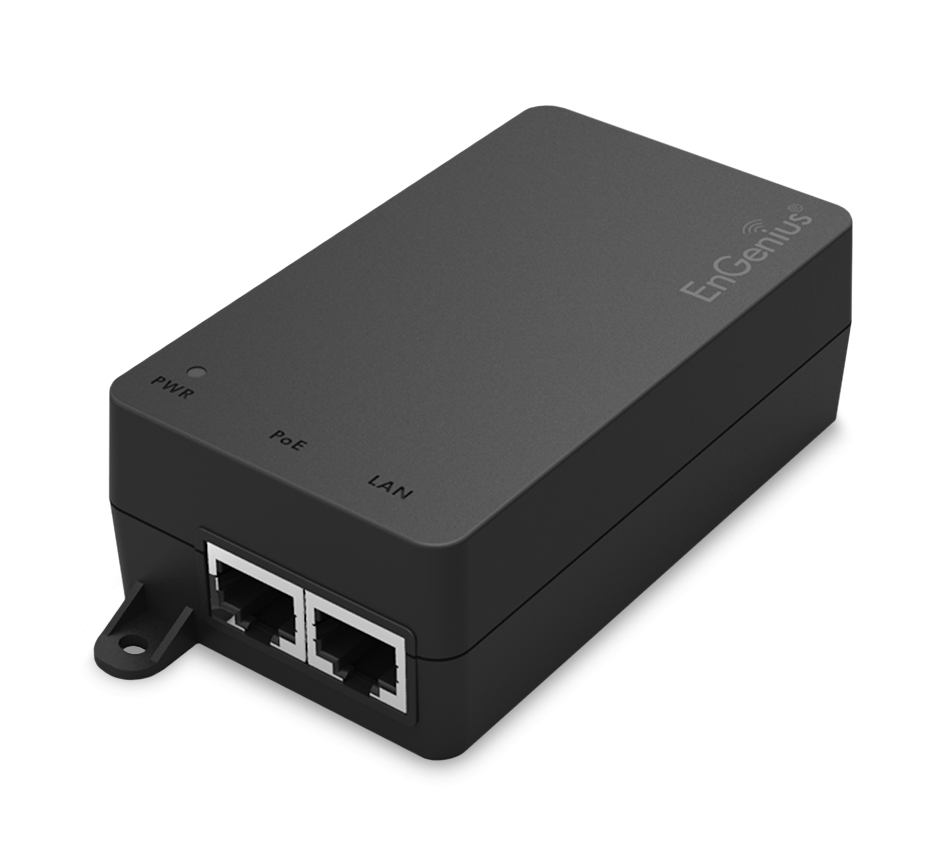

Engenius - EPA5006GP - Passive 54V Gigabit Power-over-Ethernet Adapter
Part number:
EPA5006GP
Price:
- • Gigabit Ethernet In & Out Ports for High-Speed Devices
- • Disconnect, Short-Circuit & Surge Protection Ensure Reliable, Secure Connections
- • Mounts to Walls or Ceilings with Included Hardware
| Standards | |
|---|---|
| Ethernet Standards | 802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet |
| Compliance | |
| Regulatory & Safety | FCC Part 15 Class B IEC 60950-1:2005+A1 UL60950-1 2nd CE ENS55032:2012/AC:2013 EN55024:2010 RCM AS/NZS60950.1: 2011/Amdt 1: 2012 |
| Physical Interface | |
| Ports | (1) Gigabit Data Port (1) Gigabit Data & Power Output Port |
| Power Input | (1) IEC 320C6 AC Connector |
| LED Indicator | |
| Indicator | 1 x Power on Green |
| Mounting | |
| Type | Wall (anchors & screws included) |
| Power | |
| Input Voltage | 100 to 240VAC |
| Input Current | 0.8A Max for 120VAC |
| AC Input Frequency | 50-60Hz |
| Maximum Output Power | 32.8W |
| Power Lines | Pin4(Vdc+) & Pin5(Vdc+) Pin7(Vdc-) & Pin8(Vdc-) |
| Data Specifications | |
| Data Rates | 10/100/1000 Mbit/s |
| Data Lines | Pin1(Rx+) & Pin2(Rx-) Pin3(Tx+) & Pin6(Tx-) |
| Added Protection Features | |
| Protection | Short-Circuit Surge (over current/over voltage) |
| Surge Protection | |
| Line to Line (L-L) | 2KV |
| Line to Ground (L-G) | 4KV |
| ESD Protection | |
| Contact | 4KV |
| Air | 8 KV |
| Environmental & Physical | |
| Temperature Range (Operating) | 32°F to 104°F (0°C to 40°C) |
| Temperature Range (Storage) | -22°F to 176°F (-30°C to 80°C) |
| Humidity (Operating, non-condensing) | 5 to 90% or less |
| Humidity (Storage, non-condensing) | 5 to 90% or less |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
The EPA5006GP Passive PoE Adapter supports high-speed data and up to 32.8 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 328-feet away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.
