EnGenius - EPA5006GR - EPA5006GR 32W Gigabit PoE Adapter with Reset Button
Part number:
EPA5006GR
Price:
- • Delivers both data and power to PoE-compatible devices

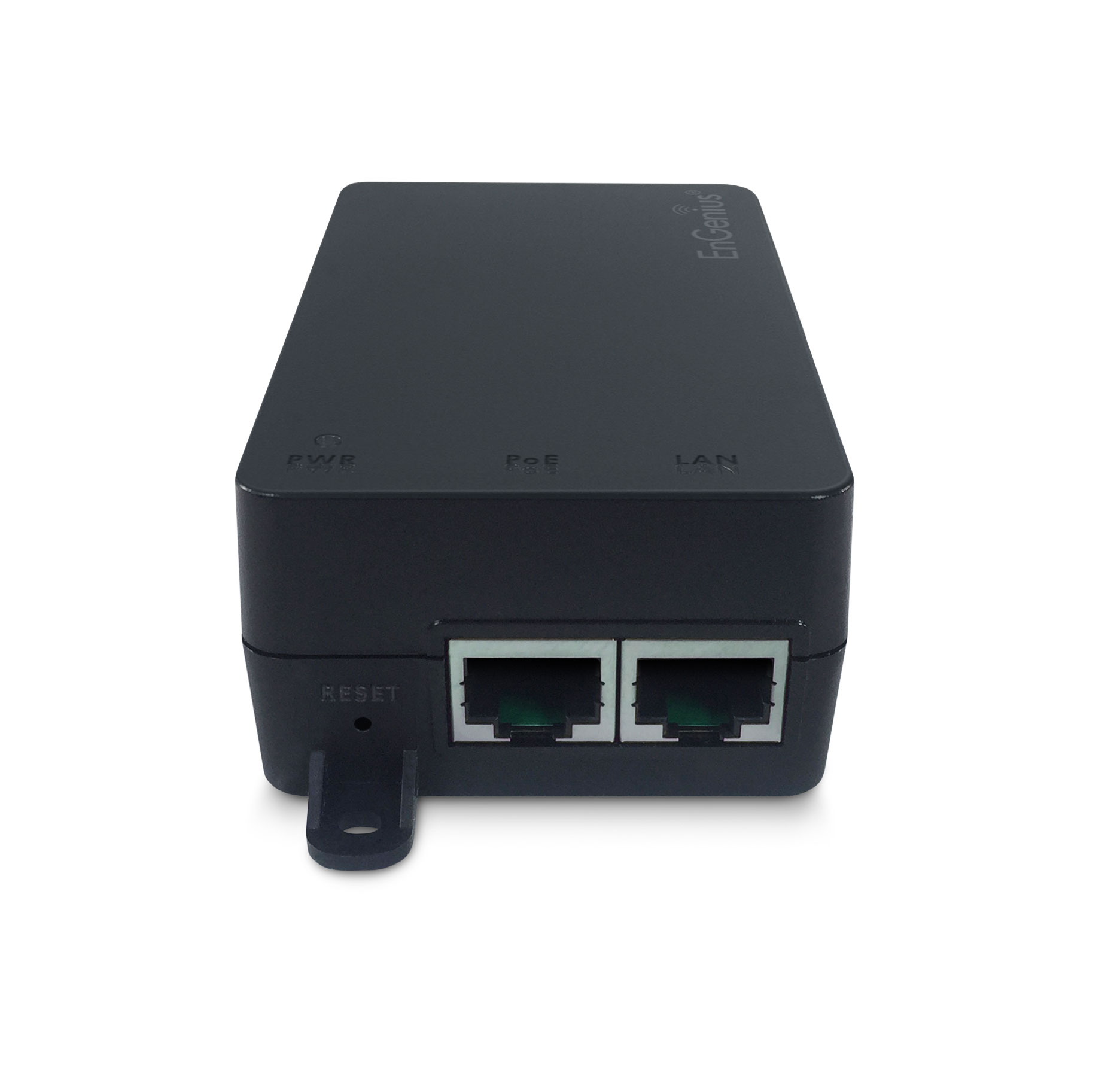

- • PoE injector reset button positioned conveniently near ground level
- • Optimal port design for easy mounting/positioning
- • Compact design
- • Extends power to unwired areas up to 328-ft./100m
- • Gigabit Ethernet in & out ports allow connection of high-speed devices
- • Disconnect, short-circuit & surge protection assures secure, reliable connections
- • Sends up to 32.8W of output power for connecting APs, IP cameras, VoIP phones & more
- • Mounts to walls or ceilings with included hardware
| Standards | |
|---|---|
| Ethernet Standards | 802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet |
| Power over Ethernet | Proprietary PoE |
| Compliance | |
| Safety & Emissions | IEC 60950-1:2005+A1 UL60950-1 ENS55022:2010 EN55024:2010 FCC Part 15 Class B FCC, CE |
| Physical Interface | |
| Ports | (1) Gigabit Data Port (1) Gigabit Data & Power Output Port |

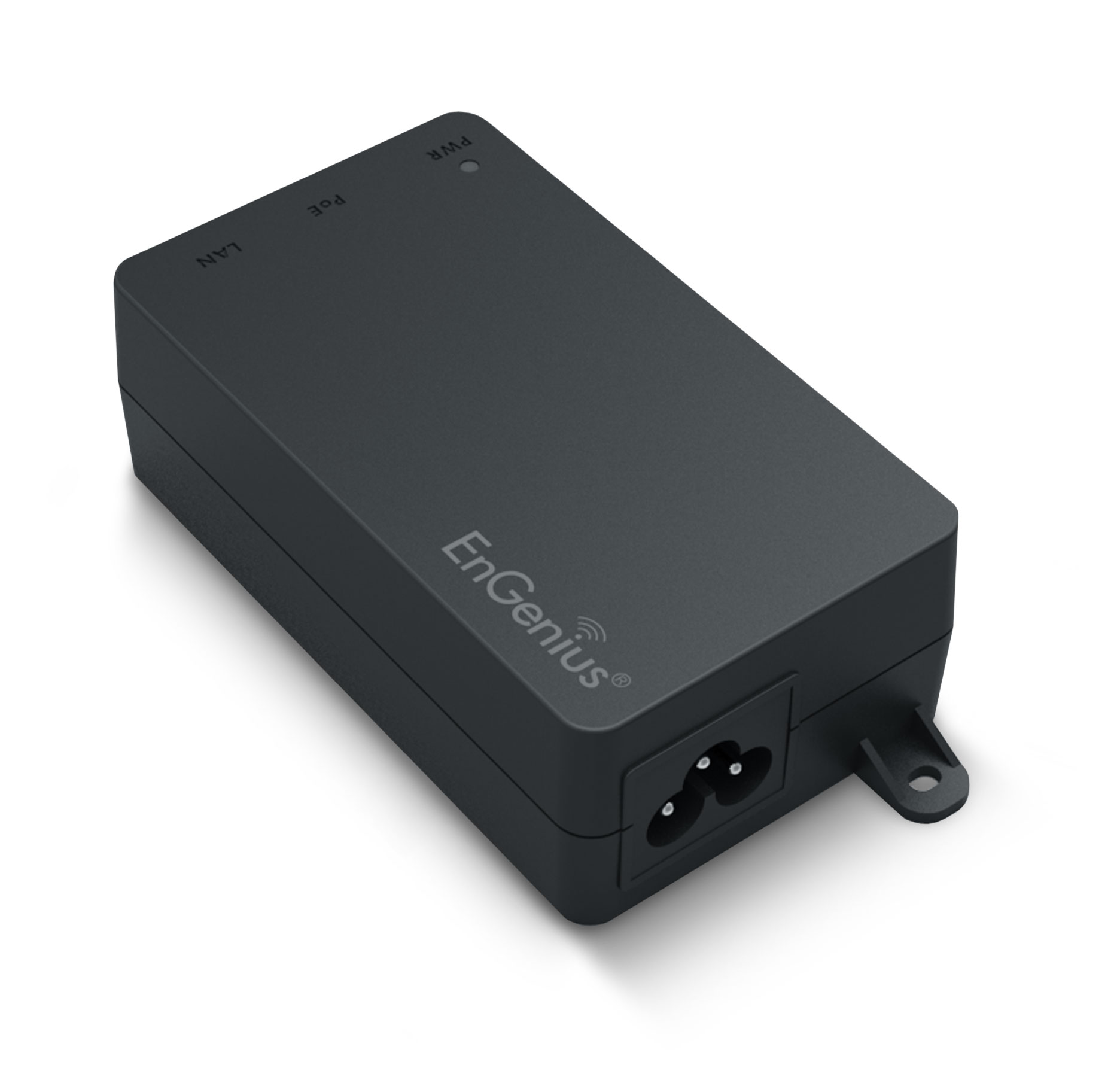

| Power Input | (1) IEC-320 C6 AC Connector |
| Reset | (1) Reset button |
| LED Indicator | |
| Indicator | 1 x Power on Green |
| Mounting | |
| Type | Wall (anchors & screws included) |
| Power | |
| Input Voltage | 100 to 240VAC |
| Input Current | 0.8A Max for 100VAC |
| AC Input Frequency | 47-63Hz |
| Maximum Output Power | 32.8W |
| Power Lines | Pin4, 5:54V, Pin7, 8:Return |
| Added Protection Features | Short-Circuit Surge (over current/over voltage) |
| Environmental & Physical | |
| Temperature Range (Operating) | 32°F to 104°F (0°C to 40°C) |
| Temperature Range (Storage) | -22°F to 176°F (-30°C to 80°C) |
| Humidity (Operating, non-condensing) | 5 to 90% or less |
| Humidity (Storage, non-condensing) | 5 to 90% or less |
| Device Dimensions & Weights | |
| EPA5006GR Device (Without Mounting Kit) | Weight: .33 lbs. (154 g) Length: 3.9" (99 mm) Width: 2.27" (68.5 mm) Height: 1.3" (33 mm) |
| Packaging | Weight: .57 lbs. (262 g) Length: 5.4" (139 mm) Width: 4.8" (122.5 mm) Height: 2" (52 mm) |
| Package Contents | |
| Included Items | EPA5006GR Power Cord |
| Warranty | |
| Duration | 1 Year |

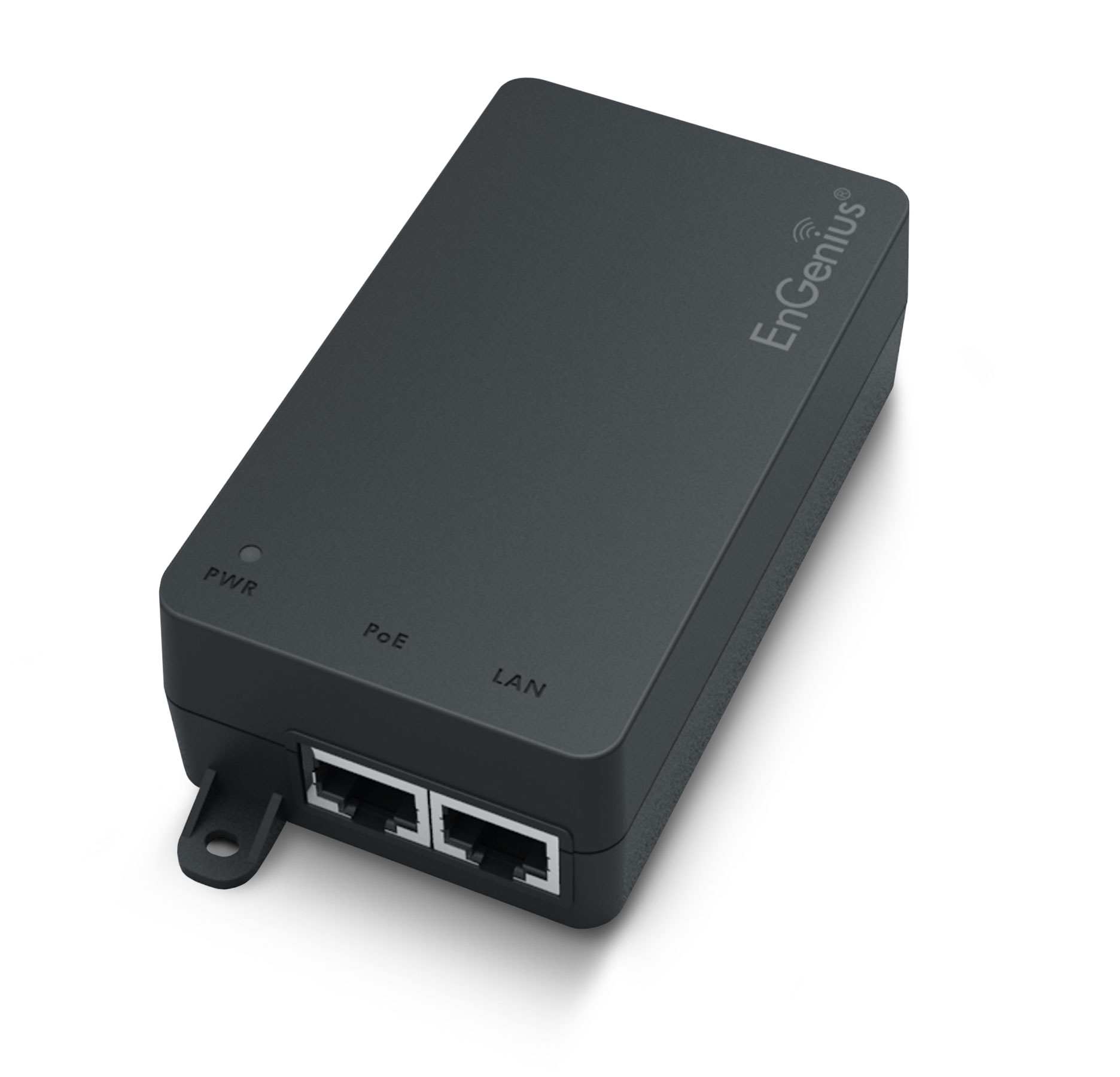

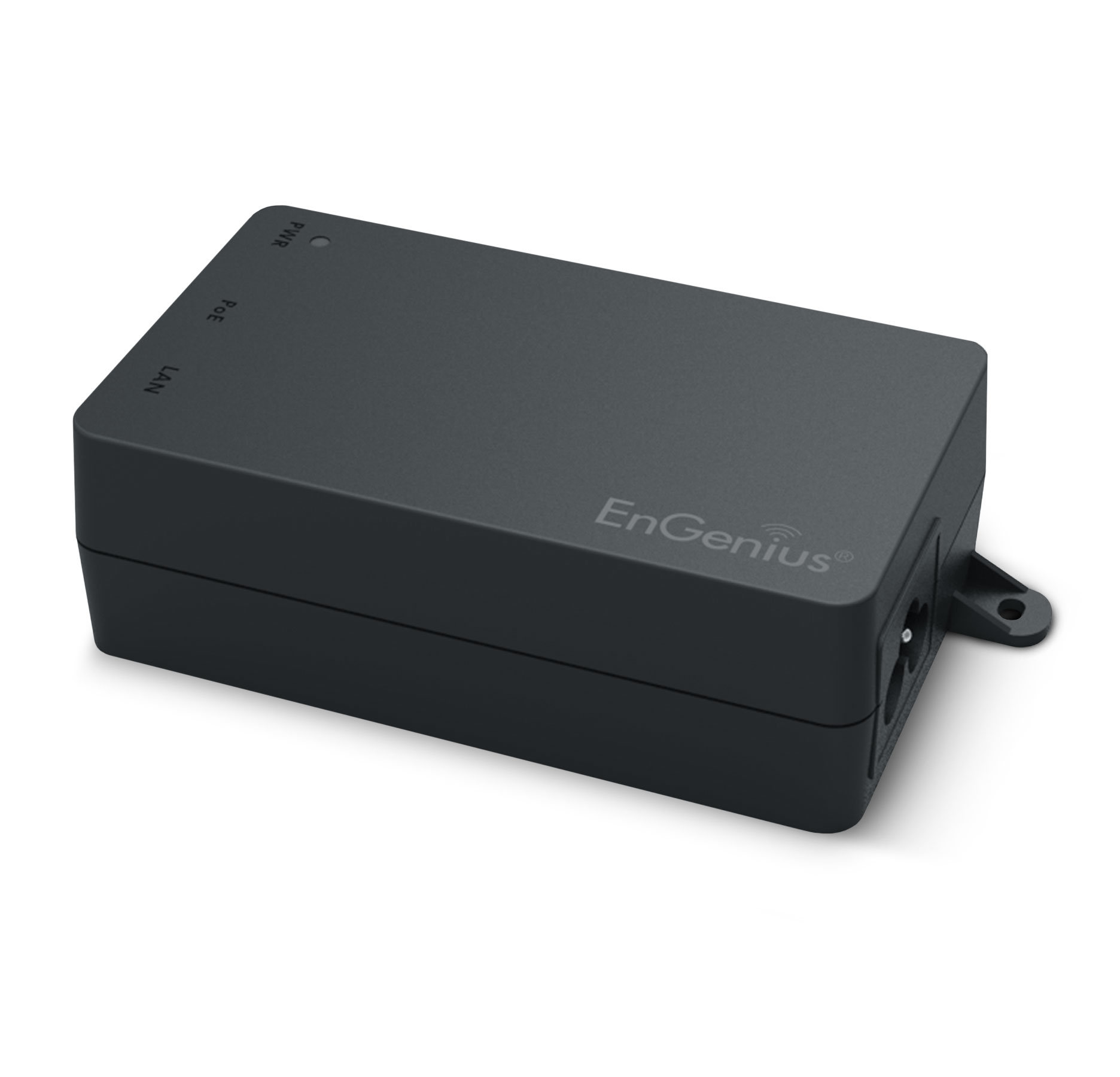

The EnGenius EPA5006GR gigabit proprietary Power-over-Ethernet adapter supports high-speed data and up to 32.8 watts of power. Compact port design provides easy installation, and built-in power surge protection preserves valuable equipment. A PoE injector, placed closer to ground level, has a reset button that allows administrators to reset devices conveniently without having to take them down.
