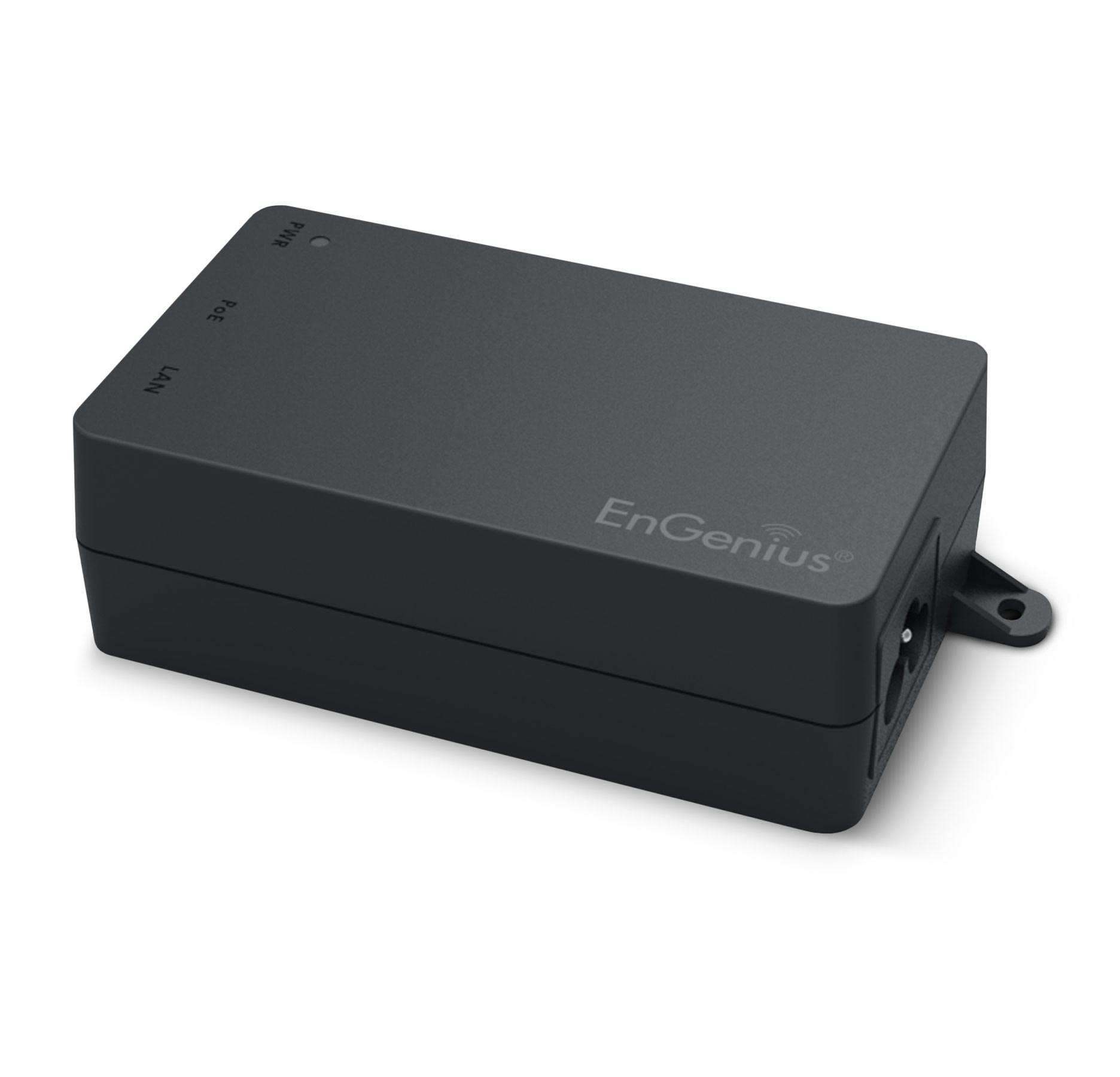

The EnGenius EPA5006HAT 2.5 Gigabit standard Power-over-Ethernet adapter supports high-speed data and up to 30 watts of power. Compact port design provides easy installation, and built-in power surge protection preserves valuable equipment.
Technical Specifications
Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
Standard PoE
Compliance
IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE

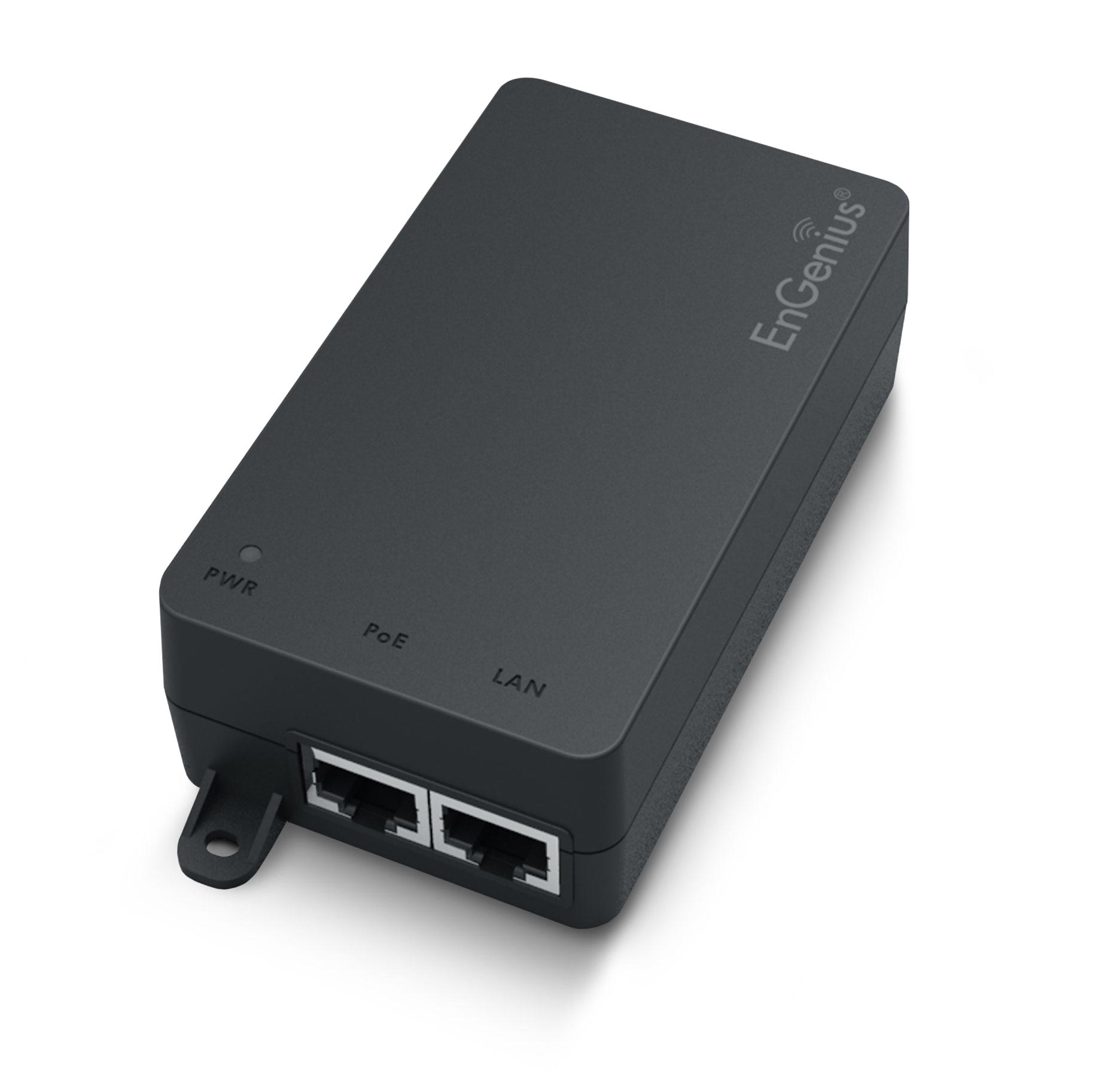

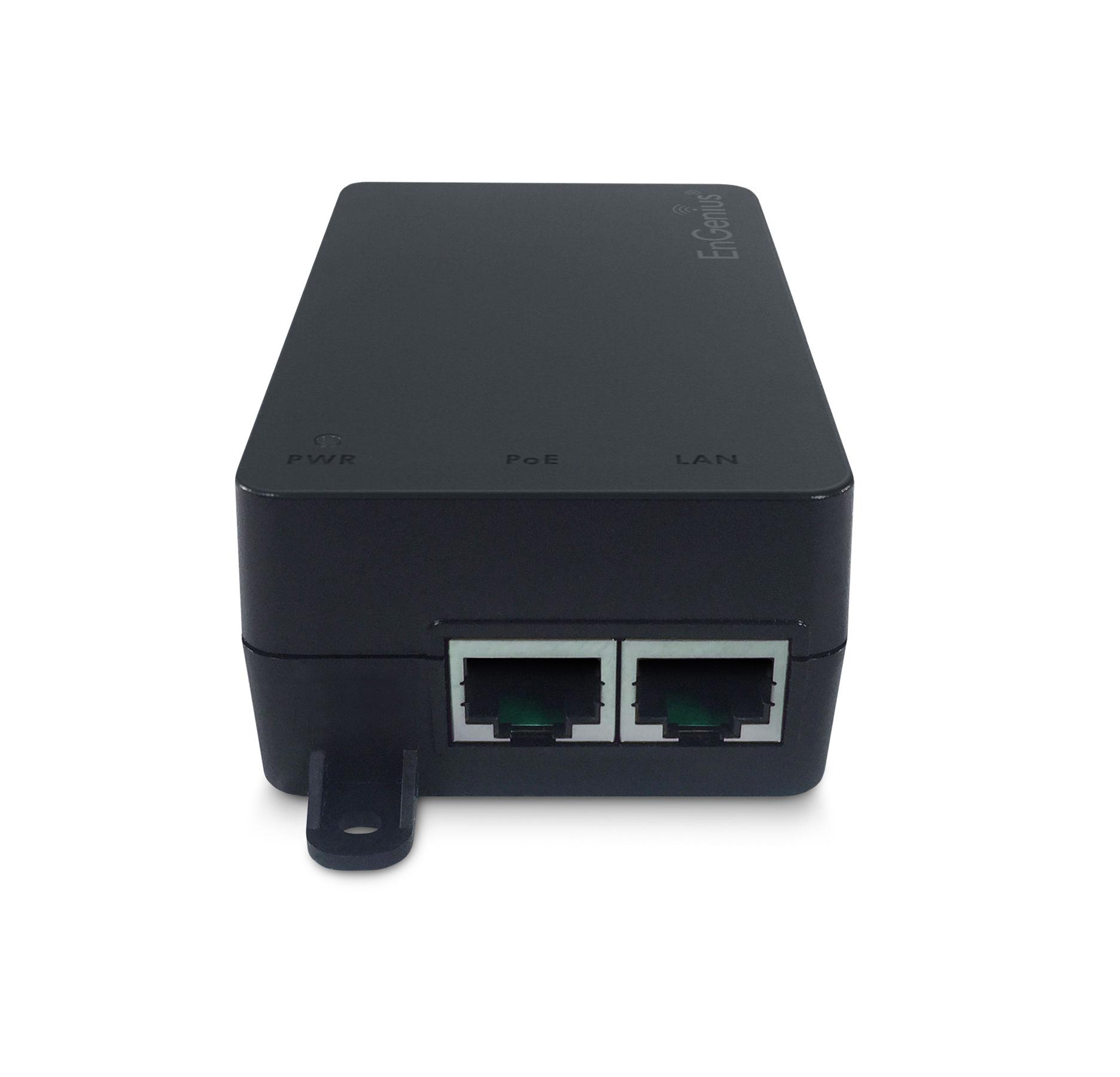

Physical Interface
(1) 2.5 Gigabit Data Port
(1) Gigabit Data & Power Output Port

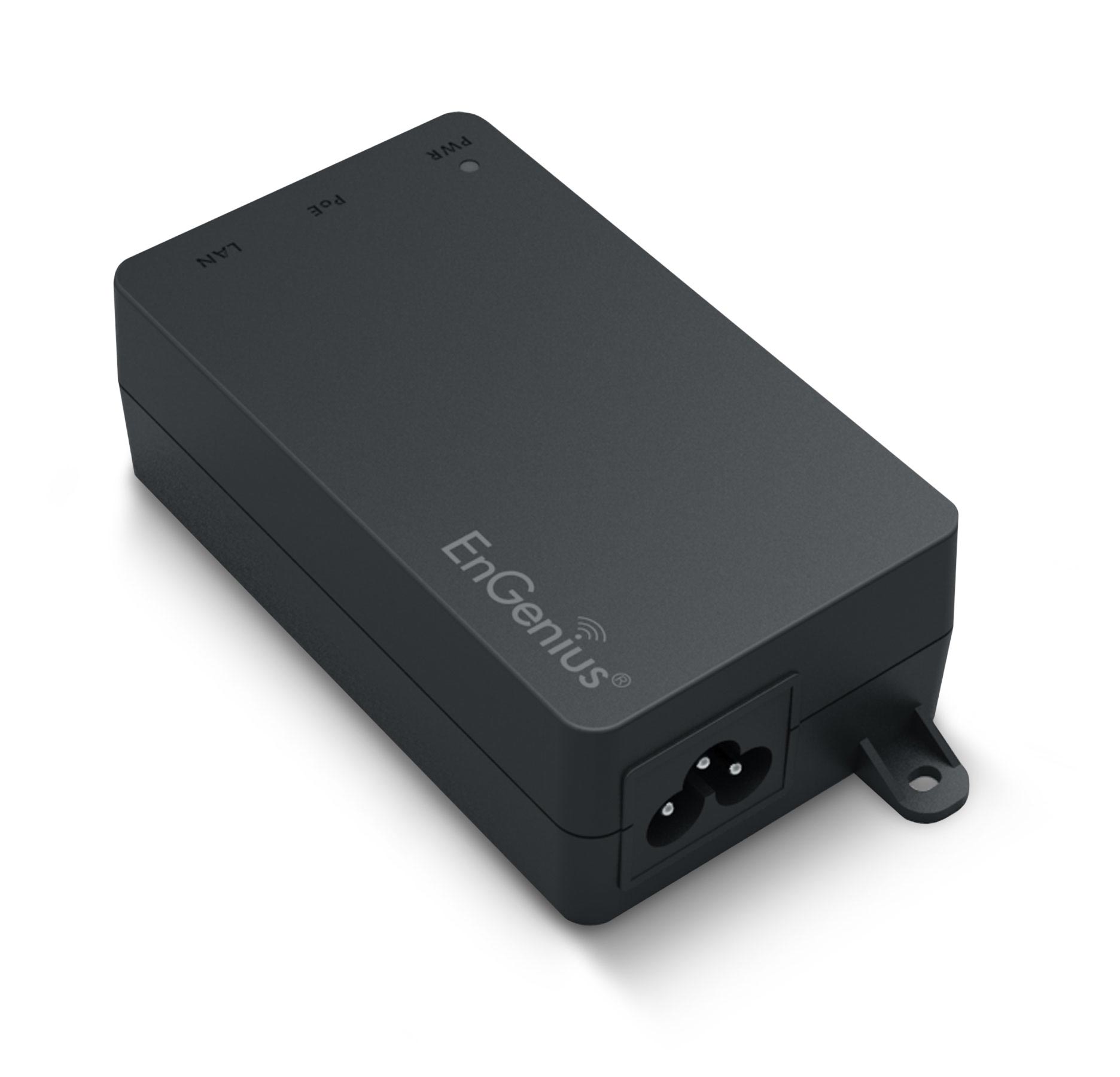

(1) IEC-320 C6 AC Connector
LED Indicator
1 x Power on Green
Mounting
Wall (anchors & screws included)
Power
Input Voltage
100 to 240VAC
Input Current
0.8A @ 120V AC
0.4A @ 240V AC
AC Input Frequency
50-60Hz
Maximum Output Power
30 W
Power Lines
Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-)
Data Lines
Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-)
Surge Protection
L-L: 2KV; L-G: 4KV
ESD
Contact 4KV; Air: 8KV
Environmental & Physical
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
Device Dimensions & Weights
EPA5006HAT Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)
Packaging
Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)
Package Contents
EPA5006HAT
power cord
Warranty
1 Year
