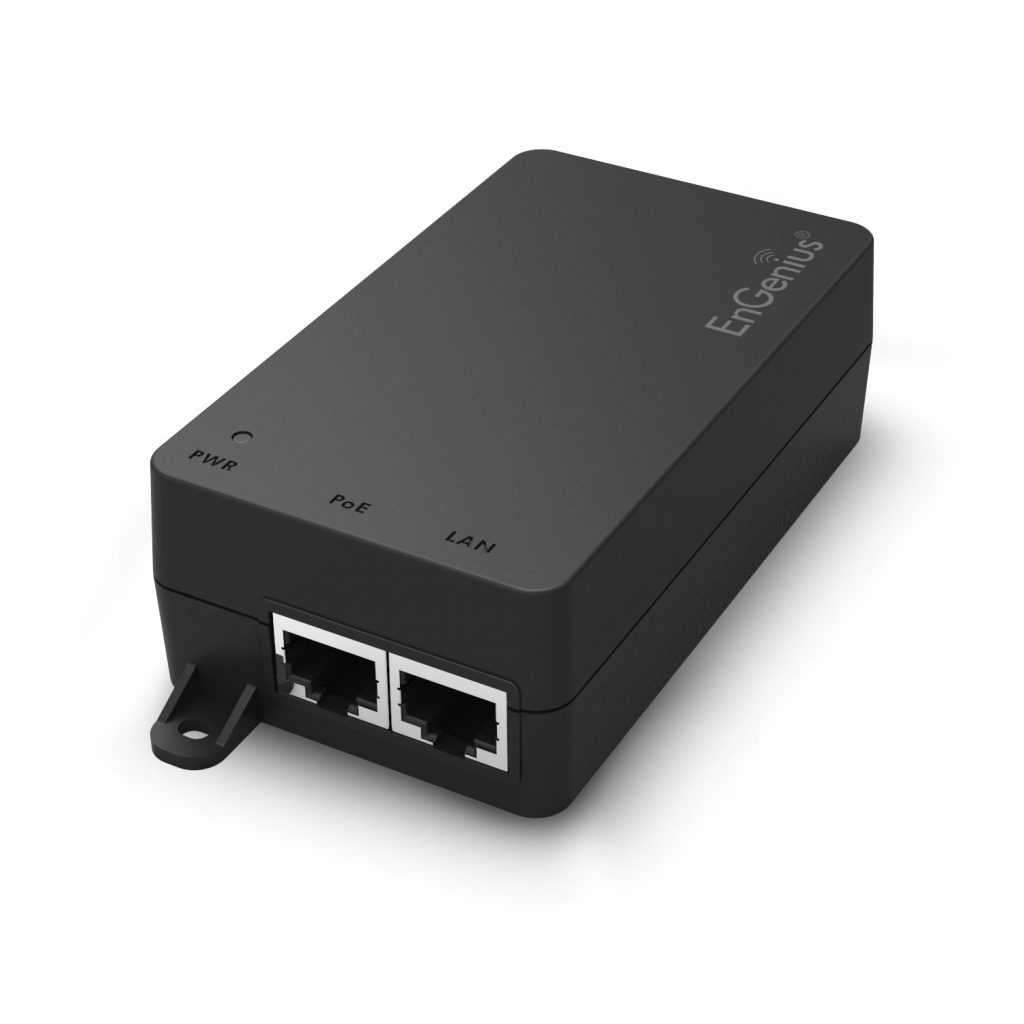

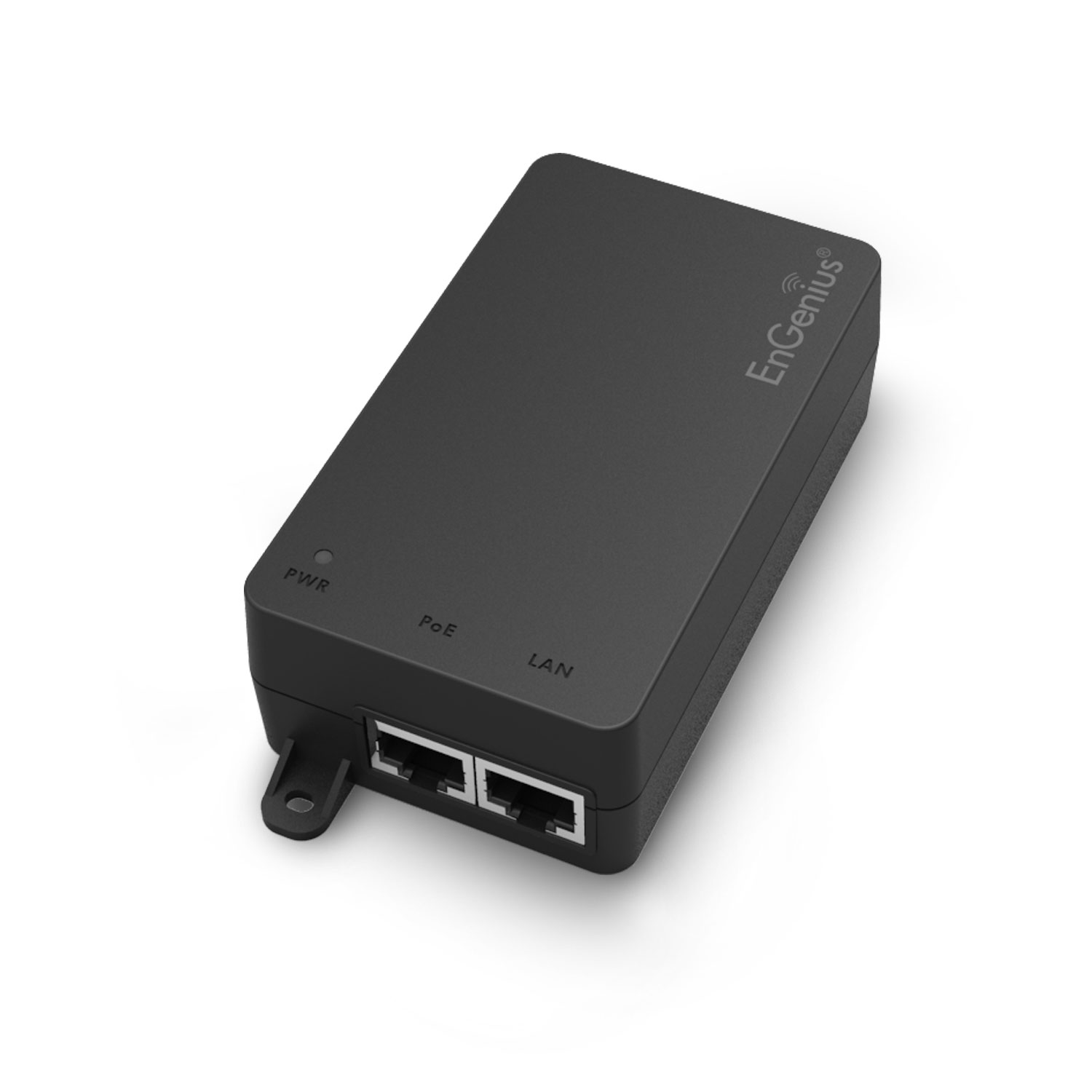

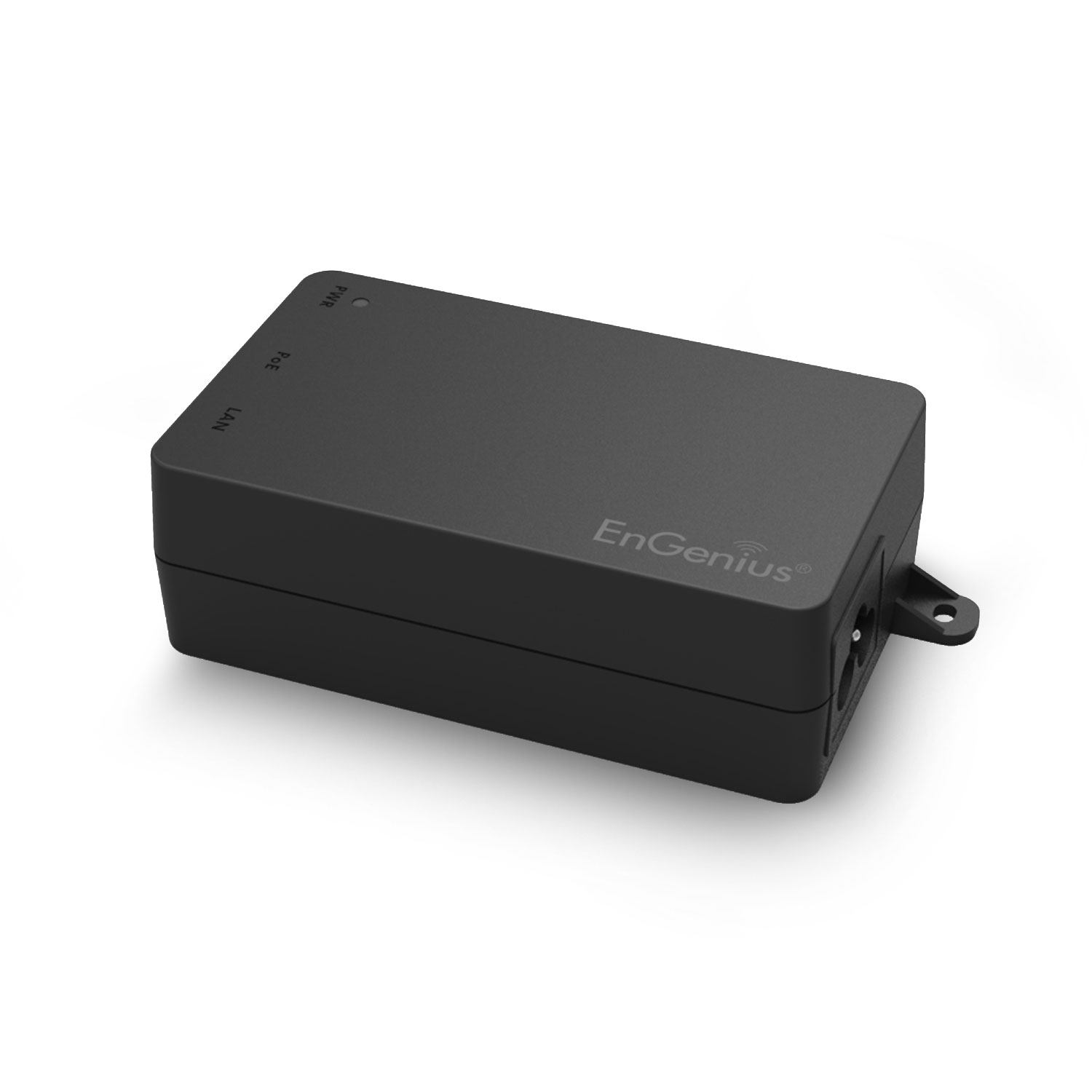

EnGenius - EPA5060XBT - EnGenius Single Port Power-over-Ethernet (PoE) Adapter, 60W 802.3af/at/bt 10GbE PoE Adapter (54V, 1.11A)
Part number:
EPA5060XBT
Price:
The EnGenius EPA5060XBT PoE Injector delivers 60-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
Features:
- IEEE 802.3bt Type 3 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE
- Supports 10/100/1000 Mbps and 1Gb/2.5Gb/10Gb applications
- Output power up to 60W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE up to 60W with full power capabilities mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
| Power Specification |
| Input Voltage |
| 100 ~ 240VAC |
| Input Current |
| 1.12A @ 120V AC |
| 0.75A @ 240V AC |
| Input Frequency |
| 50-60Hz |
| Maximum Output Power |
| 60W |
| Powerline |
| Pin 4 (Vdc+) & Pin 5 (Vdc+) |
| Pin 7 (Vdc-) & Pin 8 (Vdc-) |
| Data Specification |
| Ethernet Port Standards |
| IEEE 802.3af/at/bt Compatible |
| Data Lines |
| Pin 1 (Rx+) & Pin 2 (Rx-) |
| Pin 3 (Tx+) & Pin 6 (Tx-) |
| Protection Level |
| Surge Protection |
| L-L: 2KV |
| L-G: 4KV |
| ESD |
| Contact 4KV; Air: 8KV |
| Other Protection |
| Over-voltage and Over-current protection |
| Short-circuit protection |
| Physical Interfaces & Indicators |
| Network Ethernet Ports |
| 1 x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data Input; RJ-45 |
| 1 x 10/100/1000Mb, 2.5Gb/5Gb/10Gb Data & Power Output; RJ-45 |
| Power Source |
| AC Connector |

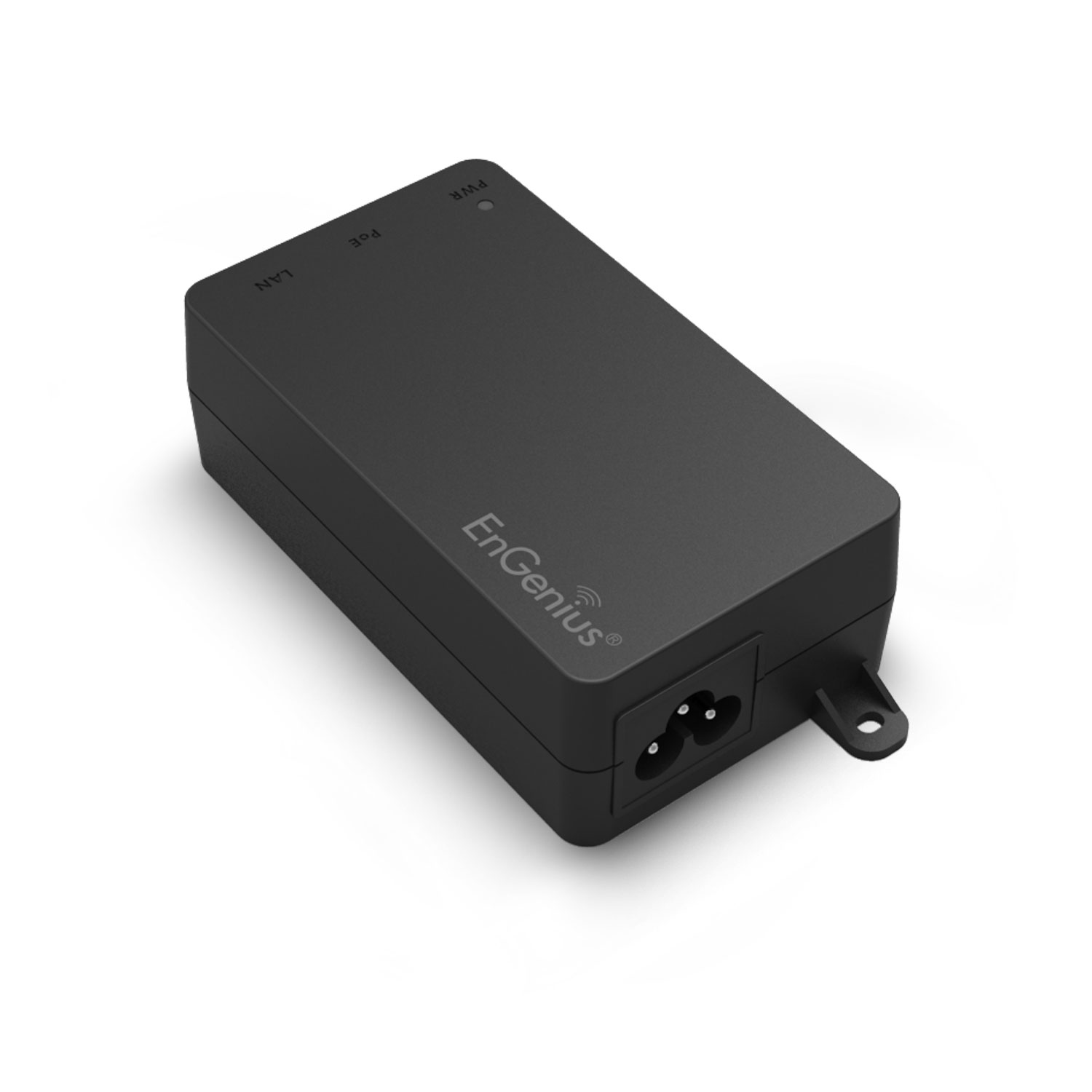

| 1 x IEC-320 C6 AC Connector |
| LED Indicators |
| Power On: Green |
| PoE On: Green |
| Environmental & Physical |
| Temperature Range |
| Operating: 32°F to 104°F (0°C to 40°C) |
| Storage: -4°F to 158°F (-20°C to 70°C) |
| Package Contents |
| 1 x PoE Adapter |
| 1 x Quick Installation Guide (Printed on side of Box) |
| 1 x Power Cord – 16 inches (40.64cm) |
| Device Dimensions & Weights |
| EPA5060XBT Device (Without Mounting Kit) |
| Weight: 7oz (198g) |
| Length: 3.9” (99mm) |
| Width: 2.27” (57mm) |
| Height: 1.3” (33mm) |
| EPA5060XBT Packaging |
| Weight: 11oz (315g) |
| Length: 6” (152mm) |
| Width: 4.8” (122.5mm) |
| Height: 2” (52 mm) |
| Certifications |
| IEC 62328-1: 2014 |
| UL 62328-1 |
| FCC Subpart 15 Class B |
| EN 55032: 2012 / AC: 2013 |
| EN 55024: 2010 |
| Warranty |
| 1 year |
