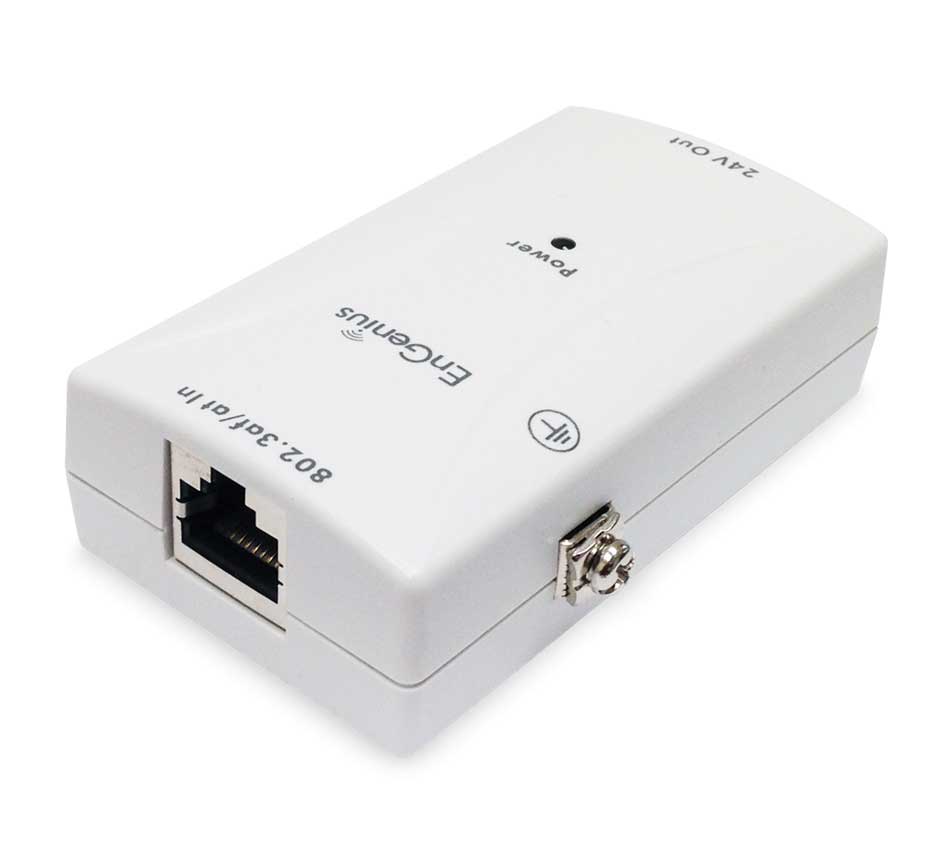

Engenius - EPD-4824 - Gigabit 802.3at/af PoE Converter
Part number:
EPD-4824
Price:
- • Features Gigabit In & Out Ports
- • Converts 802.3at/af 48V Power Into 24V Proprietary Power Output
- • Disconnect, Short-Circuit & Power Surge Protection
| Standards | |
|---|---|
| Ethernet Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-T IEEE 1000Base-T |
| Protocol | CSMA/CD |
| Ports | |
| Input | 1x RJ45 Connector for Proprietary 48V Input |
| Output | 1x RJ45 Connector for 24V Output |
| Data Lines | Pin1, Pin2 |
| Power Lines | Pin4, Pin5, Pin8 |
| Diagnostic LEDs | |
| Power Indicator | Power: Green |
| Power Output | |
| Maximum Output | Provides up to 24W |
| Input Standard | IEEE 802.3af/at |
| Output Specifications | DC 24V (802.3at Input = 24W, 802.3af Input = 12.32W) |
| Reliability/MTTF | 25000 Hours |
| Environmental & Mechanical | |
| Temperature Range (Operating) | 32°F to 122°F (0°C to 50°C) |
| Temperature Range (Storage) | -4°F to 176°F (-20°C to 158°C) |
| Humidity (Non-Condensing) | 0% - 90% |
| Surge/ESD Protection | Surge Protection 6 KV |
The EPD-4824 Converter is designed to work with EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 wireless outdoor APs. With a power output of up to 24W, the EPD-4824 gives network administrators, IT managers, and installers the option to place PoE-client devices outdoors where power outlets are scarce.
