Converts 48V 802.3af/at Power Source Into 24V Power Output

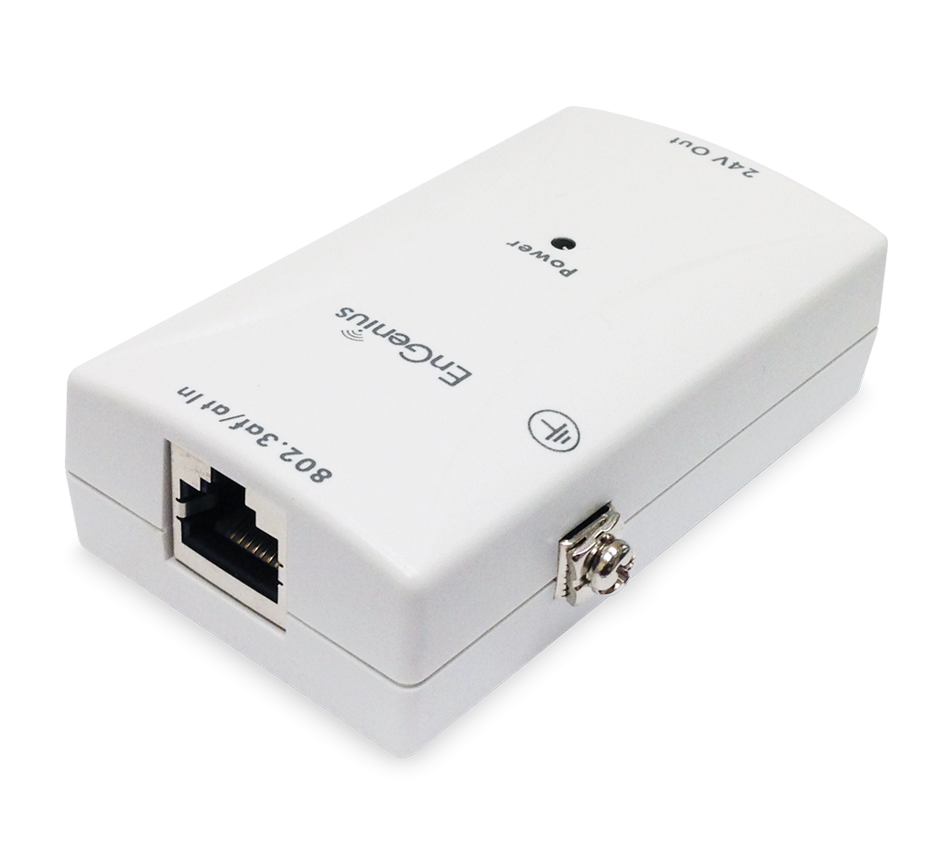

The EPD-4824 Converter is designed to work with EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 wireless outdoor APs. With a power output of up to 24W, the EPD-4824 gives network administrators, IT managers, and installers the option to place PoE-client devices outdoors where power outlets are scarce.
Features :
- Features Gigabit In & Out Ports
- Converts 802.3at/af 48V Power Into 24V Proprietary Power Output
- Disconnect, Short-Circuit & Power Surge Protection
Technical Specifications
Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T
IEEE 1000Base-T
Protocol
CSMA/CD
Ports
1x RJ45 Connector for Proprietary 48V Input
1x RJ45 Connector for 24V Output
Data Lines
Pin1, Pin2
Power Lines
Pin4, Pin5, Pin8
Diagnostic LEDs
Power: Green
Power Output
Provides up to 24W
Input: IEEE 802.3af/at
Output: DC 24V (802.3at Input = 24W, 802.3af Input 12.32W)
Reliability/MTTF
25000 Hours
Environmental & Mechanical
Temperature Range
Operating: 32°F to 122°F/0°C to 50°C
Storage: -4°F to 176°F/-20°C to 158°C
Humidity (Non-Condensing)
0% - 90%
Surge/ESD Protection
Surge Protection 6 KV
