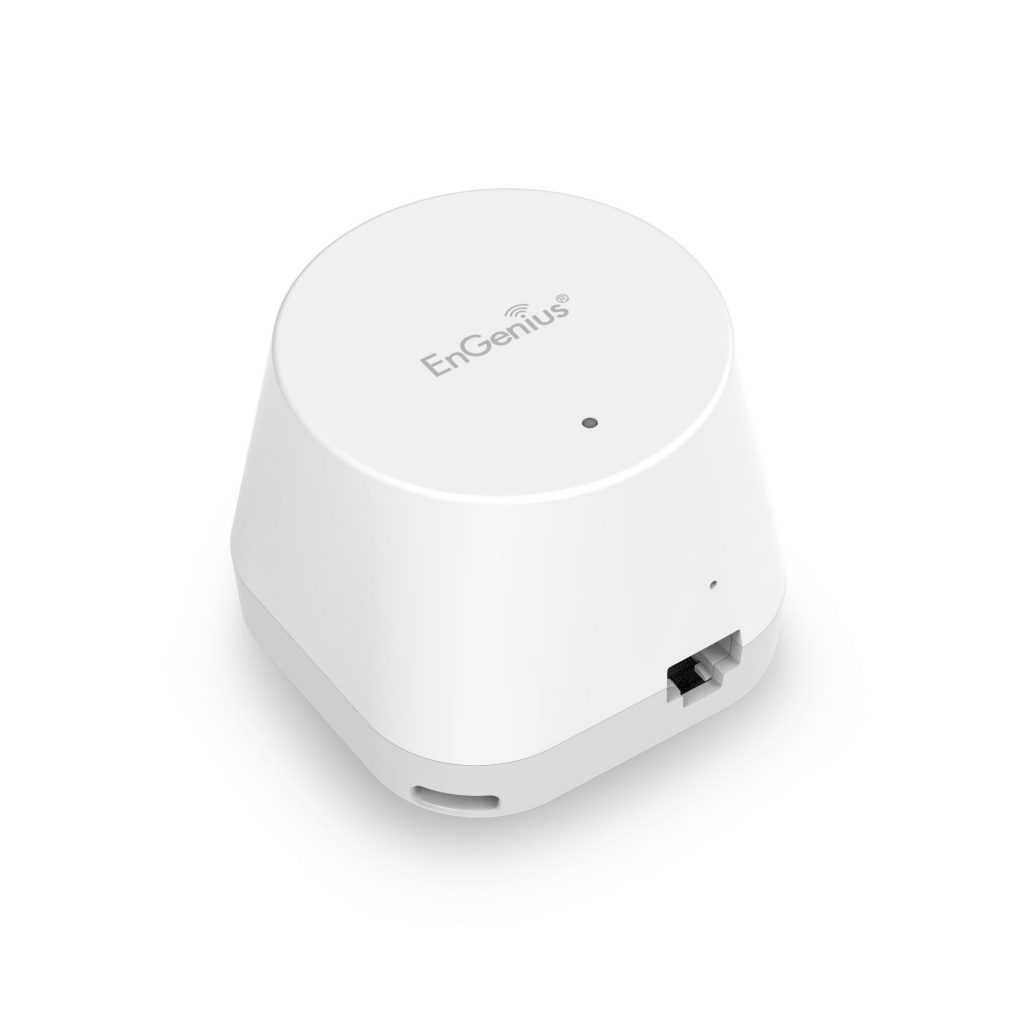

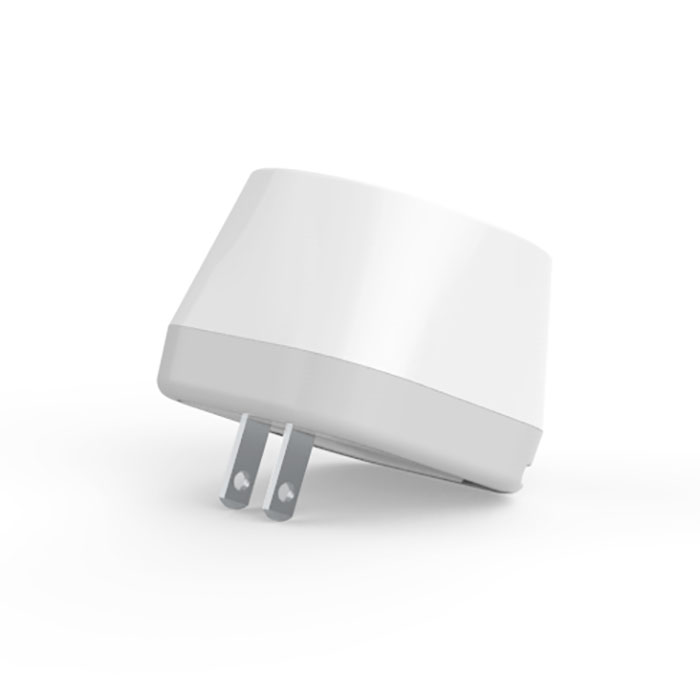

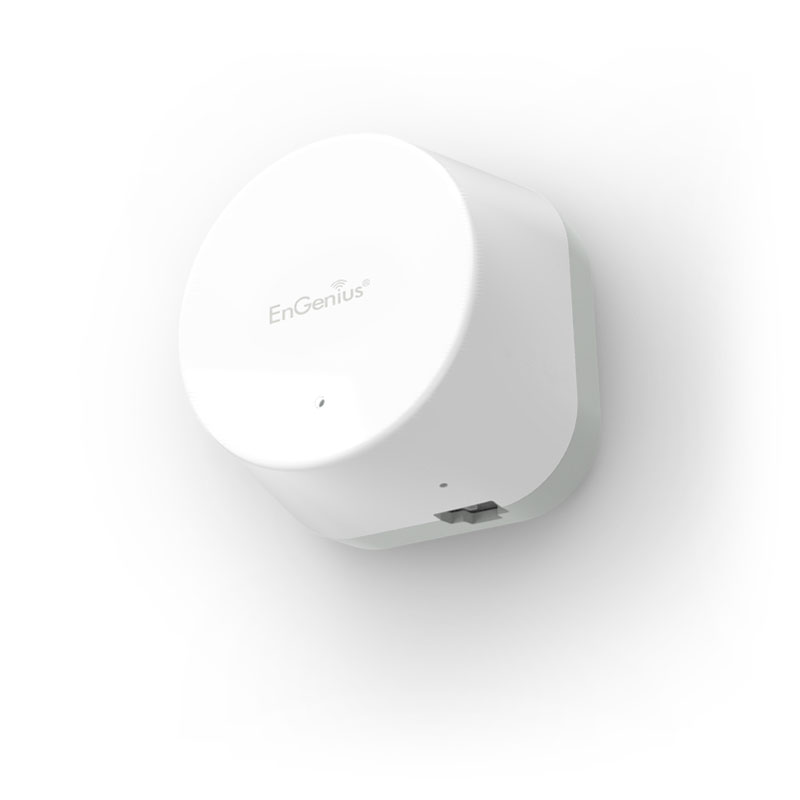

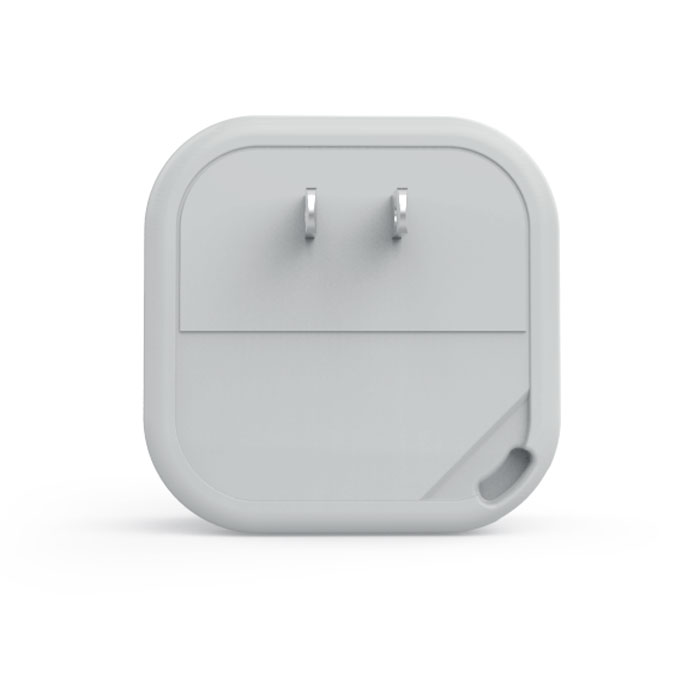

The EnGenius ERP1 AC1300 Wave 2 Wi-Fi Range Extender, a compact dual-band 11AC1300 universal Wi-Fi repeater supporting speeds up to 1.3Gbps. Experience speeds up to 2x faster than 11n repeaters and 360° wireless coverage with high-performance internal antennas. Easily set-up and troubleshoot wireless connectivity in the palm of your hand with the EnWiFi App.
Technical Specifications
Physical Interface
1x 10/100/1000 Mbps Ethernet Port
1x Plug Ping
1x Reset Button
LED Indicator
1 LED indicator
- White: Wireless Connection
- Red: Disconnection
- Blue Blinking: WPS Sync
Software Features
Guest Network
Set-up & Control via EnWiFi Mobile App (iOS / Android)
Encryption: WEP / WPA / WPA2 / TKIP / AES
Band Steering
UID/DDNS/EnGenius DDNS Service
Auto Firmware Updates
Backup / Restore Settings
Wireless Specifications
802.11AC Wave 2 Dual-Band Simultaneous Radios with MU-MIMO
2.4 GHz Radio: 400 Mbps
5 GHz Radio: 867 Mbps
2.4 GHz Tx Output Power: 19 dBm
5 GHz Tx Output Power: 21 dBm
Environmental & Physical
Temperature Range
Operating: 32°F to 95°F (0°C to 35°C)
Storage: -4°F to 140°F (-20°C to 60°C)
Humidity (Non-Condensing)
Operating: 90% or less
Package Contents
1 x ERP1
1 x Quick Installation Guide
1 x Security Chain
1 x Screw Pack
1 x RJ-45 Ethernet Cable
Dimensions & Weights
Device
Weight: .37 lbs. (170g)
Width: 2.46” (62.5 mm)
Height: 2.07” (52.7 mm)
Packaging
Weight: .57 lbs. (260g)
Width: 3.42” (87 mm)
Length: 3.43” (87 mm)
Height: 5.12” (130 mm)
Warranty
1 year
Certifications
CE
FCC
