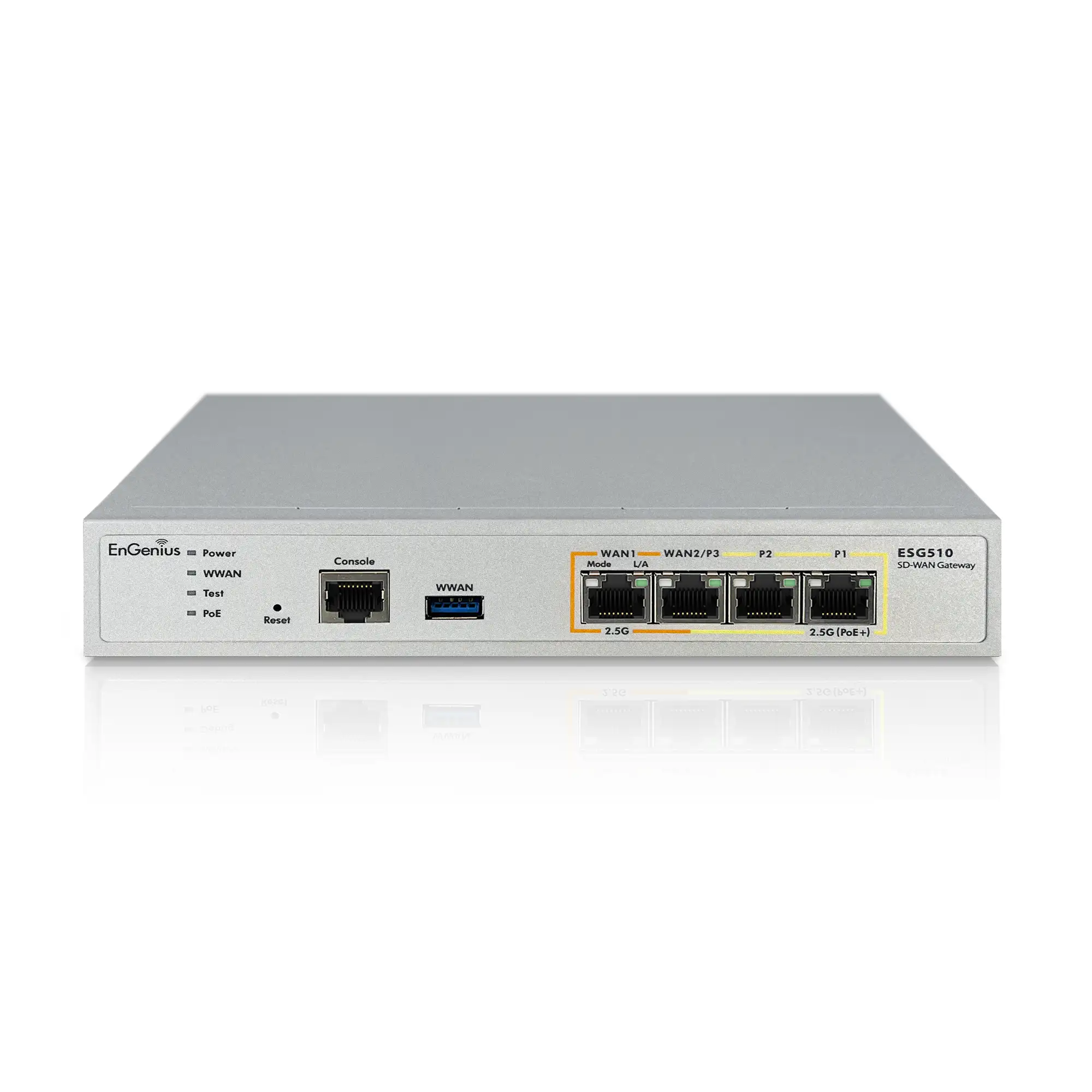

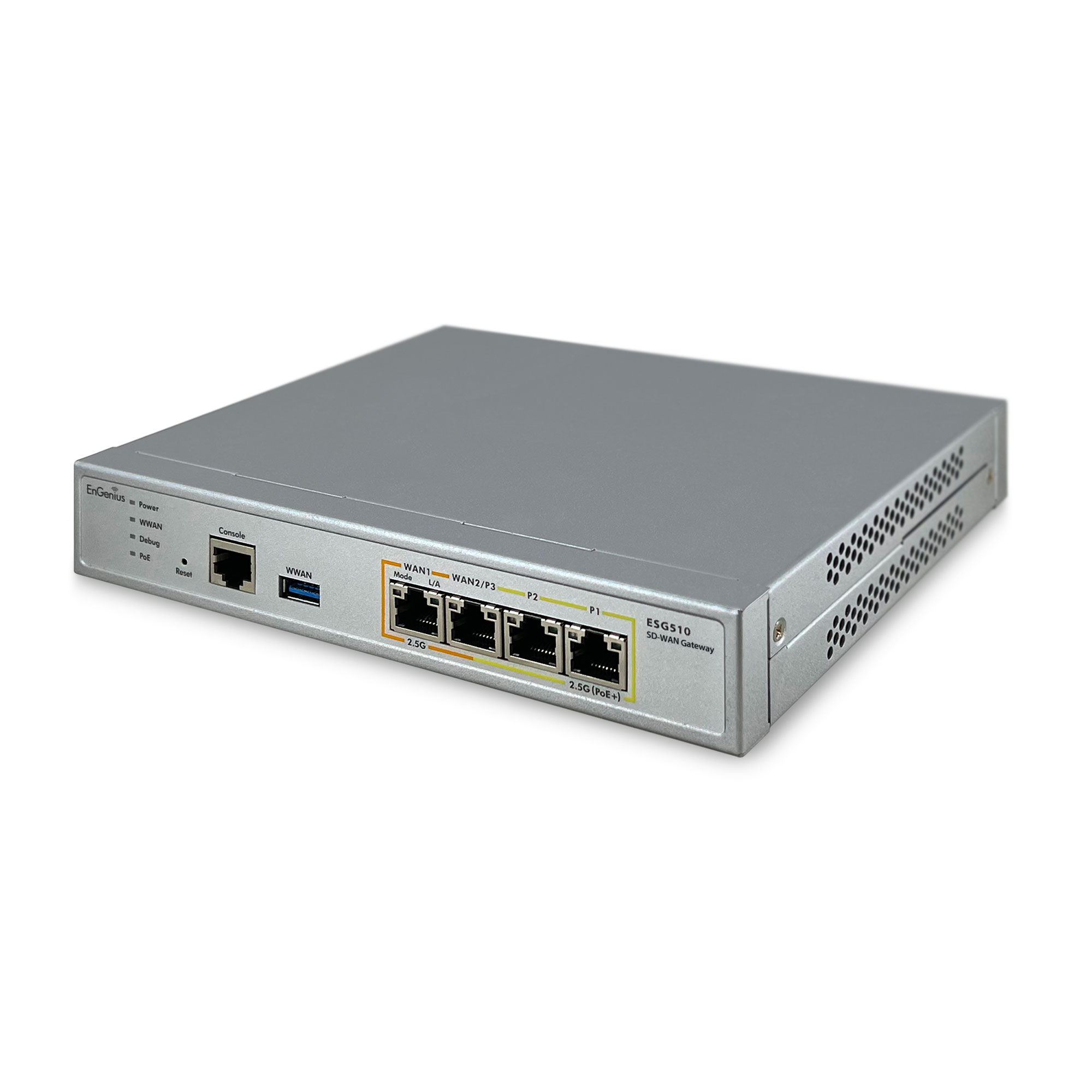

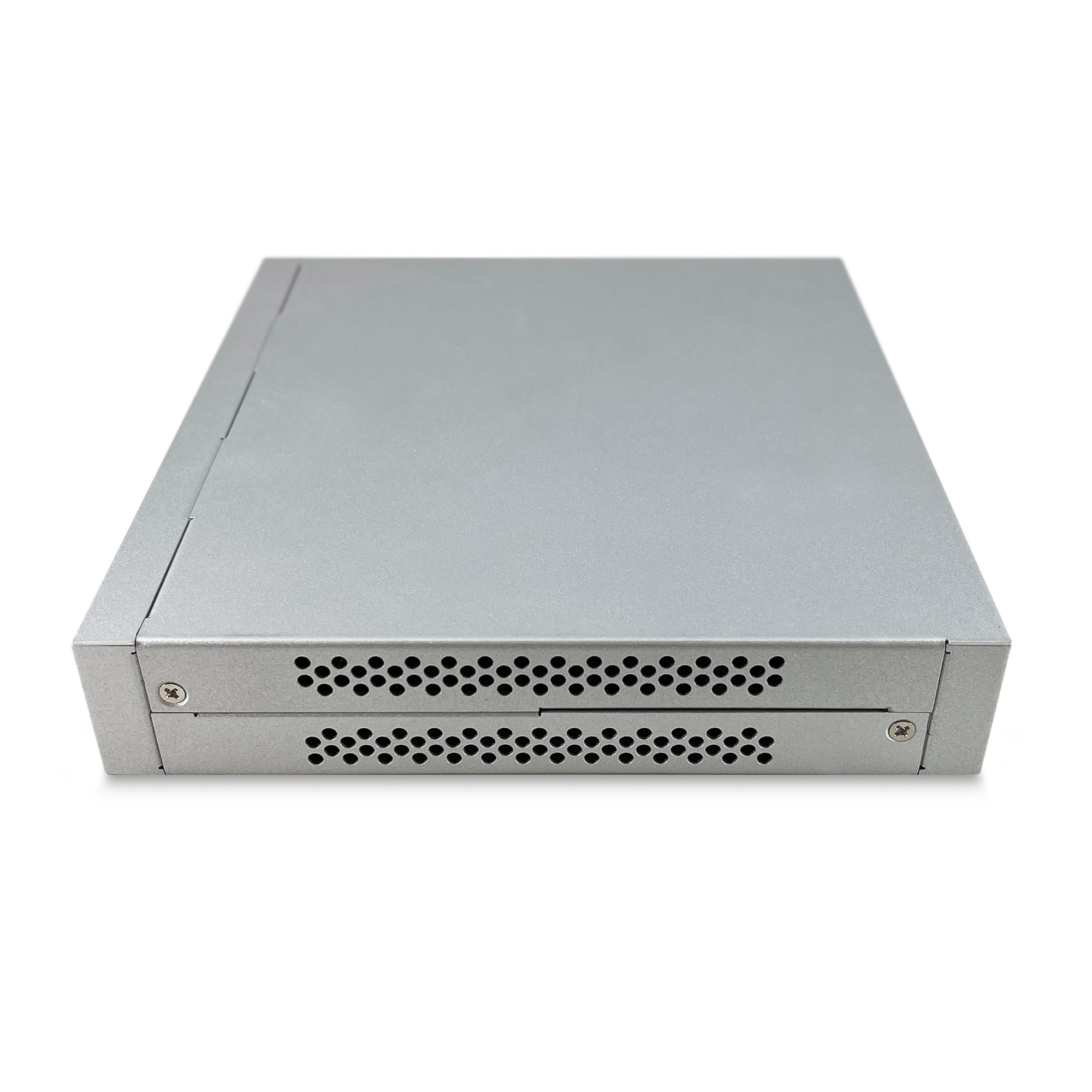

EnGenius - ESG510 - EnGenius Cloud Managed ESG510 1.6 GHz Quad-Core Security Gateway with Dual-WAN 2.5 GbE, Dual-LAN 2.5 GbE, cellular failover, stateful firewall, and site to site & client VPN.
Part number:
ESG510
Price:
The EnGenius Cloud Managed ESG510 1.6GHz Quad-Core SD-WAN Security Gateway with Dual-WAN 2.5GbE, Dual-LAN 2.5GbE, cellular failover, stateful firewall, and site-to-site and client VPN delivers more simplicity and security to businesses by providing the IT team with effortless setup, enterprise-level security, and an end-to-end network solution.
Features:
- Simple, unified cloud management for any size business
- Intuitive and centralized device visibility from anywhere
- Quad core 1.6GHz processor for greater speed and power
- Dual 2.5GbE WAN and Dual 2.5GbE LAN for maximum performance
- 2.5GbE PoE+ to power up a Wi-Fi 6E AP, IP camera or IP phone
- Built-in load balancing and safeguards with dual-WAN and cellular failover
- Enhance security with a high-throughput firewall
- Quick VPN and VLAN setup for easy configurations
- Fast Site-to-site VPN and Client VPN for secure connections
- Self-healing AUTO VPN to minimize disruption
- Passthrough mode for easy integration into existing networks
- TPM chipset to enhance the security level of the gateway
- Touchless system maintenance and automatic updates
- No licensing or subscription fees needed
| Technical Specifications |
| CPU Processor |
| Quad-Core |
| Operating Frequency |
| 1.6GHz |
| Memory |
| 4GB |
| Storage |
| 8GB |
| Network Ports (Copper Ports) |
| 4 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports |
| Console Port |
| 1 x 10/100/1000, RJ-45 Ethernet port |
| PoE+ Capable Port |
| 1 (802.3af/at) LAN (P1) |
| Mounting Method |
| Wall mount |
| USB Interface |
| 1 x USB 3.0 |
| Security Chip |
| TPM |
| Performance & Capacity |
| Firewall (SPI Throughput) |
| 4 Gbps |
| VPN Throughput |
| 970 Mbps |
| Max. TCP Concurrent Sessions |
| 1,000,000 |
| Max. Concurrent VPN Tunnels |
| 200 |
| Max. VLAN |
| 96 |
| Firewall |
| Firewall Features |
| Stateful Packet Inspection |
| Policy Rules |
| Port Forwarding |
| 1:1 NAT |
| Allow Inbound Services |
| VPN |
| Site-to-Site VPN |
| Mesh VPN/Hub-and-Spoke |
| Encryption |
| DES, 3DES, AES (256-bit) |
| Authentication |
| MD5, SHA1, SHA2 (512-bit) |
| Key Management |
| IKEv1 (x-auth, mode-config) |
| IKEv2 (EAP, configuration payload) |
| VPN Features |
| Site-to-Site VPN |
| Client VPN |
| Policy-based VPN |
| IPSec NAT traversal (NAT-T) |
| Dead Peer Detection (DPD) |
| Auto-VPN Connection |
| Auto NAT traversal |
| Networking |
| Operation Mode |
| Routed/Passthrough |
| Multiple WANS |
| Dual (WAN 1 & WAN/P3) |
| Bandwidth Limit |
| Per Interface/Per Client |
| Traffic Load Balancing |
| WAN load balancing with WRR |
| Networking Features |
| Static Route |
| Multiple WANs |
| USB Cellular |
| User Authentication |
| PPPoE |
| VLAN Tagging |
| Captive Portal |
| Custom Splash Page |
| Dynamic Routing |
| Bandwidth Limit |
| Traffic Load Balancing |
| DHCP client/server/relay |
| Dynamic DNS support |
| Environmental & Physical |
| Power |
| 54V/1.2A |
| Operating Temperature |
| 0°C to 40°C |
| Humidity (non-condensing) |
| 5 to 95% non-condensing |
| Package Contents |
| Power adapter |
| Power cord |
| RJ-45 Console Cable |
| Wall Mount Kit |
| Quick Installation Guide |
| Dimensions & Weights |
| ESG510 Device |
| Weight: 2.14 lbs. (.97 kg) |
| Width: 8.27” (210 mm) |
| Length: 7.07” (179.5 mm) |
| Height: 1.38” (35 mm) |
| Packaging |
| Weight: 3.75 lbs. (1.7 kg) |
| Width: 4.09” (104 mm) |
| Length: 10.98” (279 mm) |
| Height: 11.69” (297mm) |
| Compliance & Warranty |
| Regulatory Compliance |
| FCC Part 15 (Class B) |
| IC |
| CE EMC (Class B) |
| RCM |
| BSMI |
| Warranty |
| 2 years |
| Certifications |
| CE |
| FCC |
| IC |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
