All-in-One Communication “Hub” for In-Room Wireless Connectivity
The 11ac Wave 2 Wall Plate Access Point with built-in 3-port Gigabit switch provides in-demand, high-speed in-room wired and wireless connectivity and PoE in a single high-performance device. The easy-to-deploy, low-profile AP provides flexible, reliable connectivity for hotel guest rooms, dorms, classrooms and multi-tenant dwellings.
Features :
- 11ac Wave 2 Wireless Speeds to 867 Mbps (5 GHz); to 400 Mbps (2.4 GHz)
- MU-MIMO & Beamforming Improves Performance & Increases User Device Capacities
- (3) GigE Switch Ports Connect In-Room IPTVs, Game Consoles or Network Projectors

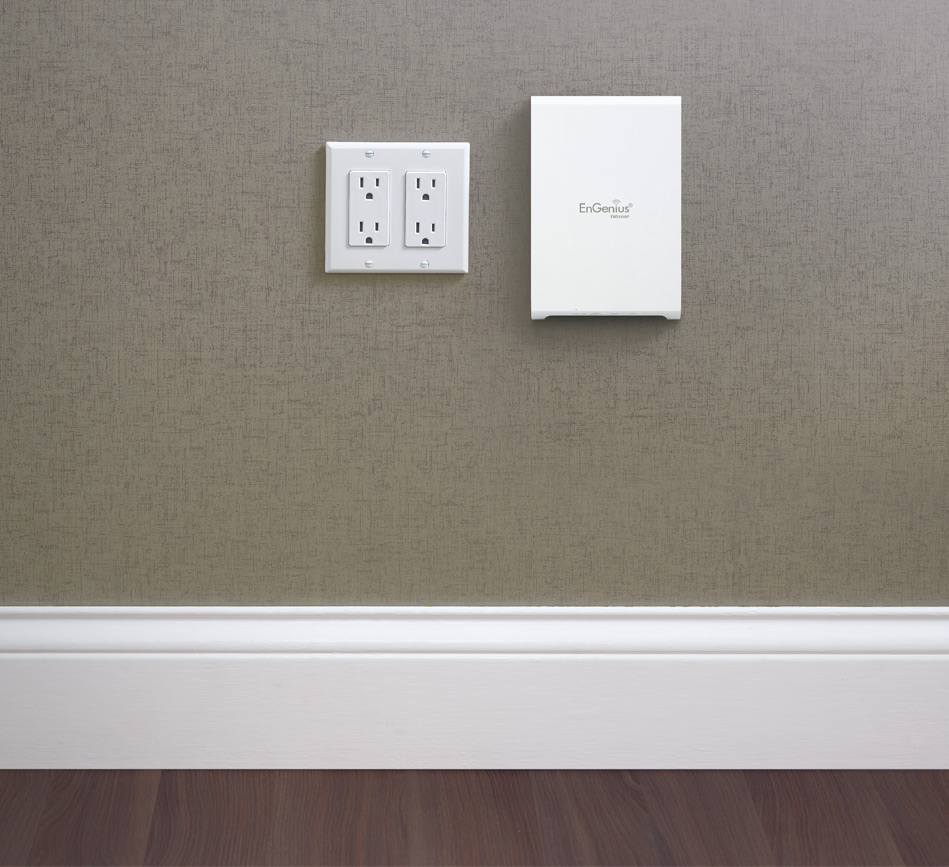

- Sleek, Low Profile Design Mounts Onto a Standard Wall J-Box
- 802.3at/af PoE port compliant for easy placement & offers PSE to a 2nd device
Technical Specifications
Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
Processor
Qualcomm® 717 MHz Quad-Core CPU
4x ARM Cortex A7
Antenna
2.4 GHz: 4 dBi
5 GHz: 6 dBi
Integrated Omni-Directional Antenna

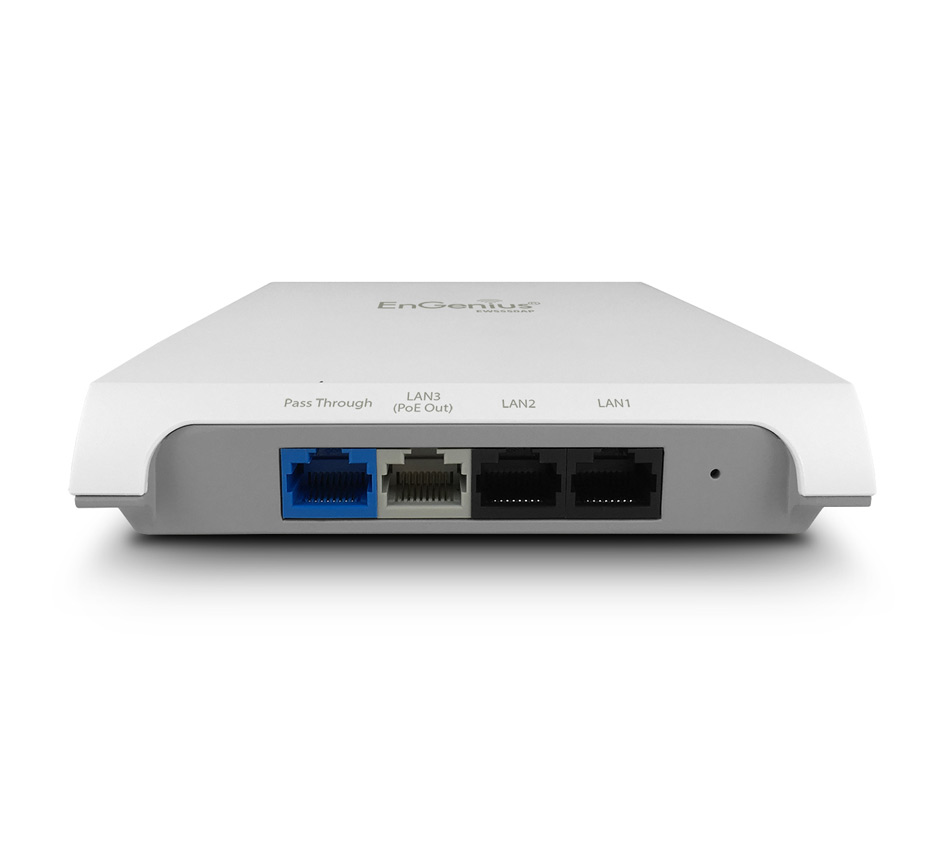

Physical Interface
1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate)
3 x 10/100/1000 Mbps Ethernet Switched Ports (client ports)
- Port 1 (PSE) 802.3af PoE (requires 802.3at power source)
2 x 110 Punch Down Block (1 x Pass-through Port, 1 x Uplink Port)
2 x GigE Pass-Through Ports
1 x Reset Button

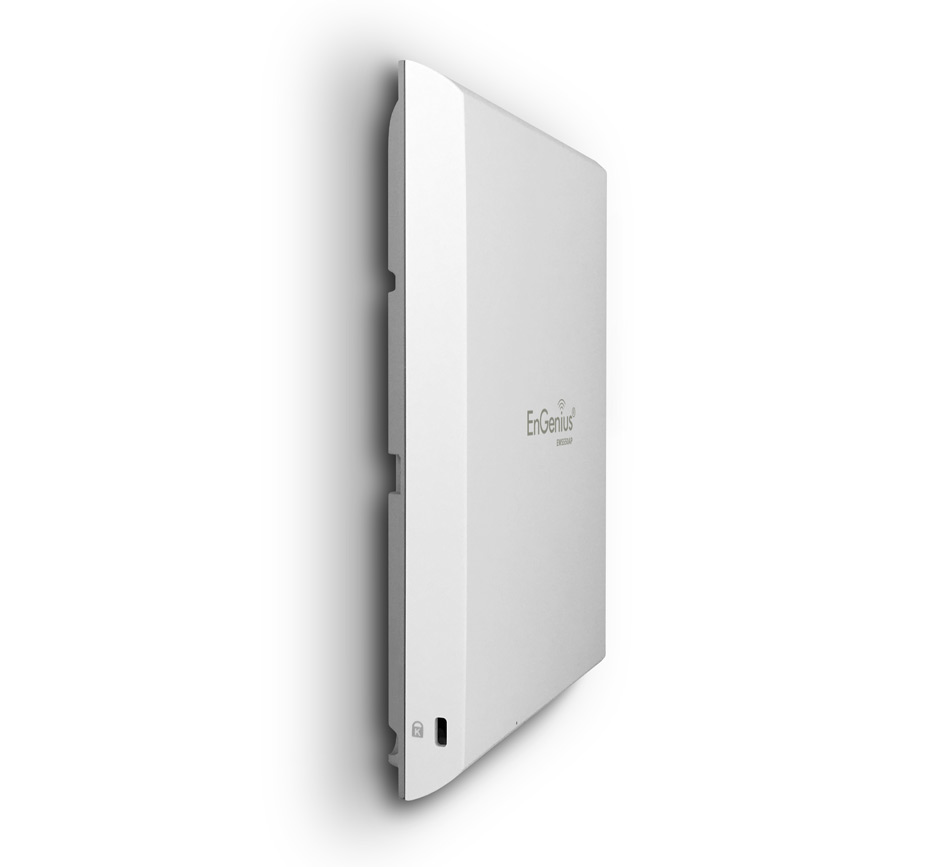

1 x Kensington Lock Slot

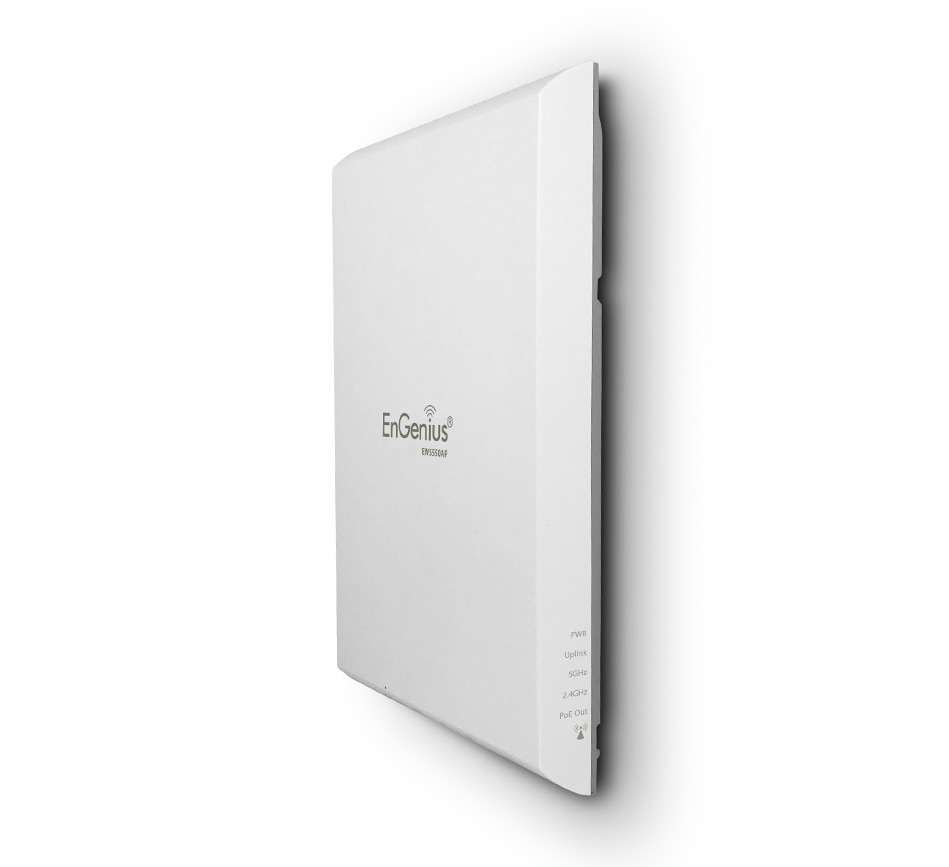

LED Indicators
1 x Power
1 x Uplink
1 x 5 GHz
1 x 2.4 GHz
1 x PoE Out
1 x LAN
Power Source
Power-over-Ethernet:
- 802.3af Output w/ 802.3at Input
IEEE 802.11e Compliant Source
Maximum Power Consumption
10W
Surge Protection
0.5KV
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
Access Point Mode
Mesh Access Point Mode
Frequency Radio
2.4 GHz: 2400 MHz ~ 2835 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 20 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) Spatial Stream SU-MIMO up to 1267 Mbps to a single client
MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 1267 Mbps to two (2) MU-MIMO-capable wireless devices simultaneously
Supported Data Rates (Mbps)
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID
Supports 16 SSIDs (8 SSIDs per Band)
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
VLAN per SSID
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
