Outdoor AP Extends High Speed Network Performance & Expanded Wi-Fi Coverage

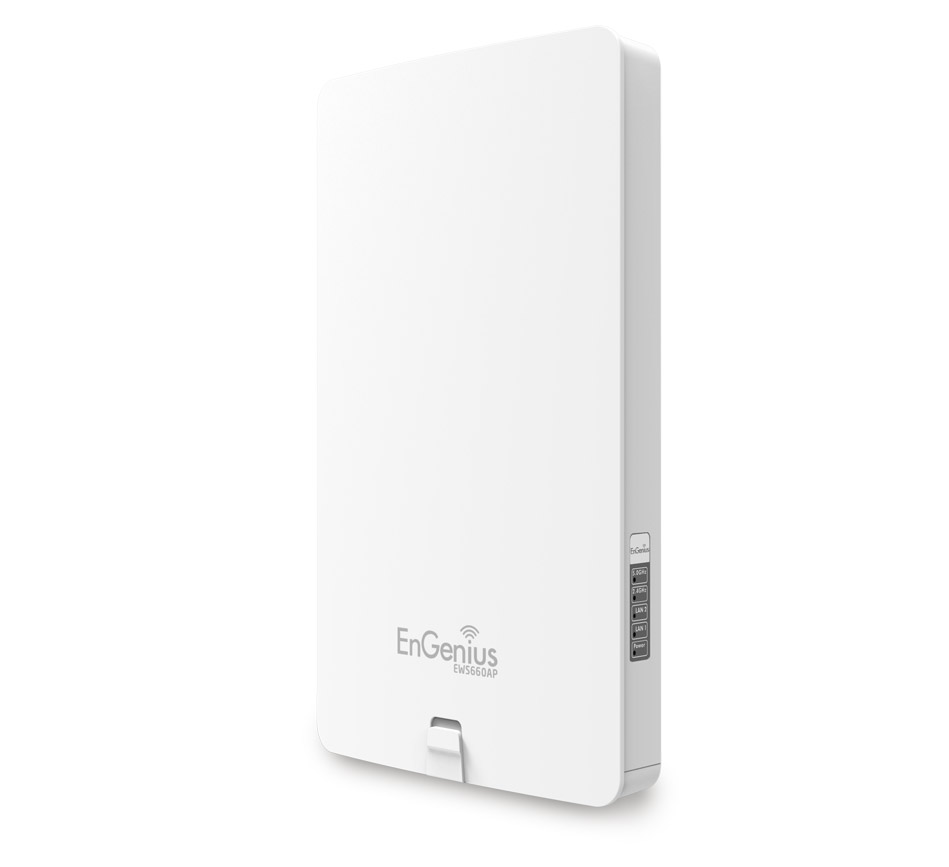

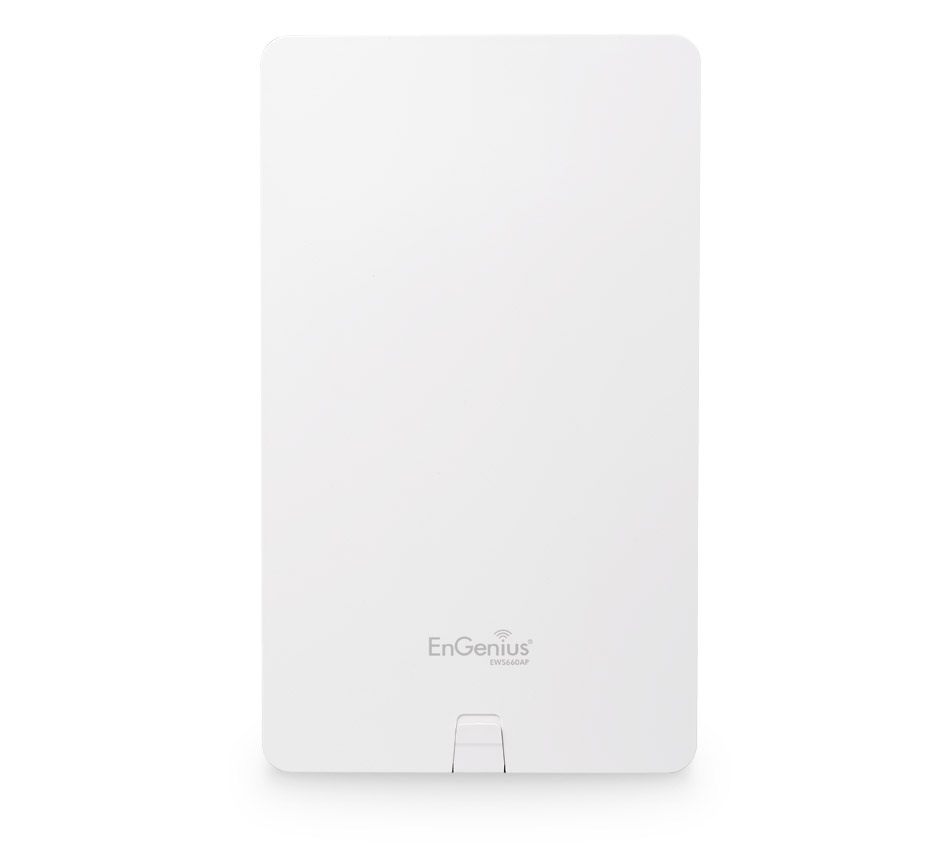

The EWS660AP Access Point Outdoor expands 11ac Wi-Fi to outside locations with dual-band concurrent connectivity and increased user capacity for busy courtyards, restaurant patios and campus quads. Band Steering shifts dual-band devices to 5 GHz, improving network efficiency.
Features :
- Dual-Band 11ac Speeds to 1,300 Mbps on 5 GHz; to 450 Mbps on 2.4 GHz
- IP55-Rated Weatherproof Housing Withstands Harsh Environments
- Enhanced Coverage: Up to 29 dBm Transmit Power Extends Outdoor Connectivity
- PoE+ Primary Gig-Port & Secondary Pass-Through Gig-Port Provide Added Flexibility
- Supports Mesh Wireless for simplified setup, optimized signals & self-healing
Technical Specifications
Standard
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory Capacity
Memory: 128 MB
Flash Memory 16 MB
Antenna
Internal Omni-Directional Antennas
5 dBi on 2.4 GHz & 5 GHz
Physical Interface

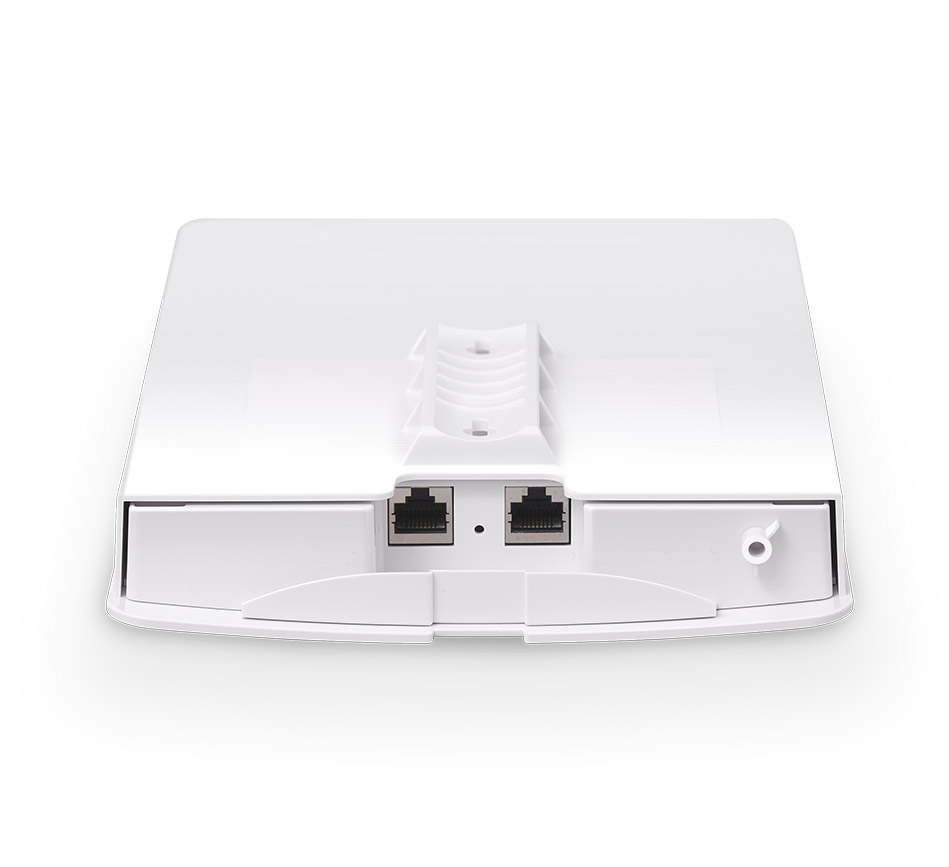

2 x 10/100/1000 Gigabit Ethernet Ports
- LAN1: Supports 802.3at PoE Input
- LAN2: Data Pass Through
1 x Reset Button
1 x Power Connector
Physical Security
Kensington Security Slot

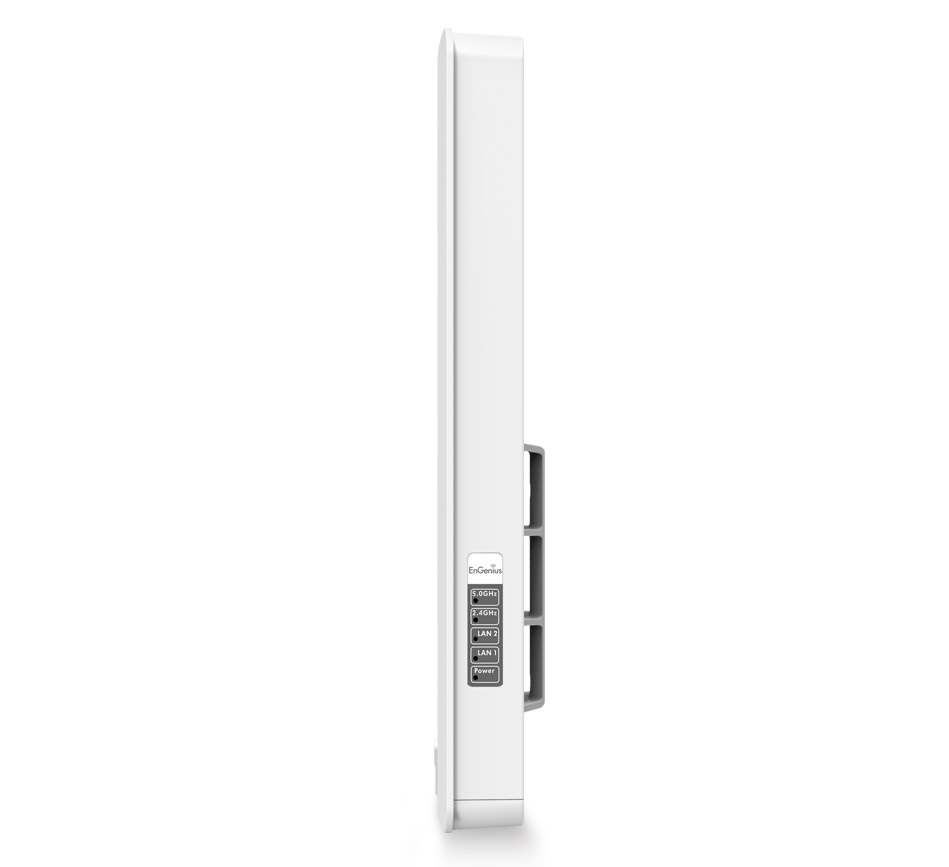

LED Indicators
1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
2 x LAN
Power Source
External Power Adapter on PoE injector
DC IN, 48 V/0.8A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)

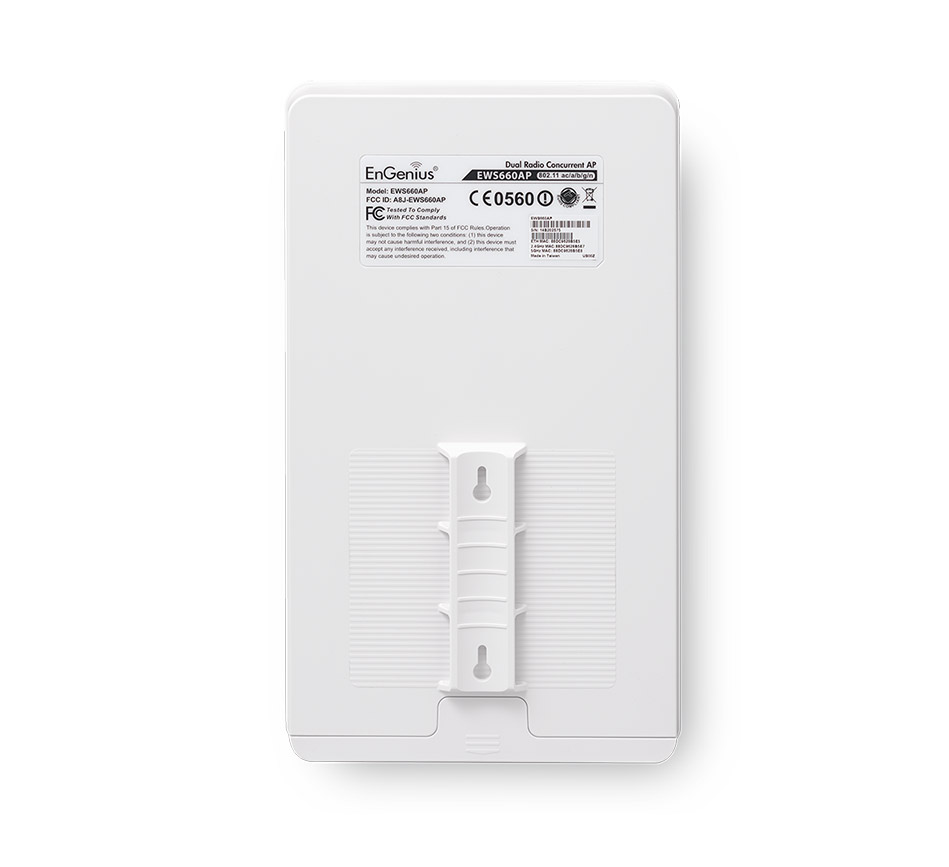

Mounting
Wall Mount
Pole Mount
Ingress Protection Marking
IP55-Rated Enclosure
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes
Access Point
Mesh Access Point
Frequency Radio
2.4GHz:
2400MHz ~ 2835MHz
5GHz:
5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz
Transmit Power
Up to 29 dBi on 2.4 GHz
Up to 27 dBi on 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams
3x3:3
Supported Data Rates (Mbps)
2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)
Supported Radio Technology
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization
802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID
Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
Spanning Tree
QoS
Compliant with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
