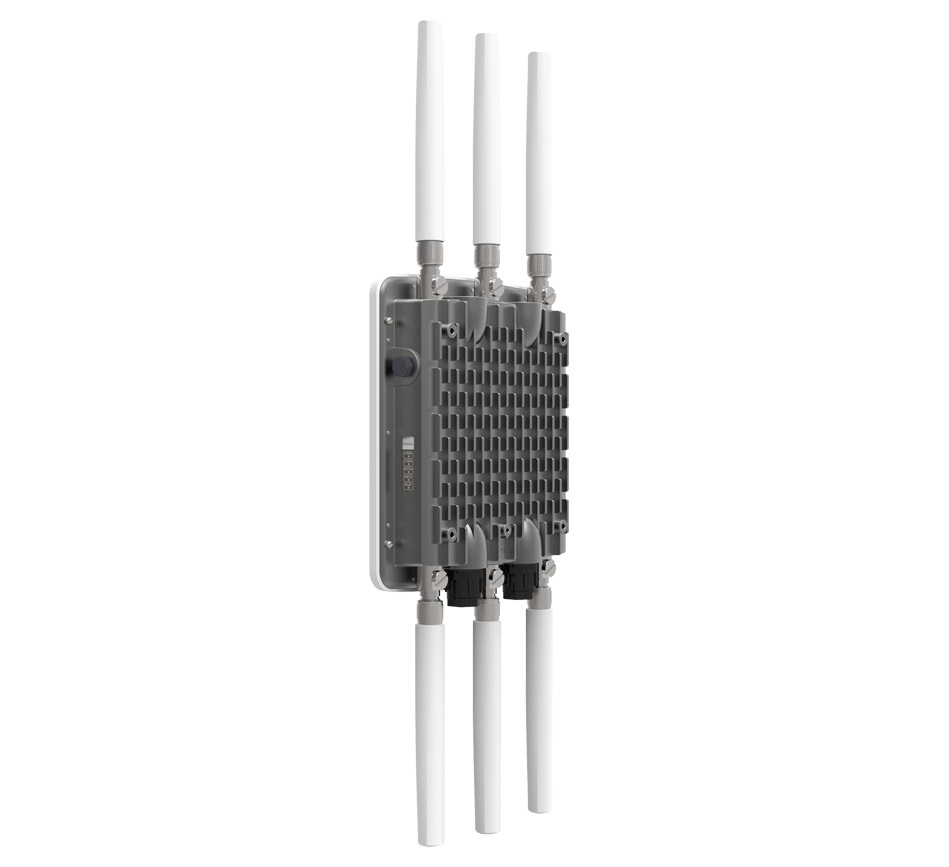

Outdoor AP With Detachable Antennas Optimizes 11ac Speeds & Increased User Capacity
The EWS860AP features an industrial-grade IP68-rated waterproof & dustproof housing that ensures optimal performance and long-term reliability in variable outdoor environments. Dual-band 11ac speeds support greater user capacities in settings like marinas, campgrounds and travel plazas.
Features :
- Dual-Band 11ac Speeds to 1,300 Mbps (5 GHz); to 450 Mbps (2.4 GHz)
- (6) High-Gain Detachable Antennas; Pair With 3x3 Sector Antenna for Broader Coverage
- Up to 29 dBm Transmit Power Extends Outdoor Connectivity
- (2) Gigabit PoE+ Compliant Ports Offer Flexible Power Options for Remote IP Cameras or APs
- Supports Mesh Wireless for simplified setup, optimized signals & self-healing
Technical Specifications
Standard
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.3at
IEEE 802.11r
IEEE 802.11k
IEEE 802.11x
Memory Capacity
Memory: 256 MB
Flash Memory 16 MB
Antenna
3 x 5dBi External Omni-Directional N-Type Antennas for 2.4 GHz
3 x 7dBi External Omni-Directional N-Type Antennas for 5 GHz
Physical Interface
2 x 10/100/1000 Gigabit Ethernet Ports
)
- LAN1: Supports 802.3at PoE Input
- LAN2: Data & 802.3af PoE Pass-Through
)
1 x Reset Button
LED Indicators
1 x Power
2 x WLAN (Wireless Connection)
2.4GHz
5GHz
2 x LAN
Power Source
External Power Adapter
DC IN, 48 V/0.8A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)
PSE Output
LAN2 802.3af power source with included power adapter
Surge Protection
4KV
ESD Protection
Contact: 6KV
Air: 8 KV
Ingress Protection Marking
IP68-Rated Waterproof/Dustproof Enclosure
Mounting
Ceiling Mount
Wall Mount
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes
Access Point
Mesh Access Point
Frequency Radio
2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz
Transmit Power
Up to 29 dBm on 2.4 GHz
Up to 29 dBm on 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams
3x3:3
Supported Data Rates (Mbps)
2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)
Supported Radio Technology
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization
802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID
Supports up to 8 SSIDs per radio
VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
QoS
Compliant with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
