Dual-Band Access Point Supports the Highest Capacities & Ultra-Fast Wi-Fi Speeds

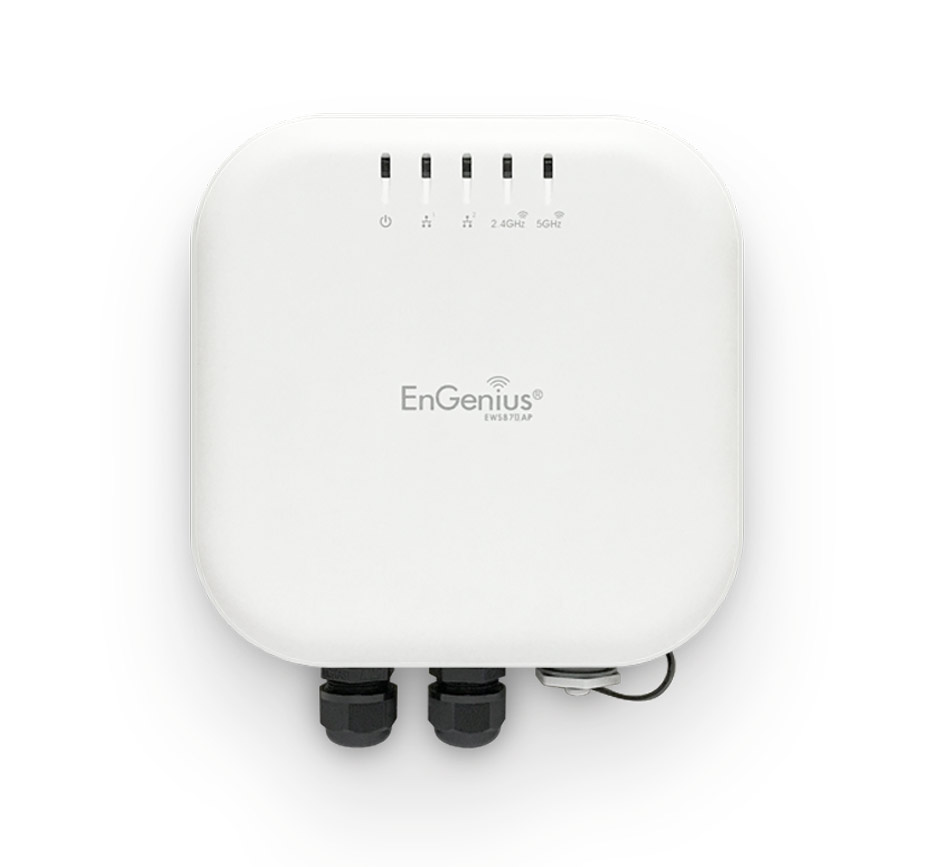

The EWS870AP Outdoor Wireless 11ac Wave 2 Access Point supports the highest bandwidth available for Wi-Fi devices with 11ac Wave 2 speeds to 2.5 Gbps. It leverages 4x4 MU-MIMO and Beamforming antenna technology for maximum capacity and performance while encompassing flexibility, scalability and enterprise-class management.
- Gigabit Over-the-Air Speeds to 2.5 Gbps
- Industrial-Grade IP67-Rated Housing Withstands Harsh Environments
- Dual-Radio MU-MIMO Improves Performance & Expands Capacities
- (8) Internal 3 dBi Omni-Directional Antennas
- (2) Gigabit PoE+ Ports Offer Flexible Power Options for Connecting IP Cameras or Bridges
Technical Specifications
Standard
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.3at
IEEE 802.11r
IEEE 802.11k
IEEE 802.11x
Memory Capacity
DDRIII: 1 GB
ROM: 32 MB
NAND Flash Memory 512 MB
Internal Antenna
Internal Omni-Directional Antennas
3 dBi on 2.4 GHz & 5 GHz
Physical Interface

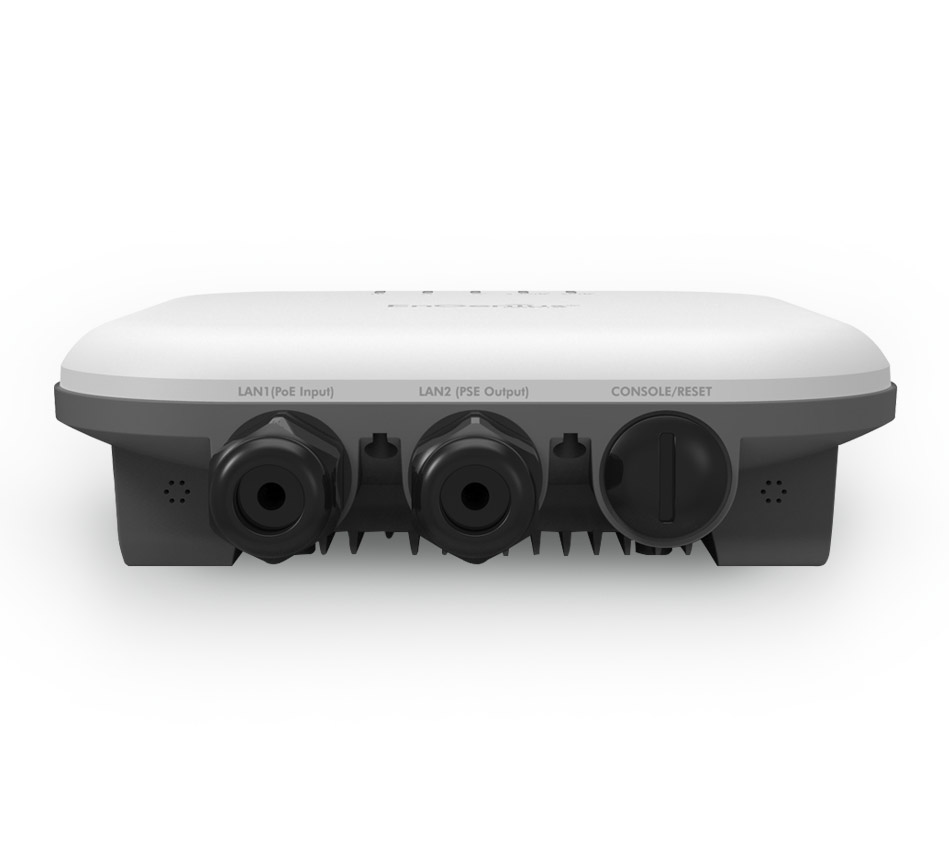

2 x 10/100/1000 Gigabit Ethernet Ports
(Link Aggregation achieves 2Gbps Throughput)
- LAN1: Supports 802.3at PoE Input
- LAN2: Data & 802.3af PoE Pass-Through
1 x Console Ethernet Port
1 x Reset Button
1 x Power Connector

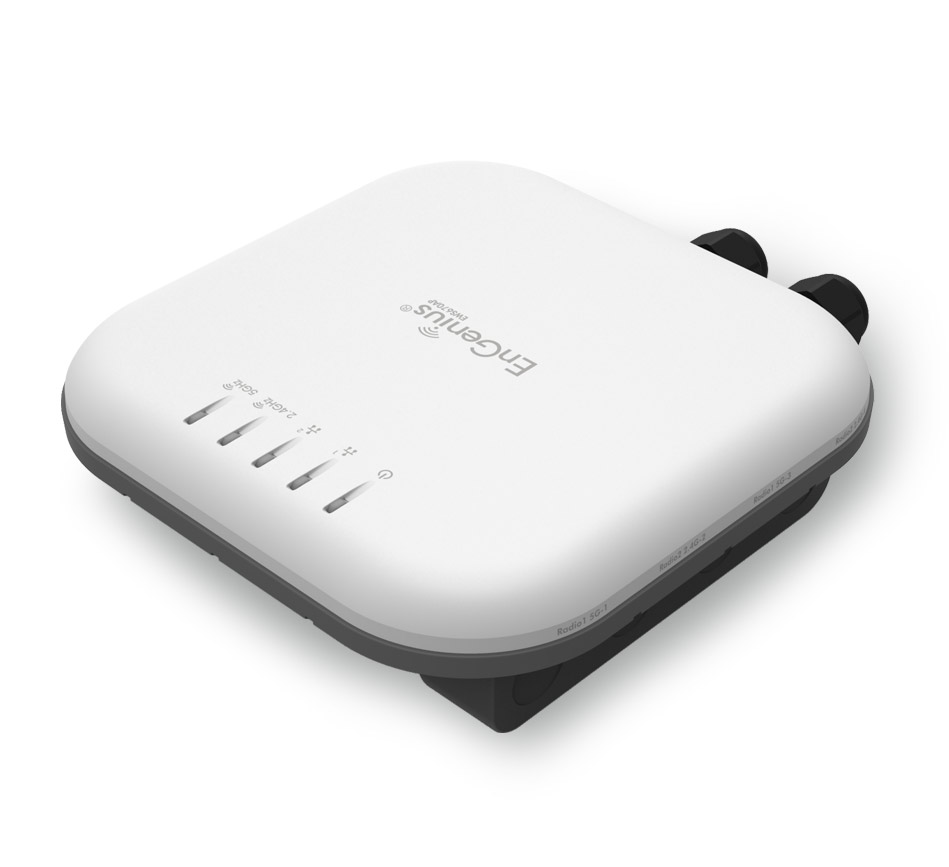

LED Indicators
1 x Power
2 x WLAN (Wireless Connection)
2.4GHz
5GHz
2 x LAN
Power Source
External Power Adapter
DC IN, 48 V/1.25A
IEEE 802.3at Compliant Source or 48V-54V Input
Active Ethernet (PoE)
PSE Output
LAN2 802.3af power source with included power adapter
Surge Protection
4KV
ESD Protection
Contact: 6KV
Air: 8 KV
Ingress Protection Marking
IP67-Rated Waterproof/Dustproof Enclosure
Mounting
Ceiling Mount
Wall Mount
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes
Access Point
Frequency Radio
2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz
Transmit Power
Up to 27 dBm on 2.4 GHz
Up to 27 dBm on 5 GHz
Max transmit power is limited by regulatory power
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
4x4:4
SU-MIMO
Four (4) Spatial Stream SU-MIMO up to 1733 Mbps to a single client
MU-MIMO
Three (3) Spatial Stream MU-MIMO up to 1300 Mbps to three (3) MU-MIMO capable wireless devices simultaneously
Supported Data Rates (Mbps)
2.4 GHz: Max 800
5 GHz: Max 1733
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS=1~4)
Supported Radio Technology
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
802.11n/ac: 4x4 MIMO (MU-MIMO) with 4 Streams
Channelization
802.11ac supports very high throughput (VHT) – VHT 20/60/80 MHz channel width
802.11n supports high throughput (HT) – HT 20/40 MHZ channel width
802.11n supports very high throughput under the 2.4 GHz radio – VHT 40 MHz (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
