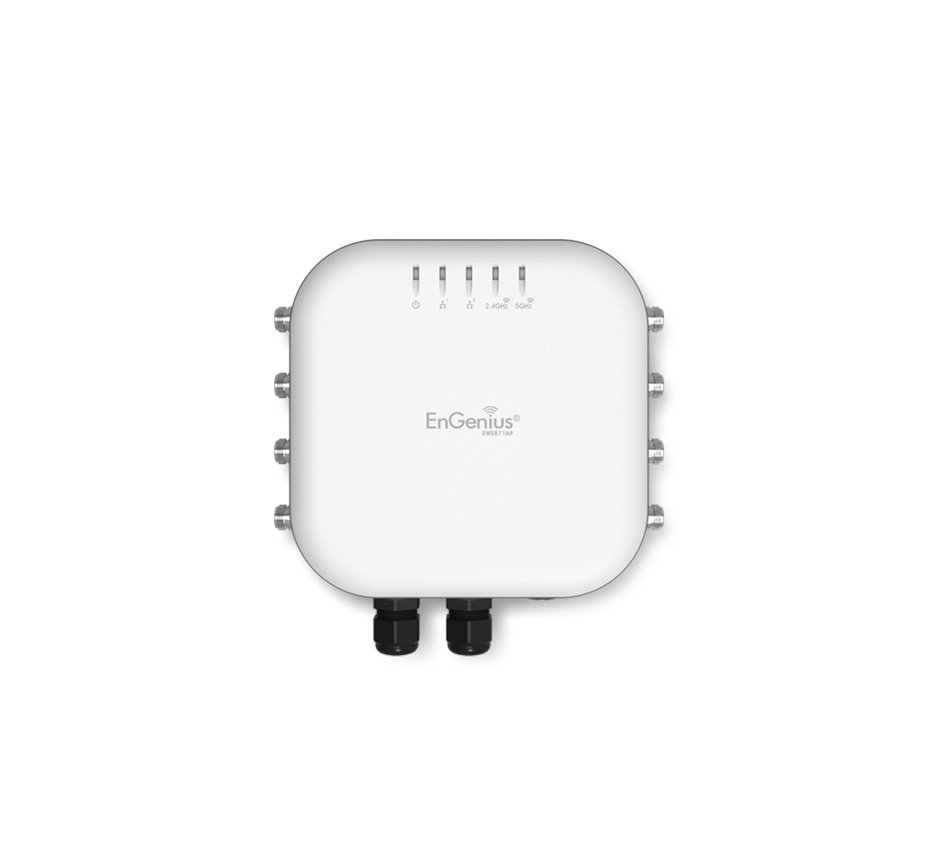

Engenius - EWS871AP - Wi-Fi 5 Wave 2 Outdoor 4×4 MU-MIMO Managed AP
Dual-Band AP With Detachable Antennas Supports High Capacities & Ultra-Fast Speeds
Part number:
EWS871AP
Price:
The EWS871AP Wireless 11ac Wave 2 Outdoor Access Point supports the highest bandwidth available for Wi-Fi devices with 11ac Wave 2 speeds up to 2.5 Gbps. It leverages 4x4 MU-MIMO and Beamforming antenna technology while encompassing flexibility, scalability and enterprise-class management.
- Gigabit Over-the-Air Speeds to 2.5 Gbps

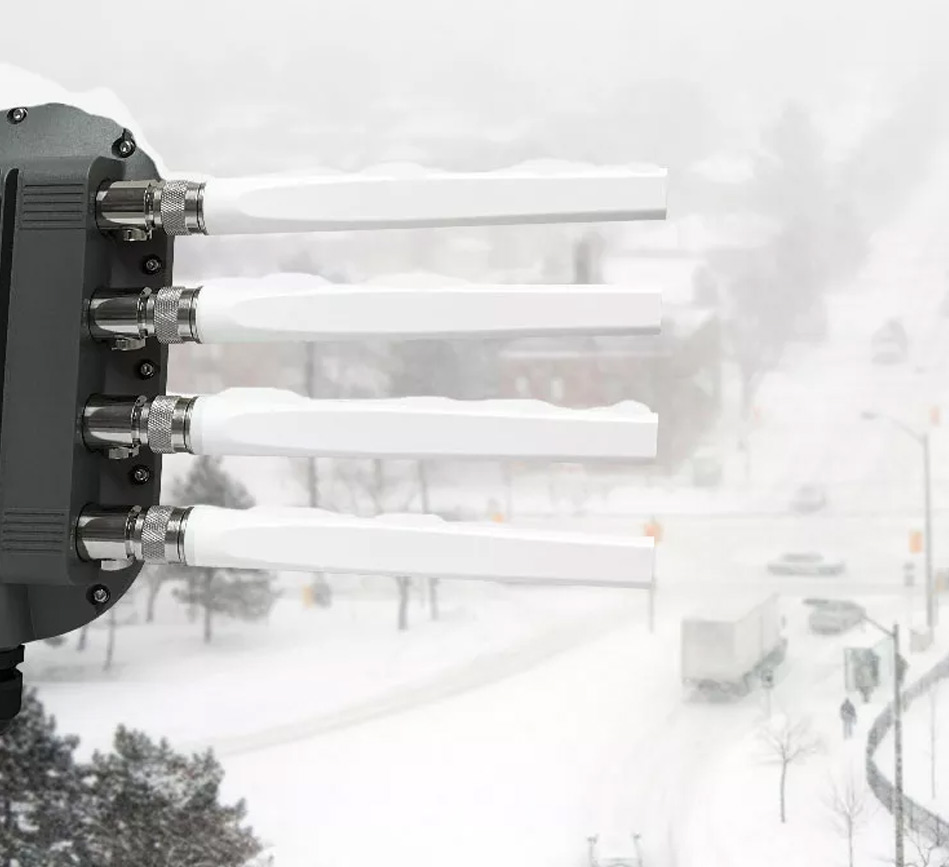

- Industrial-Grade IP67-Rated Housing Withstands Harsh Environments
- Dual-Radio MU-MIMO Improves Performance & Expands Capacities

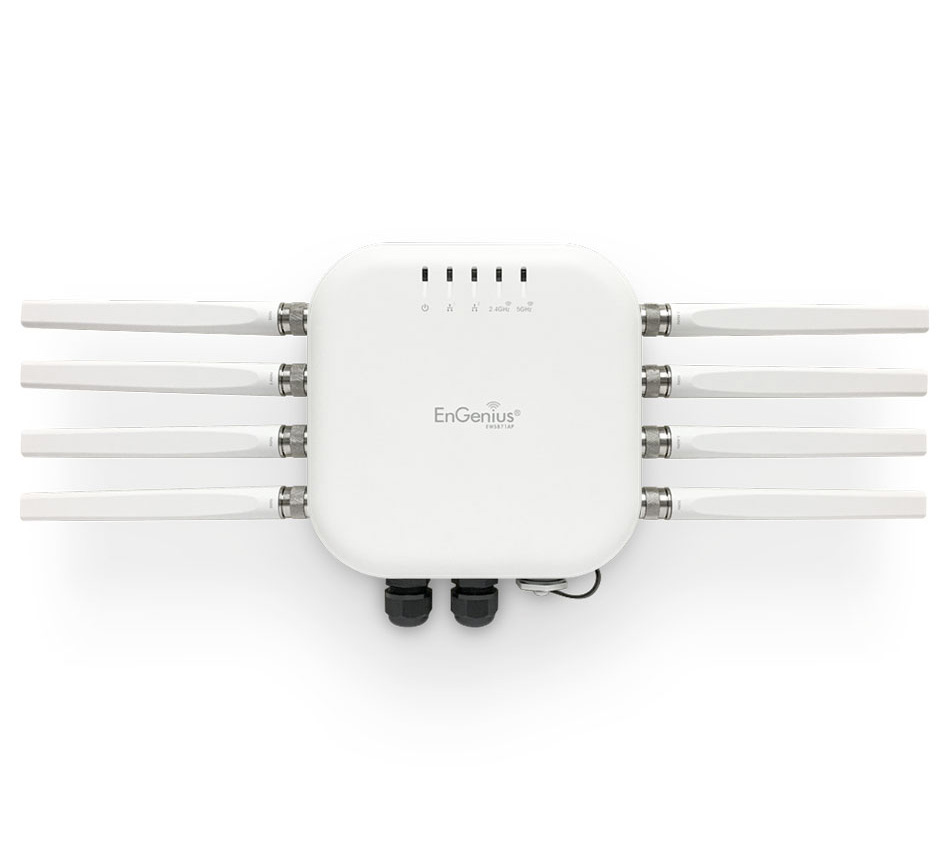

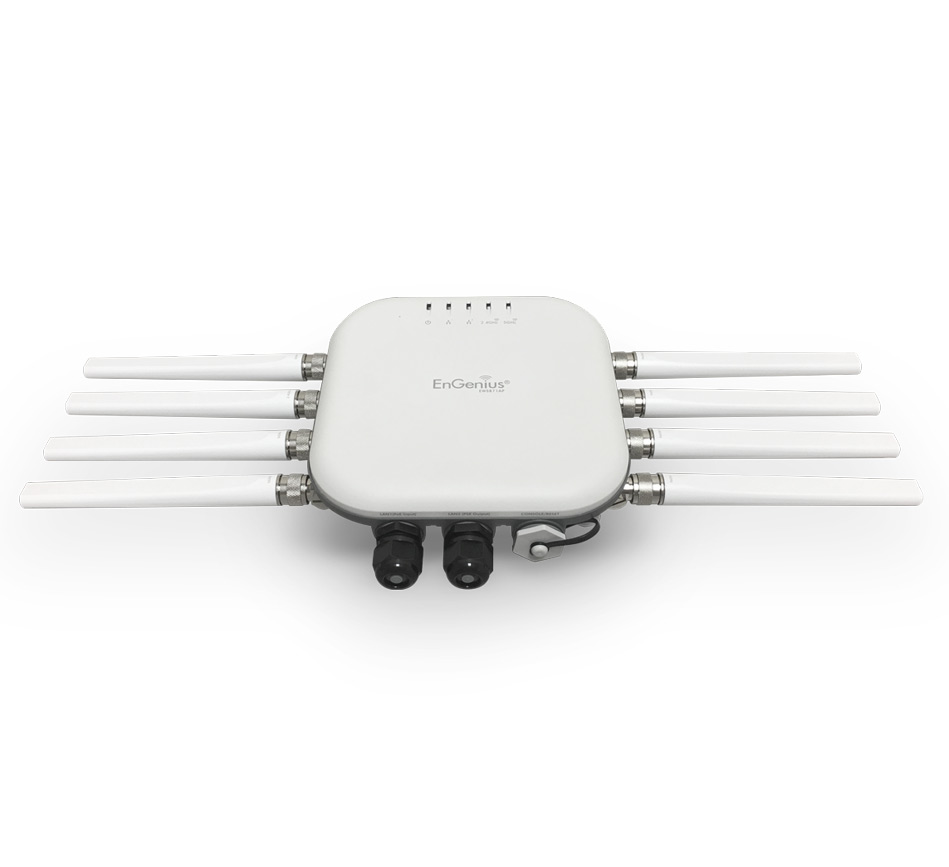

- (8) Detachable N-TYPE Omni-Directional Antennas
- (2) Gigabit PoE+ Ports Offer Flexible Power Options for Connecting IP Cameras or Bridges
| Technical Specifications |
| Standard |
| IEEE 802.11a/n/ac on 5 GHz |
| IEEE 802.11b/g/n on 2.4 GHz |
| IEEE 802.3at |
| IEEE 802.11r |
| IEEE 802.11k |
| IEEE 802.11x |
| Memory Capacity |
| DDRIII: 1 GB |
| ROM: 32 MB |
| NAND Flash Memory 512 MB |
| Antenna |
| 4 x 5dBi External Omni-Directional N-Type Antennas for 2.4 GHz |
| 4 x 7dBi External Omni-Directional N-Type Antennas for 5 GHz |

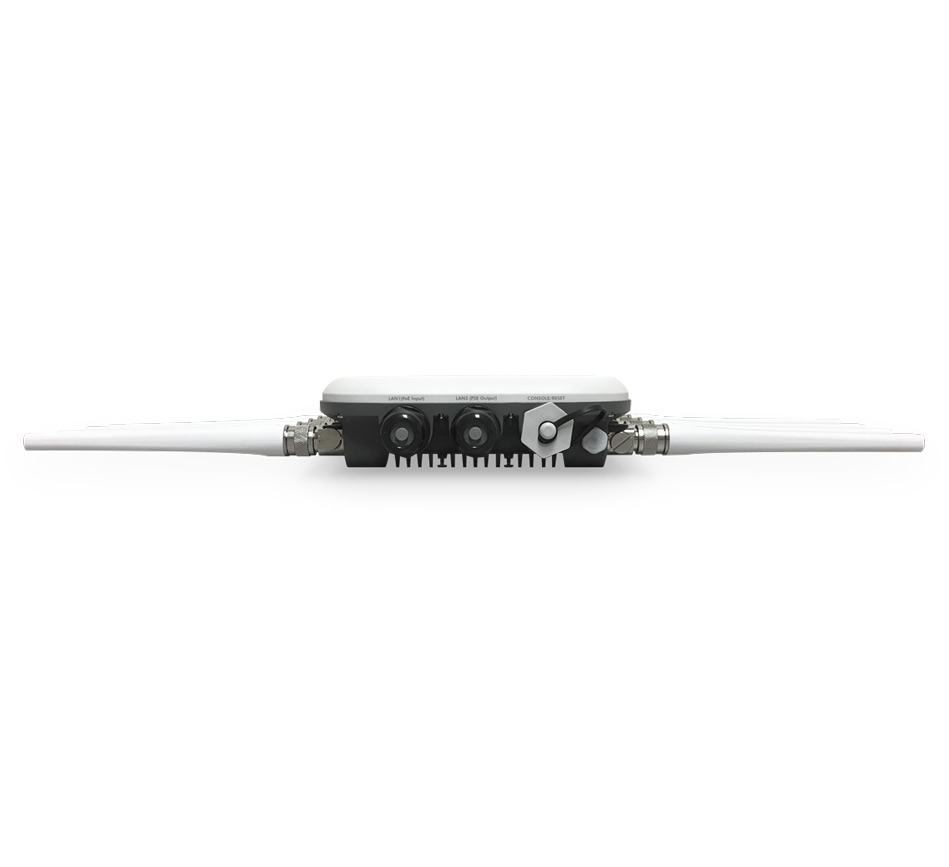

| Physical Interface |
| 2 x 10/100/1000 Gigabit Ethernet Ports |
| (Link Aggregation achieves 2Gbps Throughput) |
| - LAN1: Supports 802.3at PoE Input |
| - LAN2: Data & 802.3af PoE Pass-Through |
| 1 x Console Ethernet Port |
| 1 x Reset Button |
| 1 x Power Connector |
| LED Indicators |
| 1 x Power |
| 2 x WLAN (Wireless Connection) |
| 2.4GHz |
| 5GHz |
| 2 x LAN |
| Power Source |
| External Power Adapter |
| DC IN, 48 V/1.25A |
| IEEE 802.3at Compliant Source or 48V-54V Input |
| Active Ethernet (PoE) |
| PSE Output |
| LAN2 802.3af power source with included power adapter |
| Surge Protection |
| 4KV |
| ESD Protection |
| Contact: 6KV |
| Air: 8 KV |
| Ingress Protection Marking |
| IP67-Rated Waterproof/Dustproof Enclosure |
| Mounting |
| Ceiling Mount |
| Wall Mount |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4GHz & 5 GHz |
| Operation Modes |
| Access Point |
| Frequency Radio |
| 2.4GHz: 2400MHz ~ 2835MHz |
| 5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz |
| Transmit Power |
| Up to 27 dBm on 2.4 GHz |
| Up to 27 dBm on 5 GHz |
| Max transmit power is limited by regulatory power |
| Tx Beamforming (TxBF) |
| Radio Chains/Spatial Streams |
| 4x4:4 |
| SU-MIMO |
| Four (4) Spatial Stream SU-MIMO up to 1733 Mbps to a single client |
| MU-MIMO |
| Three (3) Spatial Stream MU-MIMO up to 1300 Mbps to three (3) MU-MIMO capable wireless devices simultaneously |
| Supported Data Rates (Mbps) |
| 2.4 GHz: Max 800 |
| 5 GHz: Max 1733 |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 |
| 802.11n: 6.5 to 600 (MCS0 to MCS23) |
| 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS=1~4) |
| Supported Radio Technology |
| 802.11b: Direct-Sequence Spread-Spectrum (DSSS) |
| 802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM) |
| 802.11n/ac: 4x4 MIMO (MU-MIMO) with 4 Streams |
| Channelization |
| 802.11ac supports very high throughput (VHT) – VHT 20/60/80 MHz channel width |
| 802.11n supports high throughput (HT) – HT 20/40 MHZ channel width |
| 802.11n supports very high throughput under the 2.4 GHz radio – VHT 40 MHz (256-QAM) |
| 802.11n/ac packet aggregation: AMPDU, ASPDU |
| Supported Modulation |
| 802.11b: BPSK, QPSK, CCK |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
