EnGenius - N-EnStationAC Kit - Two EnStationAC
Part number:
N-EnStationAC Kit
Price:
- • EnJet technology features Time Division Multiple Access, cutting through RF-congested environments
- • 11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz
- • MU-MIMO improves performance & increases user device capacities
- • Beamforming optimizes antenna signal, reception & reliability for device
- • High 26 dBm transmit power extends and high Gain 19 dBi Directional Antennas
- • IP55-Rated weatherproof & dustproof housing

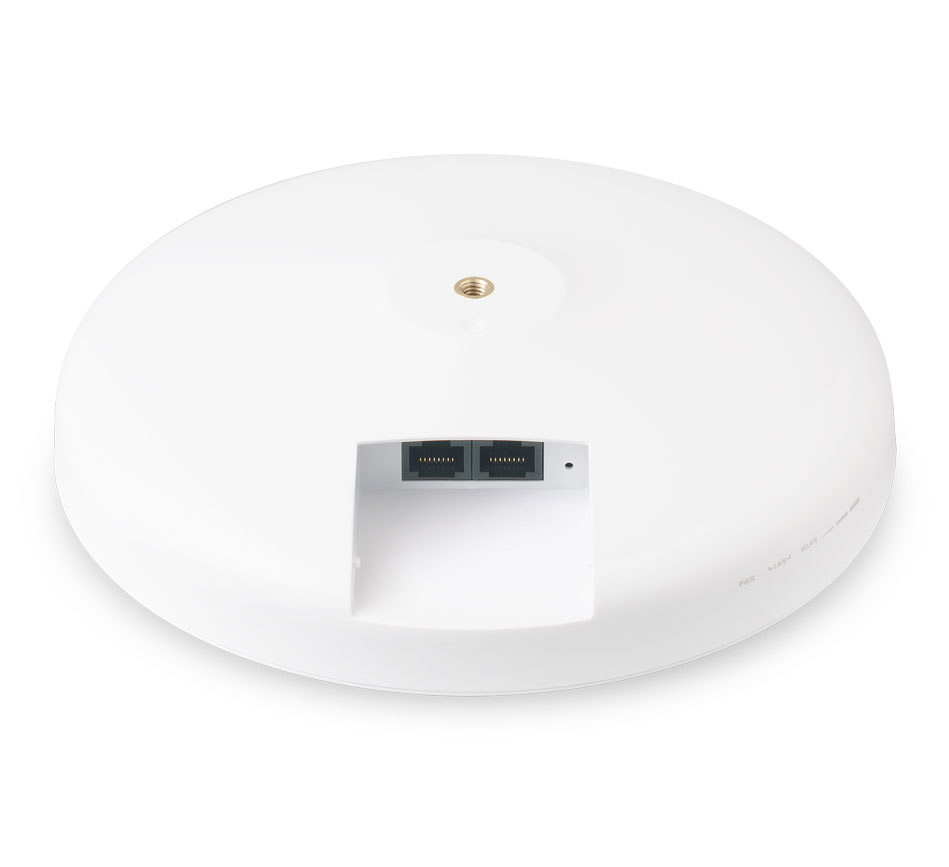

- • GigE PoE port & adapter included
| Standards | |
|---|---|
| EnStationAC | IEEE 802.11a/n/ac |
| EnStation5 | IEEE 802.11a/n |
| EnStation2 | IEEE 802.11b/g/n |
| Data Rates | |
| EnStationAC | Up to 867 Mbps on 5 GHz |
| EnStation5 | Up to 300 Mbps on 5 GHz |
| EnStation2 | Up to 300 Mbps on 2.4 GHz |
| Internal Antennas | |
| EnStationAC / EnStation5 | (1) 19 dBi 5 GHz High-Gain Directional |
| EnStation2 | (1) 13 dBi 2.4 GHz High-Gain Directional |
| Physical Interface | |
| EnStationAC | (1) 10/100/1000 Mbps Port supports 802.3at/Proprietary 48V-54V PoE Input (1) 10/100/1000 Mbps Port supports 802.3af PSE Output |
| EnStation5 / EnStation2 | (1) 10/100 Mbps Port supports Proprietary 24V PoE Input (1) 10/100 Mbps Port supports extension of an Internet signal |
| LED Indicators | |
| Indicators | 1 x Power, 1 x LAN 1, 1 x LAN 2, 1 x WLAN |
| Reset Button | Yes |
| Power | |
| Power Source (PoE Adapter) - EnStationAC | 802.3at/48V-54V Proprietary Compliant Source, Active Ethernet (Power-over-Ethernet, PoE+) |
| Power Source (PoE Adapter) - EnStation5 / EnStation2 | 24V/.6A Proprietary Compliant Source, Active Ethernet (Power-over-Ethernet, PoE) |
| Power Consumption - EnStationAC | 23.4W |
| Power Consumption - EnStation5 | 7W |
| Power Consumption - EnStation2 | 7.2W |
| Wireless & Radio Specifications | |
| Operating Frequency - EnStationAC / EnStation5 | 5 GHz |
| Operating Frequency - EnStation2 | 2.4 GHz |
| Operation Modes | Access Point, Client Bridge, WDS Mode |
| Transmit Power | Up to 26 dBm, Up to 400 mW Max Power is limited by regulatory power |
| Radio Interface - EnStationAC | 11a/n/ac: 5.180-5.825 GHz |
| Radio Interface - EnStation5 | 11a/n: 5.180-5.825 GHz |
| Radio Interface - EnStation2 | 11b/g/n: 2.412-2.472 GHz |
| Radio Chains/Spatial Streams | 2x2:2 MIMO |
| Supported Data Rates (Mbps) | |
| EnStationAC | 802.11a: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5~300 (MCS0 to MCS15) 802.11ac: 6.5~866 (MCS0 to MCS9) |
| EnStation5 | 802.11a: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5~300 (MCS0 to MCS15) |
| EnStation2 | 802.11b: 1, 2, 5.5, 11 802.11g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5~300 (MCS0 to MCS15) |
| Supported Radio Technologies | |
| EnStationAC | 802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) |
| EnStation5 | 802.11a/n: Orthogonal Frequency-Division Multiplexing (OFDM) |
| EnStation2 | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11n: Orthogonal Frequency-Division Multiplexing (OFDM) |
| Channelization | |
| EnStationAC | 802.11ac with 20/40/80 MHz Channel Width 802.11n with 20/40 MHz Channel Width 802.11a with 20 MHz Channel Width |
| EnStation5 | 802.11n with 5/10/20/40 MHz Channel Width 802.11a with 5/10/20 MHz Channel Width |
| EnStation2 | 802.11n with 5/10/20/40 MHz Channel Width 802.11b/g with 5/10/20 MHz Channel Width |
| Supported Modulation | |
| EnStationAC | 802.11a/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, OFDM & 256-QAM |
| EnStation5 | 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM |
| EnStation2 | 802.11b: BPSK QPSK, CCK 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
| Management | |
| Features | Auto Channel Selection, Multiple SSIDs: 8 SSIDs, BSSID Support, VLAN Tagging - Independent VLAN settings can be enabled/disabled, VLAN Pass-through - Over WDS Bridge Mode, VLAN Per SSID - Isolate each SSID with Individual VLAN, Wireless STA (Client) Connection List, Email Alert, Client Traffic Status |
| Configuration | |
| Interfaces & Protocols | Web Interface (HTTPS), SSH, SNMP V1/v2c/v3 Support, MIB I/II, Private MIB, CLI Support, Save Configurations as Default |
| Control Features | |
| Features | RADIUS Accounting - Helps operators to offload 3G to Wi-Fi seamlessly, CLI Commands Support, Distance Control (Ack Timeout), Multicast Supported, RSSI Threshold, Wi-Fi Scheduler |
| Security | |
| Features | WEP Encryption: 64/128/152 bit, WPA/WPA2 Personal (WPA-EAP using TKIP AES), WPA/WPA2 Enterprise (WPA-EAP using TKIP AES), Hide SSID in Beacons, MAC Address Filtering (Up to 32 MAC addresses per SSID), 802.1x Authenticator |
| QoS | Compliant with IEEE 802.11e Standard |
| Environmental & Physical | |
| Temperature Range (Operating) | -4 °F to 140 °F (-20 °C to 60 °C) |
| Temperature Range (Storage) | -22 °F to 176 °F (-30 °C to 80 °C) |
| Humidity (Operating, non-condensing) | 90% or less |
| Humidity (Storage, non-condensing) | 90% or less |
| Waterproof | IP55-Rated Enclosure |
| Dimensions & Weights | |
| EnStation Device (Without Mounting Kit) | Weight: 1.01 lbs. (460 g) Depth: 7.48" (190 mm) Height: 1.50" (38 mm) |
| Packaging | Weight: 2.29 lbs. (1.04 kg) Width: 9.72" (247 mm) Length: 12.63" (321 mm) Height: 3.46" (88 mm) |
| Package Contents | |
| Included Items | EnStation Outdoor CPE, Pole/Wall Mounting Kit, Mounting Screw Set, Quick Installation Guide, PoE Adapter (EPA5006GP) |
| Certifications | |
| Regulatory | FCC, CE |
| Warranty | |
| Duration | 1 Year |
Name
Description
Size
Downloads
File
Data Sheet
1.9mb
File
Kit Install Information
0.3mb
File
Release Notes
0.2mb
File
Application Notes
1mb

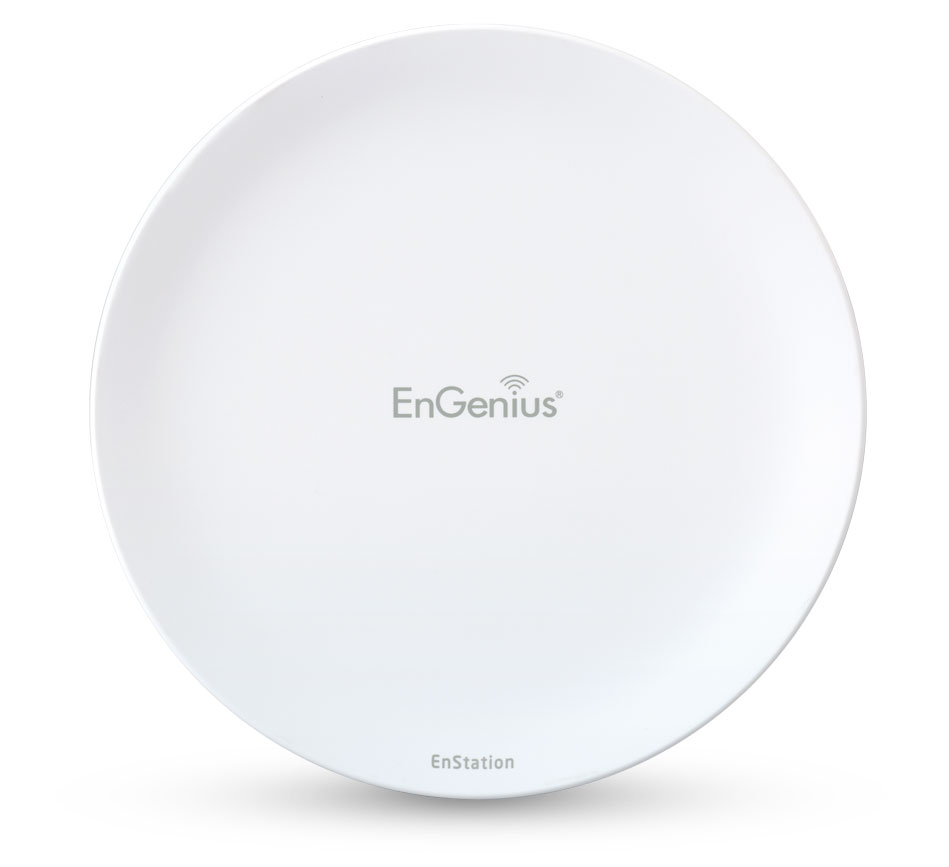

The EnGenius EnStationAC 5 GHz Outdoor 802.11ac Wave 2 Wireless Client Bridge/Access Point features Time Division Multiple Access and cuts through RF-congested environments within point-to-point and multi-point applications. The EnStationAC uses EnJet to assign time slots to each station, providing faster and more stable performance while avoiding the hidden node issue. It has a high-gain, 19 dBi, dual-polarised, directional antenna that extends the network up to five miles point-to-point. The EnStationAC’s secondary PoE pass-through Gigabit port can be used to power an additional PoE-compliant device, such as an IP surveillance camera.
