Climate-Resistant, 120° Sector-Wide Coverage for Point-to-Multipoint Deployments

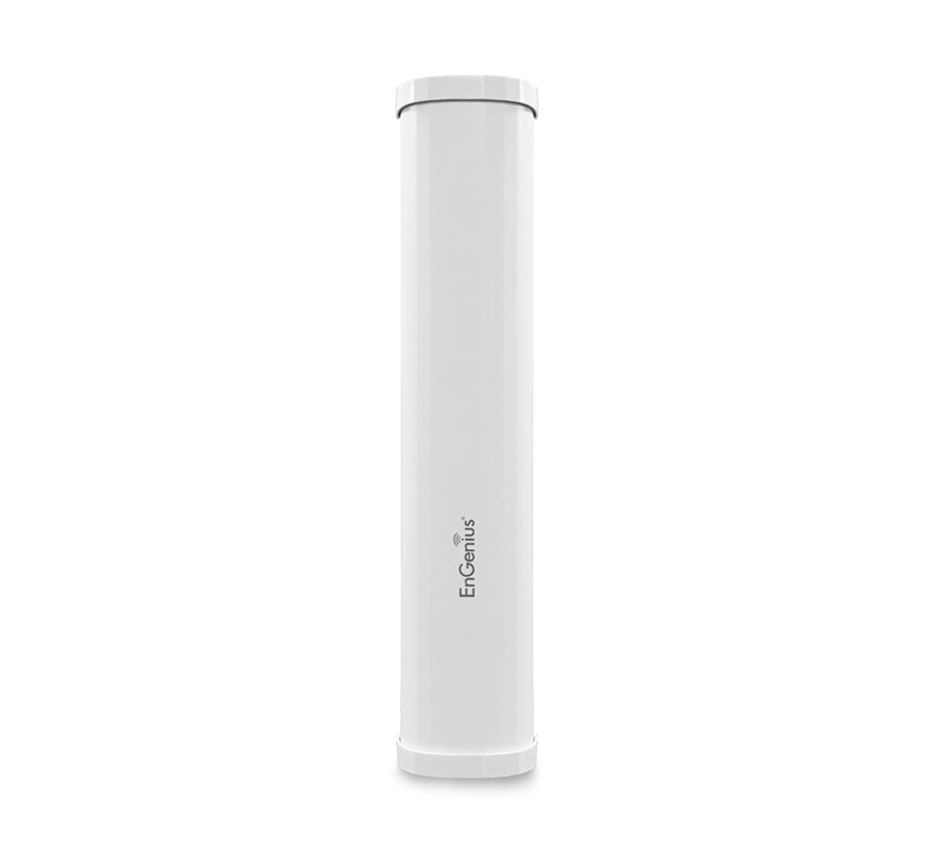

The SA2312 offers high-gain, 120-degree wireless beam performance for broad coverage. Combine with other sector antennas to create 360-degree area coverage; apply to a variety of point-to-multipoint scenarios. Supports cross-platform compatibility, via the appropriate antenna cable.
- Enterprise-Class Long-Range Antenna Covers up to 1.86 Miles
- 2.4 GHz 3x3 Cross-Platform Compatibility for APs with External Connectors
- 120° Sector Coverage; Adjustable Down-Tilt From 0 to10°
- IP55-Rated Enclosure Resists Outdoor Conditions & Wind Gusts to 125 Mph
Technical Specifications
Operating Frequency
2.3 ~ 2.7 GHz
Radio Chains/Spatial Streams
3x3 MIMO
Gain
12dBi
Polarization
Vertical, Vertical, Horizontal
Vertical Beam Width
9-Degrees
Horizontal Beam Width
120-Degrees (6dB)
Max. VSWR
2:1
Cross-Pol Isolation
25dB
Impedance
50 ohms
Mechanical Specifications
Antenna Port / Type
3 / N-Type Plug
Female
Compatible Radio Platforms
N-Type Connectors
EnGenius and most other outdoor APs with external antenna connectors
Environmental & Physical
Temperature Range
Operating: -4°F ~ 158°F (-20°C ~ 70°C)
Storage: -30°F ~ 80°F (-22°C ~ 176°C)
Humidity (non-condensing)
Operating: 90% or less
Storage: 95% or less
Wind Survivability
125 MPH
