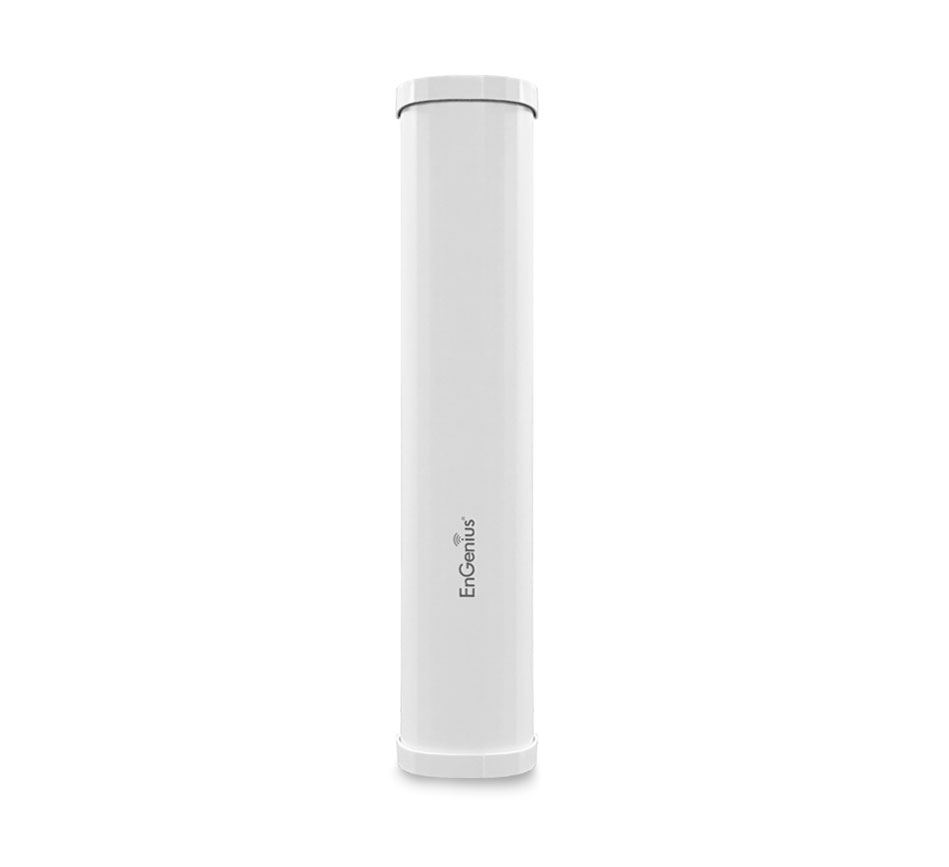

Create a Powerful, Wireless Base Station With 120-Degree Sector-Wide Coverage
The SA5219 offers high-gain, 120-degree wireless beam performance for broad coverage. Combine with other sector antennas to create 360-degree area coverage; apply to a variety of point-to-multipoint scenarios. Supports cross-platform compatibility, via a plug-in mounting system or the appropriate antenna cable.
- Enterprise-Class Long-Range Antenna Covers up to 1.86 Miles
- 5 GHz 2x2 Cross-Platform Compatibility for APs with External Connectors
- 120° Sector Coverage; Adjustable Down-Tilt From 0 to 10°
- IP55-Rated Enclosure Resists Outdoor Conditions & Wind Gusts to 125 Mph
Technical Specifications
Operating Frequency
4.9 ~ 6 GHz
Radio Chains/Spatial Streams
2x2 MIMO
Gain
19dBi
Polarization
Dual
Vertical Beam Width
9-Degrees
Horizontal Beam Width
120-Degrees (6dB)
Max. VSWR
2:1
Cross-Pol Isolation
25dB
Impedance
50 ohms
Mechanical Specifications
Antenna Port / Type
2 / N-Type Plug
Female
Compatible Radio Platforms
Access Point Mount Bracket
EnGenius APs – ENS500EXT (RP-SMA Connector)
Dual-Band 2x2 N-Type Connectors
ENH710EXT
N-Type Connectors
EnGenius and most other outdoor APs with external antenna connector
Environmental & Physical
Temperature Range
Operating: -4°F ~ 158°F (-20°C ~ 70°C)
Storage: -30°F ~ 80°F (-22°C ~ 176°C)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Wind Survivability
125 MPH
Device Dimensions & Weights
Device
Weight: 11 lbs. (5 kg)
Height: 29.13” (74 cm)
Width: 5.9” (150 mm)
Depth: 2.6” (66 mm)
Package Contents
(1) Sector Antenna
(2) U-Brackets
(2) Pole Brackets
(2) Pole Clamps
(4) Serrated Flange Bolts
(4) Serrated Flange Hex Nuts
(3) Mount Bracket Bolts
(1) Protective Shroud
(1) Access Point Mounting Bracket
Quick Installation Guide
Warranty
1 Year
Compatible EnGenius Access Points
5 GHz Plug-in Mounting System
ENS500EXT (w/ RP-SMA connectors – cable not included)
Dual-Band 2x2 N-Type Connectors
ENH710EXT
