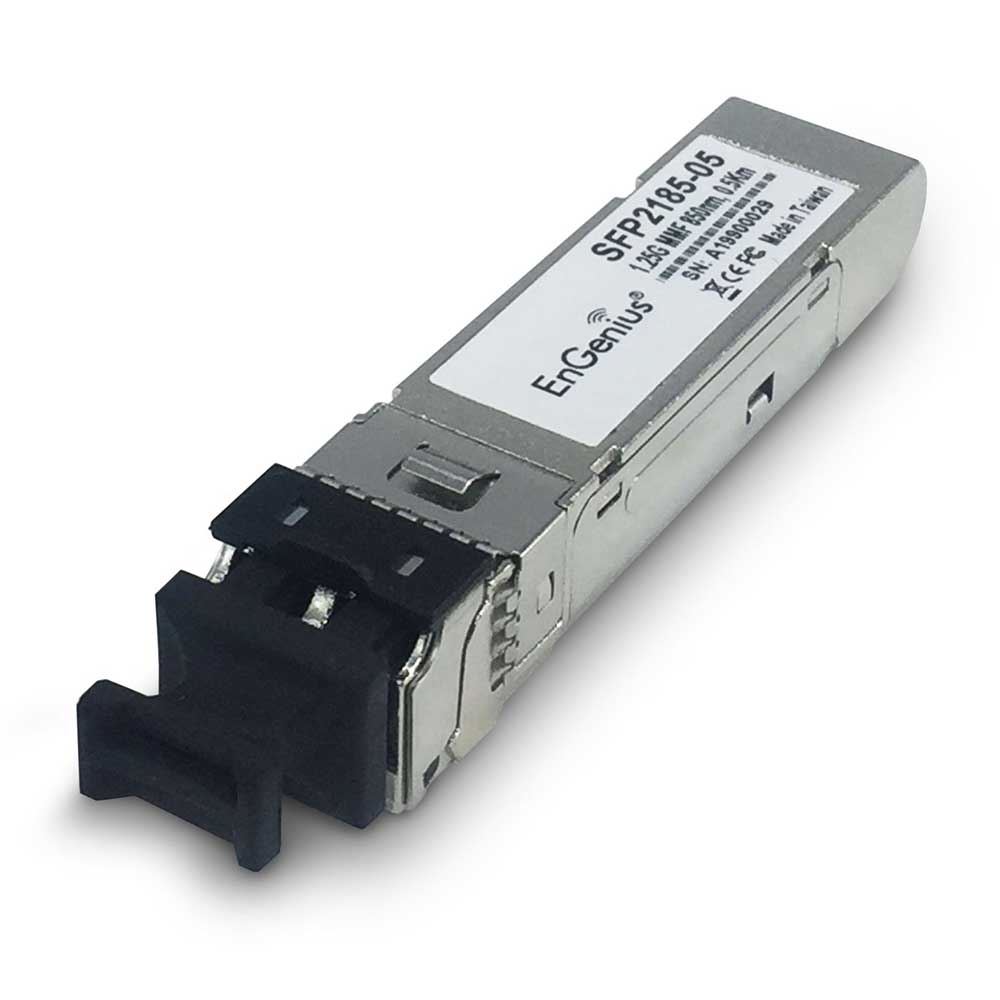

EnGenius - SFP2185-05 - SFP Transceiver, 1G Ethernet Transceiver, Multi-mode Fiber,SFP Type, 850nm
Part number:
SFP2185-05
Price:
EnGenius's premium TAA compliant SFP SFP2185-05 transceiver is a hot-swappable, multi-purpose module that supports up to 1 Gigabit Ethernet. The transceiver provides 1.25 Gbps serial optical data transfer rates on a single duplex fiber core up-to 500 meters at 850nm VCSEL wavelength, ideal for connecting switches and routers between and across floors and across business parks and campuses.
Features:
- Premium SFP MSA Compliant Transceiver
- 1.25G Multi-Mode Fiber, SFP, 850nm
- 1.25 Gigabit Data Rate
- 500 Meter Distance
- 850nm VCSEL Wavelength
- Hot-Swappable Duplex LC Connector
- Trade Agreements Act (TAA) Compliant
- Manufactured in Taiwan
| Technical Specifications |
| Standard Compliance |
| IEEE 802.3z |
| Data Rate Gigabit |
| 1.25G |
| Media Type |
| SMF |
| Optical Transmission Power |
| -10 ~ -3 dBm |
| Optical Receiver Sensitivity |
| -18 dBm |
| Average Optical Transmission Power |
| -8.2 ~ -0.5 dBm |
| Wavelength |
| 850nm |
| Supply Voltage |
| 3.15V ~3.45V |
| Max Voltage/Current |
| 3.45V/160mA |
| Temperature |
| 0°C ~70°C |
| Humidity |
| 5~95% (non-condensing) |
| Dimensions (Lx W x H) |
| 55.9mm x 14.69mm x 12.39mm |
| Certification |
| Compliant with Class 1 Laser International safety Standard with EN 60825-1 |
