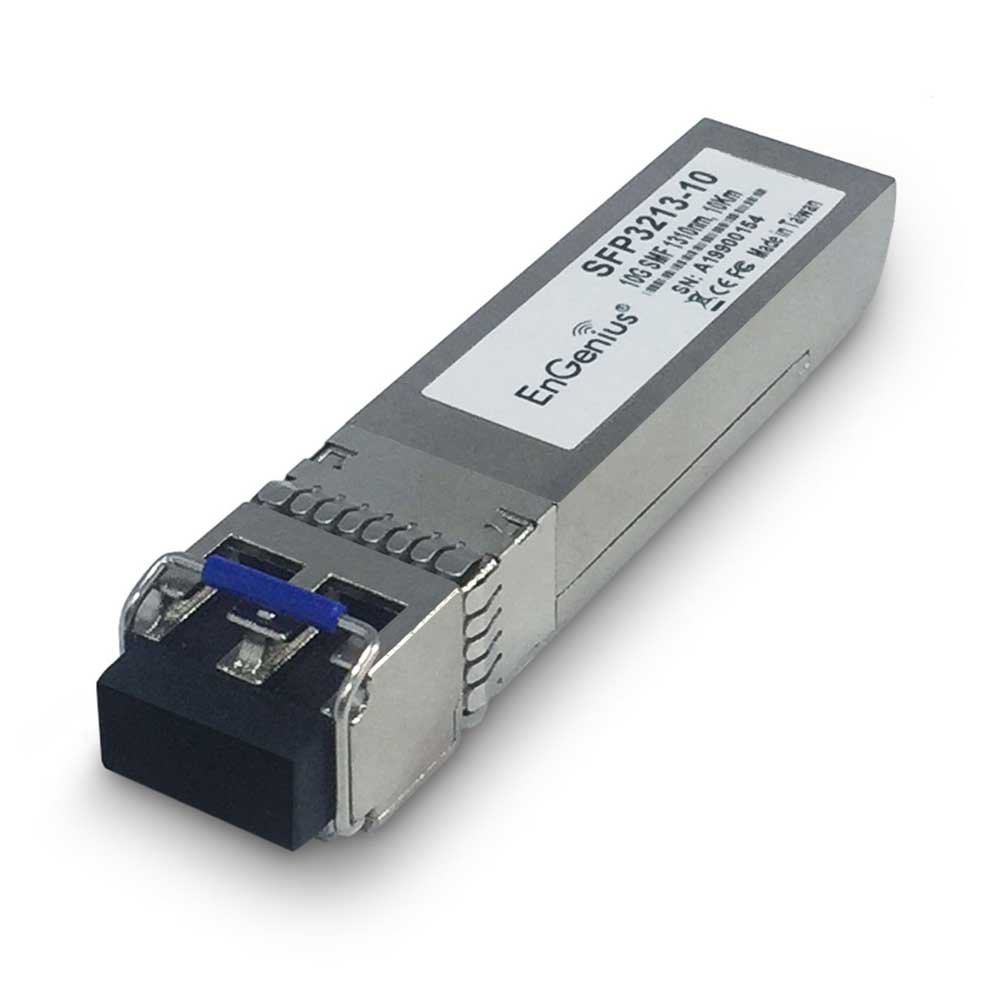

EnGenius - SFP3213-10 - SFP+ Transceiver, 10G Single Mode 10km - LR
Part number:
SFP3213-10
Price:
EnGenius's premium TAA compliant SFP+ SFP3213-10 transceiver is a hot-swappable, multi-purpose module that supports up to 10 Gigabit Ethernet over long distances. The transceiver provides 10 Gbps serial optical data transfer rates on a single duplex fiber core up to 10,000 meters at 1,310 nm wavelength, ideal for connecting switches, routers, and servers between and across floors and across business parks and campuses.
Features:
- Premium SFP+ MSA Compliant Transceiver
- Single Mode Fiber (SMF)
- 10 Gigabit Data Rate
- 10,000 Meter Distance
- 1,310nm Wavelength
- Hot-Swappable Duplex LC Connector
- Trade Agreements Act (TAA) Compliant
- Manufactured in Taiwan
| Technical Specifications |
| Standard Compliance |
| IEEE 802.3ae 10Gbase-LR |
| Data Rate Gigabit |
| 10.3125G |
| Media Type |
| SMF |
| Connector |
| Duplex LC Connector |
| Single / Bi-Directional |
| Single Direction |
| Average Optical Transmission Power |
| -8.2 ~ -0.5 dBm |
| Receiver Sensitivity |
| 12.6 |
| Wavelength |
| 1310nm DFB |
| Cable Type |
| Single-mode |
| Supply Voltage |
| 3.13V ~3.46V |
| Max Voltage/Current |
| 3.46V/300mA |
| Temperature |
| 0°C ~70°C |
| Humidity |
| 5~95% (non-condensing) |
| Dimensions (Lx W x H) |
| 58.4mm x 13.9mm x 12.6mm |
| Certification |
| Compliant with Class 1 Laser International Safety Standard with EN 60825-1 |
