ExacqVision - IFS03B1ONWITA - Illustra Flex 3MP Bullet, 2.8-12mm, Outdoor, Vandal, White, TDN with IR, TWDR
Quality video recording with efficient bandwidth management

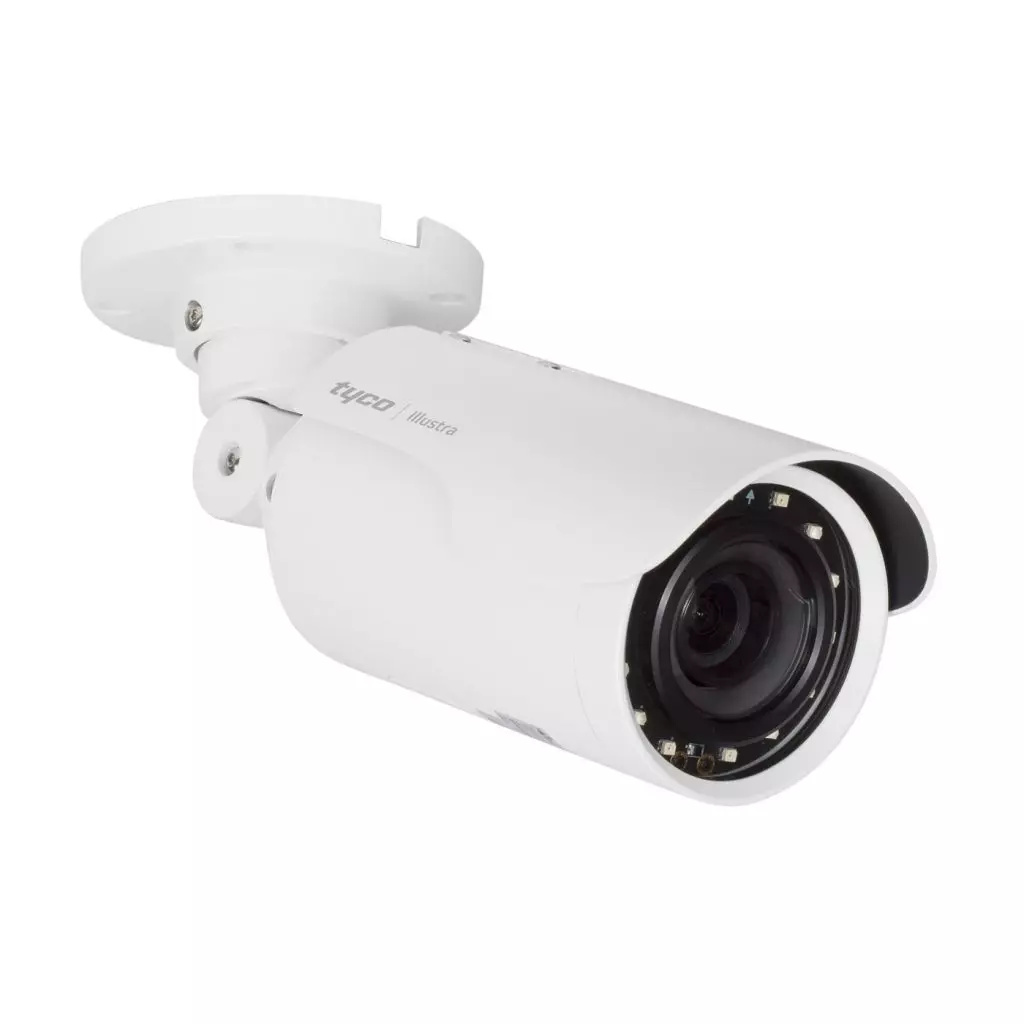

Solid yet affordable, the Illustra Flex Bullet Camera is a True Day/Night network camera that provides 3MP full HD resolution for high-quality images. The P-Iris feature delivers clear video in changing lighting conditions. The Flex Bullet Camera comes complete with built-in IR illuminators for clear video images in extreme low light or zero illumination conditions.
Part number:
IFS03B1ONWITA
Price:
- Available in both 3MP and 4K resolution options
- IK10-rated vandal resistance and IP68-rated for protection against dust and water damage
- IR illumination for clear images in low light conditions on outdoor model
- IntelliZip powerful video compression for bandwidth management
- TrickleStor provides edge-based failover redundancy
- P-iris for image clarity in changing light conditions
- Motion detection for instant intruder alerts
- Gated, analyzed, tested and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program
- As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Flex 3MP Bullet |
| Alarm Input/Output | 1/1 |
| Corridor Mode | No |
| Day/Night | True D/N with ICR |
| Environment Rating | Outdoor |
| Field of View | NA |
| Focal Length | 2.8-12mm |
| Focus | Motorized Varifocal and Focus |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | White |
| Imager | 1/2.8” CMOS |
| IntelliZip | Yes |
| IR Distance | Up to 25m |
| Lens Type | Varifocal |
| Max Frame Rate | 30ips @ 3MP, 60ips @ 1080p |
| MJPEG | Yes |
| Motion Detection | Yes, 3 Zones |
| Onboard Storage | Micro SDXC Up To 128GB |
| ONVIF Compliant | ONVIF profile S |
| Operating Temperature | -40ºF to 122ºF (-40ºC to 50ºC) |
| Outdoor Rating | IP68 |
| Power Input | PoE IEEE 802.2af class 3, 24VAC |
| Resolution Options | 3MP, 2MP, 1MP, (2048x1536), (1920x1080) 1080p, (1024x576) PAL+, (1664x936), (640x360) nHD, (1280x720) 720p, (480x360) 480, (384x288) |
| Vandal-Resistant | IK10 |
| Video Streams | 3 |
Name
Description
Size
Downloads
File
Data Sheet
0.5mb
File
Tyco Camera Product Brochure
3.6mb
File
Illustra Cameras Guide
2.2mb
File
Illustra Cameras Accessories Guide
3.1mb
File
Flex 3MP 8MP Bullet Quick Start Guide
1.5mb
File
Illustra Flex 3MP Outdoor Bullet Junction Box Quick Start Guide
0.3mb
File
Pro Gen3 Universal Electrical Box Mounting Plate Quick Start Guide
0.3mb
File
User Manual
7.5mb
File
Illustra Flex 3MP Outdoor Bullet Camera AE Specification
0.3mb
File
Illustra Flex FG2 8MP Bullet AE Specification
0.3mb
File
Exacq Application Note
0.1mb
File
Video Edge Application Note
0.1mb
File
EU Declaration of Conformity
0mb
File
Release Notes
0.9mb
File
Illustra HostID Technical Bulletin
0.4mb
File
Illustra ONVIF Upgrade Technical Bulletin
0.3mb
File
Encrypted SD-Card Storage Technical Bulletin
0.4mb
File
CSR Technical Bulletin
0.4mb
File
Illustra Flex Bullet Mounting Box Technical Drawings
0.1mb
File
Illustra Flex Bullet Outdoor Camera Technical Drawings
0.1mb
