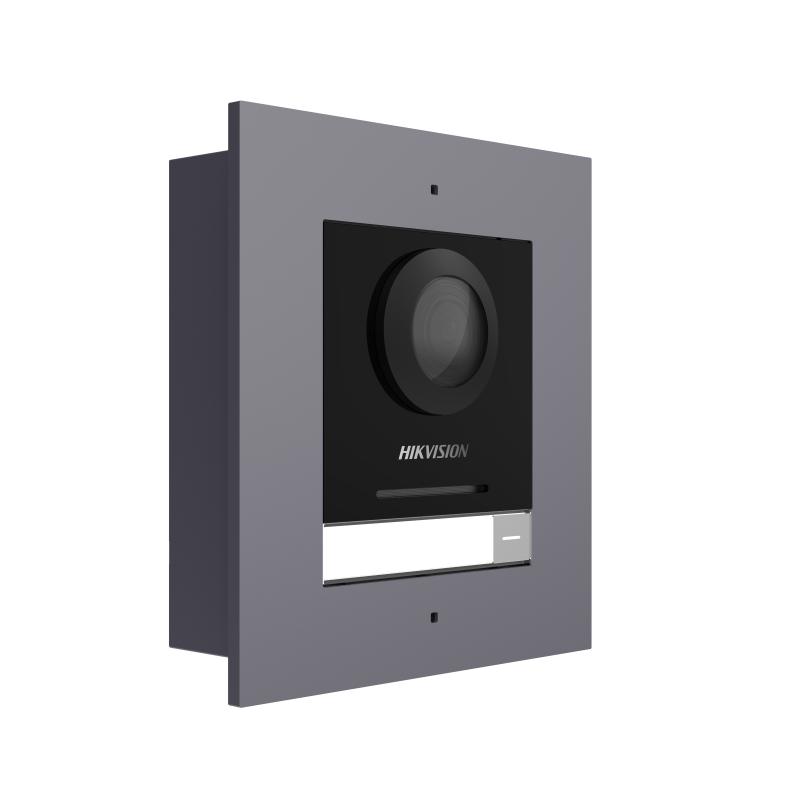

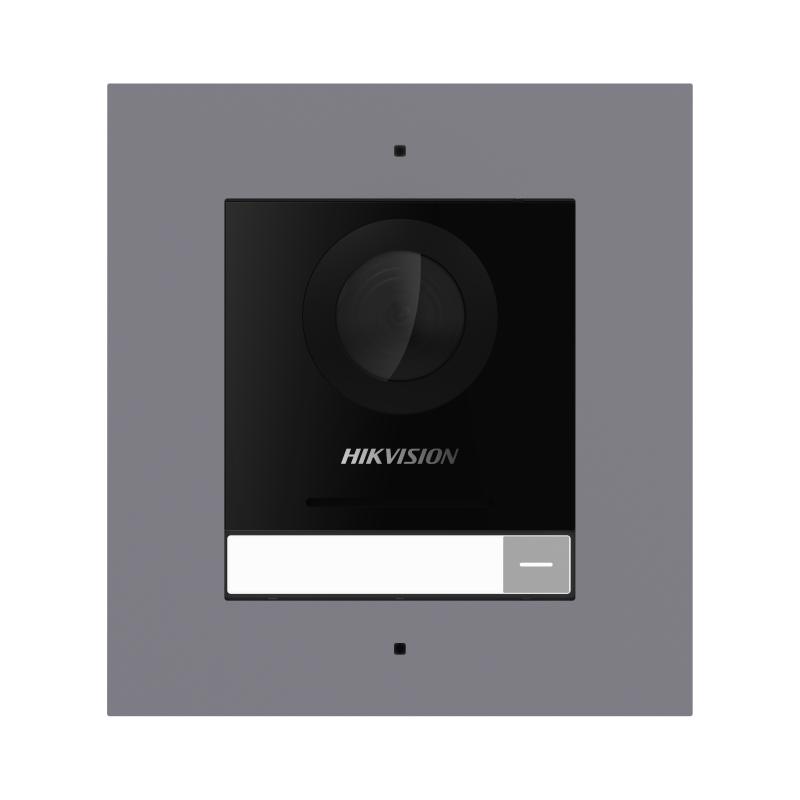

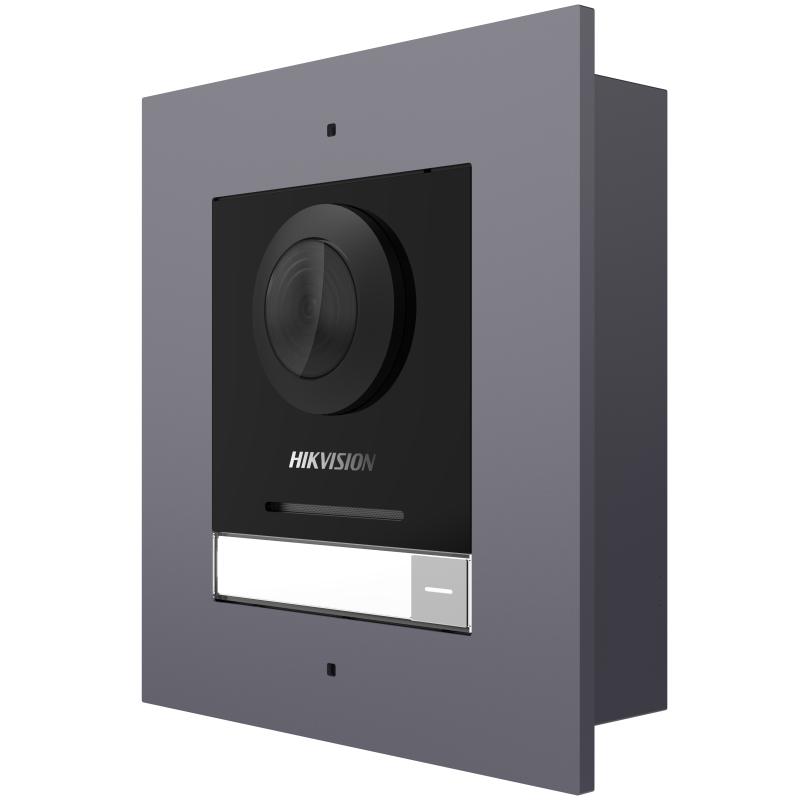

Hikvision - DS-KD8003-IME1/Flush - Flush Video Intercom Module
Part number:
DS-KD8003-IME1/Flush
Price:
KD8 Series Pro Modular Door Station
Features:
- Modular door station Main unit, needs mounting bracket
- 2MP HD Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- Video intercom to indoor station and master station
- WEB Configuration
- IP65, 12 VDC or standard PoE
- Power output for electronic lock, max to 12 V, 500 mA
| Category | Specification |
|---|---|
| System Parameters | |
| Operating system | Embedded Linux operating system |
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded Processor |
| Display Parameters | |
| Screen size | NA |
| Operation method | NA |
| Type | NA |
| Resolution | NA |
| Video Parameters | |
| Supplement light | Low illumination, IR supplement lights |
| Video standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 146°, Vertical: 82° |
| WDR | Support |
| Resolution | 2 MP |
| Audio Parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Fingerprint capacity | / |
| User capacity | 2000 |
| Card capacity | 6000 |
| Face capacity | NA |
| Linked indoor station capacity | 500 |
| Event capacity | / |
| Sub door station capacity | 16 |
| Network Parameters | |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Communication protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi | NA |
| Bluetooth | NA |
| 3G/4G | NA |
| Device Interfaces | |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
| I/O input | 4 |
| Network interface | 1 RJ45 |
| TAMPER | 1 |
| I/O output | 2 |
| Exit button | 2 (2 for lock control) |
| Door contact input | 2 |
| RS-485 | 1 (for Hikvision's sub module communication) |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| Lock control | 2 (2 relay, max to 30 V, 2 A) |
| USB | NA |
| Power interface | 12 VDC power output (max 12 V, 500 mA) |
| Two-wire IP interface | NA |
| General | |
| Power supply | 12 VDC / PoE (IEEE 802.3af) |
| Working temperature | -40° C to 60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Button | 1 |
| Protective level | IP65 |
| Installation | Flush mounting |
| Dimensions (L × W × H) | Device: 98 × 100 × 42 mm (3.86" × 3.94" × 1.65") |
| Cover: 134 × 124 × 4 mm (5.28" × 4.88" × 0.16") | |
| Gang Box: 134 × 135 × 56 mm (5.28" × 5.31" × 2.20") | |
| Language | Multiple: English, French, Portuguese, Spanish, Russian, German, etc. |
| Indicator | 0 |
| Weight | Without package: 0.375 kg; With package: 0.853 kg |
| Battery | / |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
