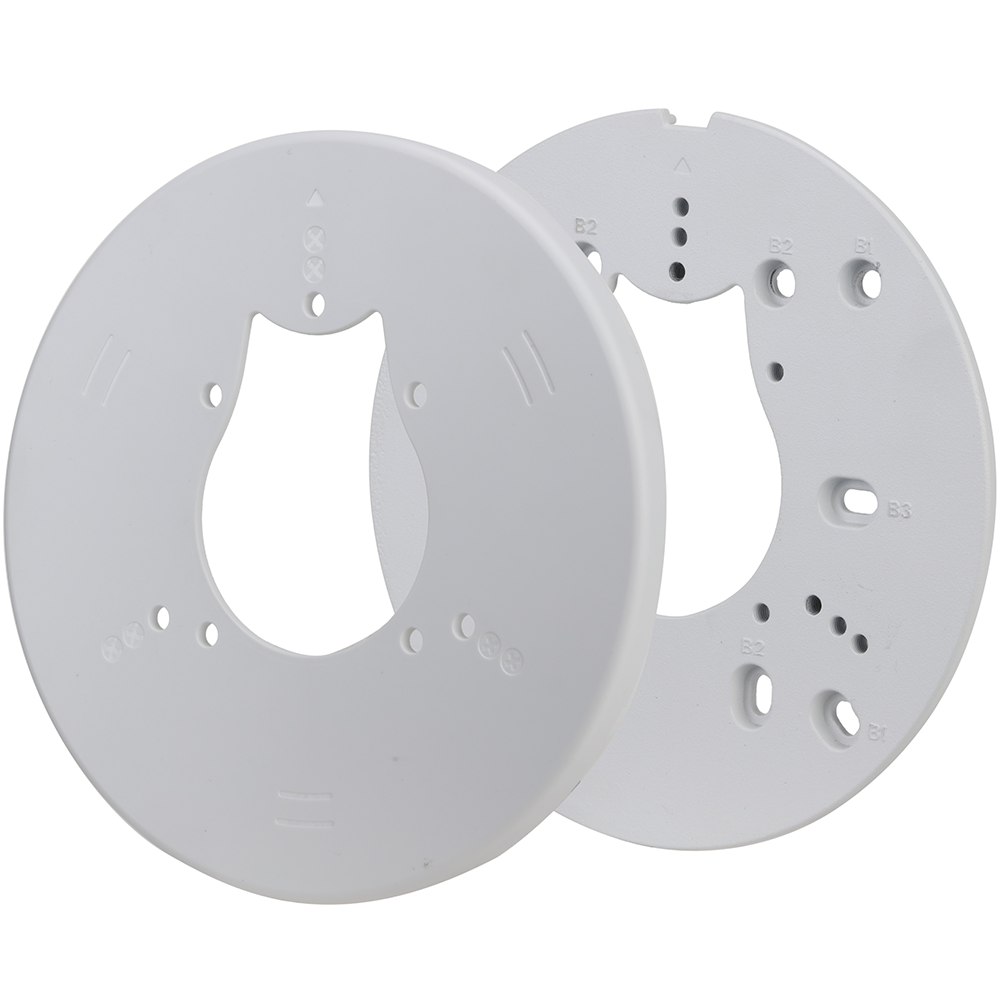

Dahua - DH-PFA200G - Gang Box Adapter
Part number:
DH-PFA200G
Price:
Gang Box Adapter
Features:
- Designed for Indoor In-ceiling Installation
- Aluminum Alloy and ABS Construction
- Compatible with a 4-in. Square or Octagonal, Single- or Double-gang Junction Boxes
| Technical Specifications | |
| Material | Aluminum Alloy and ABS |
| Dimensions (W x H x D) | 154.0 mm x 8.50 mm (6.06 in. x 0.33 in.) |
| Weight | 0.16 kg (0.37 lb) |
| Load Bearing Capacity | 1.0 kg (2.20 lb) |
| Mounting Pattern | B1: 4-in. Square Gang Box |
| B2: Double-gang Box | |
| B3: Single-gang Box or 4-in. Octagonal Gang Box | |
| Color | White |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | 0% to 90% RH |
| Compatible Camera Models | |
| Fixed Dome Cameras | A21CL02, A21CM0Z, A22CL62, A22CMAZ, A52AL42, A52AM9Z, A52AM9Z-B, A52BMAZ, A52BMAZ-B, A82AM52, A82AM5V, DH-IPC-HDBW4231FN-E2-M, DH-IPC-HDBW4239RN-ASE, N22AL12, N43AL52, N43AL52-B, N43AM5Z, N43AM5Z-B, N43AN52, N45DM62, N45EM63, N53AL52, N53AM5Z, N55DY82, N82AL32, N84CL52, N84CL54 |
| Fixed Eyeball Cameras | A21CG02, A21CJ0Z, A22BJ63, A22CJ62, A22CJAZ, A42BJA2, A42BJAZ, A52AJ62, A52AJ6Z, A82AG52, A82AH5V, N42BJ62, N43AJ52, N43AJ52-B, N45DJ62, N45EJ62, N53AJ52, N53AJ5Z, N55DU82, N84CG52, N84CG54, N85CM5Z |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
