GeoVision - 84-DFR1352-1000 - Door Frame Card Reader

Product Overview

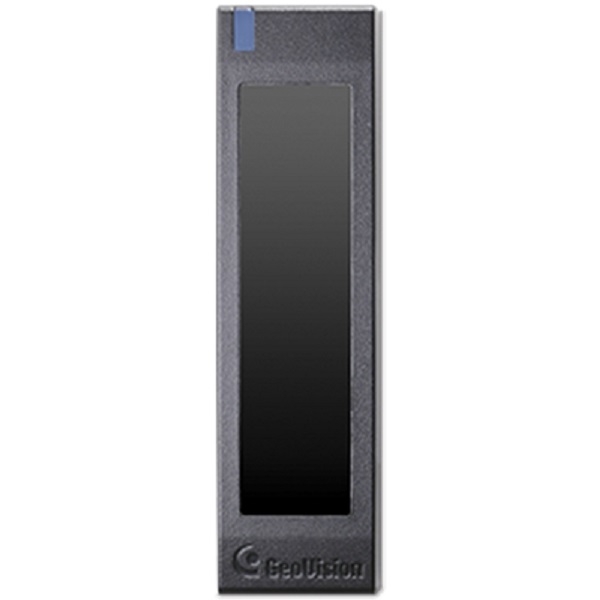

The GV-DFR1352 is a slim, IP66-rated card reader designed for door frame installation. It operates at 13.56 MHz and supports Wiegand and RS-485 outputs for flexible system integration. Optimized for security, it utilizes GV-Proximity Cards with GID technology and is fully UL 294 compliant for outdoor and indoor use.

Key Configuration

• • CPU: 8-bit microprocessor; frequency: 13.56 MHz ISO 14443A
• • Input rating: 7.5V DC ~ 12V DC, 200mA
• • Wiegand interface: 26/34-bit, distance up to 100 m (328.1 ft) via GV-AS1620/2120/4110/4111/8110/8111
• • RS-485: 9,600 bps, distance up to 600 m (1968.5 ft), 24 AWG, 13V DC min., 85°C min
• • Dimensions: 20.9 × 105.6 × 20.5 mm (0.8 × 4.2 × 0.8 in); weight: 80 g (0.17 lb)

Key Features

This IP66 weather-proof reader features a slim black housing suitable for outdoor door-frame mounting. It supports Wiegand for third-party compatibility and RS-485 for long-distance runs up to 600m. Enhanced security is provided via GID and UID card formats, complemented by RGB LED indicators, a built-in buzzer, and full UL 294 compliance.

Technical Context

Engineered for extreme environments, this ultra-slim reader (0.8" wide) operates from -31°F to 150.8°F and features an IP66 weather-sealed housing. It supports Wiegand (100m) and RS-485 (600m) interfaces for flexible door frame mounting. The unit is fully certified (UL 294, cUL, CE, FCC, RoHS) for professional access control systems.
