GeoVision - 84-IA13300-0010 - GV-IA1330, Doorbell Intercom Access
• One door IP controller (entry and exit)
• Built-in 13.56 MHz, ISO 14443A reader
• 4 inputs (Door Sensor, Door Button, Fire Sensor, Tamper Sensor)
• 2 outputs (Door Lock, Alarm)
• 2 GeoVision's RS-485 or OSDP compliant readers supported
• 1/2.9" progressive scan CMOS
• Minimum illumination at 0.02 lux
• Dual streams from H.265, H.264, and MJPEG
• Up to 30 fps at 1920 x 1080
• Intelligent IR
• Ingress protection (IP65)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Day and night function (with removable IR-cut filter)
• Built-in IR with effective distance up to 3 m (10 ft)
• Built-in microphone and speaker
• Wide Dynamic Range (WDR)
• 2D / 3D noise reduction
• Text overlay
• Privacy mask
| Camera | |
|---|---|
| Image Sensor | 1/2.9" progressive scan CMOS |
| Picture Elements | 1920 (H) x 1080 (V) | 2 Megapixels |
| Shutter Speed | Automatic, Manual (1/25 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| Lens | |
| Megapixel | 2 MP |
| Day / Night function | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.58 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| Horizontal FOV | 124.3° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 3 m (10 ft) |
| Operation | |
| Video Compression | H.265, H.264 |
| Video Streaming | Dual streams from MJPEG, H.264 and H.265 |
| Video Resolution | Stream 1: 1920 x 1080 (16:9) |
| Stream 2: 1280 x 720 (16:9) | |
| Frame Rate | 30 fps at 1920 x 1080 |
| 25 fps at 1920 x 1080, 1280 x 720 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°-including Corridor format) |
| Audio Compression | PCM, G711, MP3 |
| Audio Support | Two-way audio |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, TCP, UDP |
| Mechanical | |
| Connector | Power: 2-pin terminal block, PoE |
| Ethernet: RJ-45 | |
| Audio: Built-in microphone and speaker | |
| RS-485: RS-485 interface *For the RS-485 interface, connect only one of the following reader types to GV-IA1330: either GeoVision RS-485 readers or OSDP-compliant readers. * Separate power source is required to power RS-485 readers. Digital I/O: Terminal block, 4 inputs and 2 outputs Audio: Built-in microphone: Yes; Built-in speaker: Yes Local Storage: Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. | |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 10 ~ 90% (no condensation) |
| Power Source | 12 V DC ±25%, 1 A / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 10 W |

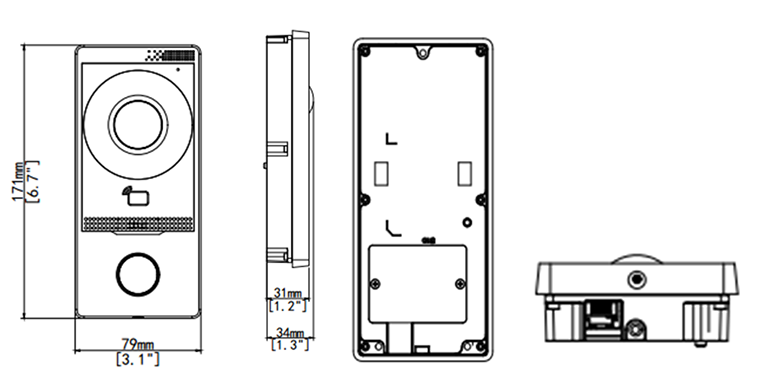

| Dimensions | 79 x 171 x 34 mm (3.1 x 6.7 x 1.3") |
| Weight | 0.267 kg (0.59 lb) |
| Ingress Protection | IP65 |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Camera Live View, Bandwidth Status, Image Snapshot, Two-way Audio, Text Overlay, Image Masking, Image Parameters |
| Language | English |
| Applications | |
| Live Viewing | Web interface via browser (IE, Edge, Chrome, Firefox) |
| Access Control Management | GV-Cloud Access Control |
| Mobile App | GV-Cloud mobile app |
| Controller | |
| Number of User Cards | 100,000 cards |
| Frequency | 13.56 MHz ISO14443A |
| Event Buffer | 65,535 events and log data |
| RS-485 Interface | 1 RS-485 interface for max. 2 RS-485 / OSDP readers |
| Communication Protocol | TCP/IP |
| Digital I/O | 4 inputs (Door Sensor, Door Button, Fire Sensor, Tamper Sensor), dry contact NO/NC |
| 2 relay outputs (Door Lock, Alarm), (30V DC, 2A) | |
| Supported ID Formats | Built-in UID reader |

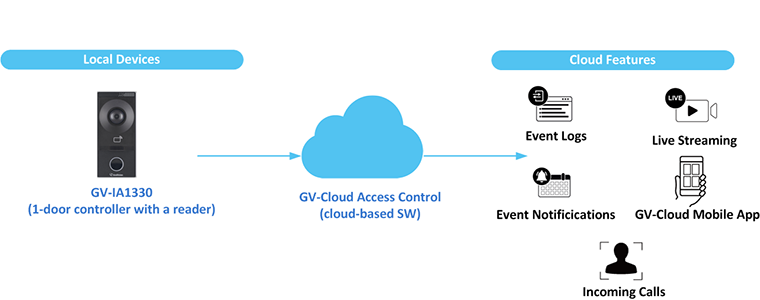

The 84-IA13300-0010 intercom controller features a built-in 2 MP camera and a 13.56 MHz reader. Designed for integration with the GV-Cloud Access Control platform, it facilitates cloud-based access management for up to 100,000 cards. During access events, the camera captures snapshots and streams live video of entry or exit to GV-Cloud Access Control. When the 84-IA13300-0010’s call button is pressed, the GV-Cloud Access Control platform displays an incoming call screen, enabling the operator to view live video, communicate with the visitor and control the door.
