GeoVision - 84-IPSH300-V210 - PoE Network Horn Speaker
Part number:
Price:
- • Integration with GV-Control Center, GV-Edge Recording Manager and GV-VMS
- • Live speak for deterrence and instruction
- • Prerecorded message playback
- • Compatible with SIP and ONVIF (RTSP) protocols
- • DC 24V / PoE (IEEE 802.3at)
- • IP66 Ingress protection
- • CE, FCC compliant
| Network | |
|---|---|
| Network Interface | RJ-45 connector, 10/100 Ethernet |
| Protocol | TCP/IP, UDP, IGMP, ICMP, ARP, SIP, ONVIF |
| Audio | |
| Audio Format | PCM (uncompressed format) |
| Restart Time after Power and Network Disconnection | <1 s |
| Network Delay | File playback: less than 50 ms; real-time speech: less than 150 ms |
| Transmission Rate | 10/100 Mbps |
| Audio Mode | Network data packet |
| Amplifier Frequency Response | 20 Hz ~ 20 KHz |
| Harmonic Distortion | ≤0.3% |
| SNR | >90 dB |
| Rated Output | Built-in 30 W digital amplifier |
| Speaker Unit | 1.5'' tweeter |
| Rated Power of Speaker Unit | 30 W |
| Speaker Sensitivity (1 W / 1 m) | 108 dB |
| Max SPL (Rated / 1 m) | 123 dB |
| Speaker Frequency Range (-10 dB) | 300 Hz ~ 8 kHz |
| General | |
| Usage | Outdoor |
| Operating Temperature | -25°C ~ 55°C (-13°F ~ 131°F) |
| Operating Humidity | ≤95% |
| Power Consumption | ≤ 40 W |

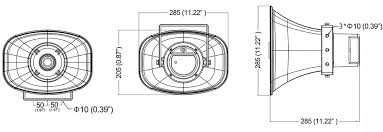

| Dimensions (W x H x D) | 285 x 205 x 285 mm (11.22” x 0.87” x 11.22”) |
| Net Weight | 2.0 kg (4.41 Ib) |
| Input Power | DC 24V, 3.75A; PoE+ (IEEE 802.3at) |
| Mounting | U-shaped mounting bracket |
| Housing Material | High strength ABS |
| Housing Color | White |
| Ingress Protection | IP66 |
| Certification | CE, FCC compliant |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
User's Guide
1.3mb
File
Version History
0mb
File
Installation Guide
1.4mb
File
Comparison Table
0.2mb

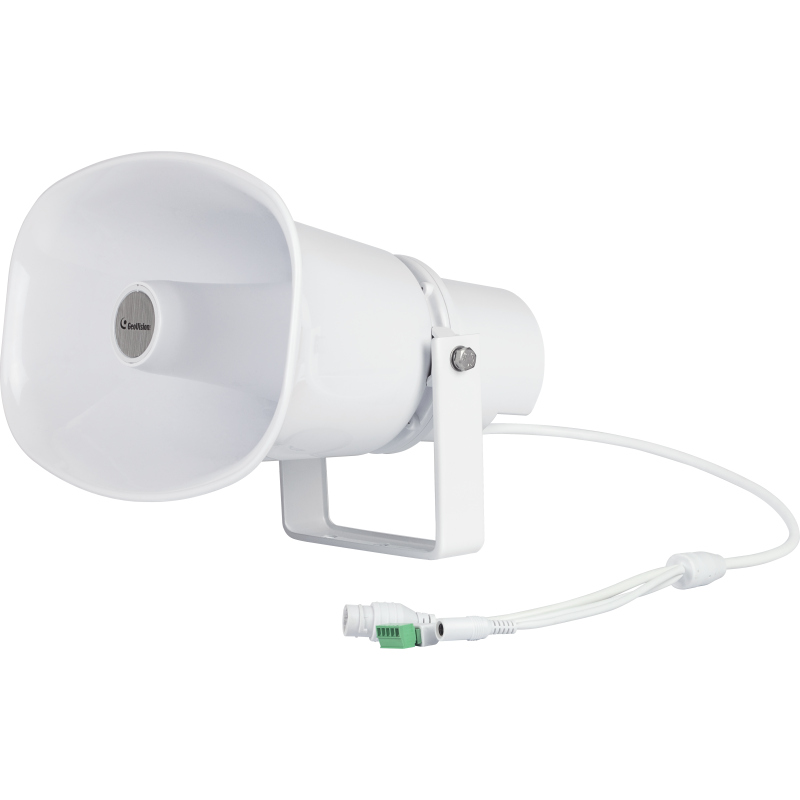

The GV-IPSH30 V2.0 network horn speaker plays back audio data received from the network. When integrated with the GV-Control Centre, the GV-Edge Recording Manager or the GV-VMS, the speaker can be used live to deter unwanted visitors, prevent potential crimes and provide directions. It can also play pre-recorded messages for business or security purposes, such as important announcements, safety instructions and emergency alerts. With IP66 ingress protection, the GV-IPSH30 V2.0 network horn speaker can withstand years of outdoor installation. It is ideal for use in locations such as campuses, traffic intersections, prisons, factories, car parks, shopping centres, and other places where loudspeakers and local amplification are required.
