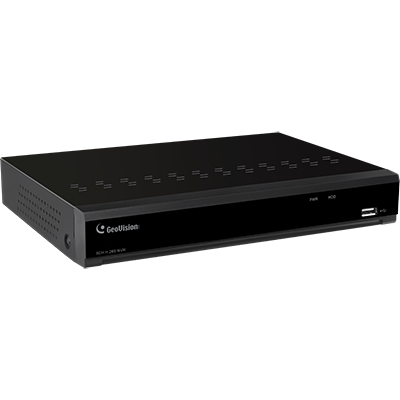

GeoVision - 84-NRL810P-UA0U - 8CH,4K PoE Standalone NVR 1 Bay, H.265/H.264
• Real-time AI Face Recognition (face tracking on E-Map, attendance management, and repeated visitor search)
• H.265 / H.264 video format
• Up to 8-channel IP camera input
• 1-ch HDMI, 1-ch VGA; HDMI at up to 4K (3840 x 2160)
• 8 sensor inputs and 1 alarm output
• Up to 8 MP resolution recording
• 1 SATA interface, up to 10 TB
• Two‐way audio
• P2P function for the GV-Eye app
• ONVIF cameras support
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 1 (3.5" SATA HDD) up to 10 TB |
| Video and Audio | |
| Compression | Audio: G.711 Video: H.264 / H.265 |
| Resolution | 8 MP, 5 MP, 3 MP, 2 MP (1080P), 1.3 MP (960P), 1.0 MP (720P) |
| Decoding Live / Playback Frame Rate | 8 MP: 30 fps in total (1 CH max.) 5 MP: 60 fps in total (2 CH max.) 4 MP: 90 fps in total (3 CH max.) 2 MP: 180 fps in total (6 CH max.) 720p: 240 fps in total (8 CH max.) |
| Playback | Max. 4-ch playback |
| Operation | |
| Max. Bandwidth | Input: 76 Mbps |
| Output: 32 Mbps | |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Event Management | |
| Trigger | Schedule, Sensor Input, Motion Detection |
| Action | -Store Video (AVI format) |
| -Send e-mails with captured images | |
| -Upload captured images to FTP Server -Activate relay outputs to control external devices | |
| Web Monitoring | IE 10 / 11 Safari V12.1 or above Firefox V52 or above Google Chrome V57 or above Edge V79 or above |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Interface | |
| Monitor | VGA: 1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080) |
| HDMI: 1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160) | |

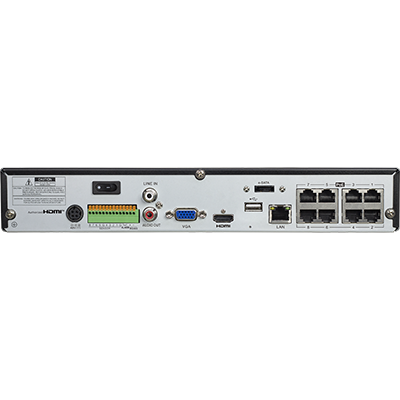

| Connector | Ethernet: 1 port, RJ-45 10/100 Mbps |
| PoE: 8 ports, RJ-45, PoE+ (IEEE 802.3at) | |
| USB: USB 2.0 x 1 (front), USB 2.0 x 1 (rear) | |
| Line In: 1 RCA | |
| Audio Out: 1 RCA | |
| RS-485: 1 | |
| Alarm Input/Out: 8 in / 1 out e-SATA: 1 LED Indicator: 2 LEDs: Power, HDD | |
| General | |
| Language | Local Arabic, Bulgarian, Czech, Danish, English, Finnish, French, German, Greek, Hebrew, Hindi, Italian, Japanese, Korean, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Traditional Chinese, Turkish |
| Web Czech, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese, Turkish | |
| Mechanical Design | |

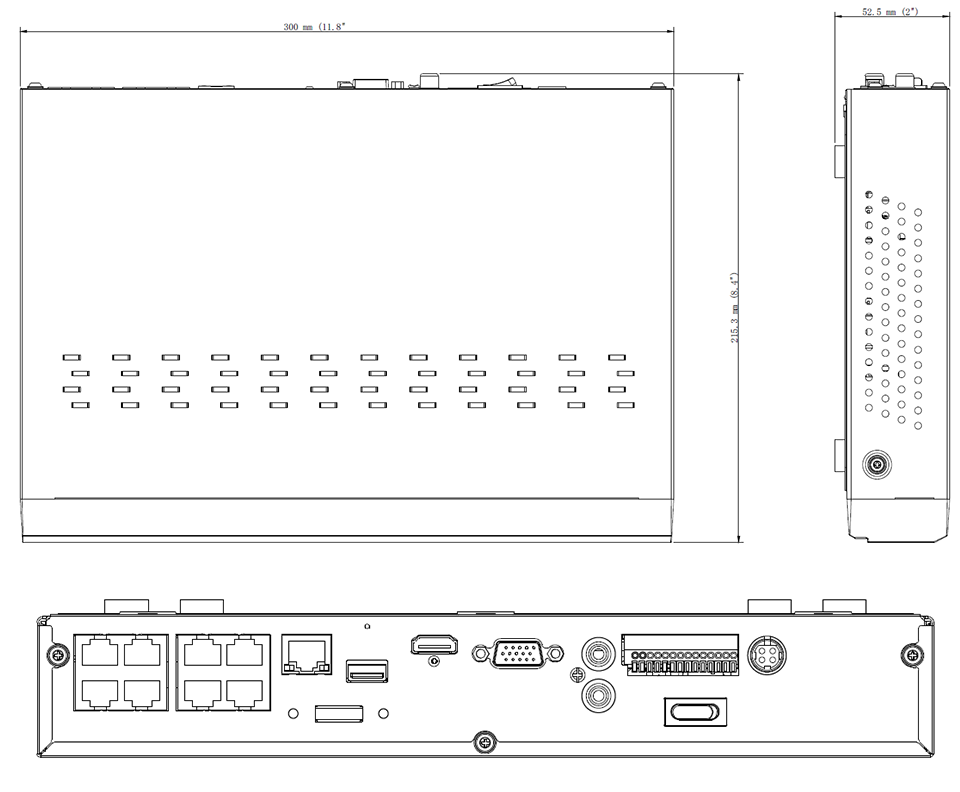

| Dimensions (W x D x H) | 300 x 215.3 x 52.5 mm (11.8" x 8.4" x 2") |
| Net Weight | 1.08 kg (2.38 lb) |
| Rack Mount | N/A |
| Electrical | |
| Power Source | Input: AC 100 ~ 240 V, 50 ~ 60 Hz Output: DC 48 V, 1.5 A |
| PoE Switch | 58 W |
| Power Consumption (excluding HDD and IP cameras) | 6 W |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | Less than 90% RH |
| Certification | CE, FCC, LVD, BSMI, RoHS compliant |
| AI Integrated Function | |
| AI Analytics | Face Detection, Pedestrian & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing, Cross Counting, Heat Map, Crowd Density, Queue Length, Rare Sound Detection, Object Detection, Sound Detection, Intrusion, Enter Region, Exit Region *These functions are only applicable when AI-capable GV-R series IP cameras are connected to the RNVR. |
| Network | |
| Protocol | DHCP, DynDNS, HTTP, HTTPS, IPv4/IPv6, NTP, RTSP, SNMP, TCP, UDP |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm |
| Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download | |
| Remote Setting: Channel (Live, Image Control, Video Cover, Motion, Intelligent), Record (Encode, Capture), Alarm (Motion, I/O, Intelligent, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System | |
| Live View | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVRL810-P *A total of up to 4-channel connection is supported for one non-IE browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVRL810-P. |
| Playback | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVRL810-P *A total of up to 4-channel connection is supported for each Web browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVRL810-P. |
| Application | |
| Software Supported | GV-Control Center (V4.2.1 or later), GV-Edge Recording Manager Windows Version (V2.2.8 or later), GV-Vital Sign Monitor (V18.4.0 or later), GV-VPN |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
The GV-RNVRL810-P is an H.264/H.265 Linux-embedded standalone network video recorder that records video files directly to its internal hard drive. The GV-RNVRL810-P supports up to eight channels of IP cameras for video surveillance. It has an 8-port built-in PoE+ (IEEE 802.3at) to carry network and power to connected IP cameras. With video output of up to 4K resolution, the GV-RNVRL810-P eliminates the need for a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB mouse and a flash drive to back up videos. With the Web Client, users can access several functions via a web browser, including Live View, Change Stream, Manual Alarm and Divide Screen. GV-RNVRL810-P integrates the capacity of AI-capable GV-R Series IP cameras and provides various analytics functions for perimeter protection. The Face Recognition function allows users to access the database to track faces on the E-Map, monitor attendance and search for repeat visitors, making the surveillance environment easier to use and safer.
