• Wiegand and RS-485 interfaces
• OSDP communication through RS-485
• 13.56 MHz ISO 14443A
• MIFARE® DESFire® card support
• GeoVision access card compatibility with GID (GeoVision Identifier)
• Ingress protection (IP66)
| Frequency | 13.56 MHz ISO14443A |
| Wiegand Interface | Wiegand 26 / 34 bits, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 |
| RS-485 Interface | OSDP protocol, 9,600 bps, distance 600 m (1968.50 ft) |
| Read Range | 3 ~ 5 cm (max) |
| LED | Green / Red Bi-color LED x 1 (Status / Power) |
| Beeper | Buzzer |
| Color | Black |
| ID Setting | DIP Switch |
| Supported ID Formats | UID, GID, DES-ID |
| Power Source | DC 12V, 1A |
| Power Consumption | 200 mA (max) |
| Operating Temperature | -20 °C ~ 70°C (-4 °F ~ 158 °F) |
| Operating Humidity | 20~ 80% RH (non-condensing) |
| Dimensions (L x W x H) | 120 x 80 x 27 mm / 4.7 x 3.1 x 1.1 in |
| Weight | 250 g / 0.55 lb |
| Ingress Protection | IP66 |
| Certification | CE, FCC, LVD, UKCA |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Version History GV-R1355
0mb
File
Compatibility Table for GV-AS Controllers
0.8mb
File
GV-Access Control Reader Comparison
0.4mb

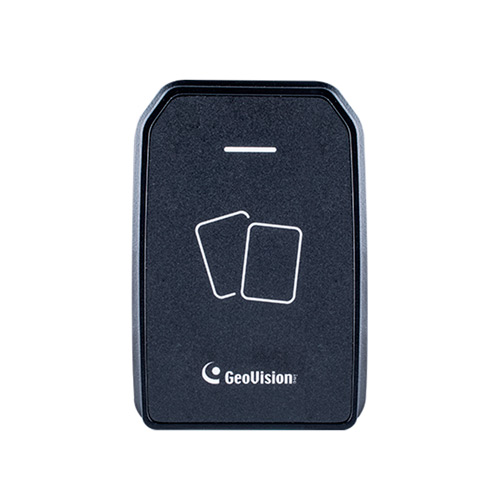

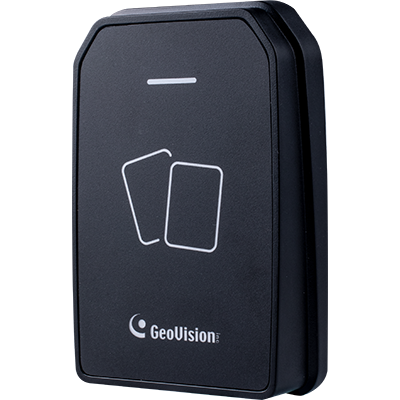

The 84-R135500-0010 card reader features both Wiegand and RS-485 interfaces, enabling seamless integration with standard access control systems. Its weather-sealed, IP66-rated enclosure makes it suitable for indoor and outdoor environments.
