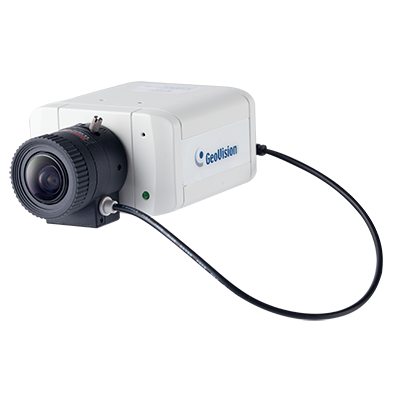

GeoVision - GV-BX8700-FD - 8MP H.265 Super Low Lux WDR Pro Face Detection Box IP Camera
Part number:
GV-BX8700-FD
Price:

GV-BX8700-FD is specifically designed for face detection. The camera can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a super low lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.



Features:

  • 1/2" progressive scan super low lux CMOS sensor
  • Min. illumination at 0.03 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 3840 x 2160
  • P-Iris for auto iris adjustment
  • Built-in / external microphone
  • Two-way audio
  • One sensor input and one alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)

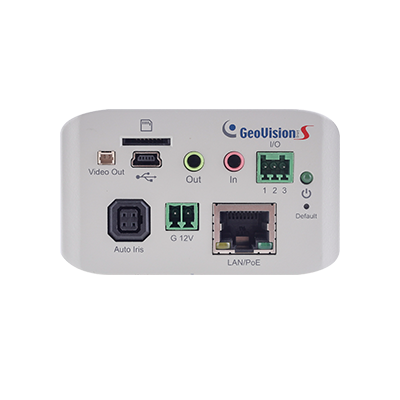

  • Mini USB slot for WiFi Adapter or USB hard drive
  • Wide Dynamic Range Pro (WDR Pro)
  • Face Detection
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S, T) conformant



Note:

  • Specifications are subject to change without notice.
Camera
Image Sensor 1/2" progressive scan super low lux CMOS
Picture Elements 3840(H) x 2160(V)
Minimum Illumination Color  0.04 Lux
B/W 0.03 Lux
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/30 ~ 1/16000 sec)
White Balance Automatic, Manual (2800 ~ 8500K)
Gain Control Automatic
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel Yes
Day/Night Yes (with removable IR‐cut filter)
Lens Type Varifocal
Focal Length 3.6 ~ 10 mm
Maximum Aperture F/1.5
Mount CS Mount
Image Format 1/1.8"
Horizontal FOV 108° ~ 48°
Operation Focus Manual (w/lock)
Zoom Manual (w/lock)
Iris P‐Iris
Torque (Focus/Zoom screws) 0.049 N.m
