GeoVision - GV-EBL4702-2F - 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera
Part number:
GV-EBL4702-2F
Price:

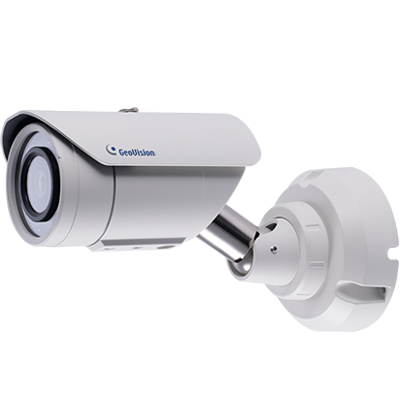

The Target Bullet Camera is a lightweight camera designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Features:

  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Smart streaming
  • Defog
  • Text overlay
  • Tampering alarm
  • 3D noise reduction
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S, T) conformant
  • TAICS IoT Cyber Security Level 2 certified (suitable for commercial use)



Note:

  • Specifications are subject to change without notice.
Camera GV‐EBL4702‐1FGV‐EBL4702‐3FGV‐EBL4702‐3F
Image Sensor1/3” progressive scan super low lux CMOS
Picture Elements2592 (H) x 1520 (V)
Minimum IlluminationColor 0.03 Lux
B/W0.02 Lux
IR ON0 Lux
Shutter SpeedAutomatic, manual (1/5 ~ 1/16000 sec)
White BalanceAutomatic, manual (2800K ~ 8500K)
Gain ControlAutomatic
S/N Ratio50 dB
WDRWDR Pro
Dynamic RangeUp to 120 dB
Lens
Megapixel Yes
Day/NightYes (with removable IR‐cut filter)
Lens TypeFixed
Focal Length6 mm3.8 mm2.8 mm
Maximum Aperture F/2.0F/1.8F/2.0
Mount Ø12 mm
Horizontal FOV 51°72°96°
Image Format 1/2.7”
OperationFocusFixed
ZoomFixed
IrisFixed
IR LED Quantity6 IR LEDs
Max. IR Distance30 m (100 ft)
