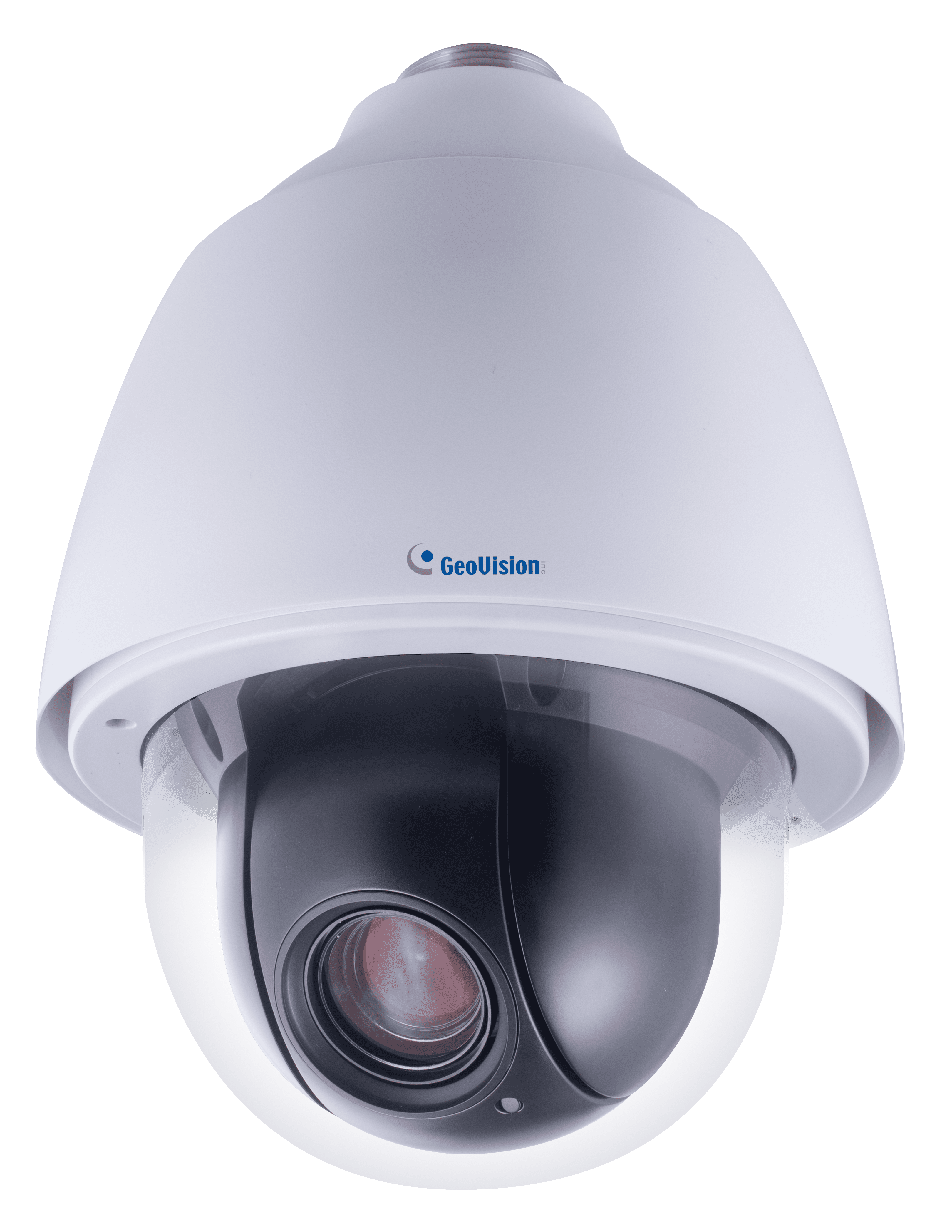

The GV-IP Speed Dome (GV-QSD5730-Outdoor) is an outdoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps. The GV-QSD5730-Outdoor supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Wide surveillance coverage is made possible with 360° endless panning and -10°~100° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-QSD5730-Outdoor supports pan/tilt speeds ranging from a fast patrol of 400° and 300° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
GV-QSD5730-Outdoor also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.
Features:
- 1/2.8" progressive scan low lux CMOS sensor
- Quad streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2592 × 1944
- Min. illumination at 0.002 lux
- 33x optical zoom and 10x digital zoom
- Day and Night function (with removable IR-cut filter)
- Four sensor inputs and two alarm outputs
- Wide Dynamic Range Pro (WDR Pro)
- Temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
- Support for TV-out
- Two-way audio
- Built-in SD card slot (SDHC/SDXC, Class 10) for local storage
- Ingress protection (IP66)
- Vandal resistance (IK10 for housing)
- PoE+ (802.3at) / AC 24V / DC 30V
- Pan 360° endlessly
- Tilt from -10° to 100°
- Pan and tilt speed of up to 400°/sec and 300°/sec respectively
- PTZ movement (Preset, Cruise, Auto Pan, Sequence)
- PTZ auto tracking
- Electrical Image Stabilizer (EIS)
- Servo Feedback, returning the camera view to the previous position upon encountering external forces
- 3D noise reduction
- Privacy mask
- 12 languages on Web interface
- ONVIF (Profile G, S, T) conformant
| Camera | ||
| Image Sensor | 1/2.8" progressive scan low lux CMOS | |
| Optical Zoom | 33x | |
| Digital Zoom | 10x | |
| Picture Elements | 2592 (H) x 1944 (V) | |
| Minimum Illumination |
|
|
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) | |
| White Balance | Auto / Manual | |
| IRIS Control | Auto / Manual | |
| WDR Pro | Yes | |
| Optical Lens | ||
| Megapixel | Yes | |
| Day / Night | Yes (with removable IR-cut filter) | |
| Focal Length | 4.6 ~ 152 mm | |
| Maximum Aperture | F/1.6 | |
| Horizontal FOV | 55.4° ~ 1.9° | |
| Operation |
|
|
| Video | ||
| Video Compression | H.265, H.264, MJPEG | |
| Video Streaming | Quad streams from H.265, H.264 or MJPEG | |
| Video Resolution |
|
|
| Frame Rate | 30 fps at 2592 x 1944 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP | |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip,Mirror, 0°, 90°, 180°, 270°-including Corridor format) | |
| Audio | ||
| Audio Compression | G.711 | |
| Audio Support | Two-way Audio (external microphone and speaker required) | |
| Network | ||
| Interface | 10/100 Ethernet | |
| Protocol | ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP,RTSP, HTTP, HTTPS, FTP, NTP, DDNS, ONVIF (Profile G, S, T) | |
| Security Feature |
|
|
| Mechanical | ||
| Connectors |
|
|
| Operation | ||
| Pan Travel | 360° endless | |
| Tilt Travel | -10° ~ 100° | |
| Manual Speed |
|
|
| Present Speed |
|
|
| Presets |
|
|
|
||
| Sequence |
|
|
| Auto Pan | 4 | |
| Automatic Function | Preset, Sequence, Auto Pan, Cruise | |
| Mechanical Flip | Yes | |
| Digital Slow Shutter | On / Off | |
| Motion Detection | On / Off | |
| Wide Dynamic Range | On / Off | |
| Day/Night: Mechanical IR Cut Filter | On / Off | |
| Alarm |
|
|
| General | ||
| Operating Temperature | 40°C ~ 50°C (-40°F ~ 122°F) | |
| Humidity | 10% ~ 90% (non-condensing) | |
| Power Source | 30V DC / 24V AC / PoE+ (802.3at) | |
| Power Consumption | DC30V, 23.01W Max. AC24V, 24.20W Max. | |
| Dimensions | Ø 209.5 x 279.3 mm (8.2” x 11”) | |
| Weight | 2.9 kg (6.39 lb) | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 for housing | |
| Regulatory | CE, FCC, RoHS compliant | |
| Power over Ethernet | ||
| PoE Standard | PoE+ IEEE802.3at (30W) / PD | |
| PoE Power Supply Type | Mid-span | |
| PoE Power Output | 55V DC, 1.1A (60W Max.) | |
| Web Interface | ||
| Installation Management | Web-based configuration | |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility | |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,Spanish, Traditional Chinese | |
| Software Applications | ||
| Software Supported | GV-VMS (V17.3.0 / V18.1.1), GV-DVR / NVR (V8.8), GV-Control Center (V3.7.0),GV-Recording Server / Video Gateway (V1.4.2), GV-Edge Recording Manager Win version (V1.4.0), GV-Redundant / Failover Server (V1.1.0.0) *It is required to apply patch files to all the supported software. | |
| Live Viewing | Internet Explorer, Non-IE browser (Edge, Chrome, Firefox, Safari), Mobile App *The non-IE browsers only support displaying live view with MJPEG. | |
