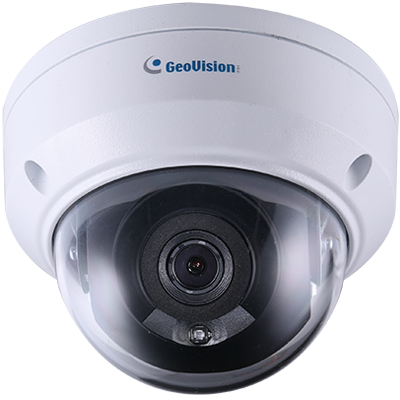

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.
Features:
Note:
Camera | |||
Image Sensor | 1/3" progressive scan super low lux CMOS | ||
Picture Elements | 2592(H) x 1520 (V) | ||
Minimum Illumination | Color | 0.03 Lux (F2.0, AGC ON) | |
IR ON | 0 Lux | ||
Shutter Speed | Auto / Manual (1/6 ~ 1/100,000 sec) | ||
White Balance | Auto / Manual | ||
Gain Control | Auto / Manual | ||
S/N Ratio | 52 dB | ||
WDR | Yes | ||
Dynamic Range | Up to 72 dB | ||
Lens | GV-TDR4702-0F | GV-TDR4702-1F | |
Megapixel | 4 MP | ||
Day / Night | Yes (with removable IR-cut filter) | ||
Lens Type | Fixed | ||
Focal Length | 2.8 mm | ||
Maximum Aperture | F/2.0 | ||
Mount | M12 | ||
Horizontal FOV | 101° | ||
Operation | Focus | Fixed | |
Zoom | Fixed | ||
Iris | Fixed | ||
IR LED Quantity | 1 IR LED | ||
Max. IR Distance | 30 m (100 ft) |
