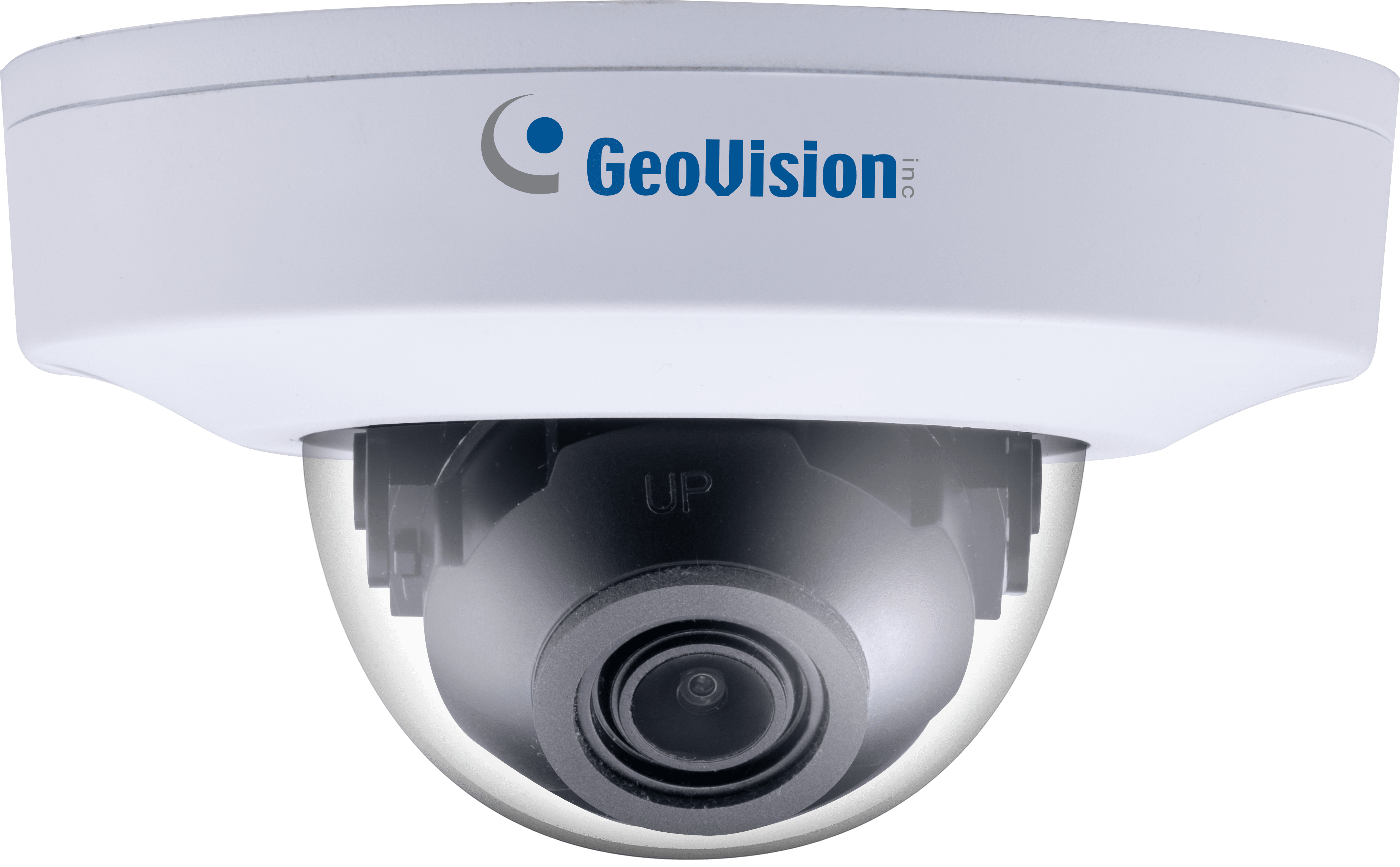

GV-TFD4700 is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.
Features:
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.01 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Two-way audio
- One sensor input and one alarm output
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Pigtail-free
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- Smartphone app support
- ONVIF (Profile G, S, T) conformant
| Camera | |
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Color Illumination |
|
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | Yes |
| Day / Night | Yes (with removable IR‐cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| Horizontal FOV | 95° |
| Operation |
|
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution |
|
| Frame Rate |
30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 1920 x 1080 (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics |
Motion Detection, Tampering Alarm, Audio Detection, Intrusion, Human Body Detection. *Tampering alarm, audio detection, Intrusion and Human Body Detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Image Setting |
Brightness, Contrast, Saturation, Sharpness, Flicker‐less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°), Exposure Mode, Shutter Speed, Gain Control,Slow Shutter, Backlight Compensation (BLC), Metering Control, D/N Sensitivity, WDR,Smart Illumination, White Balance, Defog |
| Audio Compression | G.711 |
| Audio Support | Two‐way Audio (external speaker required) |
| Digital I/O |
|
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Temperature Detector | No |
| Camera Angle Adjustment |
|
| Connectors |
|
| General | |
| Operating Temperature | 35°C ~ 60°C (‐31°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 5.5 W |
| Dimensions | Ø 108.6 x 61.8mm (Ø4.28” x 2.43”) |
| Weight | 0.22 kg (0.49 lb) |
| Regulatory | FCC, CE, RoHS compliant |
| Web Interface | |
| Installation Management | Web‐based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV‐IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV‐Mobile Server (V1.5.1) |
| Smart Device Access | GV‐Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
