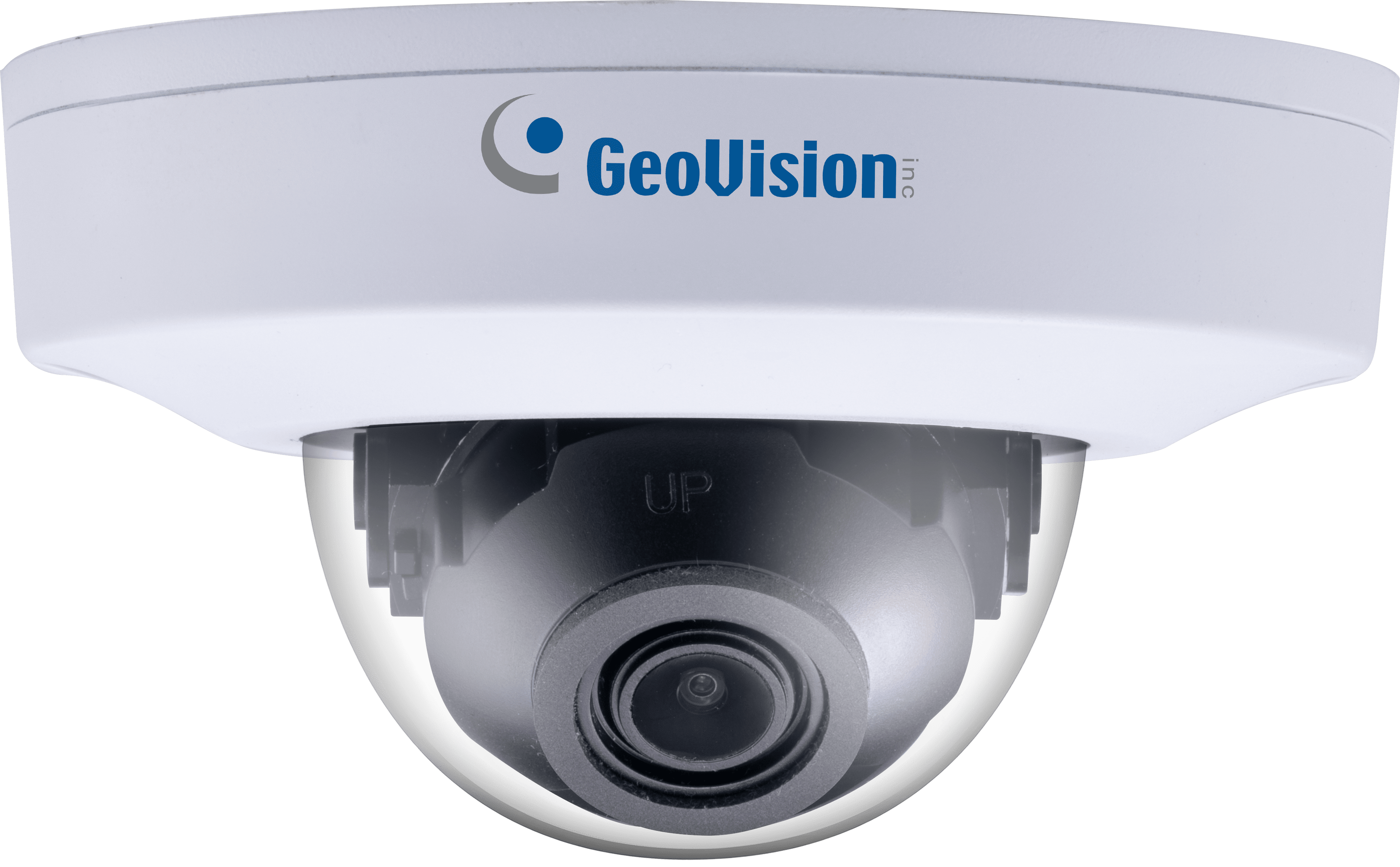

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.
Features:
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.01 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 20 fps at 2592 x 1520
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- 3-axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Wide Dynamic Range (WDR)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- Tampering alarm
- ONVIF (Profile G, S, T) conformant
| Camera | |
| Image Sensor | 1/3” progressive scan super low lux CMOS |
| Picture Elements | 2592(H) x 1520 (V) |
| Minimum Illumination |
|
| Shutter Speed | Automatic, Manual (1/25 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 52 dB |
| WDR | Yes |
| Dynamic Range | Up to 72 dB |
| Lens | |
| Megapixel | 4 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 2.8 ~ 12 mm |
| Lens Type | Varifocal lens |
| Maximum Aperture | F/1.6 |
| Mount | Ø 14 mm |
| Horizontal FOV | 97°~ 29° |
| Operation |
|
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Frame Rate |
|
| Video Analytics | Motion Detection, Tampering Alarm, Intrusion, Human Body Detection |
| Image Setting |
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°), Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight Compensation (BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance, Defog |
| Video Resolution | |
| Video Resolution |
|
| Network | |
| Interface | 10/100 Ethernet |
| Ethernet Protocol | ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS,RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment |
|
| Connectors |
|
| General | |
| Environment Temperature | ‐40 ~ 60°C (‐40 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 7 W |
| Dimension | Ø 148 x 111.3 mm (Ø5.8 x 4.4”) |
| Weight | 0.92 kg (2 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Regulatory | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Italian, Russian, Traditional Chinese |
| Applications | |
| Network Storage |
GV-VMS (V17.3.0 / V18.1.1), GV-DVR / NVR (V8.8), GV-Control Center (V3.7.0),GV-Recording Server / Video Gateway (V1.4.2), GV-Edge Recording Manager Win version (V1.4.0), GV-Redundant / Failover Server (V1.1.0.0) *It is required to apply patch files to all the supported software |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Safari, Firefox), Mobile App |
