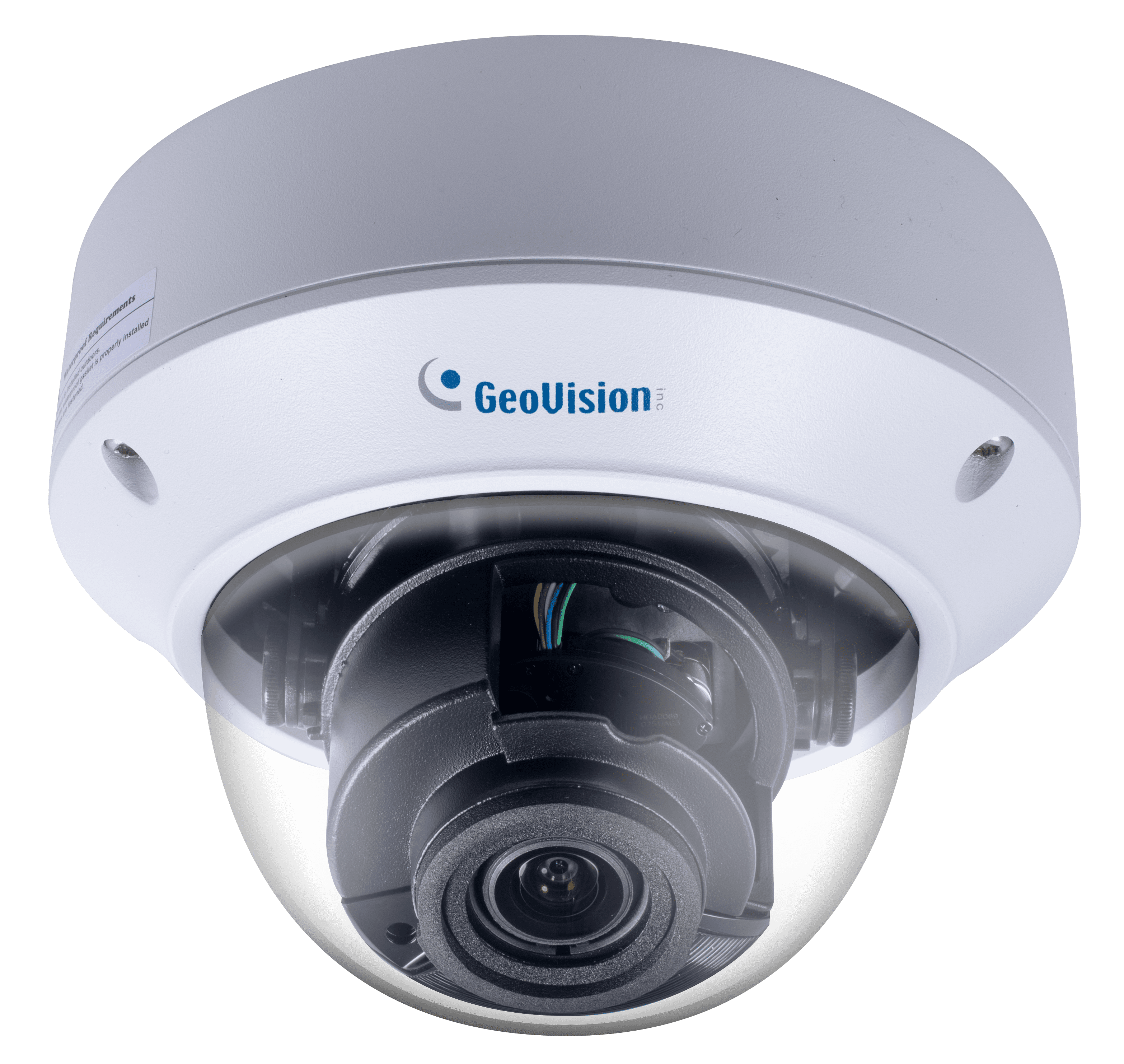

Geovision - GV-TVD8710 - 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
Part number:
GV-TVD8710
Price:

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD8710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.



Features:

  • 1/2" progressive scan super low lux CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Two-way audio
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • Tampering alarm
  • ONVIF (Profile G, S, T) conformant
Camera
Image Sensor1/2” progressive scan super low lux CMOS
Picture Elements3840 (H) x 2160 (V)
Minimum Illumination
  • Color 0.003 Lux (F1.5, AGC ON)
  • IR ON 0 Lux
Shutter SpeedAuto, Manual (1/6 ~ 1/100000 sec)
White BalanceAutomatic, Manual
Gain ControlAutomatic, Manual
S/N Ratio52 dB
WDR ProYes
Dynamic RangeUp to 120 dB
Lens
Megapixel8 MP
Day / NightYes (with removable IR-cut filter)
Lens TypeMotorized varifocal lens
Focal Length2.8 ~ 12 mm
Maximum ApertureF/1.5
MountØ 14 mm
Horizontal FOV114.8 ~ 47.3°
Operation
  • Focus Automatic / Manual
  • Zoom 4.3x Optical Zoom
  • Iris Fixed
IR LED Quantity2 IR LEDs
Max. IR Distance30 m (100 ft)
Operation
Video CompressionH.265, H.264, MJPEG
Video StreamingTriple streams
Frame Rate20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Video AnalyticsMotion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP
Image SettingBrightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°,90°, 180°, 270°‐including Corridor format)
Audio CompressionG.711
Audio SupportTwo‐way Audio (External speaker required)
Digital I/O
  • Input , dry contact, NO / NC
  • Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Video Resolution
Main Stream3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
Sub Stream1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
Third Stream (Closed by Default)720 x 576, 704 x 288, 640 x 360,352 x 288
Network
Interface10/100 Ethernet
Protocol802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Mechanical
Camera Angle Adjustment
  • Pan 0 ~ 360°
  • Tilt 0 ~ 80°
  • Rotate 0 ~ 360°
Connectors
  • Power DC Jack (DC 12V, 1.25A), PoE
  • Ethernet RJ-45
  • 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply
  • Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14”)
  • Local Storage Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) *UHS-II card type is not supported.
  • TV-Out BNC connector
General
Environment Temperature40 ~ 60°C (‐22 ~ 140°F)
Humidity0% ~ 95% (no condensation)
Power Source12V DC / PoE (IEEE802.3af)
Max. Power Consumption8.0 W
DimensionsØ 148 x 111 mm (Ø 5.8 x 4.4”)
Weight0.75 kg (1.7 lb)
Ingress ProtectionIP67
Vandal ResistantIK10 for metal casing
RegulatoryFCC, CE, RoHS compliant
Web Interface
Installation ManagementWeb-based configuration
MaintenanceFirmware upgrade through Web Browser or Utility
Access from Web BrowserLive View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,Defog, Text Overlay, Image Masking
LanguageCzech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,Spanish, Traditional Chinese
Applications
Network StorageGV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0),GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
Smart Device AccessGV-Eye for iOS and Android
Live ViewingBrowser (Chrome, Edge, Firefox, Safari), Mobile App
