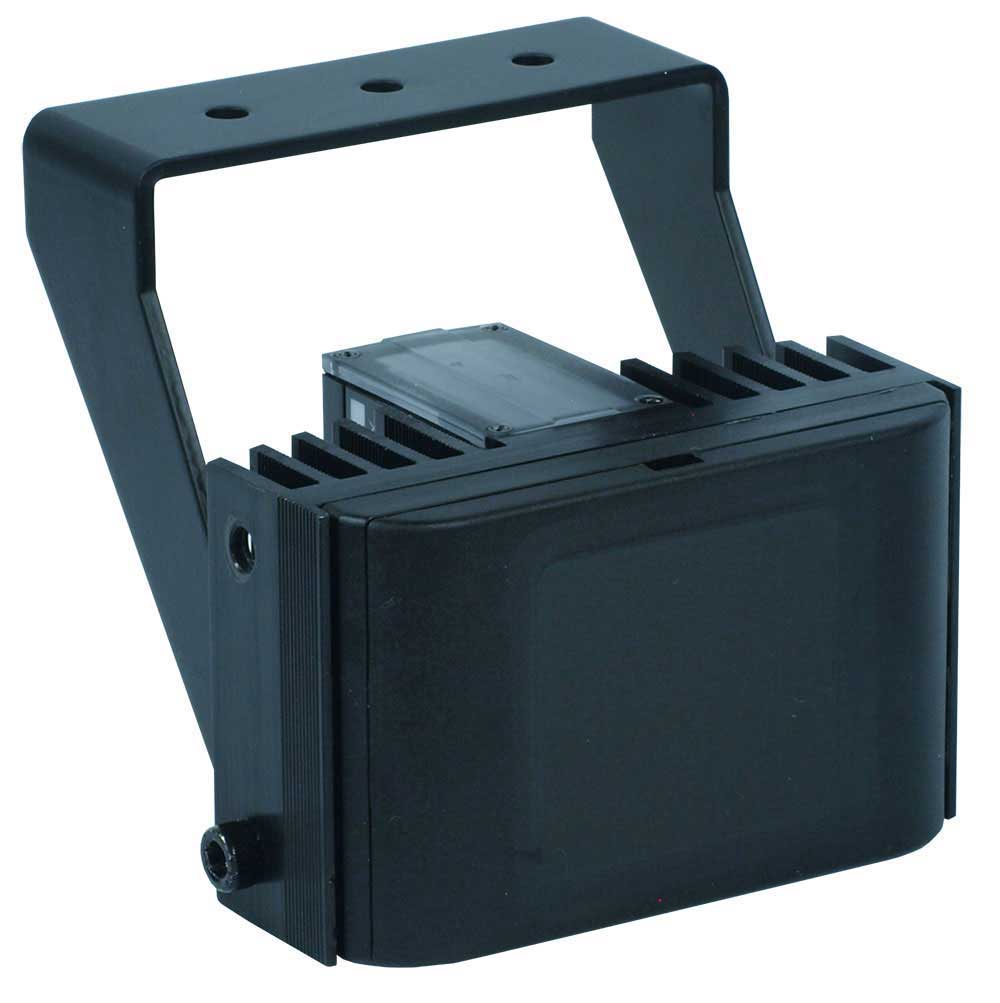

The Clarius Plus range of high performance Infra-Red LED illuminators are designed to provide class leading performance, long life and ultra low maintenance. Incorporating the latest surface mount dual core LED’s with enhanced optical output and outstanding reliability, they deliver excellent night-time images. Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.

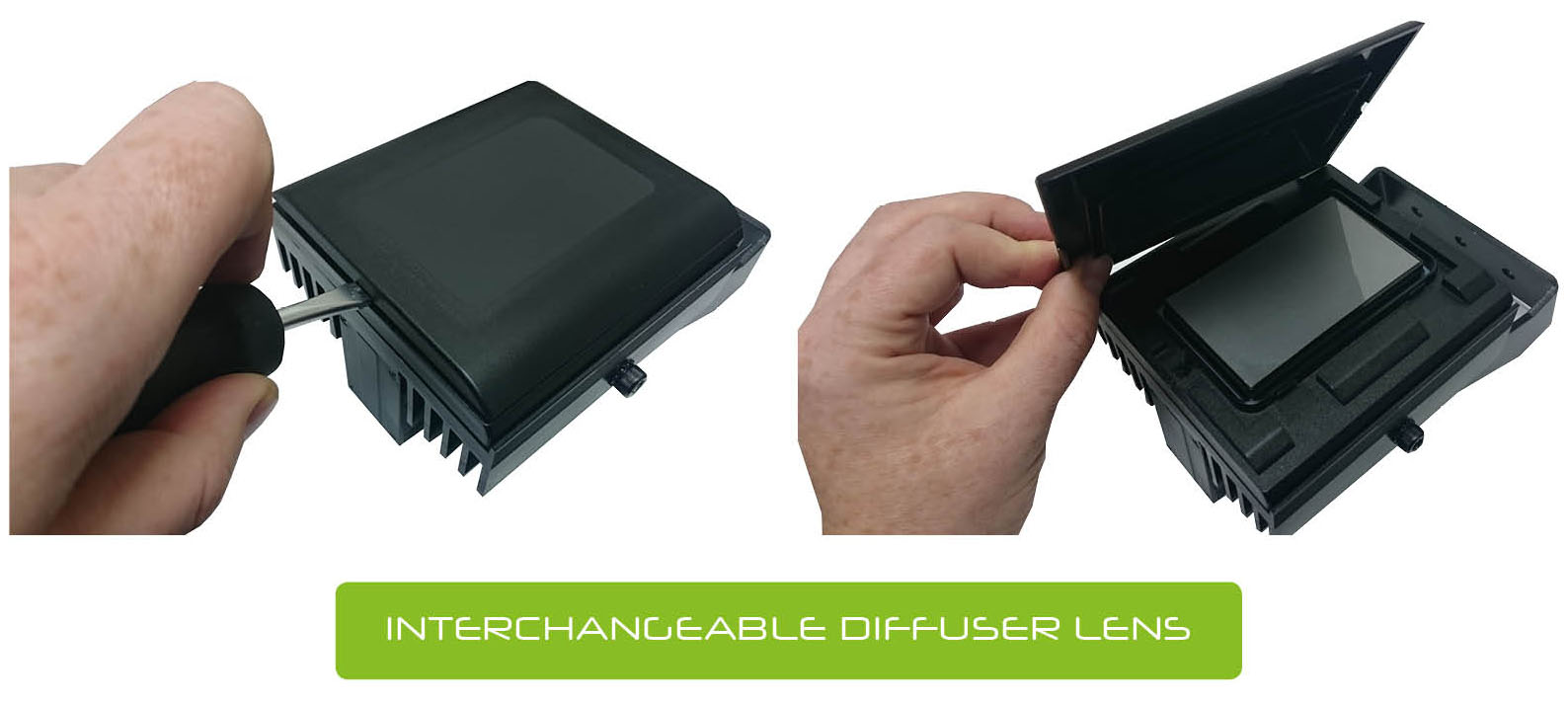

The Clarius Plus range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30°, 60° and 95° elliptical beam profiles. Installation is quick and easy, requiring only 12-32V DC / 24V AC +/-10%.
Features:
- Specific lighting for IP cameras via PoE (Power over Ethernet)
- Meets the IEEE802af standard
- Latest SMT Dual Core LED technology
- Elliptical beam profiles
- Distances up to 35m (115 ')
- Wavelengths of 850nm or 940nm
- 5 year warranty
- IP66 weather resistance rating
- Integrated IR on / off
- photocell After contact photocell
- Telemetry input for remote switching
- CleanLITE self-cleaning lens coating technology
| SPECIFICATION | |
| GENERAL | |
| Electronics | High Efficiency Surface Mount High Power Dual Core With Advanced Current Limited Integral Control Circuitry |
| Construction | Robust High Quality Aluminium Extrusion |
| Front Window | Polycarbonate High Transmission Protective (Vandal Proof) IR Filter with CleanLITE Technology |
| Finish | Black Anodised |
| Power Cable | 9ft (3m) including Photocell Following Contact & Remote Telemetry Input |
| Pressure Equalisation Vent | Prevents Thermal Expansion & Pressure Cycling |
| Photocell | Adjustable 20 -70 Lux |
| Illumination | Adjustable 10% - 100% |
| Operating Temperature | (-58º to 122ºF) -50° to 50ºC |
| Weight | 1.6lbs (750g) |
| Mount | Powder Coated Stainless Steel Wall Mount |
| Dimensions | 2.68” x 4.33” x 3.07” (68 x 110 x 78mm) |
| ELECTRICAL | |
| Input Voltage | 12-32V DC or 24V AC +/-10% |
| Input Current | 0.6A at 24V AC |
| Consumption | 15W |
| WAVELENGTH | |
| Standard | 850nm (Semi Covert). Faint Red Glow Only |
| Optional | 940nm (Covert). Minimal Visible Glow |
