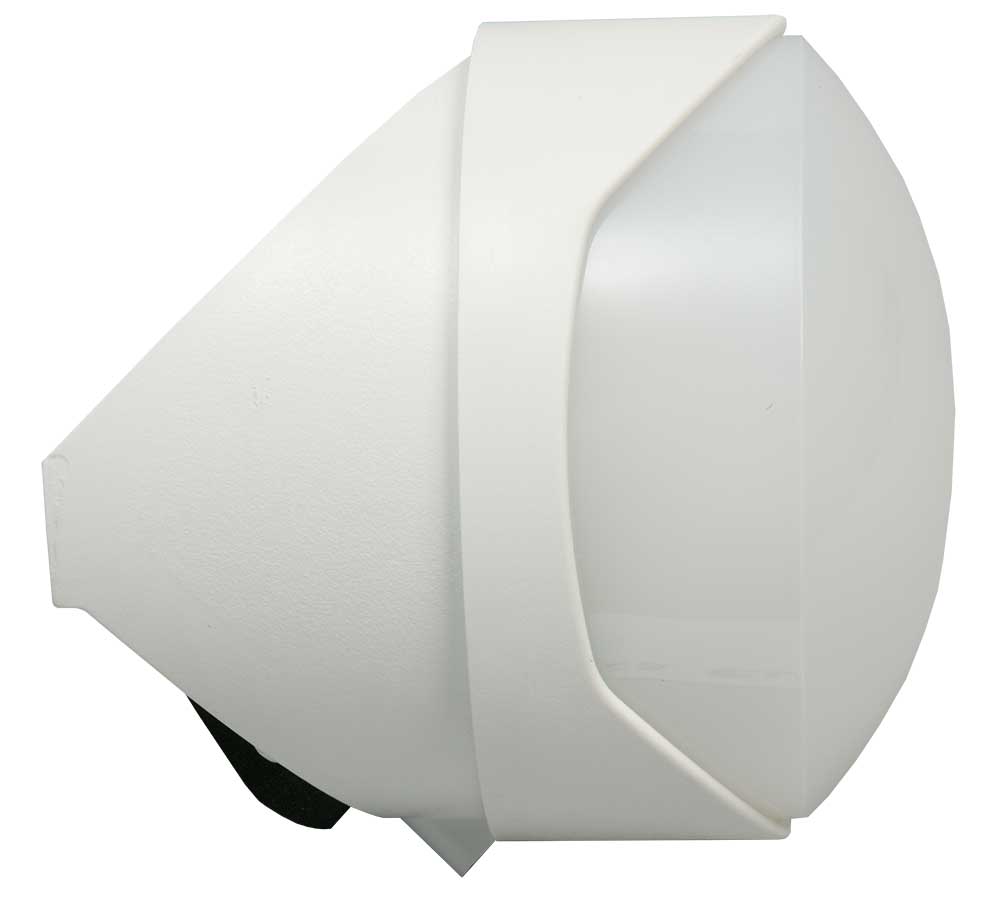

GJD - GJD023 - Elite 30m (98ft) PIR detector
Part number:
GJD023
Price:
Description
The Elite PIR offers various permutations of normally open and normally closed arrangements for the two volt-free relays, plus a selection of timing and functional options for the changeover contacts.
Other programmable parameters include the duration of timed changeover, a pulse count feature and a choice of detection ranges from 32.8ft to 114.84ft.
Features:
- Digital ASIC/ microprocessor control
- Output test mode with LED indication
- Digital white light filter
- Area reduction mask (ifrequired)
- Non-volatile memory
End User Benefits:
- Conformally coated electronics for increased stability
- GJD 100% test verification
- Aesthetically pleasing design
- Programmable detection ranges
| SPECIFICATION | |
| DETECTION AREA | 32.8ft (10m) to 114.8ft (35m) (adjustable) up to 2460ft (750) sq metres |
| COVERAGE | 90º 114.8ft x 98.5ft (35m x 30m) max |
| ADJUSTMENT | 180 degree pan + 90 degree tilt |
| FRESNEL LENS | 36 zone - white light filter |
| CUSTOMISED OPTICS | Double silicon shielded dual element eliminates 50,000+ lux of white light |
| OUTPUTS | Silent solid state magnetically immune |
| ALARM 1 ‘CCTV’ | Volt free relay signal contact @ 24VAC/DC @ 50mA with an integral 30Ohm series resistor. Selectable normally open/ normally closed. Adjustable timer options: 0.4 to 60 seconds |
| ALARM 2 ‘VIDEO’ | Volt free relay signal contact @ 24VAC/DC @ 50mA. Selectable normally open/normally closed with an integral 30 ohm series resistor. Adjustable timer options: 2 to 60 seconds |
| ALARM 3 ‘A’ | Open collector negative switching - 25mA max. Alarm period 400ms |
| ALARM 4 ‘S’ | Open collector negative switching - 25mA max. Alarm period: Detection + 60 seconds Adjustable: Dusk (2 lux) to 24 hour |
| POWER INPUT | 9 to 15VDC |
| CURRENT | 10mA (12V nominal) |
| PULSE COUNT | 1,2,3 & 4 previous detection ≤ 6 seconds |
| TAMPER | Opens for 2 seconds when cover removed and / or ‘A’ & ‘S’ outputs pulse for 60 seconds (programmable) |
| TEMPERATURE COMPENSATION | Digital sensitivity adjustment |
| OPERATING TEMPERATURE | -20 to +55ºC |
| HOUSING | High Impact ABS |
| PROTECTION RATING | IP55 |

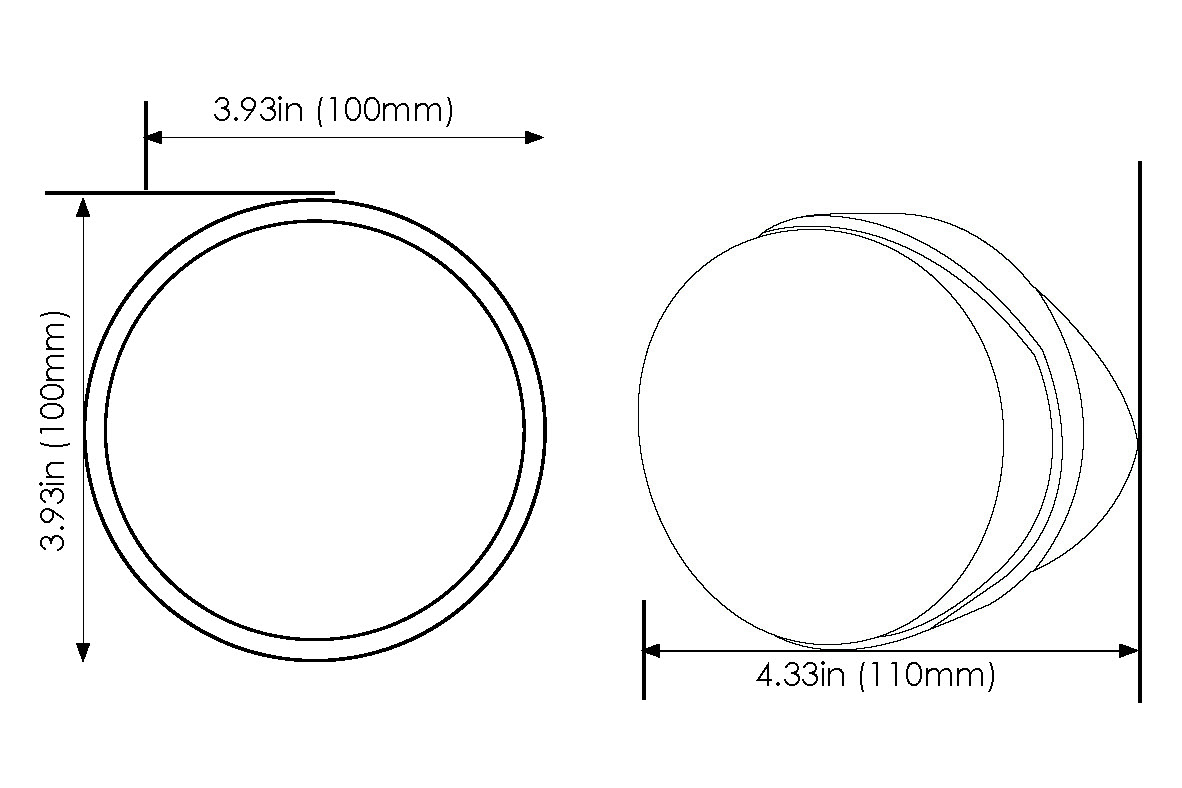

| DIMENSIONS | 4.09in x 3.93in x 3.93in (104 x 100 x 100mm) |
| WEIGHT | 145 grams |
| MOUNTING HEIGHT | Variable - optimum height 9.84ft (3m) |
| CABLE UP TO 200 METRES UP TO 500 METRES | Utilising all four outputs - 8 core 7/0.2mm Utilising all four outputs - 8 core 16.0.2mm |
| PART NUMBER (WHITE) | GJD023 |
