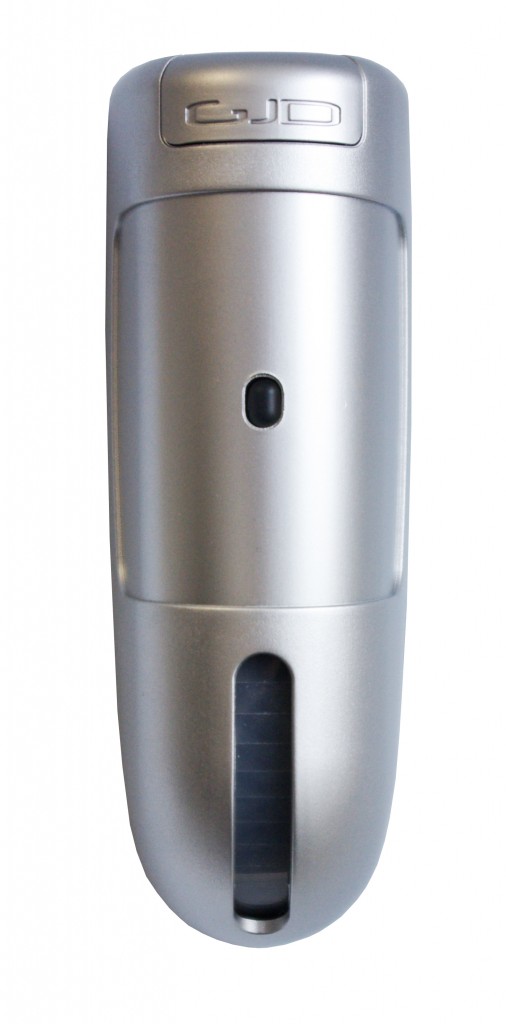

The Pearl sensor is an outdoor detector, which uses PIR, anti-masking and microwave sensors for triple detection. The detector will aid to protect properties against crime with its invisible curtain. The Pearl can be positioned to look across windows, doors or the entire length of the house or property wall.
The Pearl detector is supplied with a customisable “T” bracket for narrow beam applications protecting across a door or window. An additional swivel bracket can be purchased for applications that require a customisable pan and tilt angle.
Features:
- Triple technology, PIR, microwave and anti-masking
- Narrow PIR curtain lens
- Up to 12m selectable detection range
- N/C volt free contacts for alarm, mask and tamper
- Masking detection prevents intruder tampering
End User Benefits:
- IP65 (Suitable for outdoor use)
- Low voltage 12V DC supply input
- Temperature compensation for extreme environments
- Available in silver or white
- Four selectable detection ranges

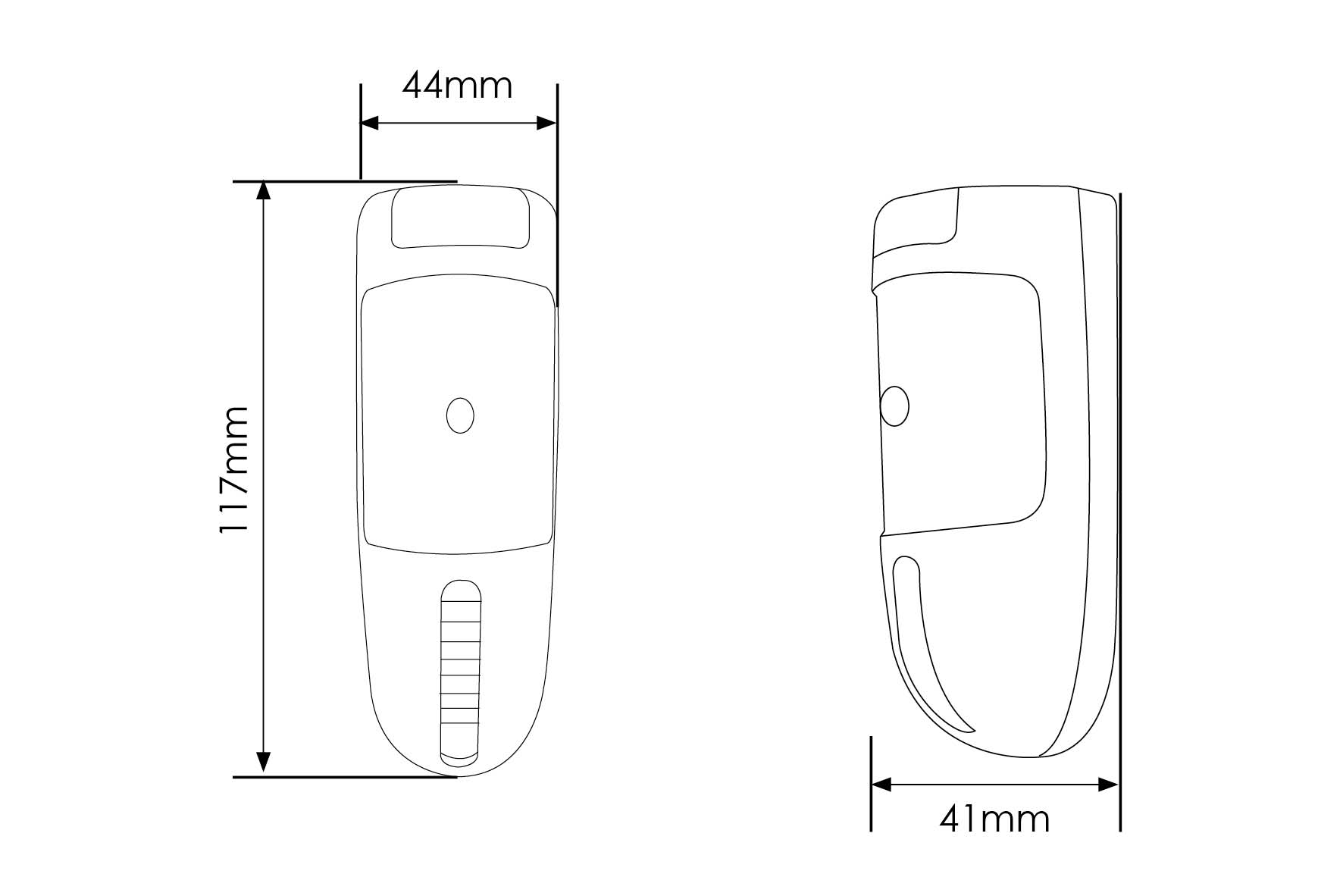

PRODUCT CODE GJD141 DETECTION RANGE 9.85ft, 19.6ft, 29.5ft, 39.3ft (3m, 6m, 9m, 12m) NORMALLY CLOSED ALARM 50mA 24Vdc alarm time 10s NORMALLY CLOSED MASKING 50mA 24Vdc NORMALLY CLOSED TAMPER with 20Ω impendence 50mA POWER INPUT 12V +/- 3V @ max 40mA During installation the DC supply fault current shall be limited to a maximum of 1A OPERATING TEMPERATURE -20ºC to +55ºC TEMPERATURE COMPENSATION Digital MICROWAVE FREQUENCIES GJD141 10.525GHz MAX BEAM PATTERN AREA 39.3ft x 6.56ft (12m x 2m) DIMENSIONS 4.6in (h) x1.73in (w) x 1.61in (d)
(117mm x 44mm x 41mm)
T-BRACKET 4.72in (h) x 2.67in (w) x 1.96in (d)
120mm x 68mm x 50mm
BOXED 4.92in (h) x 3.66in (w) x 2.28in (d)
125mm(h) x 93mm(w) x 58mm(d)
WEIGHT 0.33lb (154g) PACKED WEIGHT 440g (200g) CABLE (<200m) 8 core 7/0.2mm WALK TEST Using LED indication RECOMMENDED MOUNTING HEIGHT 6.56ft x 8.20ft (2 - 2.5m) SWIVEL BRACKET ACCESSORY GJD 149
