GJD - GJD149 - Pearl Swivel Bracket Silver
Part number:
GJD149
Price:
Description

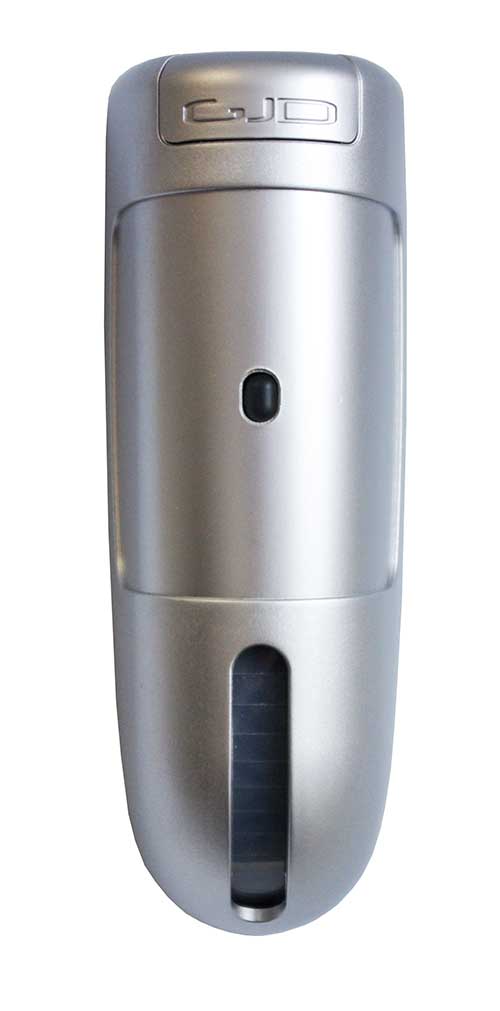

The Pearl sensor is an outdoor triple technology anti-masking motion detector, which uses PIR and microwave sensors for triple detection. The motion detector will aid to protect properties against crime with its invisible curtain. The Pearl can be positioned to look across windows, doors or the entire length of the house or property wall. It also comes equipped with anti-masking circuitry and separate output contacts.

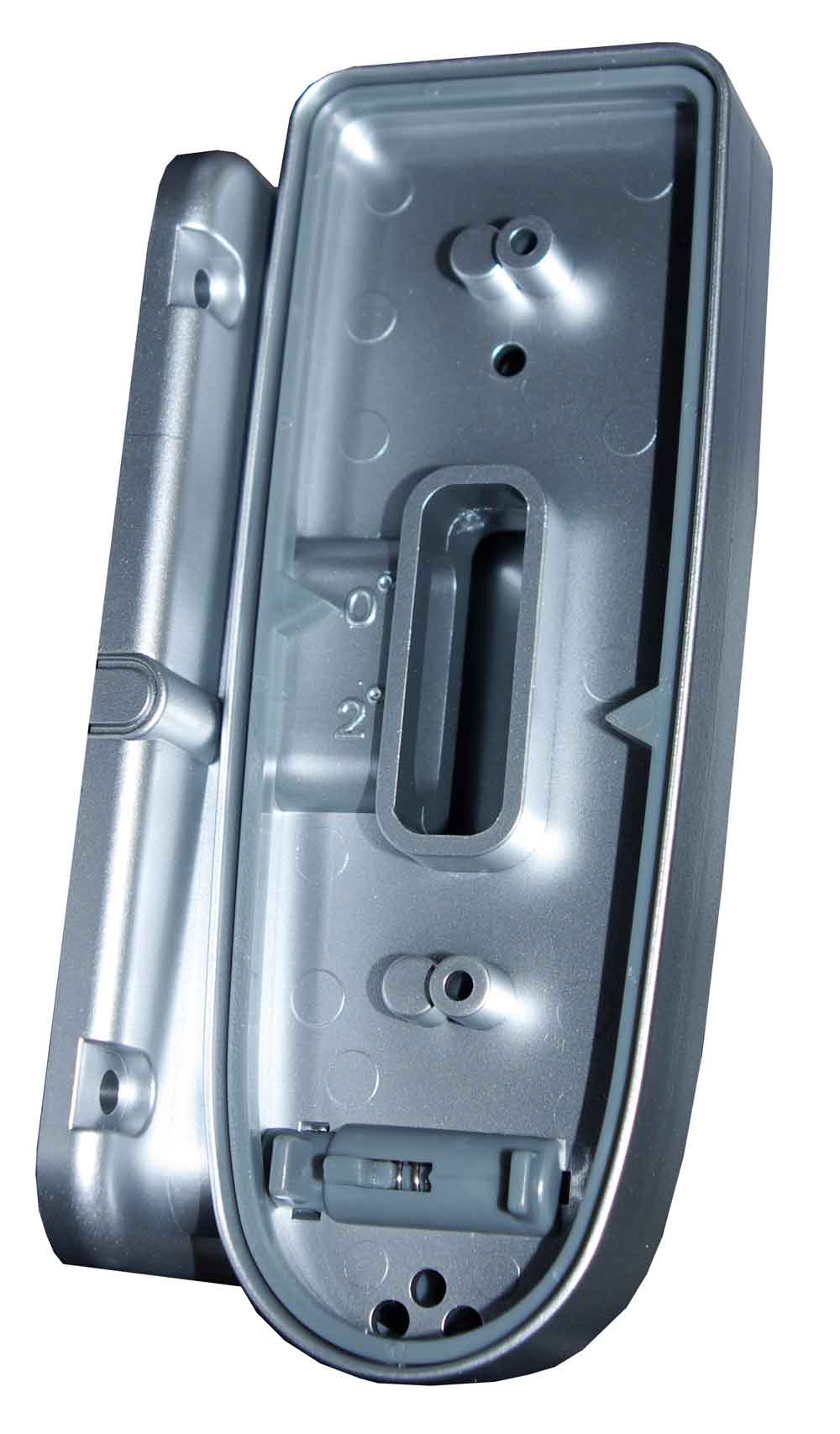

The Pearl detector is supplied with a customisable “T” bracket for narrow beam applications protecting across a door or window. An additional swivel bracket can be purchased for applications that require a customisable pan and tilt angle.

PRODUCT CODEGJD141
DETECTION RANGE9.85ft, 19.6ft, 29.5ft, 39.3ft (3m, 6m, 9m, 12m)
NORMALLY CLOSED ALARM50mA 24Vdc alarm time 10s
NORMALLY CLOSED MASKING50mA 24Vdc
NORMALLY CLOSED TAMPERwith 20Ω impendence 50mA
POWER INPUT12V +/- 3V @ max 40mA
During installation, the DC supply fault current shall be limited to a maximum of 1A
OPERATING TEMPERATURE-20ºC to +55ºC
TEMPERATURE COMPENSATIONDigital
MICROWAVE FREQUENCIESGJD141 10.525GHz
MAX BEAM PATTERN AREA39.3ft x 6.56ft (12m x 2m)
DIMENSIONS4.6in (h) x1.73in (w) x 1.61in (d)
(117mm x 44mm x 41mm)
T-BRACKET4.72in (h) x 2.67in (w) x 1.96in (d)
120mm x 68mm x 50mm
BOXED4.92in (h) x 3.66in (w) x 2.28in (d)
125mm(h) x 93mm(w) x 58mm(d)
WEIGHT0.33lb (154g)
PACKED WEIGHT440g (200g)
CABLE (<200m)8 core 7/0.2mm
WALK TESTUsing LED indication
RECOMMENDED MOUNTING HEIGHT6.56ft x 8.20ft (2 - 2.5m)
SWIVEL BRACKET ACCESSORYGJD 149
Name
Description
Size
Downloads
File
Pearl Manual
1.1mb
File
Pearl Curtain Beam Datasheet
0.5mb
