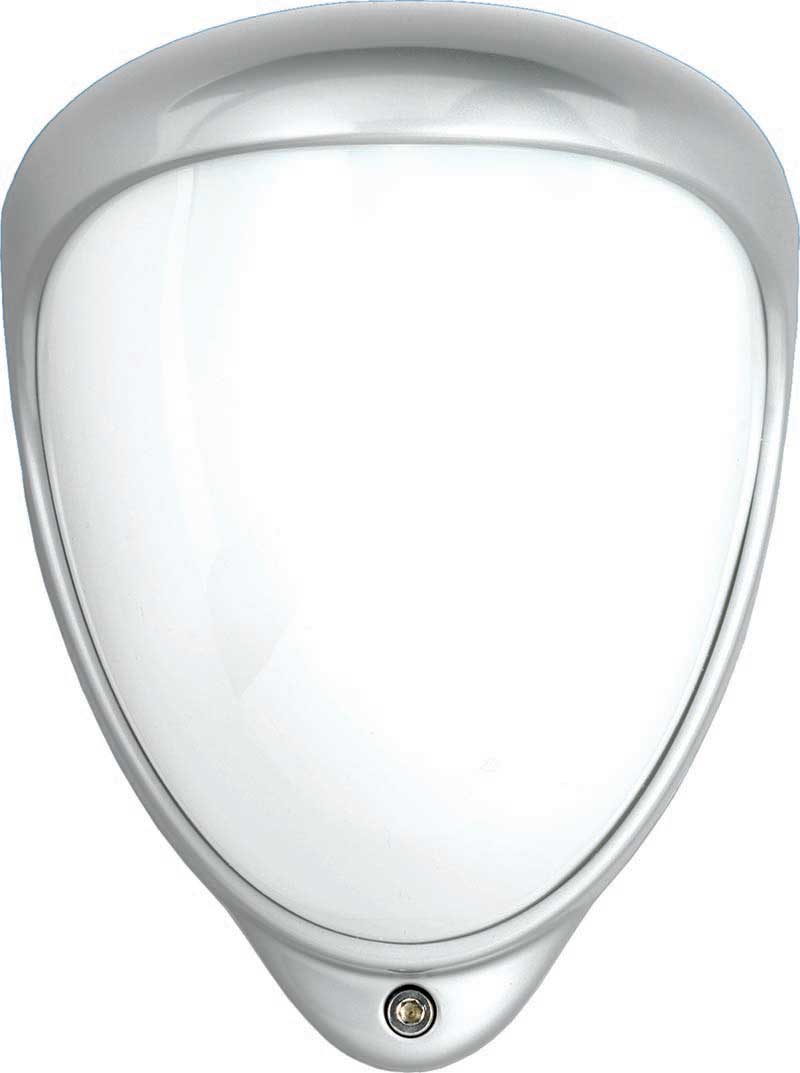

GJD - GJD300 - D-TECT2 30m (98ft) x 30m (82ft) volumetric PIR Detector - Silver Housing
Part number:
GJD300
Price:
The D-TECT 2 is a BS8418 compliant, quad element PIR external movement detector, which can be used to control cameras, connect to alarm panels and communicate with GJD’s lighting control systems.
The detector’s quad PIR sensing module is equipped with two volt free and two negative switched outputs with a programmable beam range of up to 30m, avoiding boundary overspill and offering truly exceptional resistance to false alarms.
Features:
- Adjustable pan and tilt
- A conduit cable adaptor is available
- Engineer friendly features to ease cable terminations, set-up and servicing
- Covert sensor module
End User Benefits:
- Modern design
- Exceptional resistance to false alarms
- Easy to install and highly cost effective
- Robust zinc alloy metal housing
- Integral EOL resistors
| SPECIFICATIONS | |
| RANGE | Up to 30m programmable |
| COVERAGE | 10º - 70º detection angle, 30m x 30m max |
| ADJUSTMENT | 180º pan + 90º tilt, pan & tilt alignment markers |
| MOUNTING HEIGHT | Up to 6m (with range reduction) - Optimum 3m |
| FRESNEL LENS | 28 zones for each Pyro pair |
| CUSTOMISED OPTICS | Double silicon shielded quad element eliminates 50,000 Lux of white light |
| INDICATORS | 1 x Blue LED on detection |
| OUTPUTS | 2 x volt-free, silent solid state magnetically immune 2 x neg. switched plus one common tamper (front and rear switches) |
| END OF LINE RESISTANCE (EOL) | Selectable from 1K, 2K2, 3K3, 4K7, 5K6, 6K8 |
| POWER INPUT | 9-24 V AC/DC |
| CURRENT | 11 mA (12V nominal) |
| PULSE COUNT | 1-3 |
| WALK TEST | Output test mode with LED indication |
| OPERATING TEMP | -20ºC to +55ºC conformally coated electronics for increased stability |
| TEMP. COMPENSATION | Digital sensitivity adjustment |
| TIMER OPTIONS | 2 to 60 seconds |
| LIGHT SENSING | Dusk (2 Lux) to 24 hour |
| HOUSING | High impact zinc alloy |
| PROTECTION RATING | IP65 |

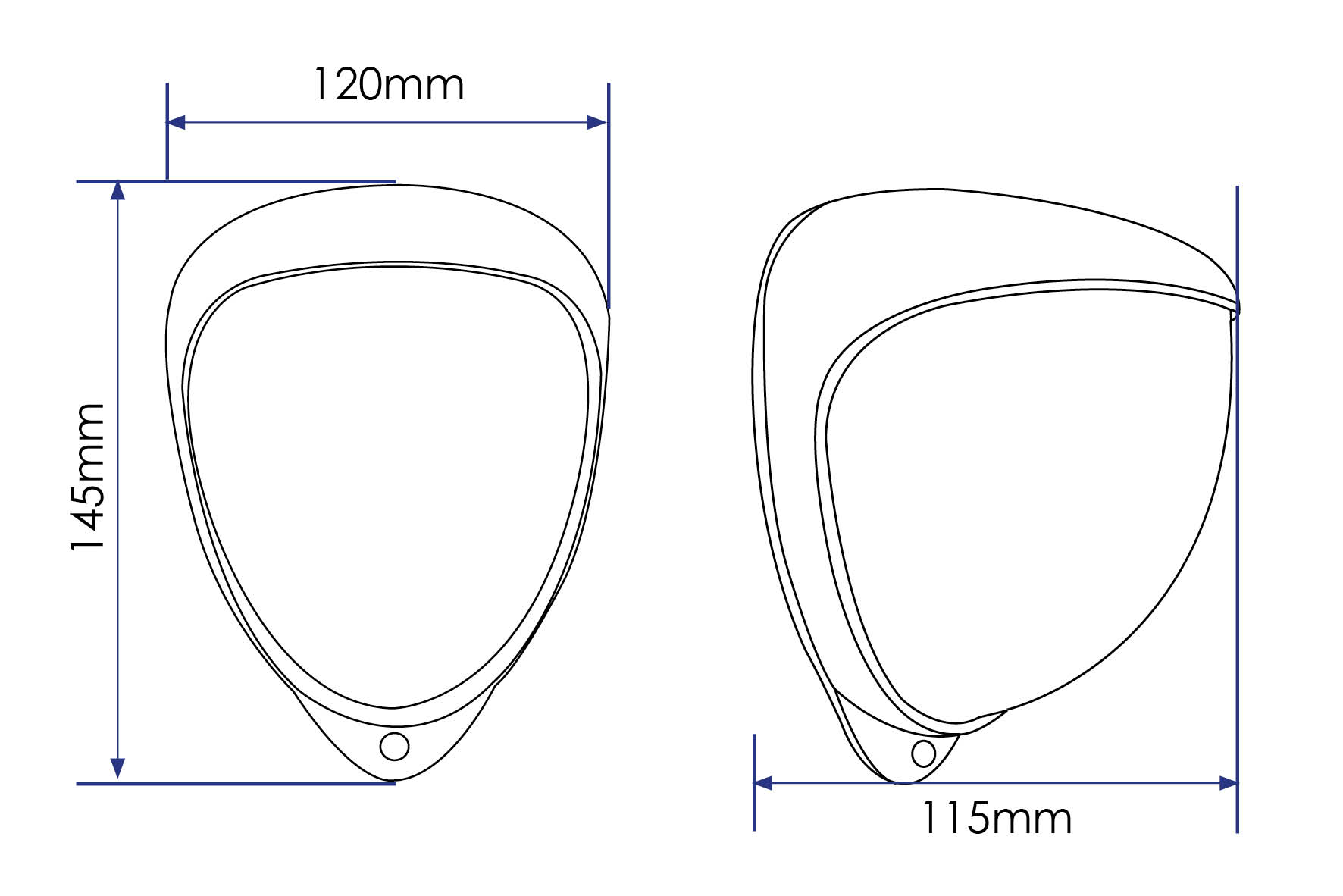

| DIMENSIONS | 145 x 120 x 115 mm |
| WEIGHT | 770g NET, 910g GROSS |
| CABLE | <200M Utilising all five outputs (incl. tamper) - 12 core 7/0.2mm |
| CABLE | <500M Utilising all five outputs (incl. tamper) - 12 core 16/0.2mm |
